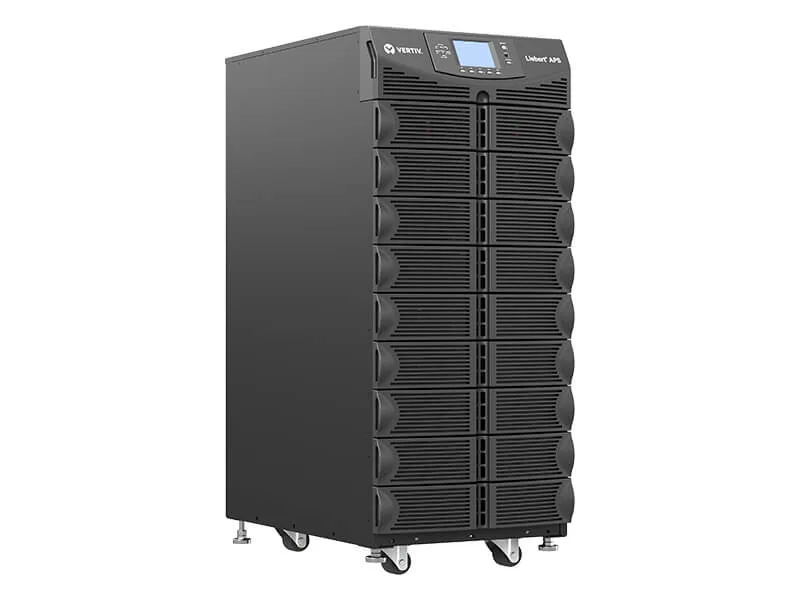

Tall rectangular rack tower UPS in dark grey finish with front display panel

Vertiv

Vertiv Liebert AL3B0NHVGNNXLKB UPS 10kVA 9.0kW 208V 8min Lithium Ion

SKU CH-RDR2-JZFEY MPN AL3B0NHVGNNXLKB

Double-conversion online UPS delivers 10 kVA / 9 kW at 208 V with lithium-ion battery providing 8 minutes at full load or 17 minutes at half load

  • International Version208V
  • Input Voltage Range200/208/220/230/240 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection3-Wire (L-L-G)
  • VA Rating10 kVA
  • Watts9kW

Option AL3B0NHVGNNXLKB

Show 16 more configurations
  • 10 kVA double-conversion online topology protects critical loads
  • Lithium-ion battery delivers 8 minutes runtime at full load
  • Hot-swappable power, battery and control modules enable maintenance without downtime
  • Wide 200–240 VAC input range tolerates unstable utility power
  • 50/60 Hz user-configurable output frequency matches regional requirements

Three-phase 10 kVA double-conversion UPS

The Vertiv Liebert AL3B0NHVGNNXLKB is a 10 kVA, 9.0 kW online UPS designed for three-phase 208 VAC input and 208/120 VAC output. It accepts a 200 to 240 VAC range with 40 to 70 Hz auto-sensing and uses a 3-wire L-L-G connection. Lithium-ion batteries provide 8 minutes of runtime at full load. This unit suits data-centre racks or tower deployments needing continuous power conditioning.

Lithium-ion battery runtime and thermal envelope

At full load the internal lithium-ion pack delivers 8 minutes of backup; at half load the runtime extends to 17 minutes. The UPS operates reliably between 0 °C and 40 °C (32 °F to 104 °F) in humidity up to 95 % non-condensing. Double-conversion topology isolates connected equipment from input frequency and voltage variations without switching delays.

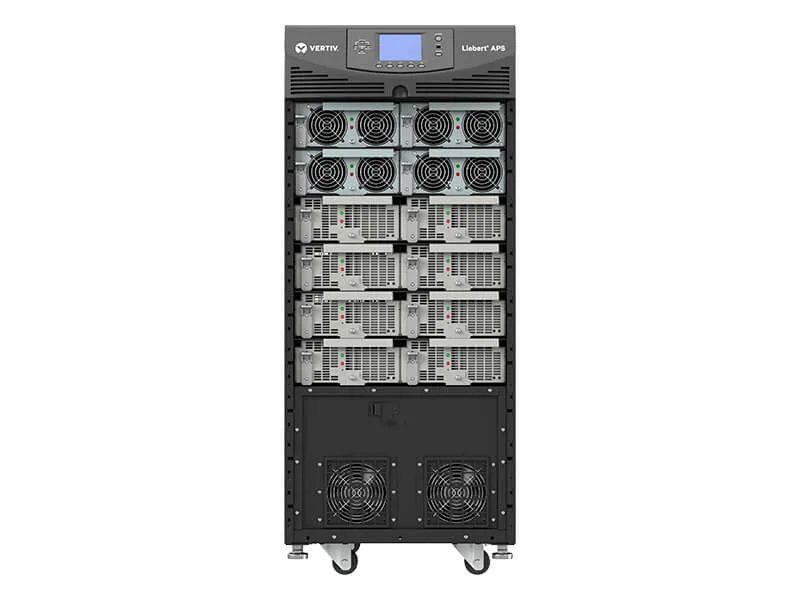

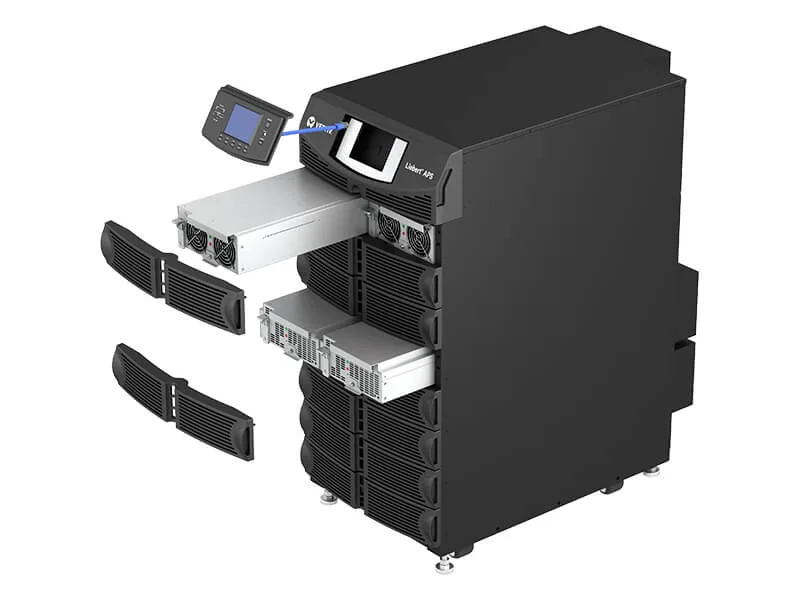

Hot-swappable modules for uninterrupted maintenance

Power, battery and control modules can each be replaced while the system remains online, eliminating downtime during service. The rack/tower form factor measures 42 by 17 by 32 inches and weighs 592 lbs, requiring adequate floor or rack space and structural support. Buyers needing longer battery autonomy or a different voltage architecture will need an alternative solution.

Highlights

  • 10 kVA double-conversion online topology protects critical loads
  • Lithium-ion battery delivers 8 minutes runtime at full load
  • Hot-swappable power, battery and control modules enable maintenance without downtime
  • Wide 200–240 VAC input range tolerates unstable utility power
  • 50/60 Hz user-configurable output frequency matches regional requirements

Specifications

BrandVertiv
SeriesLiebert
ModelAL3B0NHVGNNXLKB
International Version208V
Input Voltage Range200/208/220/230/240 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection3-Wire (L-L-G)
VA Rating10 kVA
Watts9kW
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeLithium Ion
Battery Run TimeFull Load: 8 mins.
Half Load: 17 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions42" x 17" x 32"
Weight592 lbs.
Shipping weight268.53 kg
Package size1067 × 1067 × 432 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 208 VAC 3-wire L-L-G input connection and what step is often missed?

Mount the 42" x 17" x 32" rack/tower unit, connect the three-wire L-L-G feed at 200-240 VAC, then configure the output frequency to 50 Hz or 60 Hz; the step often missed is setting the frequency before applying load.

What maintenance will the lithium-ion battery need and when is replacement expected?

The hot-swappable battery modules can be replaced without shutting down the UPS; lithium-ion cells typically last several years at 0-40 °C operating temperature before runtime drops below the 8-minute full-load rating.

What is the first limit reached during sustained full-load operation?

At 10 kVA and 9 kW the battery provides 8 minutes of runtime; after that the UPS shuts down unless utility power returns or an external generator takes over.
