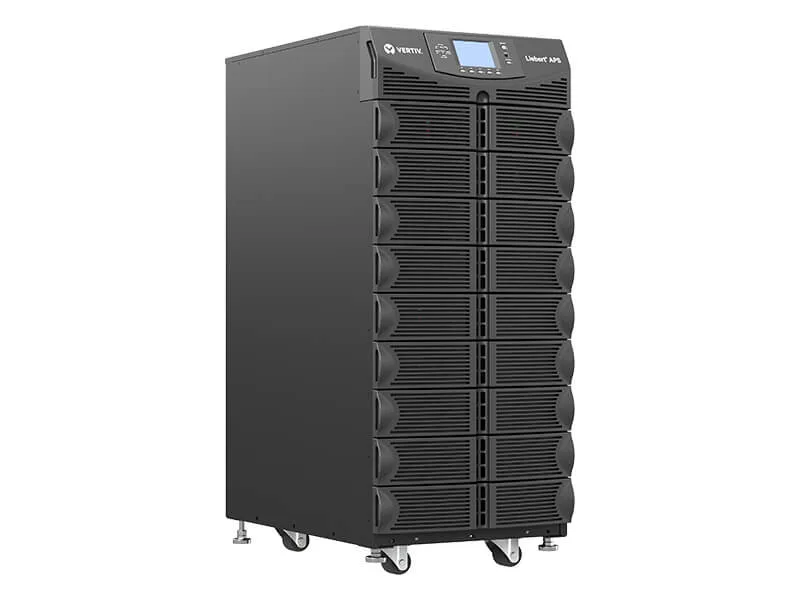

Tall grey rack-tower UPS cabinet 42 by 17 by 32 inches with front LCD panel

Vertiv

Vertiv AS3C0NCWGNNXLKB 15 kVA UPS 208V 5 min runtime

SKU CH-FFRG-NNV34 MPN AS3C0NCWGNNXLKB

15 kVA online double-conversion UPS delivers 13.5 kW with five minutes full-load runtime in a rack or tower form factor

  • International Version208V
  • Input Voltage Range200/208/220/230/240 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection3-Wire (L-L-G)
  • VA Rating15 kVA
  • Watts13.5 kW

Option AS3C0NCWGNNXLKB

Show 16 more configurations
  • Scalable 15 kVA capacity supports growing loads
  • Five minutes full-load runtime protects critical equipment
  • Online double-conversion topology delivers clean 13.5 kW output
  • Rack or tower form factor fits diverse installations
  • LCD status display simplifies local monitoring

Scalable 15 kVA modular UPS

The Vertiv Liebert AS3C0NCWGNNXLKB is a new 15 kVA online double-conversion UPS that delivers 13.5 kW at 208 V single-phase. It is built for server rooms and network closets that need N+1 redundancy in a rack or tower footprint. A factory-installed SNMP webcard provides remote monitoring out of the box.

Sustained load behaviour

At full 15 kVA load the internal VRLA batteries supply power for 5 minutes, while half load extends runtime to 14 minutes. The 144 V DC bus and auto-sensing 40 Hz to 70 Hz input keep the inverter stable through generator transitions and fluctuating utility frequency without dropping the critical load.

Thermal and power profile

Thermal dissipation is rated at 1233.24 W while operating between 0 °C and 40 °C in 0 to 95 % non-condensing humidity. The unit measures 42 by 17 by 32 inches and weighs 795 lbs, so floor loading and aisle clearance must be planned before installation.

Highlights

  • Scalable 15 kVA capacity supports growing loads
  • Five minutes full-load runtime protects critical equipment
  • Online double-conversion topology delivers clean 13.5 kW output
  • Rack or tower form factor fits diverse installations
  • LCD status display simplifies local monitoring

Specifications

BrandVertiv
SeriesLiebert
ModelAS3C0NCWGNNXLKB
International Version208V
Input Voltage Range200/208/220/230/240 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection3-Wire (L-L-G)
VA Rating15 kVA
Watts13.5 kW
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load: 5 mins.
Half Load: 14 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions42" x 17" x 32"
Weight795 lbs.
Shipping weight360.61 kg
Package size1067 × 1067 × 432 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the 15 kVA unit reject when it runs continuously at full load?

The thermal dissipation is 1233.24 W, so the room cooling must handle that continuous load plus the 795 lb weight of the cabinet.

What input wiring and voltage must the site already provide for the 3-wire L-L-G connection?

The UPS expects a 200/208/220/230/240 VAC supply at 40 Hz to 70 Hz auto-sensing on a three-wire line-line-ground feed.

Will the 144 V DC battery string work with an existing Liebert rack that uses the same DC bus voltage?

Yes, the internal DC system voltage is 144 V DC, matching other Liebert modules that share the same bus architecture.
