WaveShare 10.1 inch touchscreen portable monitor IPS 1024 by 600 178 degree viewing angle

WaveShare

WaveShare 10.1" Touchscreen Portable Monitor 1024×600 IPS 178°

SKU CH-4BN6-DF56R

A 10.1 inch portable touchscreen monitor with 1024×600 IPS panel, 178° viewing angle and plug-and-play HDMI connectivity

  • CPU TypeOther
  • Sharp 1024×600 IPS panel with 178° viewing
  • Responsive 5-point capacitive touch, 3-5 ms latency
  • Driver-free HDMI plug-and-play across OS
  • Works with Raspberry Pi 4 3 2 1
  • Dual built-in speakers for audio output

10.1" IPS Portable Touchscreen Monitor

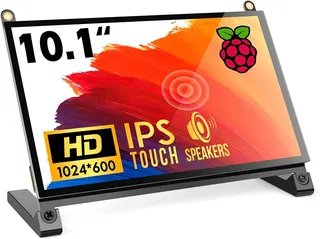

The WaveShare 10.1 inch portable monitor combines a 1024×600 IPS panel with a 178° viewing angle and five-point capacitive touch. It targets Raspberry Pi enthusiasts, embedded developers and anyone needing a compact secondary display that works driver-free across Windows, Linux and macOS. The screen accepts HDMI video input and draws power over USB.

Resolution and Interface Limits

Native resolution is 1024×600, though the scaler accepts signals up to 1920×1080; images above the native grid are down-sampled, so fine text may lose sharpness. The HDMI port carries video only, while touch data and backlight power travel over a separate USB link, meaning two cables are always required. The panel tops out at 60 Hz and offers no adaptive-sync or HDR capability.

Plug-and-Play Setup and Common Issues

No driver installation is needed on supported operating systems; the monitor enumerates as a standard HID touch device and an external display. The most frequent issue is forgetting to peel both protective films, which degrades clarity and touch responsiveness. Insufficient USB current from a weak port can cause flicker or touch drop-outs, so a powered hub or adequate supply is advised.

Puntos fuertes

  • Sharp 1024×600 IPS panel with 178° viewing
  • Responsive 5-point capacitive touch, 3-5 ms latency
  • Driver-free HDMI plug-and-play across OS
  • Works with Raspberry Pi 4 3 2 1
  • Dual built-in speakers for audio output

Especificaciones

CPU TypeOther

Preguntas sobre este artículo

Which resolution should I pick between 1024×600 and 1920×1080?

The panel is a native 1024×600 IPS display; it can accept a 1920×1080 signal and downscale it, but the on-screen detail remains limited to 1024×600 pixels.

What does the 178° viewing angle mean when the monitor is on my desk?

Colours and contrast stay consistent whether you look straight on or from far off-centre, so the picture does not wash out when you shift position.

How does the HDMI input limit what I can connect?

The single HDMI port carries both video and touch data, so any device with HDMI output — Raspberry Pi 4, 3, 2, 1, 3B+, 400, laptops, game consoles — can drive the screen without extra cables or drivers.
