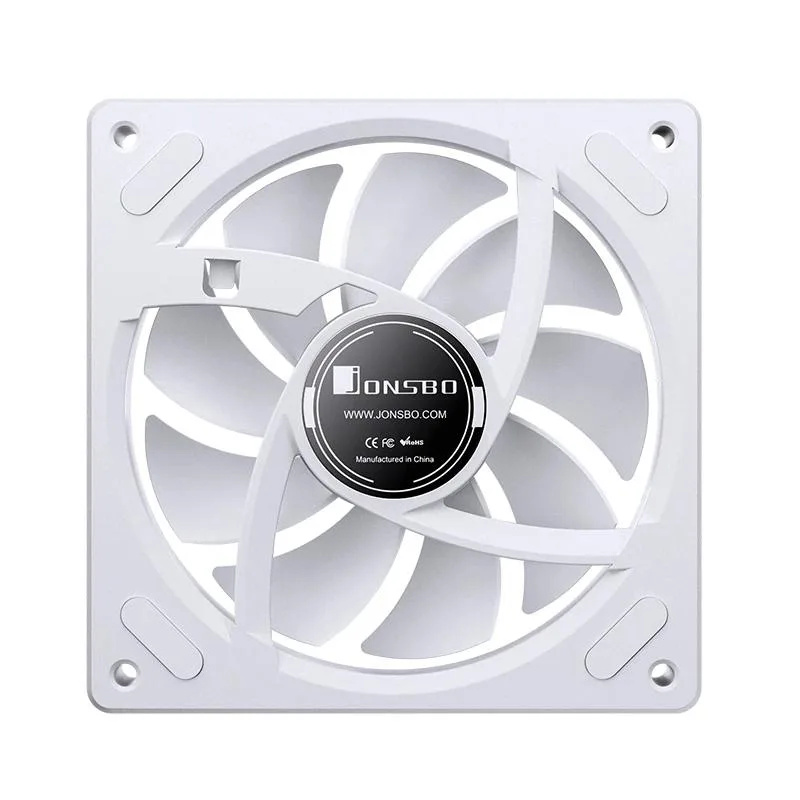

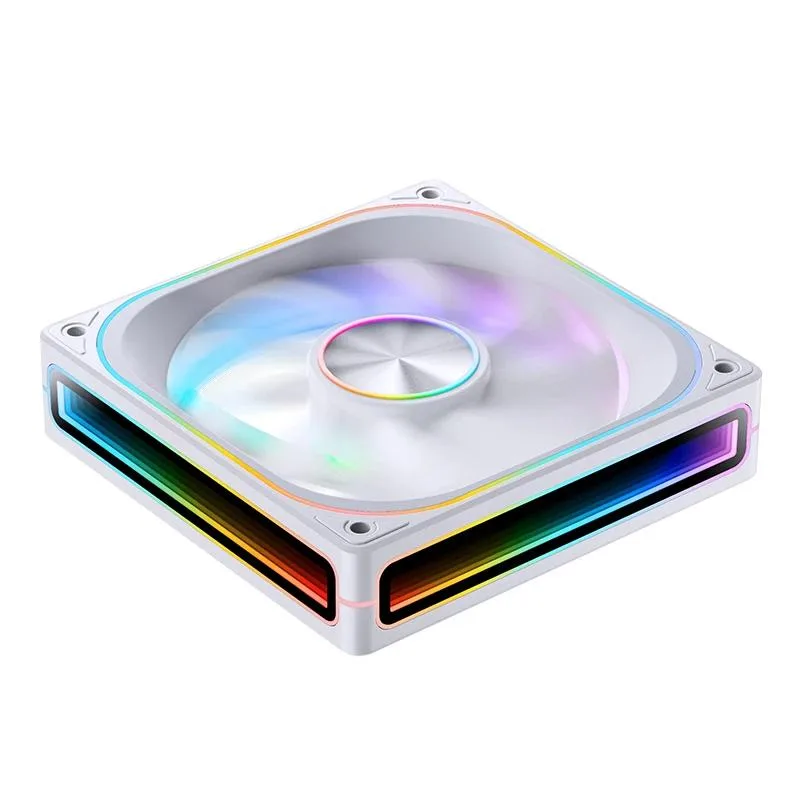

White 140 mm square fan with four-sided infinity mirror lighting and aluminium nameplate

JONSBO

JONSBO ZA-120WR 140mm case fan 700-1800 RPM

SKU CH-YDM0-Y0940 MPN ZA-120WR

A 140 mm case fan spins at 700-1800 RPM and delivers 18.75-47.71 CFM airflow at 16.4-30.7 dB(A) with four-sided infinity-mirror ARGB lighting

  • Fan Size140mm
  • LEDARGB
  • TypeCase Fan
  • RPM700-1800 RPM
  • Air Flow18.75-47.71 CFM
  • Noise Level16.4-30.7 dB（A）

Model ZA-120WR

Voir les 9 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Four-sided infinity mirror creates depth illusion
  • Addressable RGB syncs 16 million colours via motherboard
  • PWM control adjusts 700-1800 RPM for airflow
  • 4-30.7 dB(A) keeps noise low at speed
  • 28 mm thick aluminium-accented frame fits standard mounts

140 mm ARGB infinity-mirror case fan

The JONSBO ZA-120WR is a 140 mm case fan that combines PWM speed control with addressable RGB lighting. Its 4-sided infinity-mirror design creates a layered visual effect while the aluminium nameplate adds a refined finish. A joint structure allows the fan to be clipped together with other units in the series for simplified cable routing.

Builders who want synchronised lighting

The fan suits systems that use a motherboard with a 5 V 3-pin ARGB header and a 4-pin PWM header for automatic speed regulation. It is not intended for builds that lack ARGB support or for radiators and dense heatsinks that demand higher static pressure than the 0.33–1.66 mmH₂O range provides.

700–1800 RPM speed range

This single figure determines whether the fan can meet the cooling target of a given chassis. At the lower end it runs near-silent at 16.4 dB(A), while the top speed delivers 47.71 CFM for increased throughput when thermal loads rise.

Points forts

  • Four-sided infinity mirror creates depth illusion
  • Addressable RGB syncs 16 million colours via motherboard
  • PWM control adjusts 700-1800 RPM for airflow
  • 4-30.7 dB(A) keeps noise low at speed
  • 28 mm thick aluminium-accented frame fits standard mounts

Caractéristiques

BrandJONSBO
SeriesZA SERIES
ModelZA-120WR
Fan Size140mm
LEDARGB
TypeCase Fan
RPM700-1800 RPM
Air Flow18.75-47.71 CFM
Noise Level16.4-30.7 dB（A）
Power ConnectorPWM 4PIN ARGB 3PIN
ColorBlack
CompatibilityCase
Fan Counts1 Fan
Fan ControllerNo Controller
Fan Thickness28mm
Air Pressure0.33-1.66 mmH2O
FeaturesJONSBO ZA-120 T28MM ARGB Infinity Mirror Series Case Fan-
4-Sides Thousand- layer Mirror Illusion
Easy Installation of the Joint Structure
One Line Connection to Motherboard
Aluminum CD Pattern Nameplate
Addressable RGB sync- Insert 3PIN ARGB pins directly into the motherboard, synchronizing Over 16 million color effects
Quiet/Low Noise PWN fan
Specification:
Model No. ZA-120WR(Reversed)
COLOR: WHITE
Product Dimensions:4.72"L x 4.72"W x 1.1"H
Brand:JONSBO
Power Connector Type:4-Pin ARGB 3-Pin
Voltage: DC12 Volts LED 5V
Wattage:1.2 watts LED 3.55W
Cooling Method: Air
Compatible Device
Dimensions4.72"L x 4.72"W x 1.1"H

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick the 140 mm or 120 mm version for my build?

The ZA-120WR is the 140 mm model; a 120 mm variant exists but its airflow and noise figures differ from the 18.75-47.71 CFM and 16.4-30.7 dB(A) shown here.

What does the 47.71 CFM maximum mean for actual case cooling?

At 1800 RPM the fan moves up to 47.71 CFM with 1.66 mmH2O pressure, suitable for moderate intake or exhaust on radiators and mesh panels.

Will the 4-pin PWM and 3-pin ARGB connectors work on a standard motherboard header?

Yes — the 4-pin PWM header controls speed from 700-1800 RPM, while the 3-pin 5 V ARGB header syncs addressable lighting with motherboard software.
