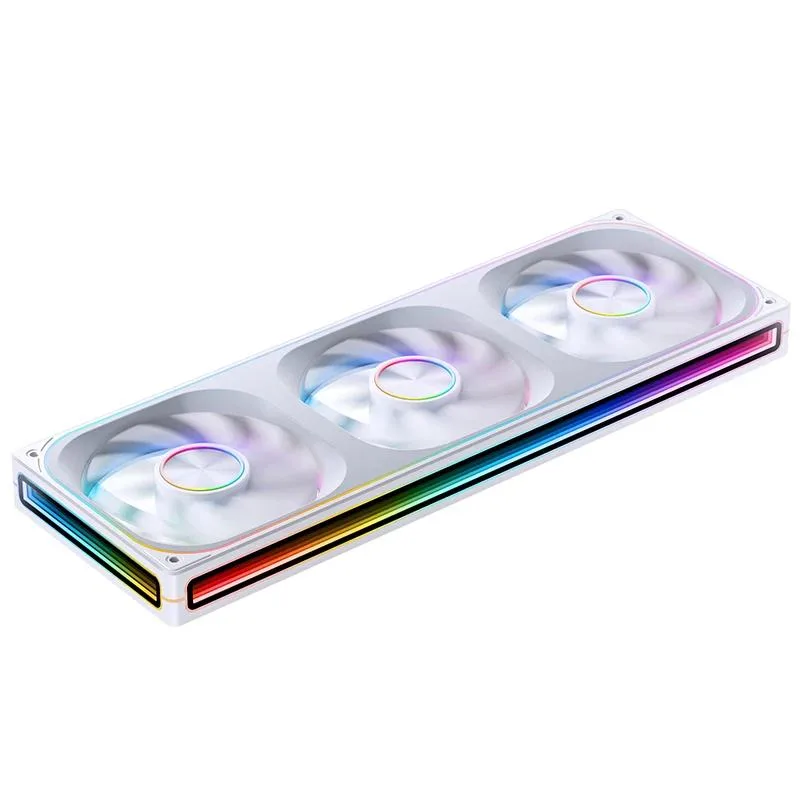

White triple-fan unit in single frame, infinity mirror edges, aluminum nameplate

JONSBO

JONSBO ZA-360W case fan 3×120mm ARGB PWM 2400RPM white

SKU CH-H3QX-BXVMF MPN ZA-360W

Three 120 mm ARGB PWM fans in a single 14.25" frame deliver 700–2400 RPM airflow with 21.3–37.3 dB(A) noise

  • Fan Size120mm
  • LEDARGB
  • TypeCase Fan
  • RPM700-2400 RPM
  • Noise Level21.3-37.3 dB（A）
  • Power ConnectorPWM 4PIN ARGB 3PIN

Model ZA-360W

Voir les 9 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

  • All-in-one frame installs three 120 mm fans at once
  • Four-sided infinity mirror creates layered ARGB lighting effect
  • PWM control spans 700 to 2400 RPM for precise airflow
  • Noise range stays between 21.3 and 37.3 dB(A)
  • Single 4-pin PWM plus 3-pin ARGB cable connects to motherboard

All-in-one triple-fan frame

The ZA-360W bundles three 120 mm ARGB fans inside a single white frame that mounts as one unit. Unified PWM and 3-pin ARGB headers mean a single cable run to the motherboard controls both speed and lighting for all three rotors.

Infinity-mirror lighting effect

Each rotor carries a four-sided infinity-mirror surface that creates a layered visual depth when illuminated. Addressable RGB synchronisation works through the motherboard’s 5 V 3-pin header, allowing per-LED colour control across the entire array without a separate controller.

28 mm thick triple-slot profile

At 28 mm thick the assembly occupies three expansion-slot widths and measures 14.25 inches long, so it fits only cases with a 360 mm mounting area and sufficient clearance behind the motherboard tray. Maximum static pressure reaches 2.46 mmH₂O at 2400 RPM, while noise peaks at 37.3 dB(A), limiting suitability for silence-focused builds.

Points forts

  • All-in-one frame installs three 120 mm fans at once
  • Four-sided infinity mirror creates layered ARGB lighting effect
  • PWM control spans 700 to 2400 RPM for precise airflow
  • Noise range stays between 21.3 and 37.3 dB(A)
  • Single 4-pin PWM plus 3-pin ARGB cable connects to motherboard

Caractéristiques

BrandJONSBO
SeriesZA SERIES
ModelZA-320W
Fan Size120mm
LEDARGB
TypeCase Fan
RPM700-2400 RPM
Noise Level21.3-37.3 dB（A）
Power ConnectorPWM 4PIN ARGB 3PIN
ColorWHITE
CompatibilityCase
Fan Counts3 Fans
Fan ControllerNo Controller
Fan Thickness28mm
Air Pressure0.49-2.46 mmH2O
FeaturesJONSBO ZA-360 T28MM ARGB Infinity Mirror Series Case Fan-
4-Sides Infinity Mirror Illusion
All-IN-One: Single Frame unit with 3x120 ARGB fans, No need to connect individual fans, Speed & Lighting Unified Regulation
Easy Installation of the Joint Structure
One Line Connection to Motherboard
Aluminum CD Pattern Nameplate
Addressable RGB sync- Insert 3PIN ARGB pins directly into the motherboard, synchronizing Over 16 million color effects
Quiet/Low Noise PWN fan,PWM Integrated Male &Female head
Multiple Led , Installation Ref to Tips - Regular MB& the latest Aura Sync software no need c
Dimensions14.25"L x 4.84"W x 1.1"H

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How often do the three 120 mm fans in the single frame need cleaning or bearing service?

The integrated frame holds three 120 mm fans running at 700-2400 RPM; dust buildup on the blades and frame surfaces is the only routine maintenance, with no user-serviceable bearings.

What limits continuous operation at the top 2400 RPM setting?

At 2400 RPM the fans produce 37.3 dB(A) noise and 2.46 mmH2O static pressure, so acoustic tolerance and airflow resistance become the practical ceiling.

How much noise and heat does the unit add when running all day at full speed?

Maximum speed reaches 37.3 dB(A) with 3.20 W total fan power draw, while the ARGB LEDs consume 1.56 W at 5 V, so heat contribution stays low.
