JONSBO ZA-360WR 3×120mm ARGB case fan 700-1800 RPM white

Three-fan ARGB unit

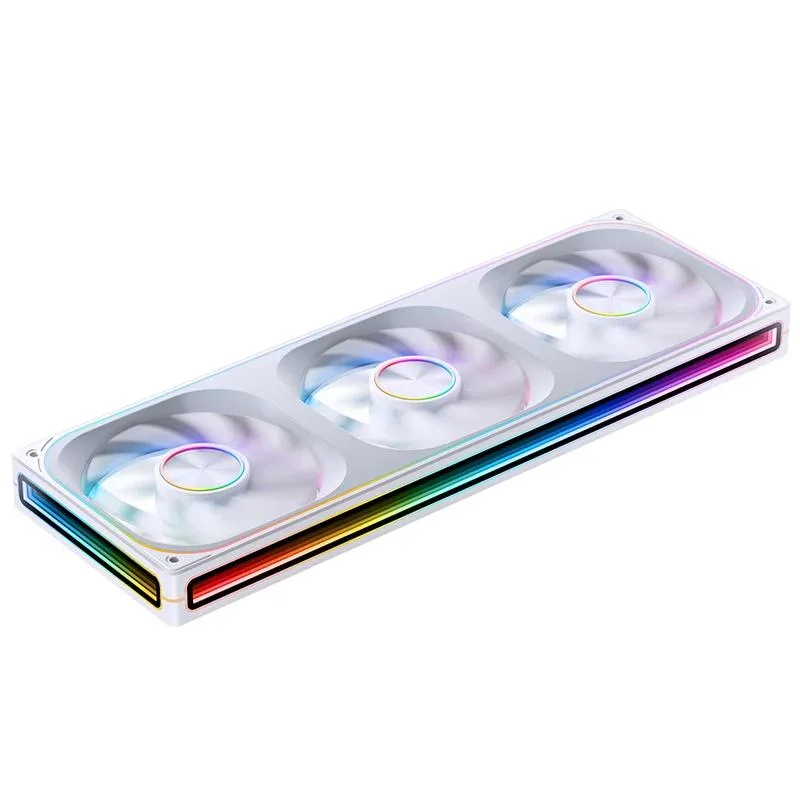

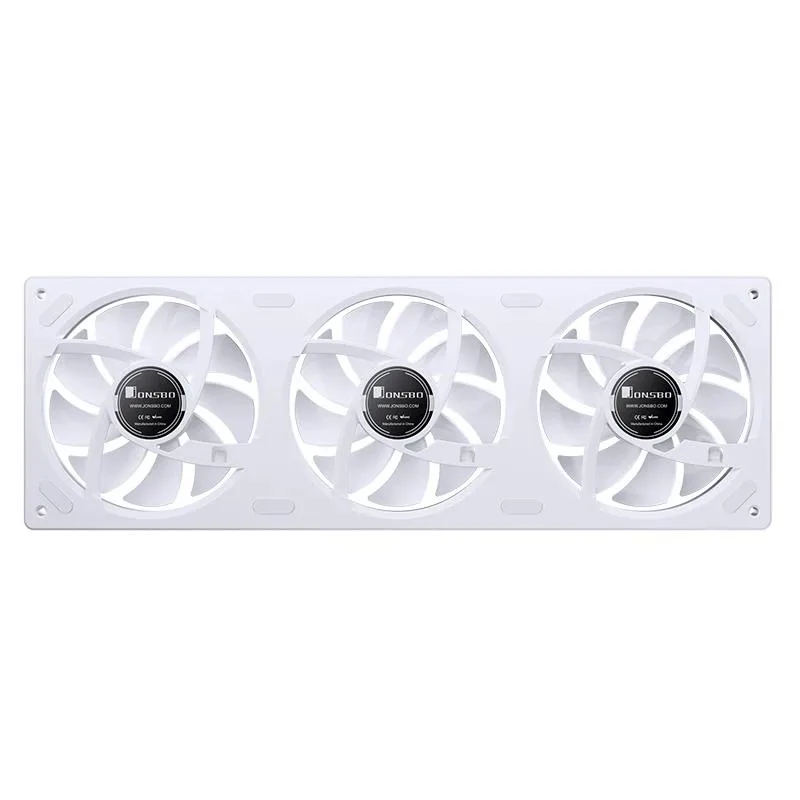

The JONSBO ZA-360WR is a single-frame assembly that mounts three 120 mm ARGB fans in one 360 mm long white housing. It connects to a motherboard through one 4-pin PWM header for speed control and one 3-pin ARGB header for addressable lighting, removing the need to wire each fan separately. Builders who want a unified 360 mm intake or exhaust with synchronised colour effects are the target audience. Cases that only accept individual 120 mm mounts or lack a 5 V ARGB header cannot use this product.

Sustained airflow and acoustics

At the upper speed of 1800 RPM the trio delivers 44.58 CFM while producing 31.6 dB(A), and at the lower 700 RPM it moves 19.46 CFM at 17.3 dB(A). Because all three rotors share one PWM signal, their speeds rise and fall together, so the acoustic profile remains consistent during prolonged loads rather than fluctuating with independent fan curves. The 28 mm thick blades and integrated frame are designed to maintain this output without the vibration that can appear when separate fans are screwed into a radiator over long sessions.

PWM and ARGB interface limits

The 4-pin PWM connection follows the standard 12 V four-wire specification, so any motherboard header rated for that voltage will drive the fans between 700 and 1800 RPM. The 3-pin ARGB link requires a 5 V addressable header; it will not function on a 12 V non-addressable RGB connector. Both cables terminate in a single combined plug per function, meaning the motherboard must supply enough current for three fans and their LEDs through one PWM header and one ARGB header respectively.
