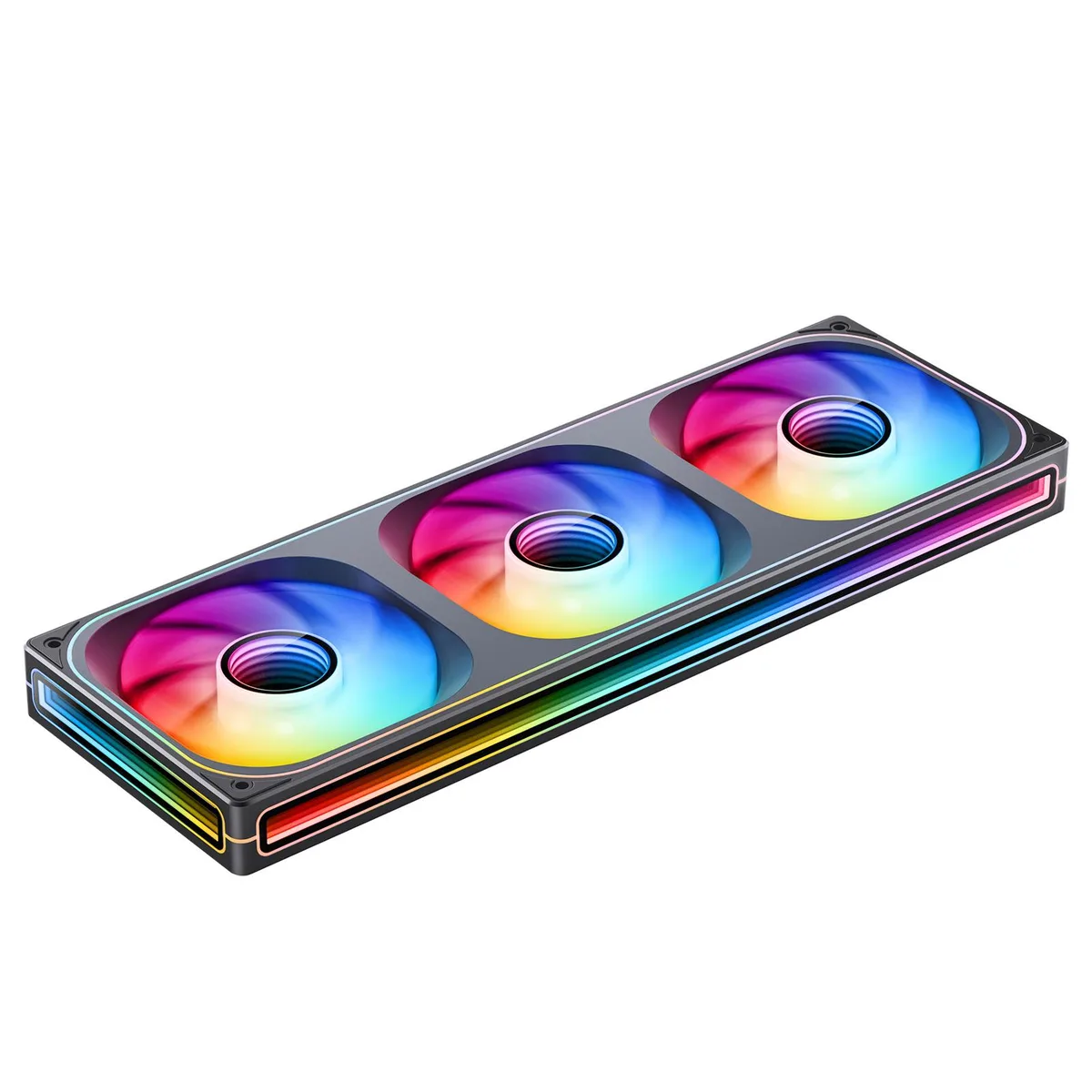

Black rectangular frame holding three 120mm ARGB fans with infinity mirror lighting on front and sides

JONSBO

JONSBO ZB-360B 3x120mm ARGB case fan 28mm black

SKU CH-W93G-0K41M MPN ZB-360B

Three 120 mm ARGB fans in a single 28 mm frame spin at 700–2400 rpm for 20.95–65.26 CFM airflow at 20.3–36.6 dB(A)

  • Fan Size120mm
  • LEDARGB
  • TypeCase Fan
  • RPM700-2400rpm(±10%)
  • Air Flow20.95-65.26 CFM
  • Noise Level20.3-36.6 dB(A)

Model ZB-360B

Voir les 9 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Four-sided infinity mirror creates depth illusion with dual-zone lighting
  • All-in-one frame mounts three 120 mm fans without separate wiring
  • PWM control spans 700-2400 rpm for quiet or high airflow
  • 5V ARGB daisy-chain plugs sync with motherboard software or external controller
  • 28 mm thick fans deliver 0.45-3.20 mmH₂O pressure for radiator use

Three-fan ARGB kit

The JONSBO ZB-360B combines three 120 mm ARGB fans in a single 28 mm thick frame that measures 362 mm by 123 mm. Each fan spins between 700 and 2400 rpm, delivering 20.95 to 65.26 CFM of airflow at 20.3 to 36.6 dB(A). The assembly connects to the motherboard through one 4-pin PWM header and one 3-pin 5 V ARGB header, with male and female ARGB pass-through for daisy-chaining.

Builders who want unified lighting

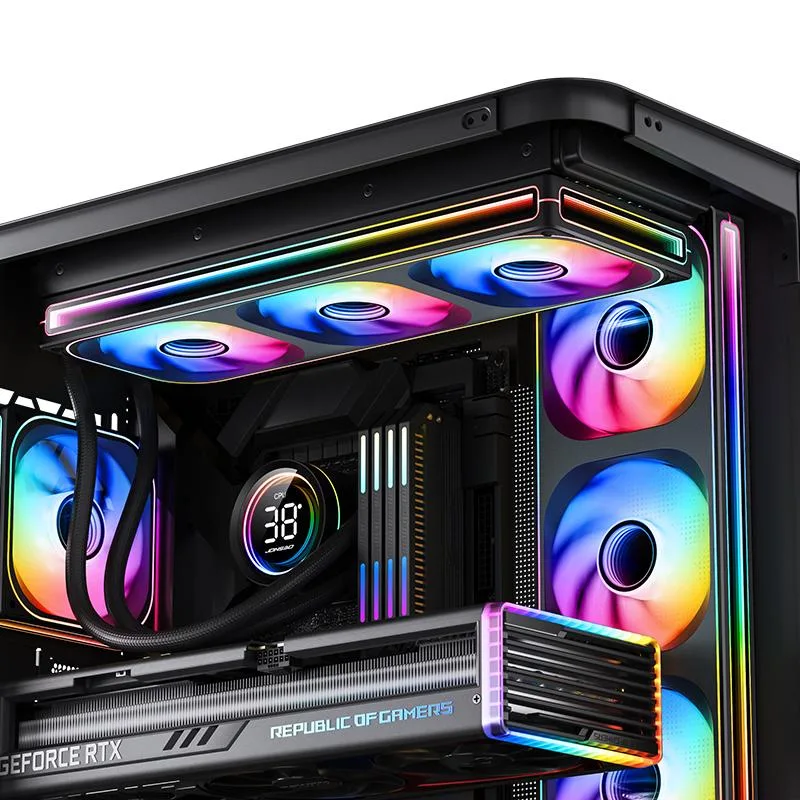

The integrated frame removes the need to mount and wire three separate fans, and the infinity-mirror design on the front and sides creates a continuous light tunnel effect. Motherboards with standard 5 V ARGB headers and up-to-date Aura Sync software can control the LEDs directly; systems limited to fewer than 27 addressable LEDs per header will require an external ARGB controller.

28 mm frame thickness

The 28 mm thick single-frame unit occupies the space of three standard 25 mm fans plus their mounting gaps, so cases with tight radiator clearances or narrow fan channels may not accept it. Verify the available depth between the motherboard tray, radiator or side panel before purchase.

Points forts

  • Four-sided infinity mirror creates depth illusion with dual-zone lighting
  • All-in-one frame mounts three 120 mm fans without separate wiring
  • PWM control spans 700-2400 rpm for quiet or high airflow
  • 5V ARGB daisy-chain plugs sync with motherboard software or external controller
  • 28 mm thick fans deliver 0.45-3.20 mmH₂O pressure for radiator use

Caractéristiques

BrandJONSBO
SeriesZB SERIES
ModelZB-360B
Fan Size120mm
LEDARGB
TypeCase Fan
RPM700-2400rpm(±10%)
Air Flow20.95-65.26 CFM
Noise Level20.3-36.6 dB(A)
ColorBlack
CompatibilityCase
Fan Counts3 Fans
Fan Thickness28mm
Air Pressure0.45-3.20 mmH2O
FeaturesJONSBO ZB-360 T28MM ARGB Infinity Mirror Series Case Fan-
Axis /4-Sides infinity mirror : Front infinity Mirror Illusion, Internal and external dual zone infinity Mirror, Full light effect/echoing embellishment
All-IN-One: Single Frame unit with 3x120 ARGB fans, No need to connect individual fans, Speed & Lighting Unified Regulation
Easy Installation of the Joint Structure
One Line Connection to Motherboard
5VARGB plug male and female design, can be connected in series with other light efficiency devices
Multiple Led,installation ref to Tips - Regular MB& the latest Aura Sync softwar
Dimensions362mm（L）*123mm（W）*28mm（H）

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud is the 2400 RPM ZB-360B when it runs all day?

At full speed the three fans reach 36.6 dB(A); at the minimum 700 RPM they drop to 20.3 dB(A) while moving 20.95 CFM each.

Does my motherboard need a 5 V ARGB header to run the lighting on this 362 mm frame?

Yes — the unit uses a 5 V ARGB male and female connector that plugs directly into a standard 5 V ARGB header; boards without one require a separate ARGB controller rated for more than 27 LEDs.

Will the 28 mm thick triple-fan block clear the CPU cooler I already have installed?

The frame is 28 mm thick and 123 mm wide; measure your cooler-to-side-panel clearance against those dimensions before fitting the ZB-360B.
