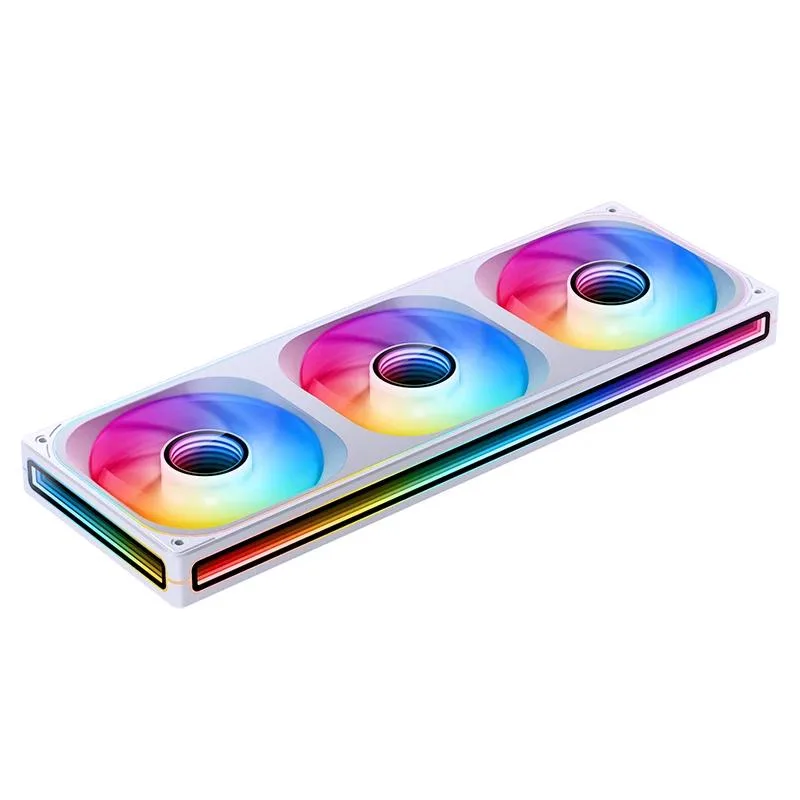

White single-frame unit holding three 120 mm ARGB fans with infinity-mirror lighting on four sides

JONSBO

JONSBO ZB-360WR 3x120mm ARGB case fan white

SKU CH-KC4N-QM46M MPN ZB-360WR

A single frame holds three 120 mm ARGB fans running 700–1800 RPM with 18.75–47.71 CFM airflow and 16.4–30.7 dB(A) noise, unified PWM and 5 V ARGB control via one motherboard connection

  • Fan Size120mm
  • LEDARGB
  • TypeCase Fan
  • RPM700-1800rpm(±10%)
  • Air Flow18.75-47.71 CFM
  • Noise Level16.4-30.7 dB（A）

Model ZB-360WR

Voir les 9 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Three fans in one frame simplify cable routing
  • 700-1800 RPM range balances airflow and noise
  • 75-47.71 CFM delivers strong case cooling
  • 4-30.7 dB(A) keeps operation quiet
  • Four-sided infinity mirror ARGB creates deep lighting effects

Three-fan ARGB assembly

The JONSBO ZB-360WR combines three 120mm fans inside a single white frame measuring 362mm by 123mm by 28mm. Each fan spins between 700 and 1800 RPM and delivers 18.75 to 47.71 CFM at 16.4 to 30.7 dB(A). The unit draws 6.60W for the motors and 6.75W for the 5V ARGB lighting.

Motherboard header check

Your board must provide a 4-pin PWM header for speed control and a 5V 3-pin ARGB header for lighting. The assembly uses a single combined cable for both functions. Boards limited to 27 addressable LEDs need an external ARGB controller; newer Aura Sync compatible boards work without one. The daisy-chain male and female ARGB plugs allow adding further devices on the same header.

Sustained airflow behaviour

At continuous loads the fans operate across the full 700 to 1800 RPM range, producing 0.33 to 1.66 mmH2O static pressure. The 28mm thick blades maintain the quoted CFM and noise envelope without the short-burst spikes seen on thinner designs. Unified PWM regulation keeps all three rotors synchronised so airflow stays steady during long rendering or gaming sessions.

Points forts

  • Three fans in one frame simplify cable routing
  • 700-1800 RPM range balances airflow and noise
  • 75-47.71 CFM delivers strong case cooling
  • 4-30.7 dB(A) keeps operation quiet
  • Four-sided infinity mirror ARGB creates deep lighting effects

Caractéristiques

BrandJONSBO
SeriesZB SERIES
ModelZB-360WR
Fan Size120mm
LEDARGB
TypeCase Fan
RPM700-1800rpm(±10%)
Air Flow18.75-47.71 CFM
Noise Level16.4-30.7 dB（A）
Power ConnectorPWM 4PIN ARGB 3PIN
ColorWhite
CompatibilityCase
Fan Counts3 Fans
Fan ControllerNo Controller
Fan Thickness28mm
Air Pressure0.33-1.66 mmH2O
Dimensions362mm（L）*123mm（W）*28mm（H）

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the ZB-360WR ship as a ready-to-mount triple-fan unit or do I need extra brackets and cables?

The product is a single 362 mm frame that holds three 120 mm ARGB fans pre-assembled, so no separate fan brackets are required; only a motherboard PWM 4-pin header and a 5 V 3-pin ARGB header are needed for power and lighting.

Should I pick the white ZB-360WR or a black version for a light-themed build?

The ZB-360WR is offered in white with a 28 mm thick frame and infinity-mirror lighting on four sides, making it the intended choice for white or light-coloured chassis aesthetics.

What does the 47.71 CFM airflow rating mean once the fans are installed in my case?

At the maximum 1800 RPM the three fans together move up to 47.71 CFM with a static pressure of 1.66 mmH₂O, while noise stays between 16.4 and 30.7 dB(A) depending on the PWM curve set in the BIOS.
