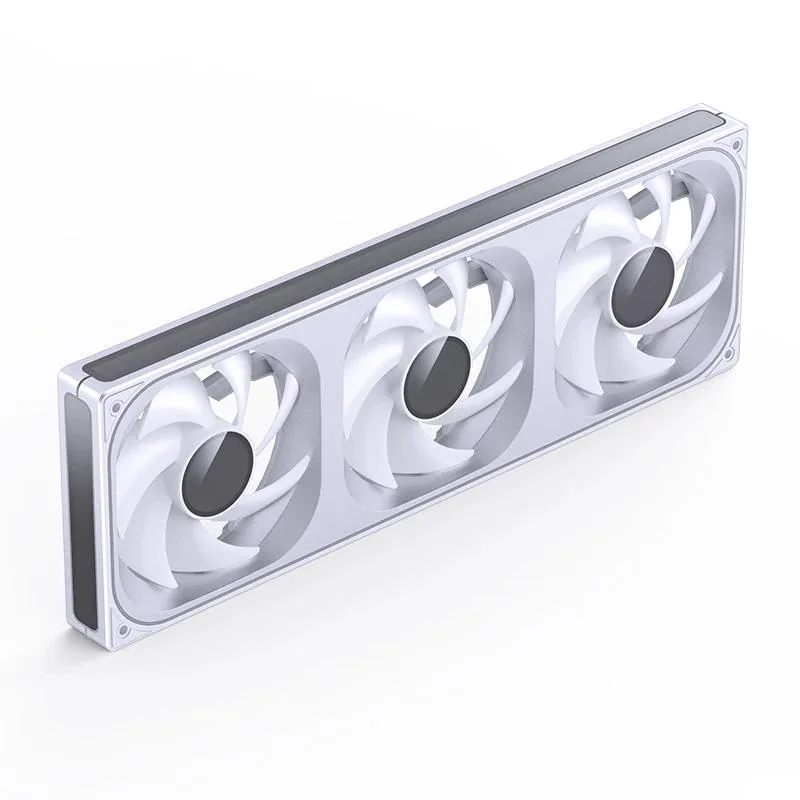

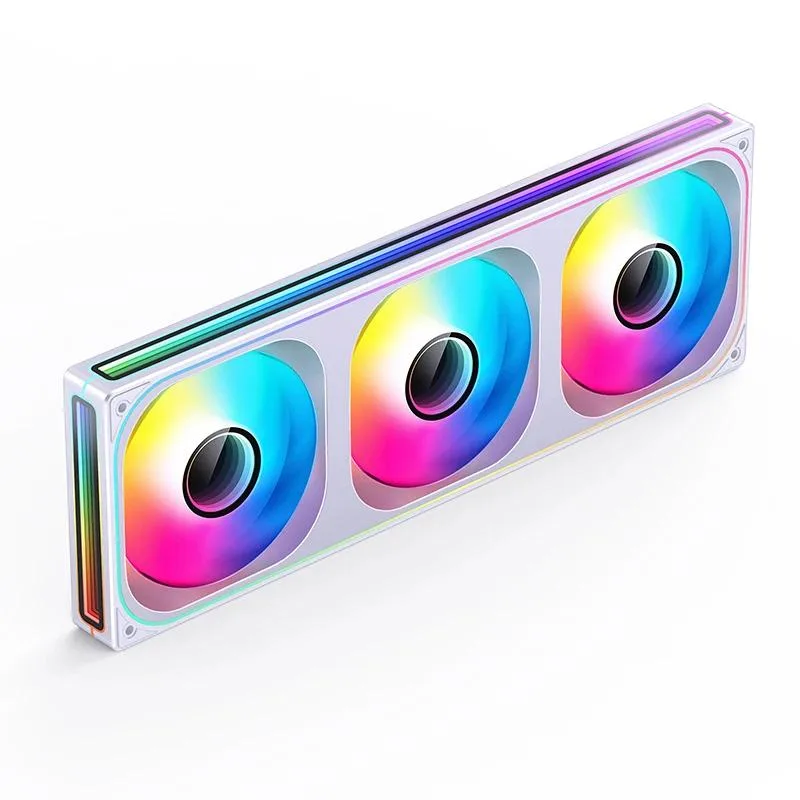

White triple-fan frame with infinity mirror ARGB lighting on front and sides

JONSBO

JONSBO ZB-360W 3×120mm ARGB case fan white

SKU CH-WG0S-43Q5E MPN ZB-360W

Three 120 mm ARGB fans in a single white frame deliver 20.95–65.26 CFM at 16.4–30.7 dB(A) with PWM speed control and daisy-chainable 5 V ARGB lighting

  • Fan Size120mm
  • LEDARGB
  • TypeCase Fan
  • RPM700-1800rpm(±10%)
  • Air Flow20.95-65.26 CFM
  • Noise Level16.4-30.7 dB（A）

Model ZB-360W

Voir les 9 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Three fans in one frame simplify installation and cable routing
  • Infinity mirror lighting on four sides creates depth and synchronised ARGB effects
  • PWM control from 700 to 1800 rpm balances airflow up to 65.26 CFM with noise as low as 16.4 dB(A)
  • 5 V ARGB daisy-chain connectors let you extend lighting to other devices without extra controllers
  • 28 mm thick white frame fits standard 360 mm radiator mounts for clean, unified builds

All-in-one frame with triple 120 mm ARGB fans

The JONSBO ZB-360W combines three 120 mm fans into a single 362 mm long white frame that mounts as one unit. Each fan uses a 28 mm thick blade design and connects through one 4-pin PWM header and one 3-pin 5 V ARGB header. The assembly draws 6.60 W for the motors and 6.75 W for the LEDs at 12 V and 5 V respectively. Builders who want individual fan placement or a different colour scheme should look elsewhere.

Infinity-mirror lighting and unified speed control

Front, internal and external mirror surfaces create a continuous infinity effect across all three rotors while the motherboard synchronises both RPM and illumination through a single cable pair. Speed ranges from 700 to 1800 rpm (±10 %) producing 16.4 to 30.7 dB(A) and 20.95 to 65.26 CFM with 0.45 to 3.20 mmH₂O pressure. Systems lacking a 5 V ARGB header able to address more than 27 LEDs will need a separate controller.

Sustained airflow at constant PWM duty

At a fixed duty cycle the fans maintain their rated RPM band without thermal throttling, delivering steady static pressure through radiators or restrictive meshes. The unified frame prevents vibration transfer between fans during prolonged operation. Installations that require higher static pressure than 3.20 mmH₂O or airflow above 65.26 CFM per fan will not be satisfied by this kit.

Points forts

  • Three fans in one frame simplify installation and cable routing
  • Infinity mirror lighting on four sides creates depth and synchronised ARGB effects
  • PWM control from 700 to 1800 rpm balances airflow up to 65.26 CFM with noise as low as 16.4 dB(A)
  • 5 V ARGB daisy-chain connectors let you extend lighting to other devices without extra controllers
  • 28 mm thick white frame fits standard 360 mm radiator mounts for clean, unified builds

Caractéristiques

BrandJONSBO
SeriesZB SERIES
ModelZB-360WR
Fan Size120mm
LEDARGB
TypeCase Fan
RPM700-1800rpm(±10%)
Air Flow20.95-65.26 CFM
Noise Level16.4-30.7 dB（A）
Power ConnectorPWM 4PIN ARGB 3PIN
ColorWhite
CompatibilityCase
Fan Counts3 Fans
Fan ControllerNo Controller
Fan Thickness28mm
Air Pressure0.45-3.20 mmH2O
Dimensions362mm（L）*123mm（W）*28mm（H）

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the ZB-360W into my case and connect it to the motherboard?

Mount the single 362 mm × 123 mm × 28 mm frame using the joint structure, then run one 4-pin PWM cable to a CPU or chassis fan header and one 3-pin 5 V ARGB cable to a 5 V ARGB header; the male and female ARGB plugs let you daisy-chain additional lighting devices.

What maintenance will the three 120 mm fans need over time?

Periodically remove dust from the blades and the infinity-mirror surfaces with compressed air or a soft brush; the fans use sealed bearings so no lubrication is required, and the ARGB LEDs are not user-replaceable.

At what point does noise become the limiting factor during sustained loads?

At the maximum 1800 rpm (±10 %) the fans reach 30.7 dB(A) while delivering 65.26 CFM and 3.20 mmH₂O pressure; sustained operation at this speed is typically where audible noise becomes the first constraint.
