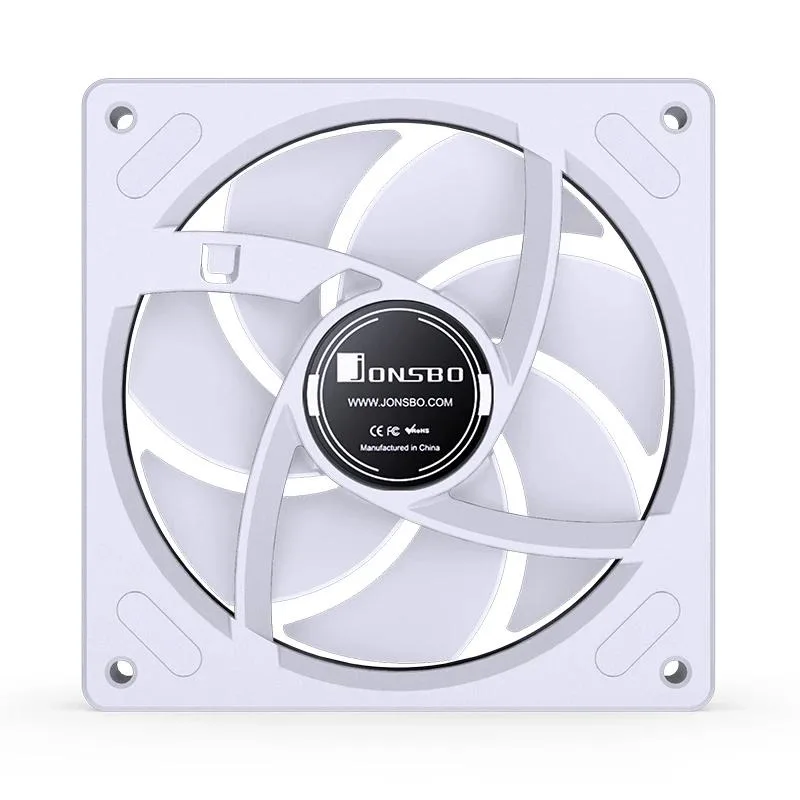

White 120mm ARGB case fan with infinity mirror lighting, 28mm thick, reversed blade design

JONSBO

JONSBO ZB-120WR (Reversed) 120mm ARGB Case Fan 700-1800rpm White

SKU CH-6Y6R-0YCQW MPN ZB-120WR

Reversed-blade 120 mm ARGB case fan with dual-zone infinity mirror lighting, 700–1800 rpm airflow up to 47.71 CFM at 16.4–30.7 dB(A)

  • Fan Size120mm
  • LEDARGB
  • TypeCase Fan
  • RPM700-1800rpm(±10%)
  • Air Flow18.75-47.71 CFM
  • Noise Level16.4-30.7 dB（A）

Model ZB-120WR

Voir les 9 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

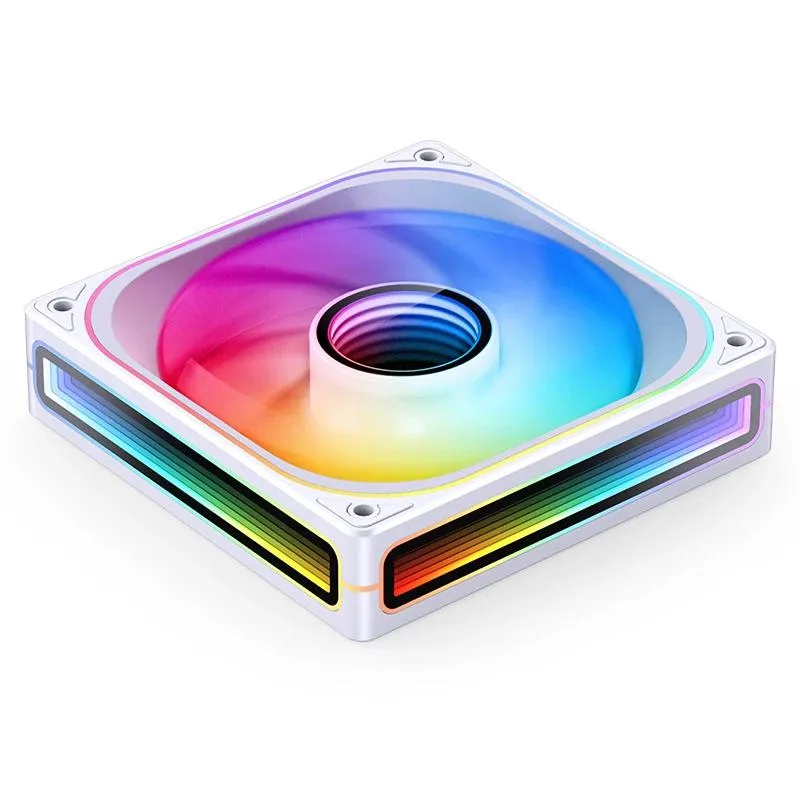

  • Infinity mirror design creates layered lighting effects across four sides
  • Reversed blade orientation optimises intake airflow for case cooling
  • PWM control adjusts speed from 700 to 1800 rpm for balanced performance
  • Daisy-chain ARGB connectors simplify cable routing to the motherboard
  • 28 mm thick frame fits standard 120 mm mounting points

Product identity

The JONSBO ZB-120WR is a 120mm ARGB case fan with a 28mm thick frame and a reversed blade design for intake airflow. It targets builders who want infinity-mirror lighting effects and a white colour scheme in a single 4.72 inch square package.

Compatibility check

Verify that your case can accommodate a 28mm thick fan at the chosen mounting location and that the motherboard provides a 4-pin PWM header plus a 5V 3-pin ARGB header. The daisy-chain connectors allow multiple fans to share one header pair, but total current draw must stay within the board’s rated limits.

Sustained operation

At the top speed of 1800 rpm the fan delivers up to 47.71 CFM while producing 30.7 dB(A), and the motor is rated to spin as high as 2400 rpm under PWM control. The 3.55 watt motor draw remains constant during extended runs, so thermal performance stays stable without the spike-and-drop pattern seen in shorter tests.

Points forts

  • Infinity mirror design creates layered lighting effects across four sides
  • Reversed blade orientation optimises intake airflow for case cooling
  • PWM control adjusts speed from 700 to 1800 rpm for balanced performance
  • Daisy-chain ARGB connectors simplify cable routing to the motherboard
  • 28 mm thick frame fits standard 120 mm mounting points

Caractéristiques

BrandJONSBO
SeriesZB SERIES
ModelZB-120WR
Fan Size120mm
LEDARGB
TypeCase Fan
RPM700-1800rpm(±10%)
Air Flow18.75-47.71 CFM
Noise Level16.4-30.7 dB（A）
Power ConnectorPWM 4PIN ARGB 3PIN
ColorWhite
CompatibilityCase
Fan Counts1 Fan
Fan ControllerNo Controller
Fan Thickness28mm
Dimensions4.72"L x 4.72"W x 1.1"H

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the ZB-120WR (Reversed) ship with mounting screws and an ARGB controller, or must I buy them separately?

The fan comes as a single unit with male and female PWM 4-pin and ARGB 3-pin connectors for daisy-chaining; mounting hardware and a separate ARGB controller are not included.

Should I pick the standard or reversed version of the ZB-120WR for a front intake mount?

This model is the reversed variant labelled "Intake", designed so the infinity-mirror lighting faces outward when mounted as a front intake fan.

What does the 1800 rpm top speed mean for airflow and noise inside a typical case?

At 1800 rpm the fan delivers 47.71 CFM at 30.7 dB(A); the 700 rpm floor gives 18.75 CFM at 16.4 dB(A), so the curve covers both quiet and performance needs.
