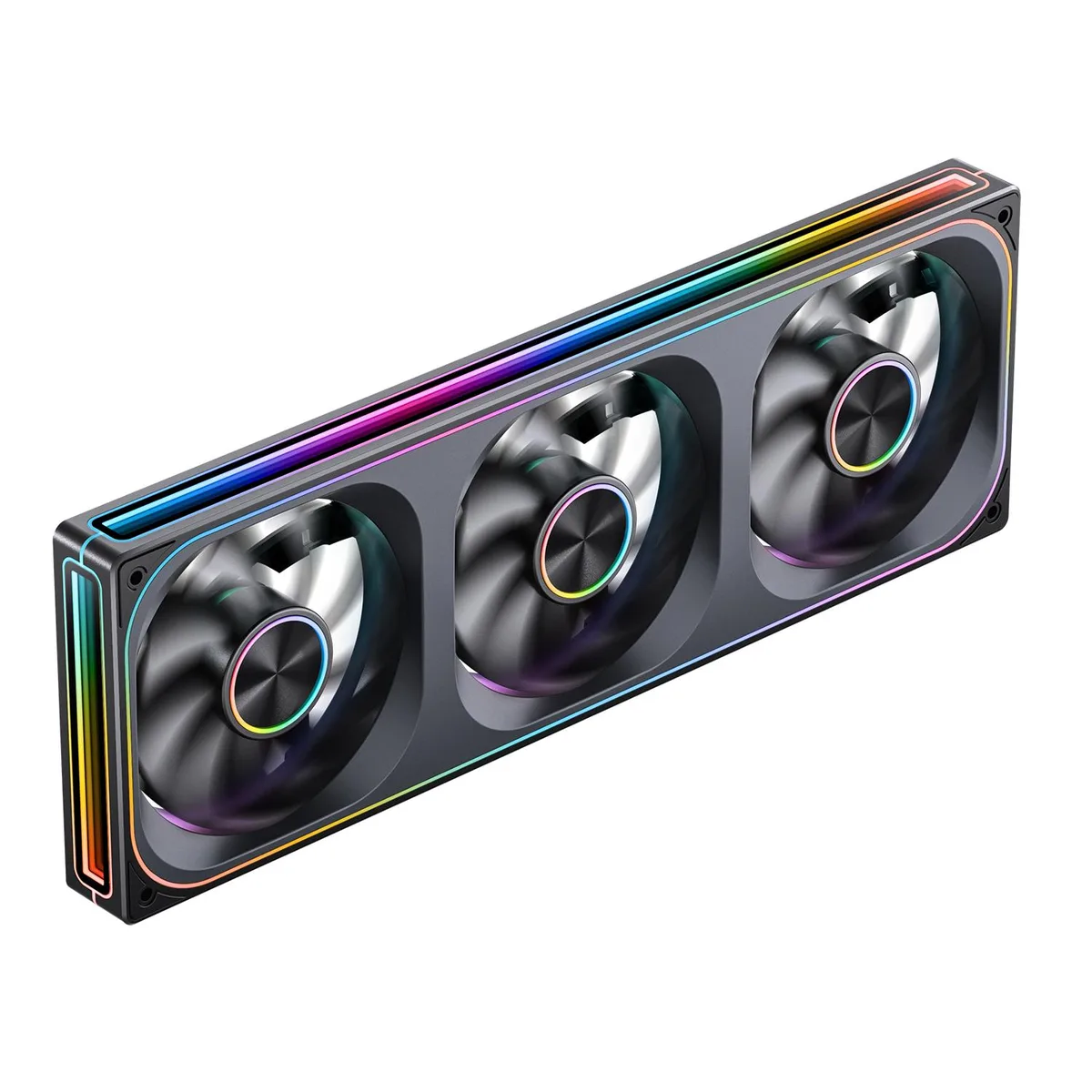

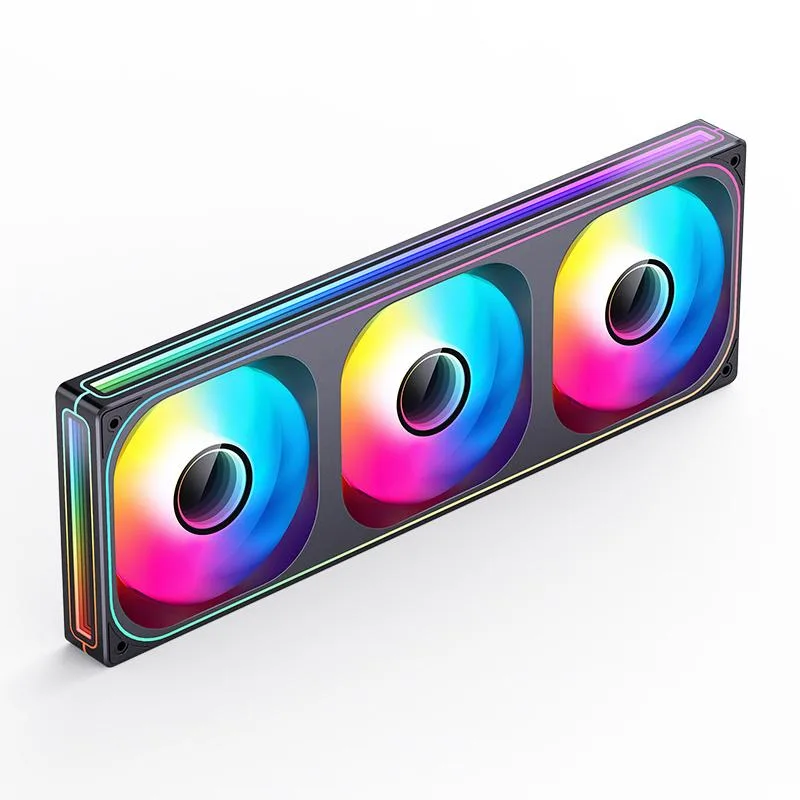

Black rectangular frame holding three 120mm ARGB fans with infinity mirror lighting on four sides

JONSBO

JONSBO ZB-360BR (Reversed) 3×120mm ARGB case fan

SKU CH-7F1A-6A2M0 MPN ZB-360BR

Three 120 mm ARGB fans in a single 362 mm frame with dual-zone infinity mirror lighting, 700-1800 RPM airflow and one-cable motherboard connection

  • Fan Size120mm
  • LEDARGB
  • TypeCase Fan
  • RPM700-1800rpm(±10%)
  • Air Flow18.75-47.71 CFM
  • Noise Level16.4-30.7 dB(A)

Model ZB-360BR

Voir les 9 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Four-sided infinity mirror creates depth illusion
  • Single frame holds three 120 mm fans for unified speed and light control
  • One 5 V ARGB cable connects the whole unit to the motherboard
  • PWM range 700–1800 rpm delivers 18.75–47.71 CFM airflow
  • Noise stays between 16.4 and 30.7 dB(A) across the speed range

Three-fan ARGB kit for intake builds

The JONSBO ZB-360BR (Reversed) bundles three 120mm fans in a single 362mm frame that mounts as one unit. Each fan spins between 700 and 1800 RPM to deliver 18.75 to 47.71 CFM at 16.4 to 30.7 dB(A). The reversed blade orientation is designed for intake configurations where airflow direction matters.

28mm thick frame with dual-zone infinity mirror

The all-in-one structure uses a 28mm thick housing that carries 4-sided infinity-mirror lighting on both internal and external faces. A single 4-pin PWM header controls speed for all three fans while one 5V ARGB connection handles the LEDs, and the male-plus-female ARGB plugs allow daisy-chaining to other devices. Motherboards with current Aura Sync software can drive the 27-plus LEDs directly; older boards will need a separate ARGB controller.

Replaces three separate 120mm fans

Builders who want unified speed and lighting control without wiring three individual fans gain a cleaner install and consistent performance. The kit is not suited for radiators or heatsinks that require higher static pressure than 47.71 CFM can provide, nor for cases that cannot accommodate a 362mm by 123mm mounting area.

Points forts

  • Four-sided infinity mirror creates depth illusion
  • Single frame holds three 120 mm fans for unified speed and light control
  • One 5 V ARGB cable connects the whole unit to the motherboard
  • PWM range 700–1800 rpm delivers 18.75–47.71 CFM airflow
  • Noise stays between 16.4 and 30.7 dB(A) across the speed range

Caractéristiques

BrandJONSBO
SeriesZB SERIES
ModelZB-360BR
Fan Size120mm
LEDARGB
TypeCase Fan
RPM700-1800rpm(±10%)
Air Flow18.75-47.71 CFM
Noise Level16.4-30.7 dB(A)
ColorBlack
CompatibilityCase
Fan Counts3 Fans
Fan Thickness28mm
FeaturesJONSBO ZB-360 T28MM ARGB Infinity Mirror Series Case Fan-
Axis /4-Sides infinity mirror : Front infinity Mirror Illusion, Internal and external dual zone infinity Mirror, Full light effect/echoing embellishment
All-IN-One: Single Frame unit with 3x120 ARGB fans, No need to connect individual fans, Speed & Lighting Unified Regulation
Easy Installation of the Joint Structure
One Line Connection to Motherboard
5VARGB plug male and female design, can be connected in series with other light efficiency devices
Multiple Led,installation ref to Tips - Regular MB& the latest Aura Sync softwar
Dimensions362mm（L）*123mm（W）*28mm（H）

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How does the 4-pin PWM interface control the three 120 mm fans together?

The single-frame unit uses one 4-pin PWM header so the motherboard regulates speed for all three fans simultaneously from 700 to 1800 rpm.

What case clearance does the 28 mm thick, 362 mm long combined frame require?

The assembly measures 362 mm long, 123 mm wide and 28 mm thick, so the mounting area must accommodate those exact dimensions.

How do you connect the 5V ARGB lighting to a motherboard that supports fewer than 27 addressable LEDs?

Plug the unit's male 5V ARGB connector into a compatible ARGB controller rated for more than 27 LEDs, then connect the controller to the motherboard's 5V ARGB header.
