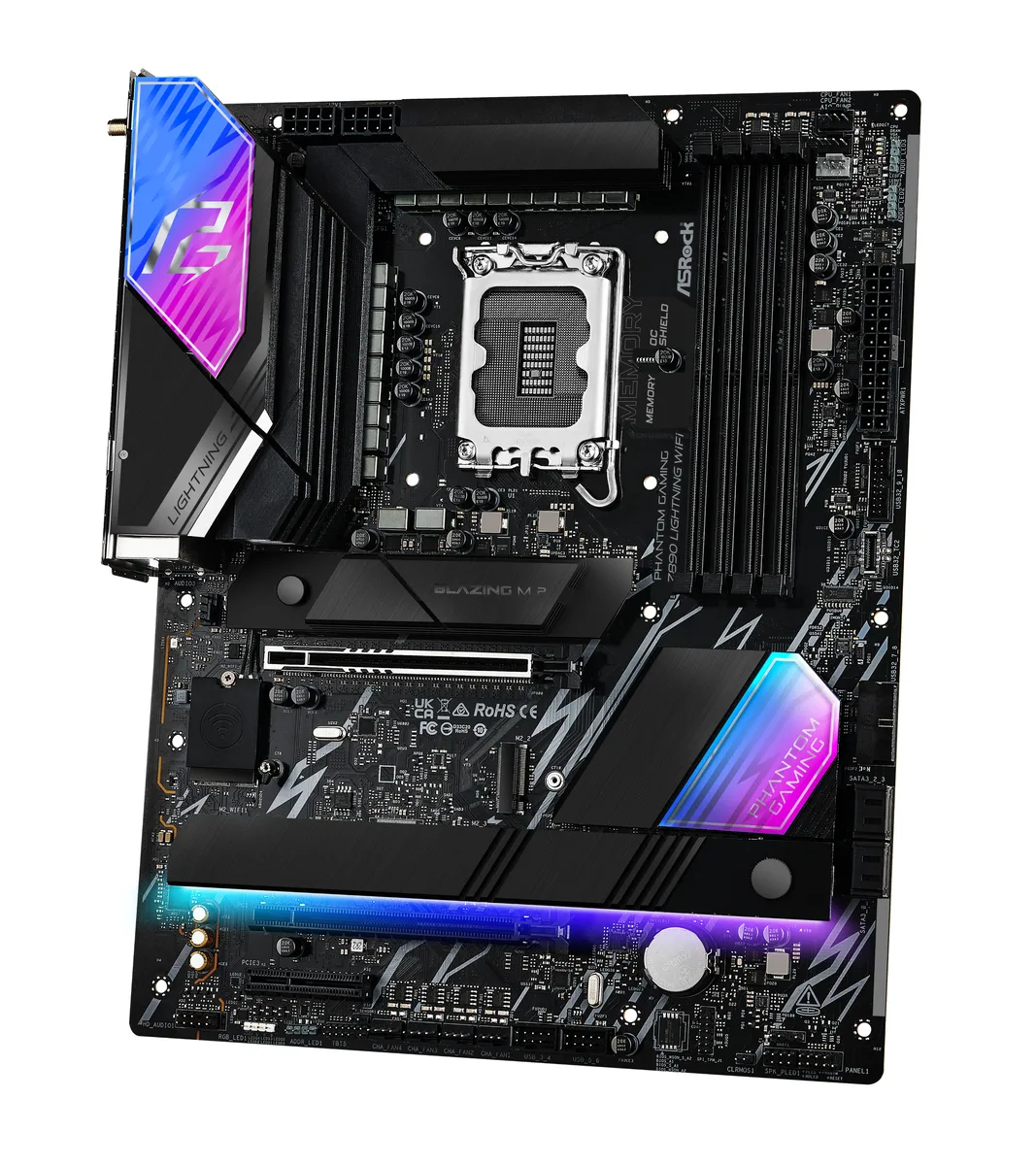

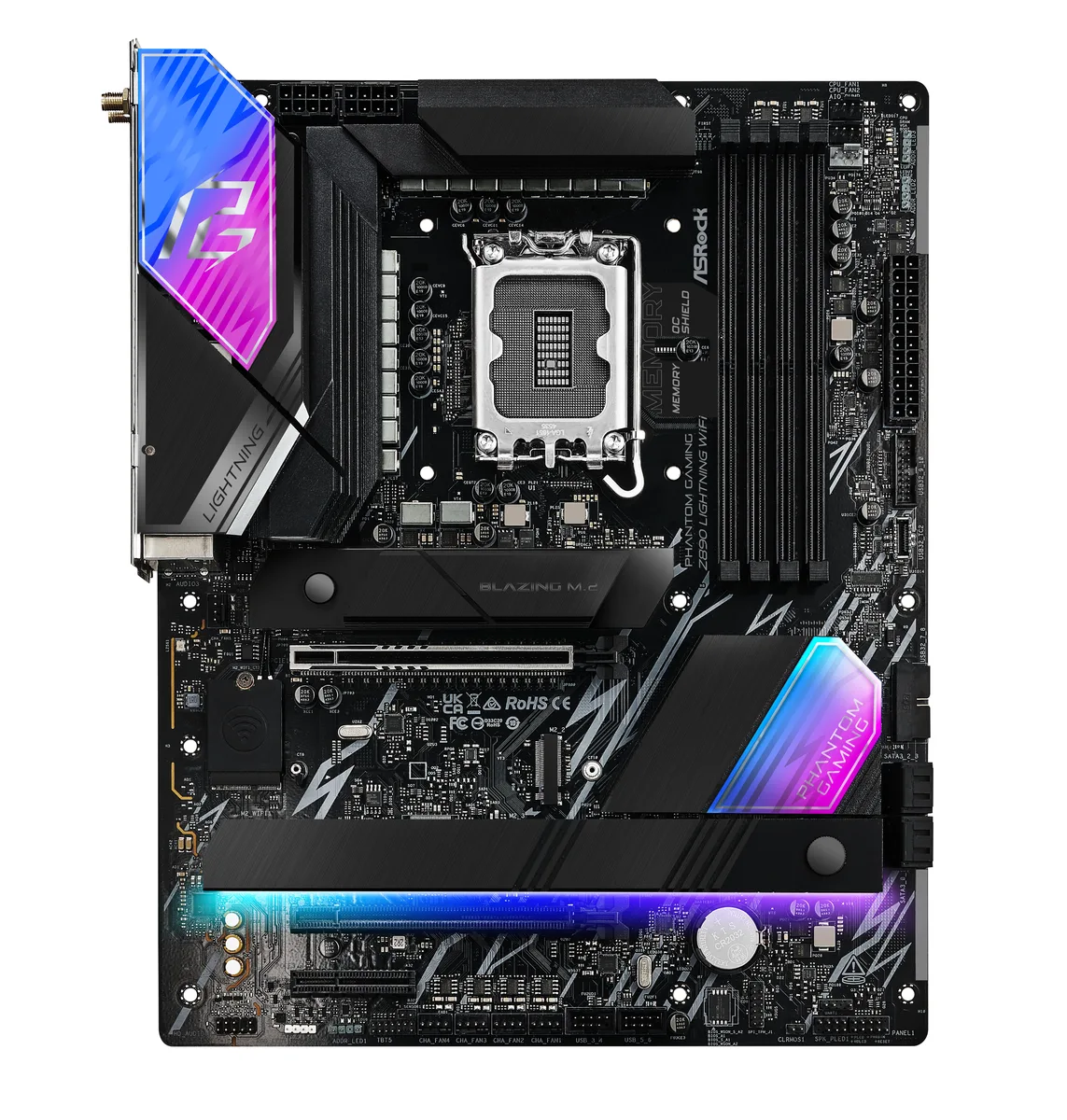

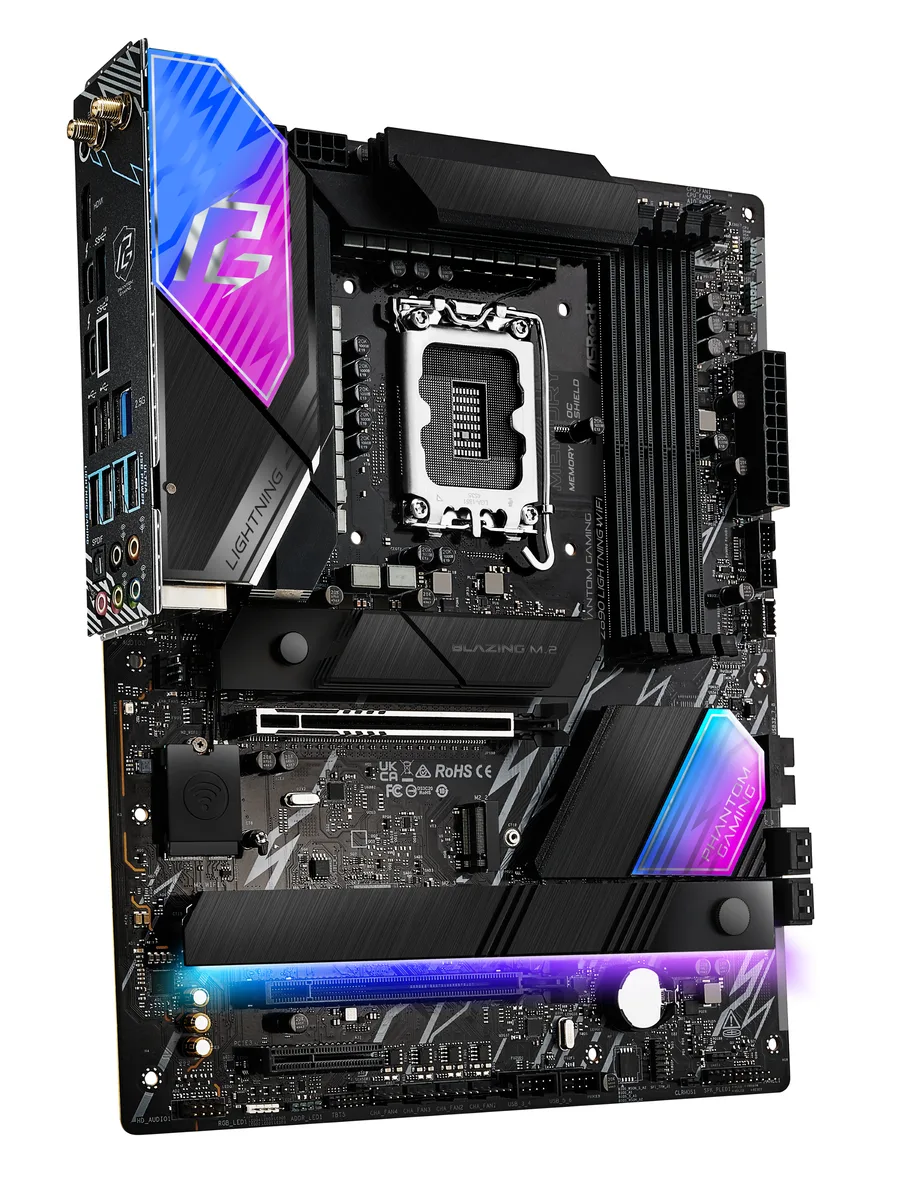

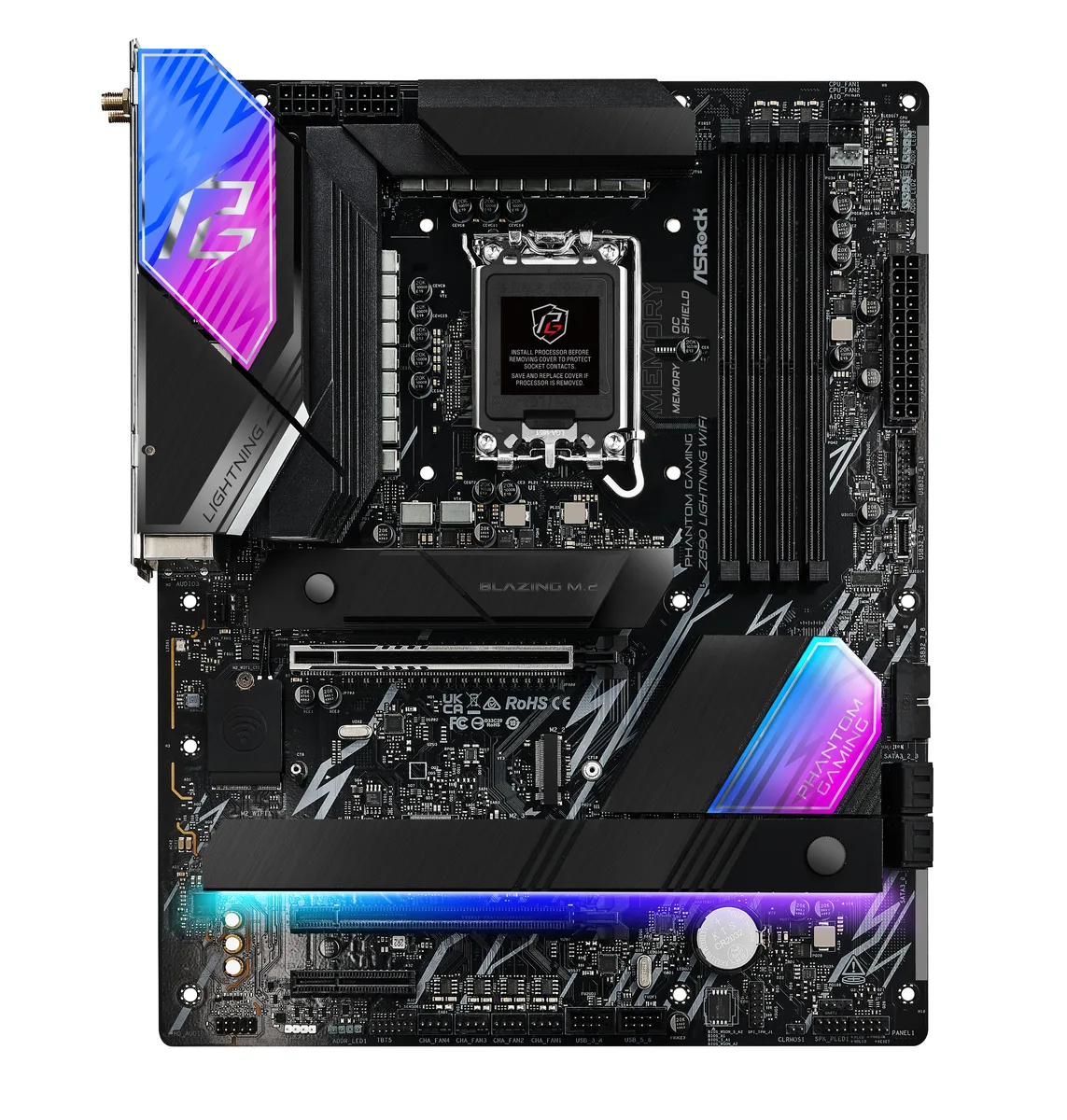

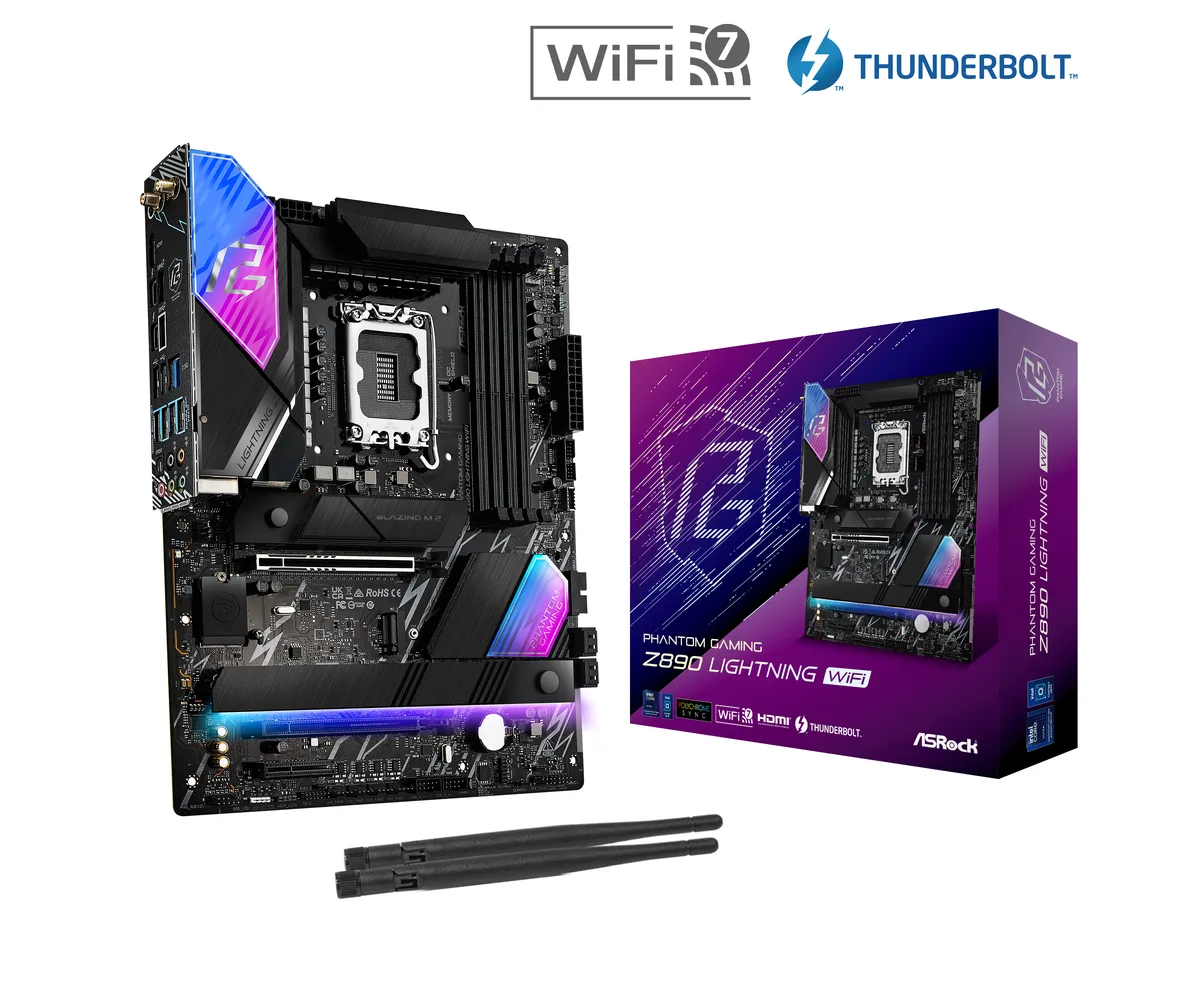

ATX motherboard with black PCB, silver heatsinks, four DDR5 slots, PCIe 5.0 x16 slot, M.2 shields, rear I/O with HDMI and Thunderbolt

ASRock

ASRock Z890 Lightning WiFi Intel motherboard

SKU CH-A17E-0078J MPN Z890 Lightning WiFi

ATX board for Intel Core Ultra Series 2 processors with LGA 1851 socket, 18+1+1+1+1 power phases, four DDR5 slots up to 9466 MHz OC, PCIe 5.0 x16, three M.2 sockets including Gen5, 7.1 audio, and

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB

Option Z890 Lightning WiFi

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 18+1+1+1+1 power phase design with 80A SPS for stable CPU delivery
  • Four DDR5 slots up to 256GB with XMP 3.0 support to 9466MHz
  • PCIe 5.0 x16 slot plus two M.2 sockets at 128Gb/s and 64Gb/s
  • Realtek ALC1220 7.1-channel HD audio with Nahimic enhancement

Z890 chipset ATX motherboard

The ASRock Z890 Lightning WiFi is an ATX motherboard built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It targets enthusiasts who want a high-end platform for gaming or content creation with extensive overclocking headroom. The board delivers a 18+1+1+1+1 power phase design using 80A SPS stages and 20K capacitors rated at 1000uF for stable delivery under heavy loads.

DDR5 memory and PCIe 5.0 expansion

Four 288-pin DDR5 slots support dual-channel kits up to 256GB with XMP 3.0 profiles reaching 9466 MT/s in 1DPC 1R configuration. The primary PCIe 5.0 x16 slot connects directly to the CPU for graphics or riser cards, while the chipset provides a PCIe 4.0 x16 slot at x4 and a PCIe 4.0 x4 slot for additional add-in cards.

Triple M.2 with Gen5 primary

Storage includes one CPU-attached M.2 2280 socket at PCIe 5.0 x4 (128 Gb/s) and two chipset-attached M.2 2280 sockets at PCIe 4.0 x4, all with RAID 0, 1, 5 and 10 support alongside four SATA 6Gb/s ports. Upgrading from a Z790 board brings the new socket, DDR5 speeds beyond 8000 MT/s and a Gen5 M.2 slot, making the jump worthwhile when moving to Core Ultra Series 2 CPUs.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 18+1+1+1+1 power phase design with 80A SPS for stable CPU delivery
  • Four DDR5 slots up to 256GB with XMP 3.0 support to 9466MHz
  • PCIe 5.0 x16 slot plus two M.2 sockets at 128Gb/s and 64Gb/s
  • Realtek ALC1220 7.1-channel HD audio with Nahimic enhancement

Specifications

BrandASRock
ModelZ890 Lightning WiFi
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7600 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9466
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
- 1DPC 1R Up to 9466+ MHz (OC), 5600 MHz Natively.
- 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
- 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
- 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.
Max. capacity of system memory: 256GB
Supports Intel Extreme Memory Profile (XMP) 3.0
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 4.0 x16Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
PCI Express x11 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode*
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC1220
Audio Channels7.1 CH HD Audio with Content Protection
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
LAN ChipsetKiller E3100G
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

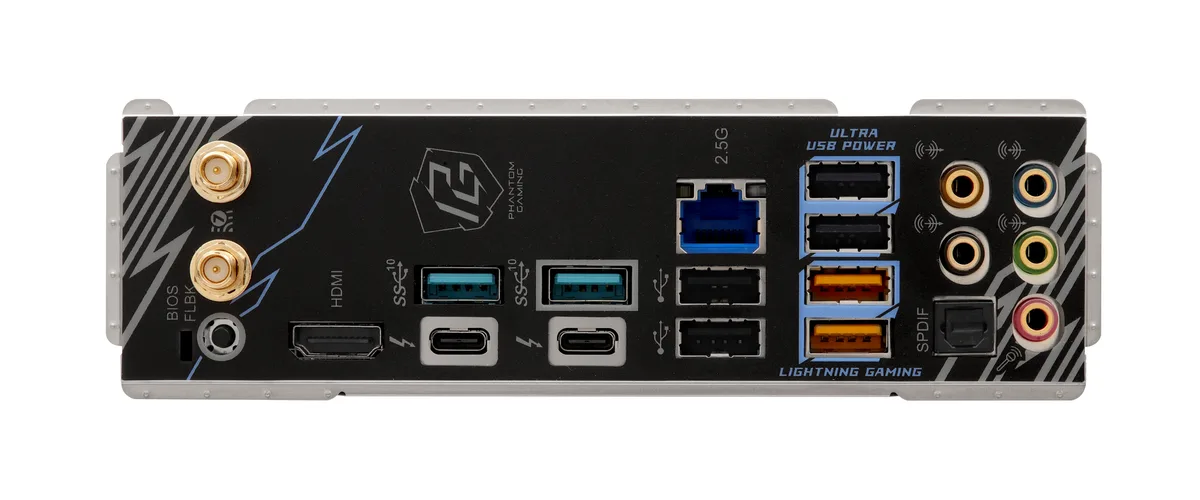

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
4 x USB 3.2 Gen1 Ports**
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
** USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
- Memory OC Shield
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
Package Contents2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x ARGB Splitter Cable
1 x Thermistor Cable
Shipping weight2.00 kg
Package size343 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power can the 18+1+1+1+1 phase VRM with 80A SPS deliver to the CPU VCore under sustained load?

The 18+1+1+1+1 power phase design with 80A SPS per phase is rated for high current delivery to the CPU VCore, GT and SA rails, with 20K capacitors rated at 1000uF for lower ripple and stable output under heavy loads.

What are the thermal characteristics of the VRM heatsinks and chipset cooling when the board runs all day at high current?

The VRM uses upgraded 20K Black capacitors with 1000uF capacitance rated for 20000 hours lifespan, designed for lower ripple and more stable current output during extended high-load operation.

Which DDR5 memory speeds are natively supported without overclocking on the four 288-pin slots?

The board supports DDR5 5600 MHz natively in 1DPC 1R and 1DPC 2R configurations, and DDR5 4800 MHz natively in 2DPC 1R configuration across the four DDR5 slots.
