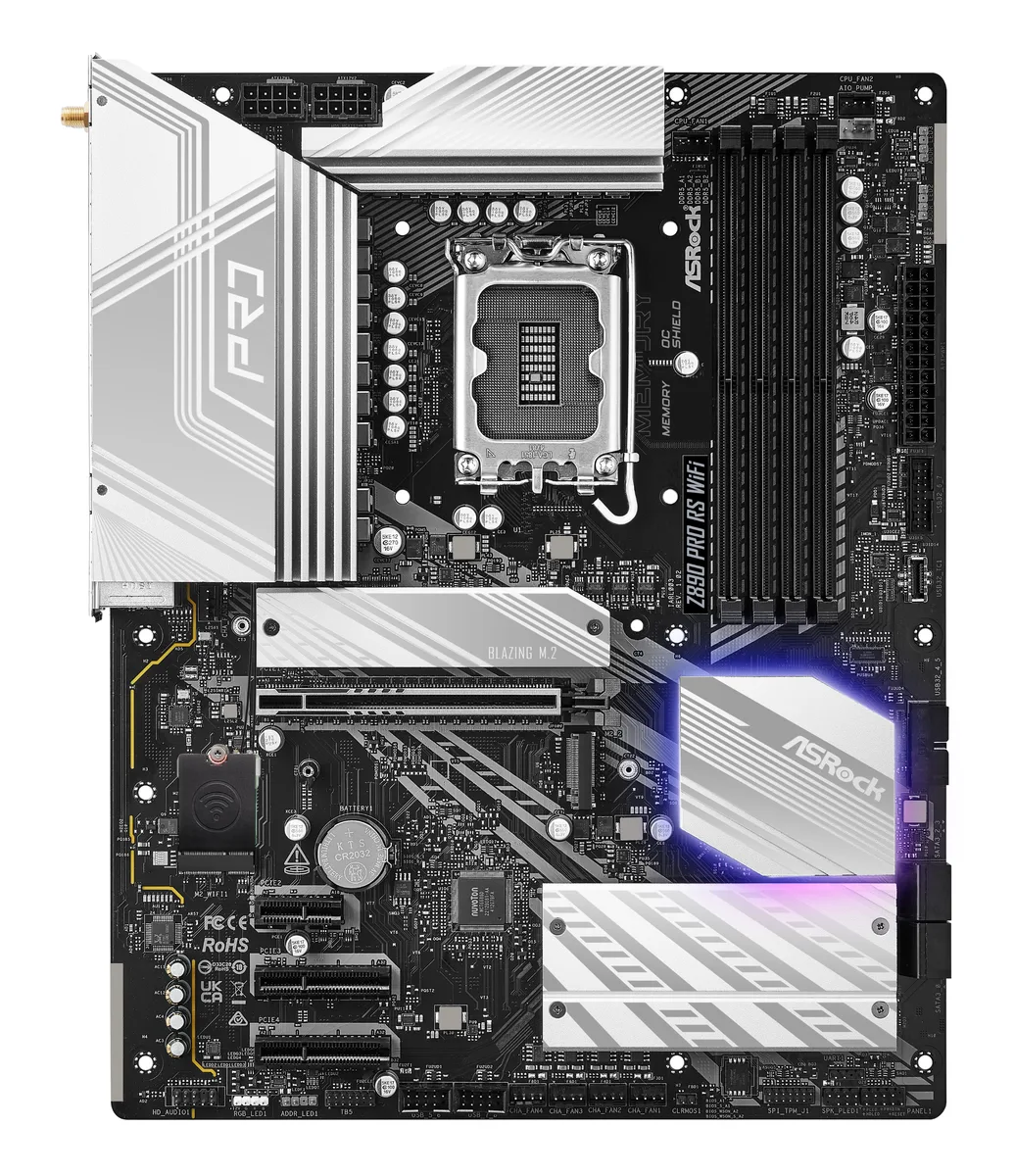

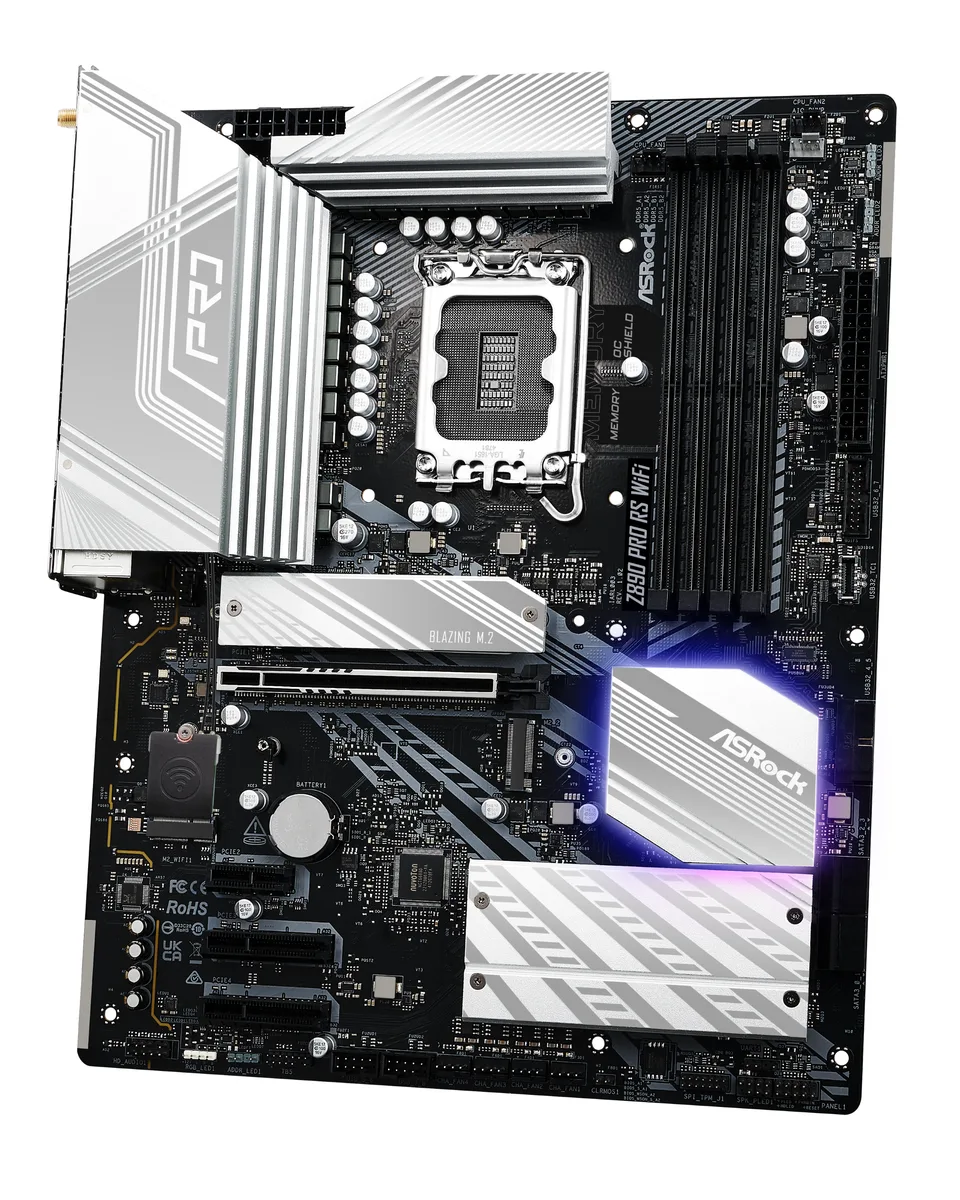

ATX motherboard in dark finish with silver heatsinks and multiple expansion slots

ASRock

ASRock Z890 Pro RS WiFi Intel motherboard

SKU CH-G2QQ-AAWCW MPN Z890 Pro RS WiFi

ATX board for Intel Core Ultra Series 2 processors with LGA 1851 socket, four DDR5 slots up to 256 GB, PCIe 5.0 x16, three M.2 sockets, four SATA ports, 7.1 audio and Thunderbolt 4

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB

Option Z890 Pro RS WiFi

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 16+1+1+1+1 Dr.MOS power phases deliver stable CPU voltage
  • Four DDR5 slots reach 9066 MT/s overclocked with XMP 3.0
  • PCIe 5.0 x16 plus three PCIe 4.0 M.2 slots up to 128 Gb/s
  • Realtek ALC897 7.1-channel audio enhanced by Nahimic technology

Socket LGA 1851 for Intel Core Ultra Series 2

This ATX motherboard uses the Intel Z890 chipset and the LGA 1851 socket to support Intel Core Ultra Processors (Series 2). It targets builders who want a stable platform for daily computing, gaming and content creation with room to grow.

16+1+1+1+1 Dr.MOS power phases and three M.2 slots

The board delivers power through a 16+1+1+1+1 phase design with Dr.MOS stages and 1000uF durable capacitors for clean, stable current under load. Connectivity includes one PCIe 5.0 x16 slot, two PCIe 4.0 x4 slots, one PCIe 4.0 x1 slot, four SATA 6Gb/s ports and three M.2 sockets — one CPU Gen5x4, two chipset Gen4x4 — plus Thunderbolt 4 Type-C and HDMI and DisplayPort outputs.

DDR5 up to 9066 MT/s and 256 GB capacity

Four 288-pin DDR5 slots run dual channel with native 5600 MT/s and XMP 3.0 profiles up to 9066 MT/s (OC), supporting 256 GB total. Realtek ALC897 7.1 CH HD Audio with Nahimic Audio handles sound. This board replaces older Z790 or Z790 platforms when moving to Core Ultra Series 2 and is worth the jump if you need PCIe 5.0 M.2, Thunderbolt 4 and higher DDR5 headroom.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 16+1+1+1+1 Dr.MOS power phases deliver stable CPU voltage
  • Four DDR5 slots reach 9066 MT/s overclocked with XMP 3.0
  • PCIe 5.0 x16 plus three PCIe 4.0 M.2 slots up to 128 Gb/s
  • Realtek ALC897 7.1-channel audio enhanced by Nahimic technology

Specifications

BrandASRock
ModelZ890 Pro RS WiFi
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 9066+(OC)
- 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
- 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
- 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
- 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
Max. capacity of system memory: 256GB
Supports Intel Extreme Memory Profile (XMP) 3.0
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express x4Chipset:
- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
PCI Express x11 x PCIe 4.0 x1 Slot (PCIE2)*
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 CH HD Audio
Nahimic Audio
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 axe
BluetoothBluetooth 5.3

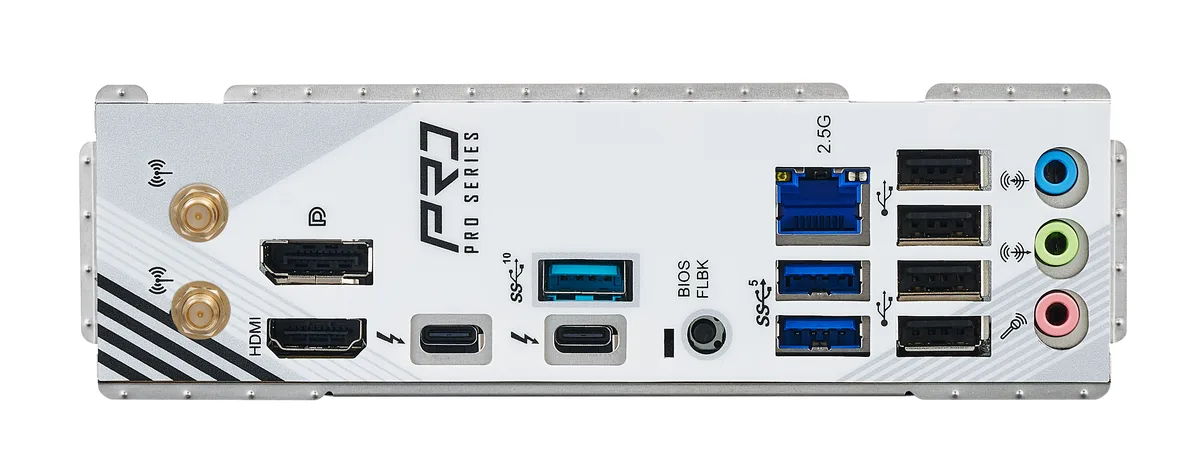

Back I/O Ports2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
*** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can aut
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor
- Memory OC Shield
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

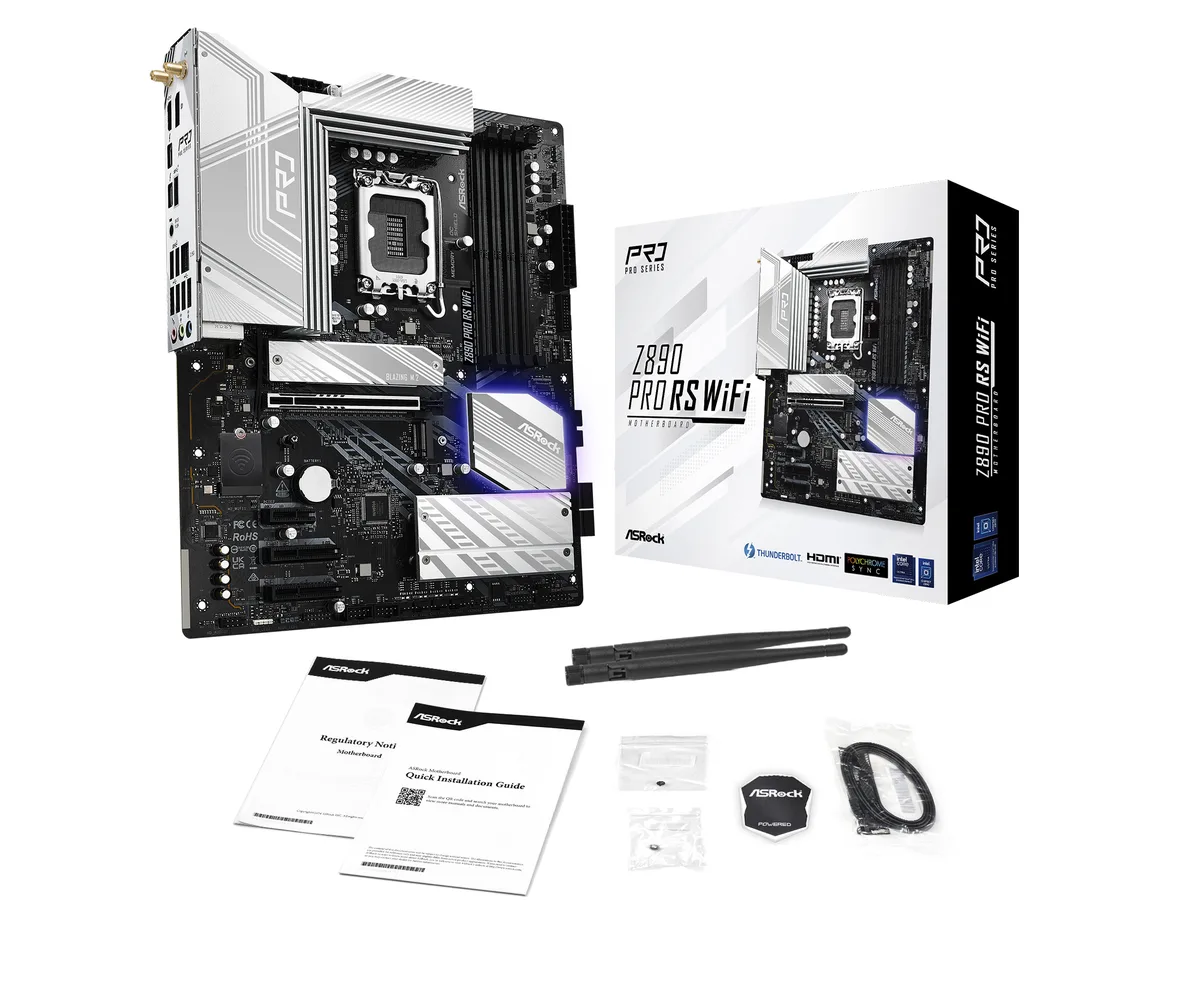

Package Contents2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Screw for M.2 Socket
1 x Standoff for M.2 Socket
Shipping weight1.86 kg
Package size356 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe generation and lane width does the primary x16 slot on the Z890 Pro RS WiFi use, and what bandwidth does that cap at?

The primary PCIe slot (PCIE1) runs at PCIe 5.0 x16, delivering up to 128 Gb/s of bandwidth for graphics cards or riser cards.

What physical space and mounting standard does the ASRock Z890 Pro RS WiFi require inside a chassis?

This board uses the ATX form factor and mounts via standard ATX screw holes; it also needs clearance for four 288-pin DDR5 DIMM slots and a 24-pin ATX power connector.

How is the CPU installed on the LGA 1851 socket, and which step do builders often get wrong?

Lift the load lever, align the processor notches with the socket keys, place it gently without pressure, then lower and latch the lever; the common mistake is forcing the CPU before the lever is fully open.
