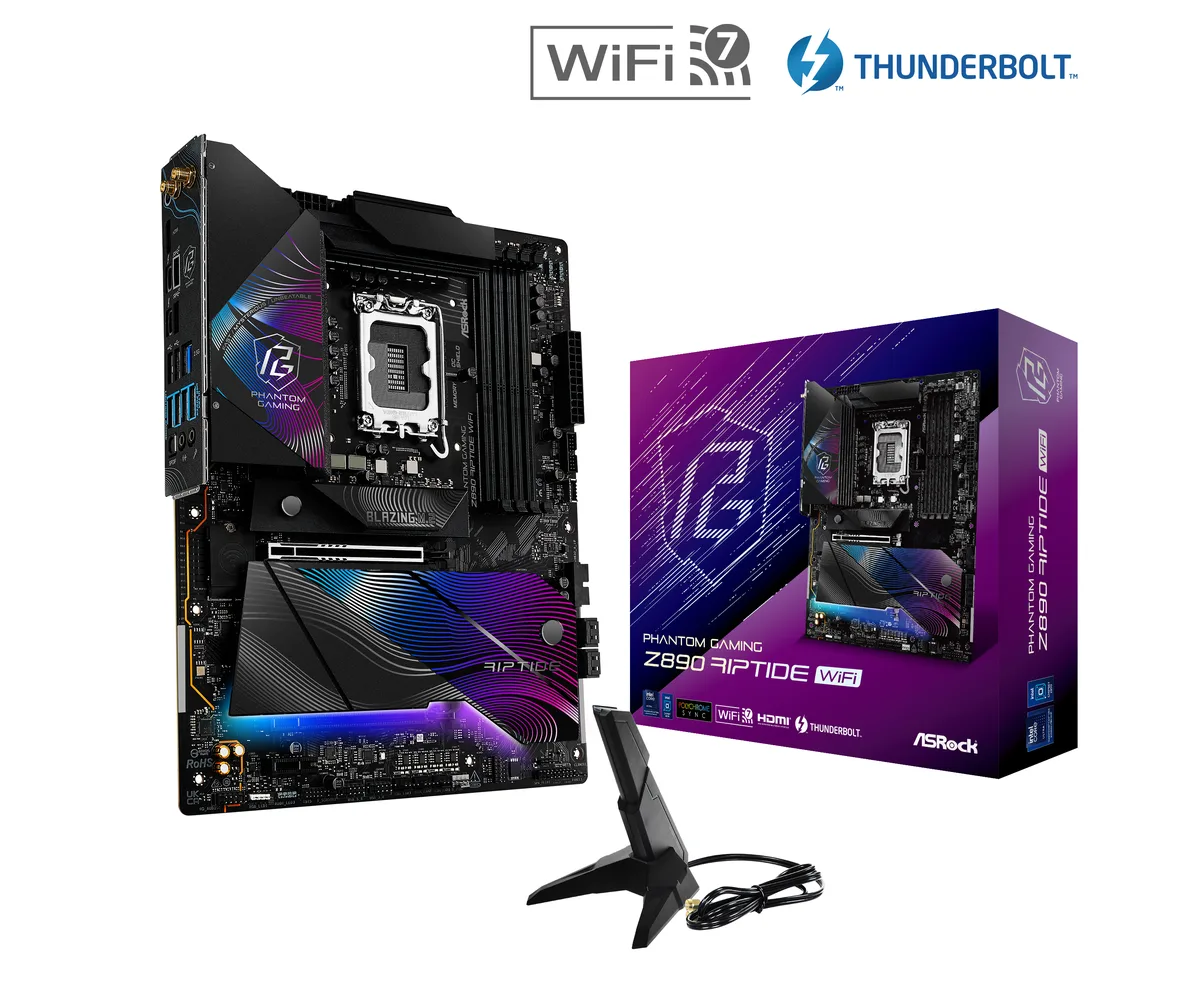

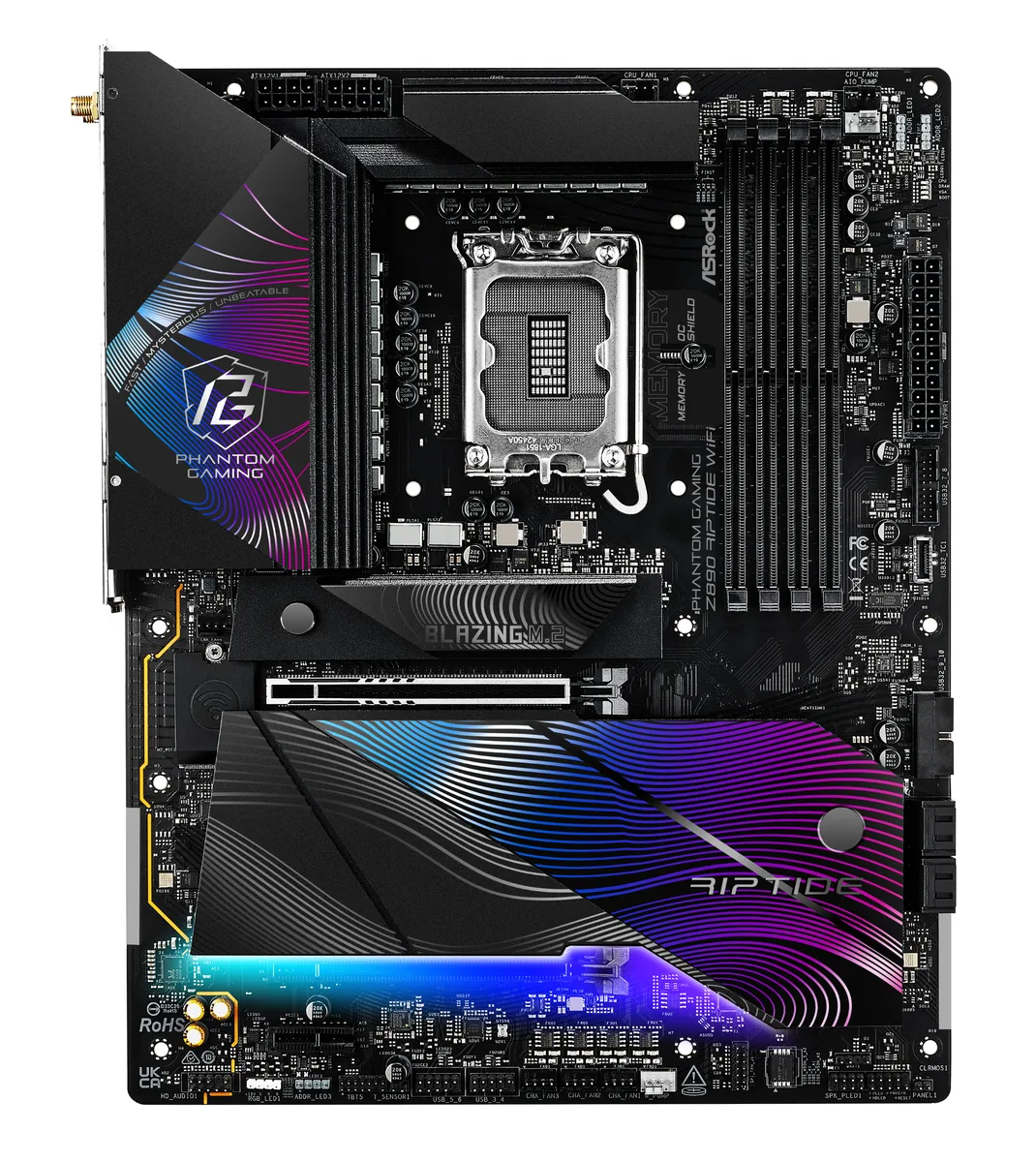

ATX motherboard in dark grey with teal accents and integrated I/O shield

ASRock

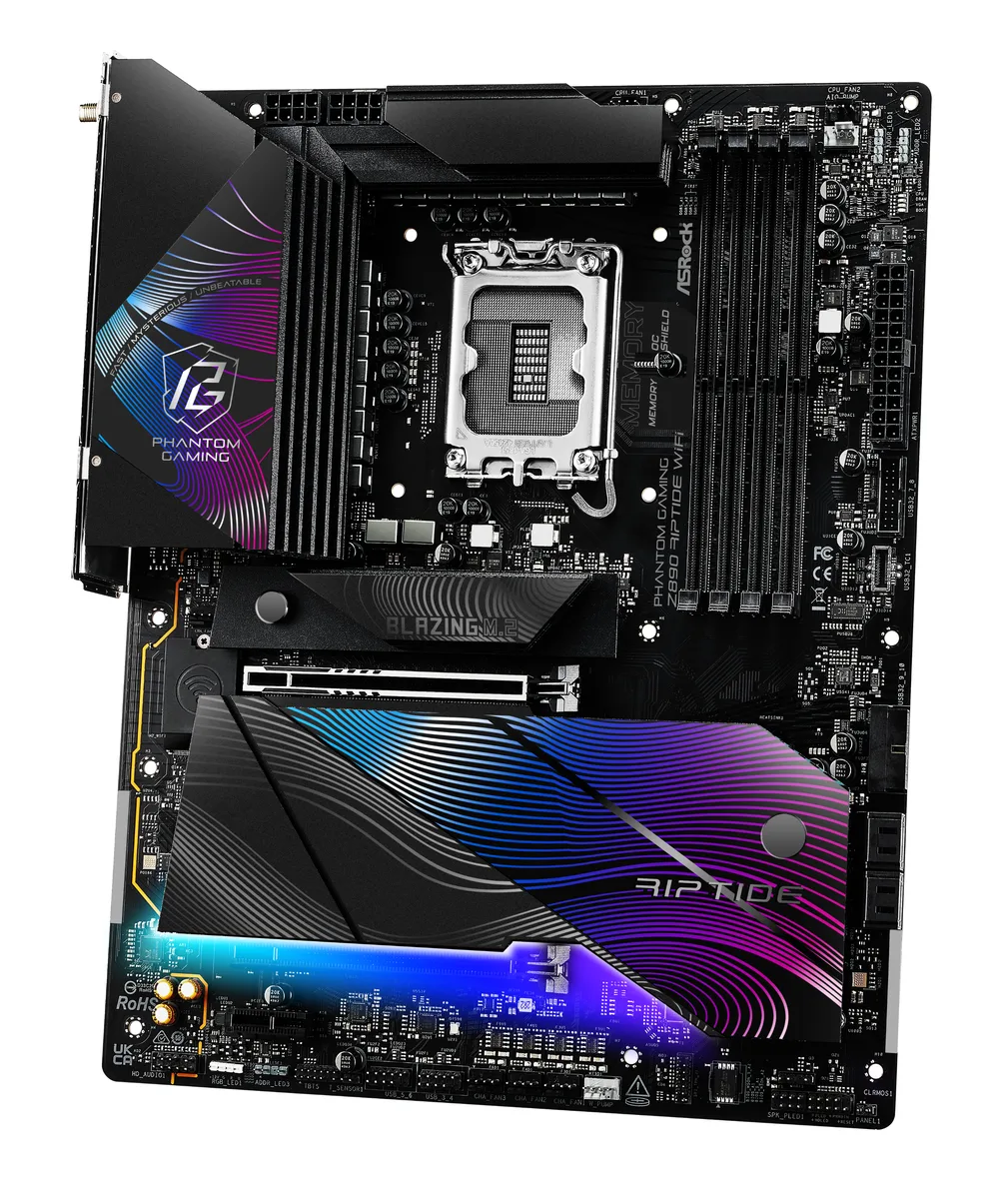

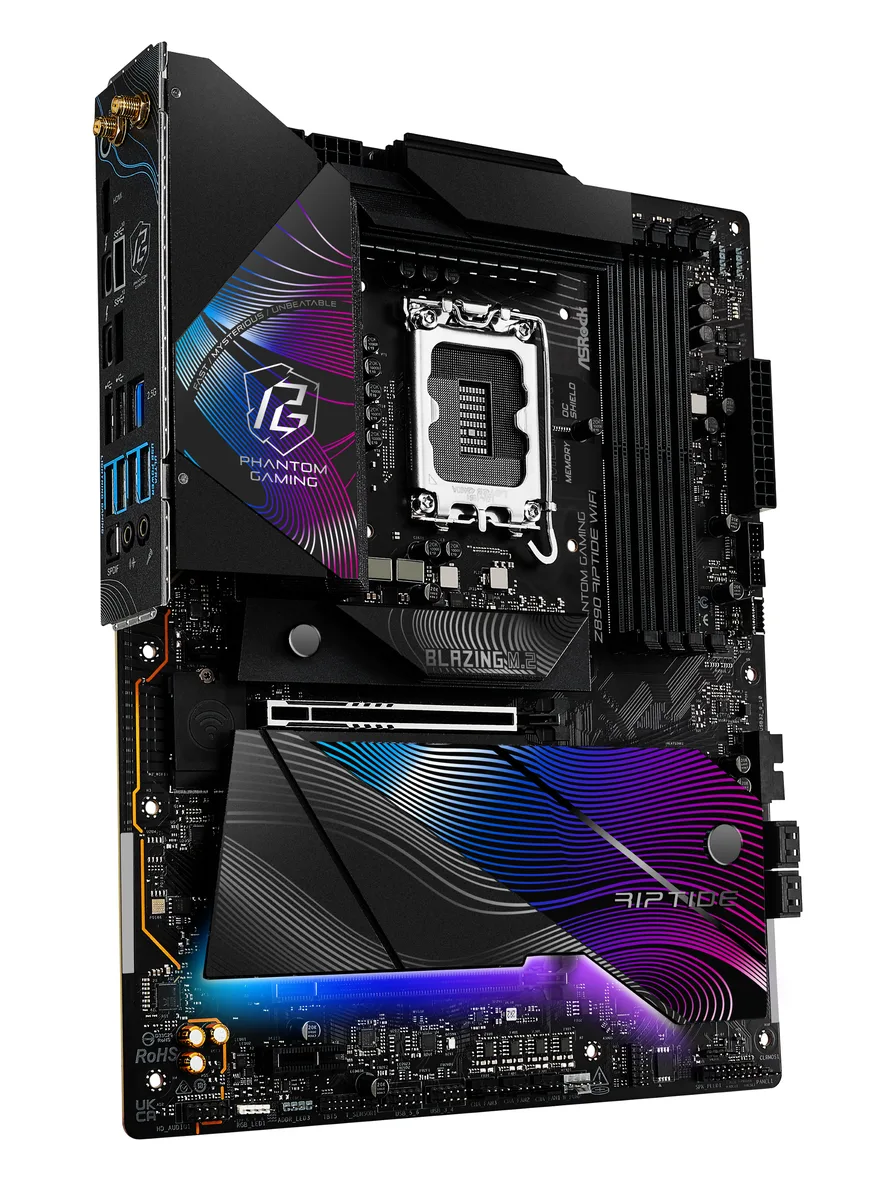

ASRock Z890 Riptide WiFi Intel motherboard

SKU CH-3QRW-DDVS3 MPN Z890 Riptide WiFi

LGA 1851 ATX board for Intel Core Ultra Series 2 with 18+1+1+1+1 80A power phases, four DDR5 slots up to 9466 MT/s, PCIe 5.0 x16, triple M.2 including one Gen5, 7.1 ALC1220 audio and Thunderbolt 4

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB

Option Z890 Riptide WiFi

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 18+1+1+1+1 power phase design with 80A SPS for stable delivery
  • Four DDR5 slots up to 9466 MHz overclocked with XMP 3.0
  • PCIe 5.0 x16 plus two M.2 slots at 128 Gb/s and 64 Gb/s
  • Realtek ALC1220 7.1 CH HD Audio with Nahimic enhancement

Socket & processor support

This ATX motherboard uses the Intel LGA 1851 socket and is built for Intel Core Ultra Processors Series 2. The Z890 chipset enables CPU overclocking and provides the platform features enthusiasts expect. Four DDR5 DIMM slots accept up to 256 GB of memory in dual-channel mode.

Memory speed ceiling

Native DDR5 5600 MT/s runs on all configurations, while 1DPC 1R modules can reach 9466 MT/s when overclocked. Intel XMP 3.0 profiles simplify high-frequency setup without manual tuning. Populating all four slots reduces the maximum stable frequency, so plan the kit capacity accordingly.

Installation notes

Standard ATX mounting holes and a pre-installed I/O shield make physical installation straightforward. The primary PCIe 5.0 x16 slot and the CPU-attached M.2 2280 Gen5 socket share CPU lanes; adding a second x16 device forces the top slot to x8 mode. Thunderbolt 4 headers require a compatible add-in card for front-panel Type-C ports.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 18+1+1+1+1 power phase design with 80A SPS for stable delivery
  • Four DDR5 slots up to 9466 MHz overclocked with XMP 3.0
  • PCIe 5.0 x16 plus two M.2 slots at 128 Gb/s and 64 Gb/s
  • Realtek ALC1220 7.1 CH HD Audio with Nahimic enhancement

Specifications

BrandASRock
ModelZ890 Riptide WiFi
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7600 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9466
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
- 1DPC 1R Up to 9466+ MHz (OC), 5600 MHz Natively.
- 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
- 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
- 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.
Max. capacity of system memory: 256GB
Supports Intel Extreme Memory Profile (XMP) 3.0
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 4.0 x16Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
PCI Express x11 x PCIe 4.0 x1 Slot (PCIE3)*
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC1220
Audio Channels7.1 CH HD Audio with Content Protection
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
LAN ChipsetKiller E3100G
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

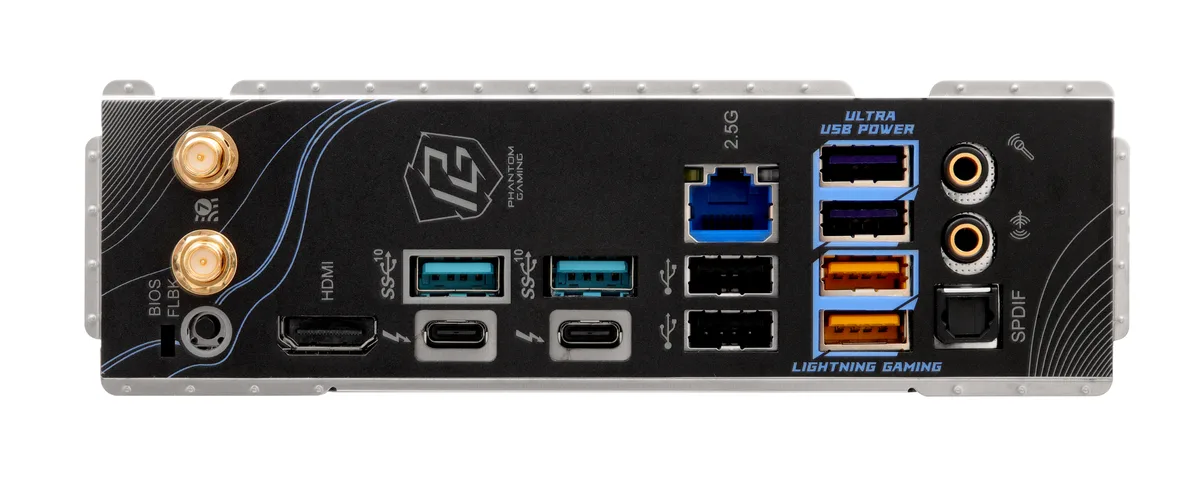

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
4 x USB 3.2 Gen1 Ports**
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
** USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2, CHA_FAN1~4, A
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
- Memory OC Shield
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
Package Contents2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
1 x Thermistor Cable
Shipping weight2.95 kg
Package size356 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing DDR5 memory run at its rated speed on this board?

The board supports native DDR5 5600 with one DIMM per channel and DDR5 4800 with all four slots populated; higher speeds up to 9466 MT/s are possible through Intel XMP 3.0 profiles.

Can I use both Thunderbolt 4 ports for display output at the same time?

Yes, the rear I/O provides two Thunderbolt 4 Type-C connectors plus one HDMI port, all driven by the processor’s integrated graphics.

How many NVMe drives can I install without losing PCIe 5.0 x16 graphics bandwidth?

Two CPU-attached M.2 sockets (one Gen5 x4, one Gen4 x4) are wired directly to the processor, so a graphics card in the top PCIe 5.0 x16 slot retains full x16 bandwidth.
