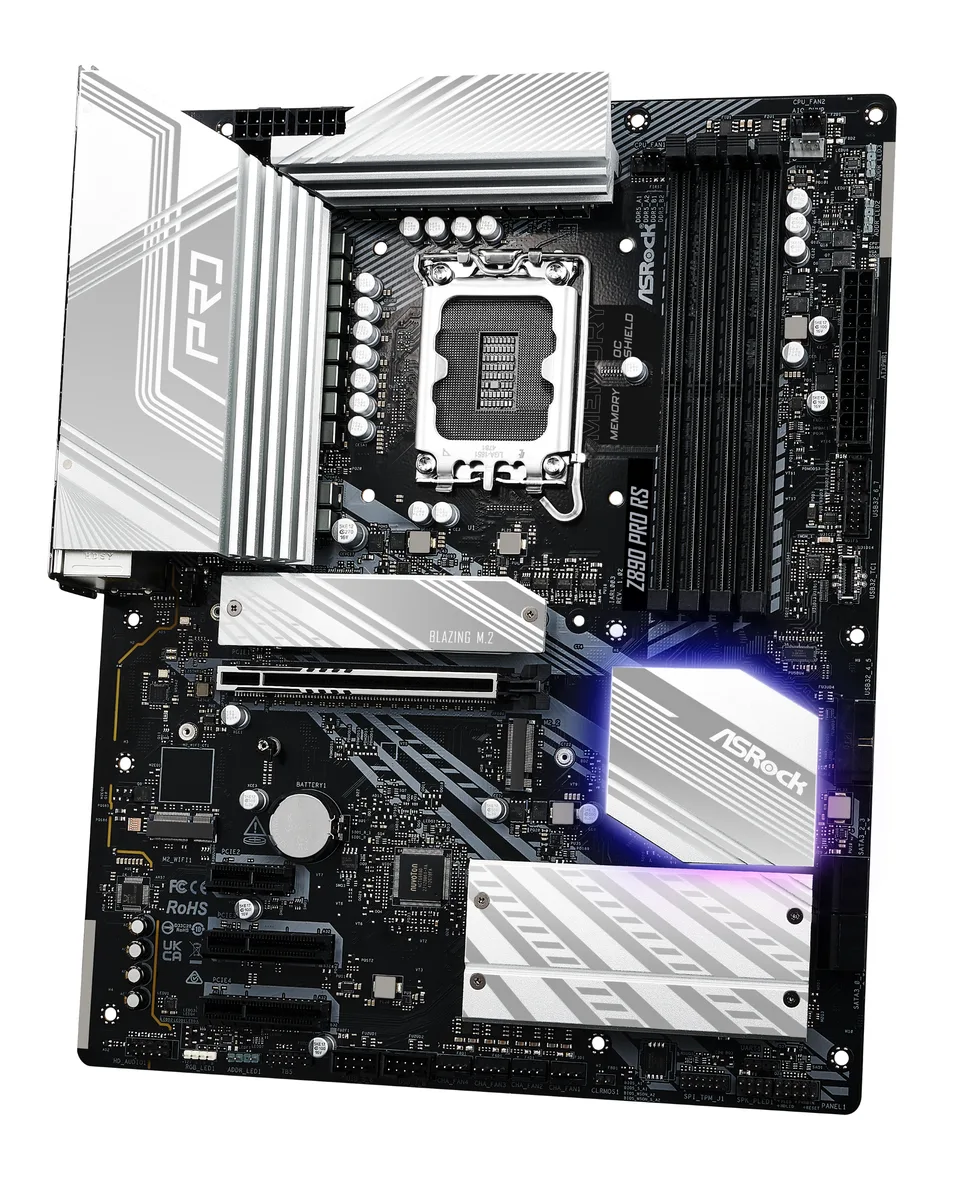

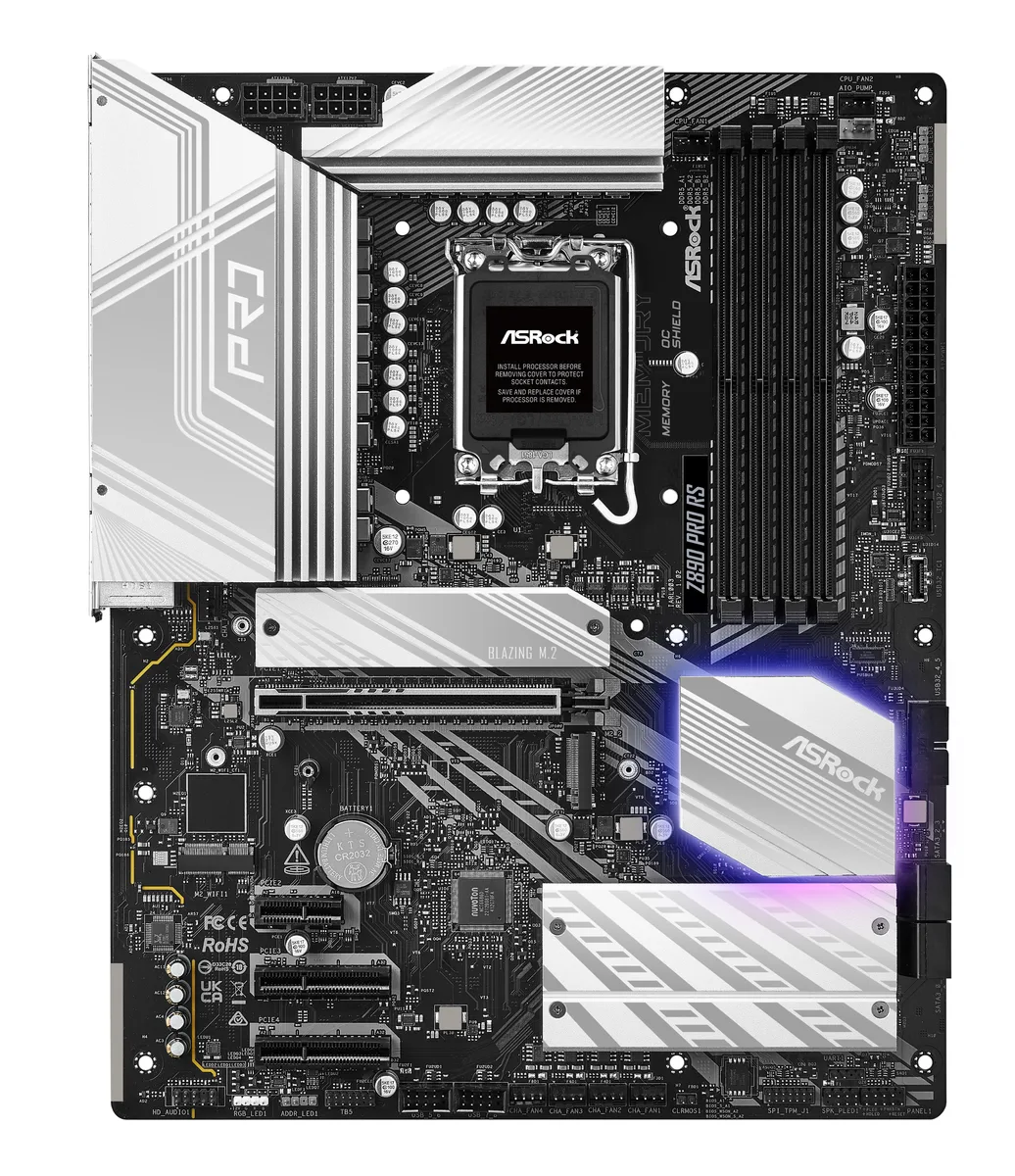

ATX motherboard with black PCB, silver heatsinks and four DDR5 slots

ASRock

ASRock Z890 Pro RS Intel motherboard LGA 1851 ATX

SKU CH-9RX4-5TZRD MPN Z890 Pro RS

ATX board for Intel Core Ultra Series 2 processors with DDR5 support up to 9066 MHz, 16+1+1+1+1 power phases, PCIe 5.0 x16, three M.2 slots, four SATA 6Gb/s ports, and 7.1 channel audio

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB

Option Z890 Pro RS

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 16+1+1+1+1 Dr.MOS power phases deliver stable CPU voltage
  • Four DDR5 slots reach 8666 MHz overclocked with XMP 3.0
  • PCIe 5.0 x16 plus two PCIe 4.0 x4 slots for high-speed add-in cards
  • Two Thunderbolt 4 Type-C ports plus HDMI and DisplayPort outputs

LGA 1851 Intel Core Ultra Platform

The ASRock Z890 Pro RS is an ATX motherboard built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It targets builders who want a stable foundation for daily computing and high-performance workloads. The board pairs the Z890 chipset with a 16+1+1+1+1 Dr.MOS power phase design and 1000uF durable capacitors. This combination delivers smooth power delivery for reliable operation.

DDR5 Capacity up to 256GB and 9066MT/s OC

Four 288-pin slots support dual-channel DDR5 up to 256GB total capacity. Native speeds reach 5600MT/s with one DIMM per channel, while overclocked profiles push beyond 9066MT/s in 1DPC 1R configuration. Populating all four slots reduces the native ceiling to 4800MT/s and the OC headroom to 6533MT/s. Intel XMP 3.0 profiles simplify memory tuning for compatible kits.

PCIe 5.0 M.2 and Thunderbolt 4 Upgrade

The board adds a PCIe 5.0 x16 slot and a CPU-attached Gen5 M.2 socket at 128 Gb/s alongside two Gen4 M.2 sockets at 64 Gb/s. Four SATA 6Gb/s ports and RAID 0, 1, 5, 10 support cover both NVMe and SATA arrays. Rear I/O includes HDMI, DisplayPort and two Thunderbolt 4 Type-C connections. Realtek ALC897 with Nahimic Audio handles 7.1 channel output.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 16+1+1+1+1 Dr.MOS power phases deliver stable CPU voltage
  • Four DDR5 slots reach 8666 MHz overclocked with XMP 3.0
  • PCIe 5.0 x16 plus two PCIe 4.0 x4 slots for high-speed add-in cards
  • Two Thunderbolt 4 Type-C ports plus HDMI and DisplayPort outputs

Specifications

BrandASRock
ModelZ890 Pro RS
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)
- 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
- 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
- 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
- 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
Max. capacity of system memory: 256GB
Supports Intel Extreme Memory Profile (XMP) 3.0
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express x4Chipset:
- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
PCI Express x11 x PCIe 4.0 x1 Slot (PCIE2)*
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 CH HD Audio
Nahimic Audio
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps

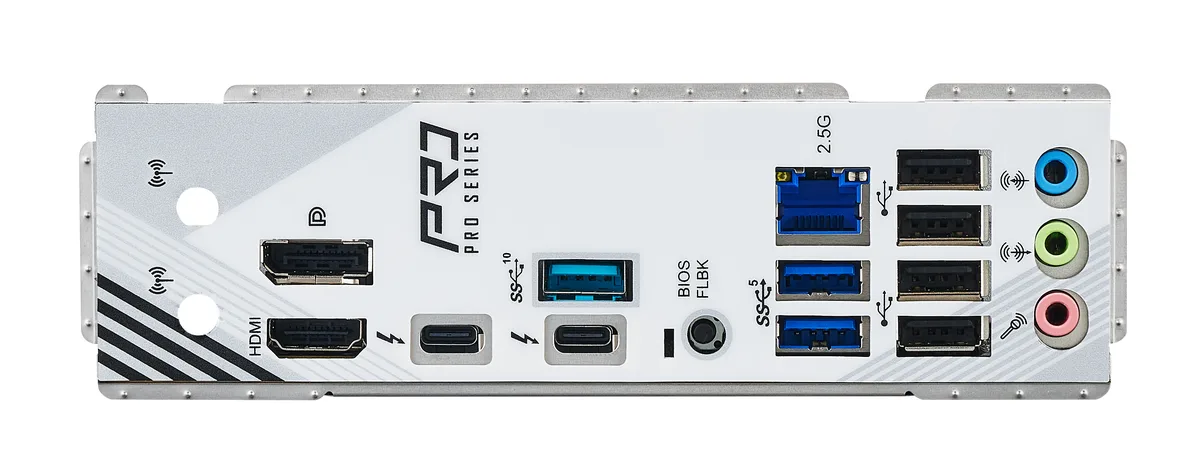

Back I/O Ports2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
*** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can aut
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor
- Memory OC Shield
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

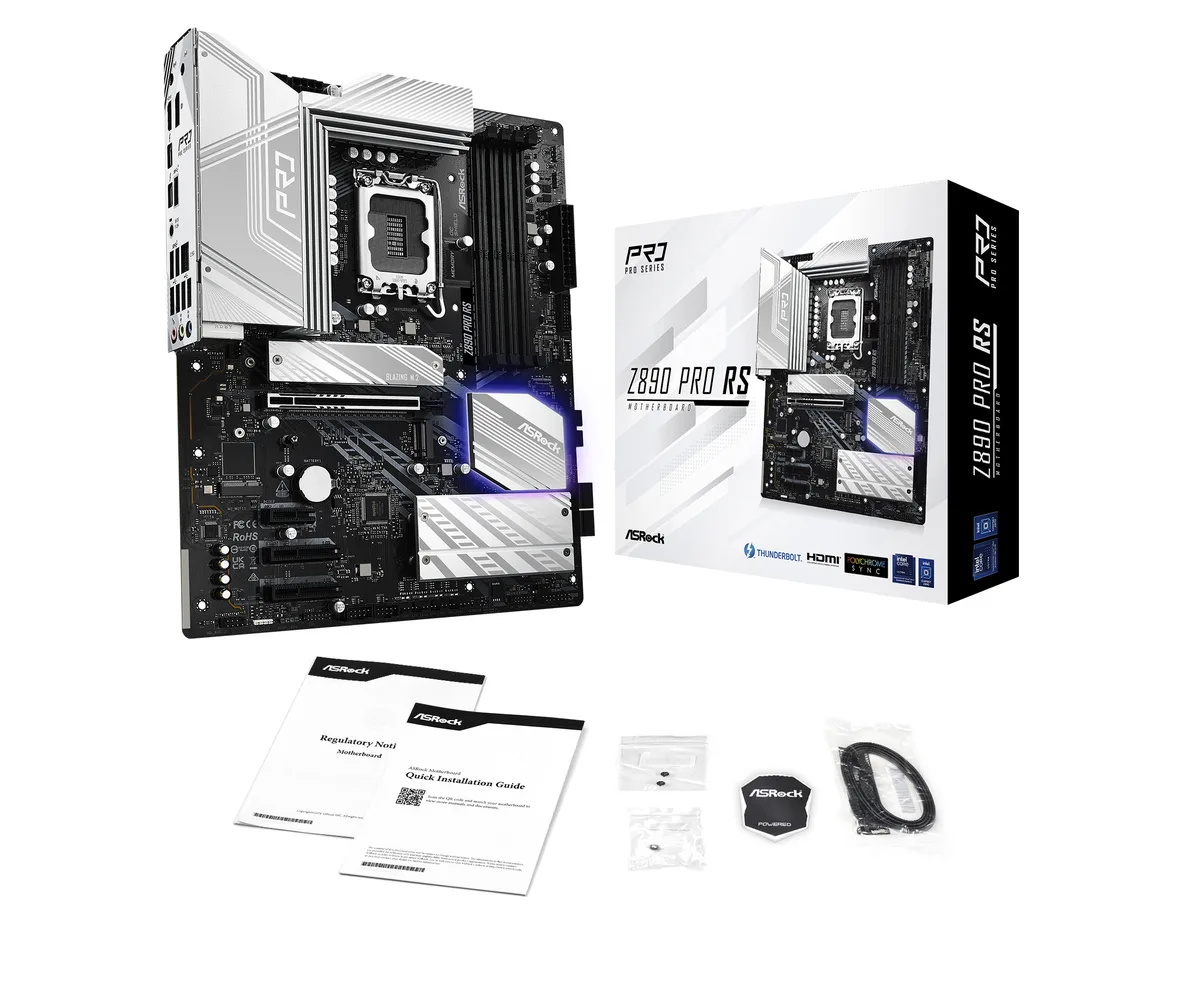

Package Contents2 x SATA Data Cables
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Shipping weight1.81 kg
Package size345 × 287 × 79 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my DDR5-6000 kit run at its rated speed with four sticks installed?

With four single-rank modules the board supports up to DDR5-6533 overclocked, so a DDR5-6000 kit will run at its rated speed when XMP 3.0 is enabled.

Can I use both the HDMI and DisplayPort outputs at the same time for dual monitors?

Yes, the rear I/O provides one HDMI and one DisplayPort, allowing two displays to be driven from the integrated graphics of a Core Ultra Series 2 processor.

How many NVMe drives can I install without using a PCIe slot adapter?

Three M.2 sockets are provided: one PCIe 5.0 x4 from the CPU and two PCIe 4.0 x4 from the chipset, all supporting 2280 drives.
