ATX motherboard, silver and grey steel-themed finish, LGA 1851 socket, four DDR5 slots, PCIe 5.0 x16 slot, M.2 heatsinks

ASRock

ASRock Z890 Steel Legend WiFi Intel motherboard

SKU CH-JR3H-8SGKH MPN Z890 Steel Legend WiFi

ATX board for Intel Core Ultra Series 2 processors with 18+1+1+1+1 80A power phases, four DDR5 slots up to 9466 MHz, PCIe 5.0 x16, three M.2 sockets including one Gen5, four SATA ports.

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB

Option Z890 Steel Legend WiFi

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 18+1+1+1+1 power phase design with 80A SPS for stable CPU delivery
  • Four DDR5 slots up to 256GB with XMP 3.0 and 9466MHz+ OC headroom
  • PCIe 5.0 x16 plus two PCIe 4.0 slots for graphics and expansion
  • Realtek ALC1220 7.1 CH HD Audio with Nahimic enhancement

Built for Intel Core Ultra Series 2

The ASRock Z890 Steel Legend WiFi is an ATX motherboard using the LGA 1851 socket and Intel Z890 chipset. It targets daily users and mainstream enthusiasts who want a durable platform for current Intel Core Ultra processors. The board delivers an 18+1+1+1+1 power phase design with 80A SPS stages for stable CPU delivery.

Verify socket and memory before ordering

Your processor must be an Intel Core Ultra Series 2 CPU that fits LGA 1851. The board provides four 288-pin DDR5 slots supporting dual-channel operation up to 256 GB total. Native speeds run to 5600 MHz; XMP 3.0 profiles reach 9066+ MHz (OC). Graphics output uses one HDMI port and one Thunderbolt 4 Type-C connector.

Replaces Z790 or older Intel platforms

Moving from a Z790 board adds the LGA 1851 socket, PCIe 5.0 on the primary x16 slot, and a CPU-attached M.2 Gen5 x4 drive running at 128 Gb/s. The VRM upgrades to 20K-hour 1000 µF capacitors and 80A SPS stages. The jump is worth it when you need Gen5 GPU bandwidth, faster NVMe throughput, or the new Core Ultra architecture.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 18+1+1+1+1 power phase design with 80A SPS for stable CPU delivery
  • Four DDR5 slots up to 256GB with XMP 3.0 and 9466MHz+ OC headroom
  • PCIe 5.0 x16 plus two PCIe 4.0 slots for graphics and expansion
  • Realtek ALC1220 7.1 CH HD Audio with Nahimic enhancement

Specifications

BrandASRock
ModelZ890 Steel Legend WiFi
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9466
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
- 1DPC 1R Up to 9466+ MHz (OC), 5600 MHz Natively.
- 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
- 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
- 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.
Max. capacity of system memory: 256GB
Supports Intel Extreme Memory Profile (XMP) 3.0
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 4.0 x16Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
PCI Express x41 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode*
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC1220
Audio Channels7.1 CH HD Audio with Content Protection
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

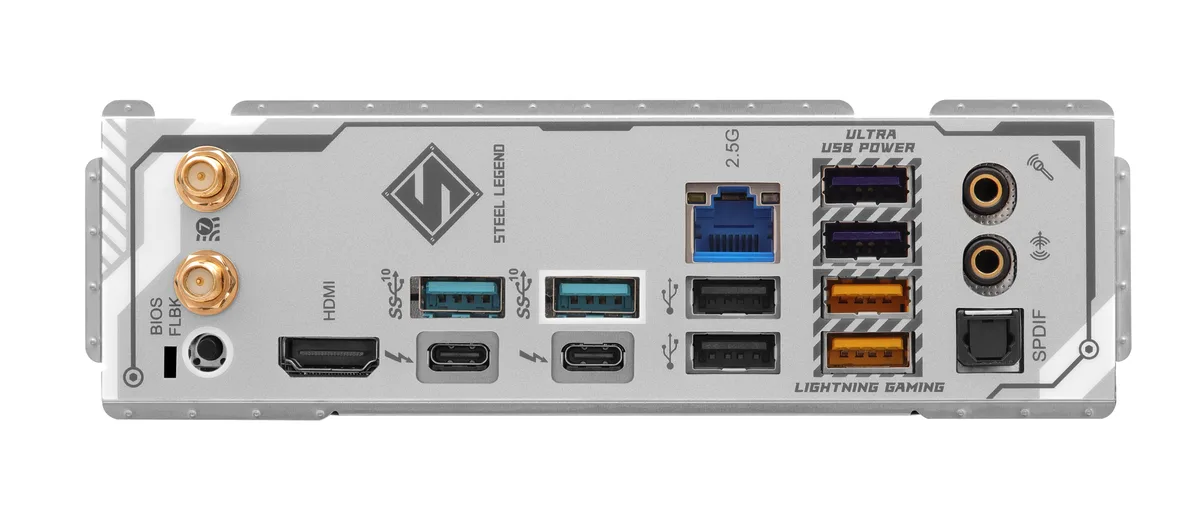

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
4 x USB 3.2 Gen1 Ports**
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
** USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor
- Memory OC Shield
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- 2.5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Package Contents2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Thermistor Cable
Shipping weight2.04 kg
Package size343 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the board ship with any cables, brackets or driver media, or must I source them separately?

The box contains the motherboard, I/O shield, SATA cables, M.2 screws, Wi‑Fi antennas, RGB cable, quick guide and driver disc; no extra mounting hardware or cables are required for a standard build.

Which DDR5 speed should I pick if I want the highest native frequency without overclocking?

The board runs DDR5‑5600 natively with a single rank per channel; higher speeds up to 9466 MHz are only reached through XMP 3.0 overclocking profiles.

What does the 128 Gb/s M.2 slot actually deliver for a Gen5 NVMe drive?

The CPU‑linked M2_1 slot provides a PCIe 5.0 x4 link rated at 128 Gb/s, giving a Gen5 NVMe SSD its full interface bandwidth.
