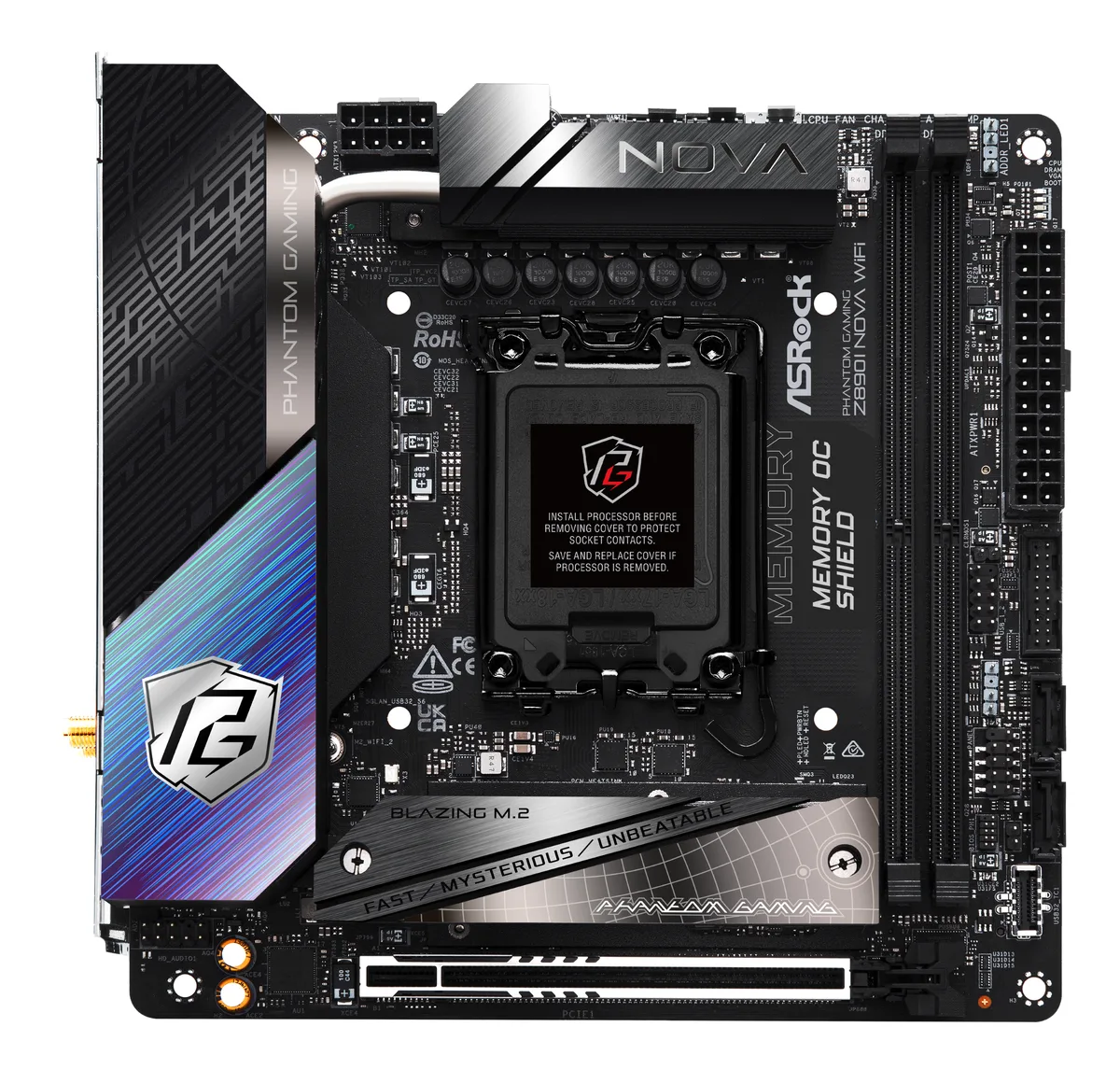

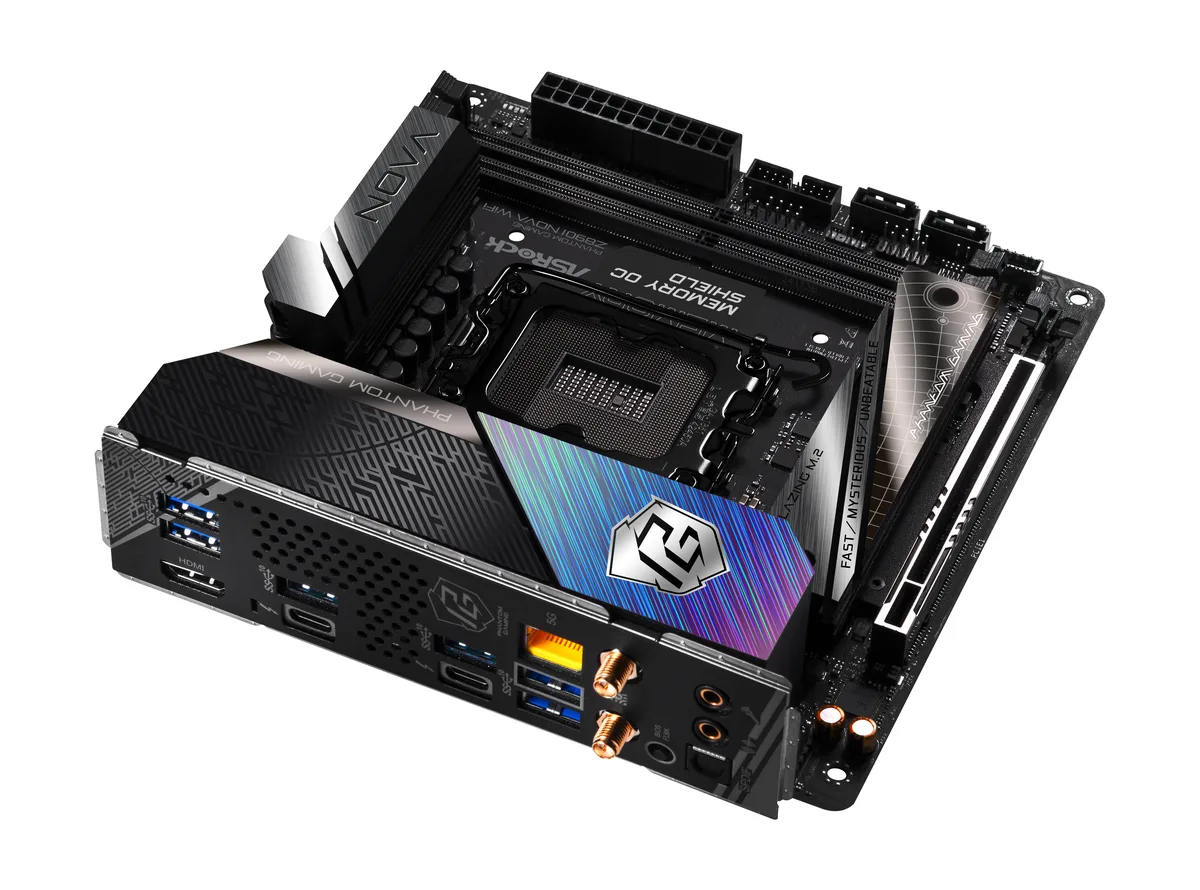

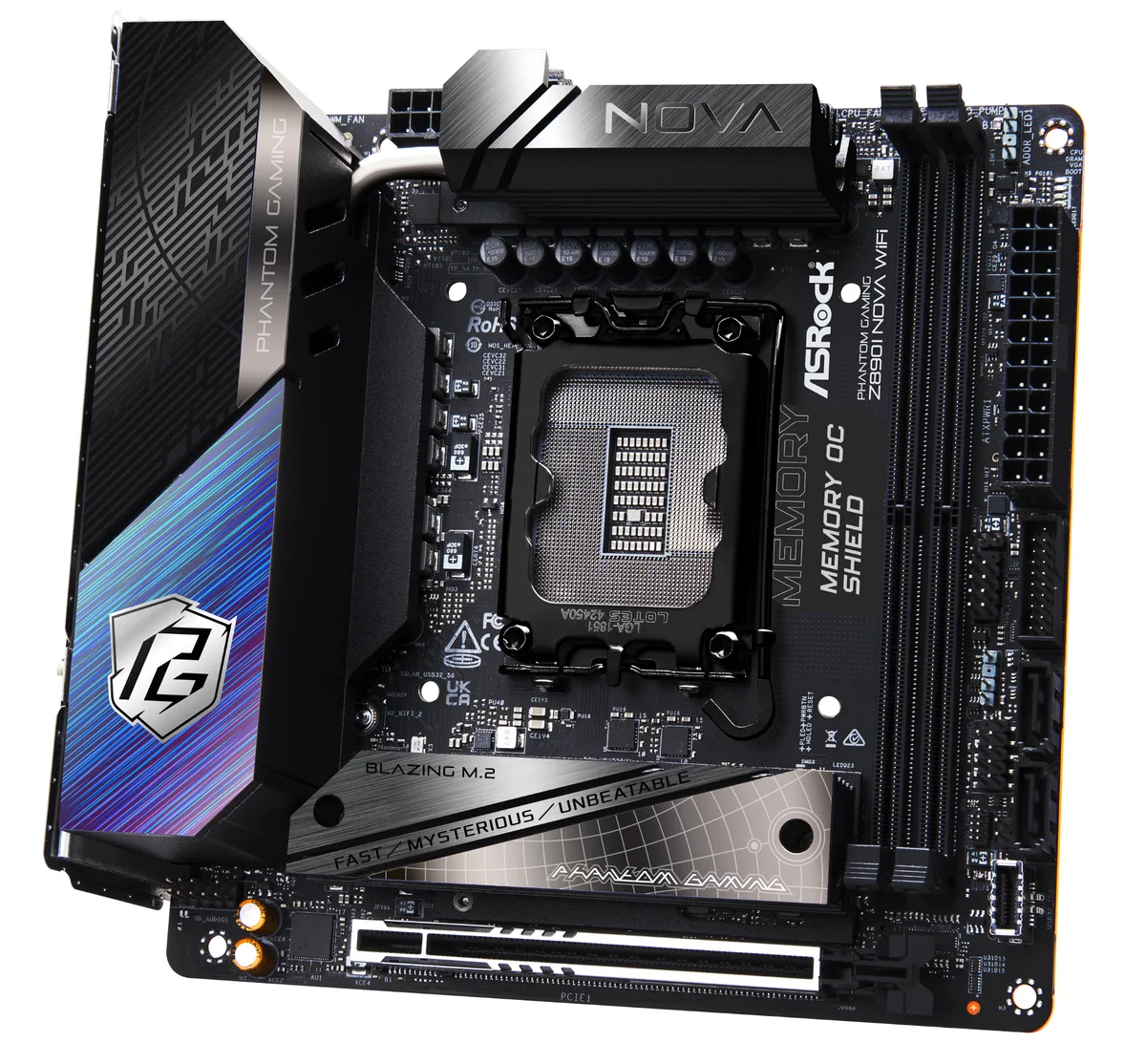

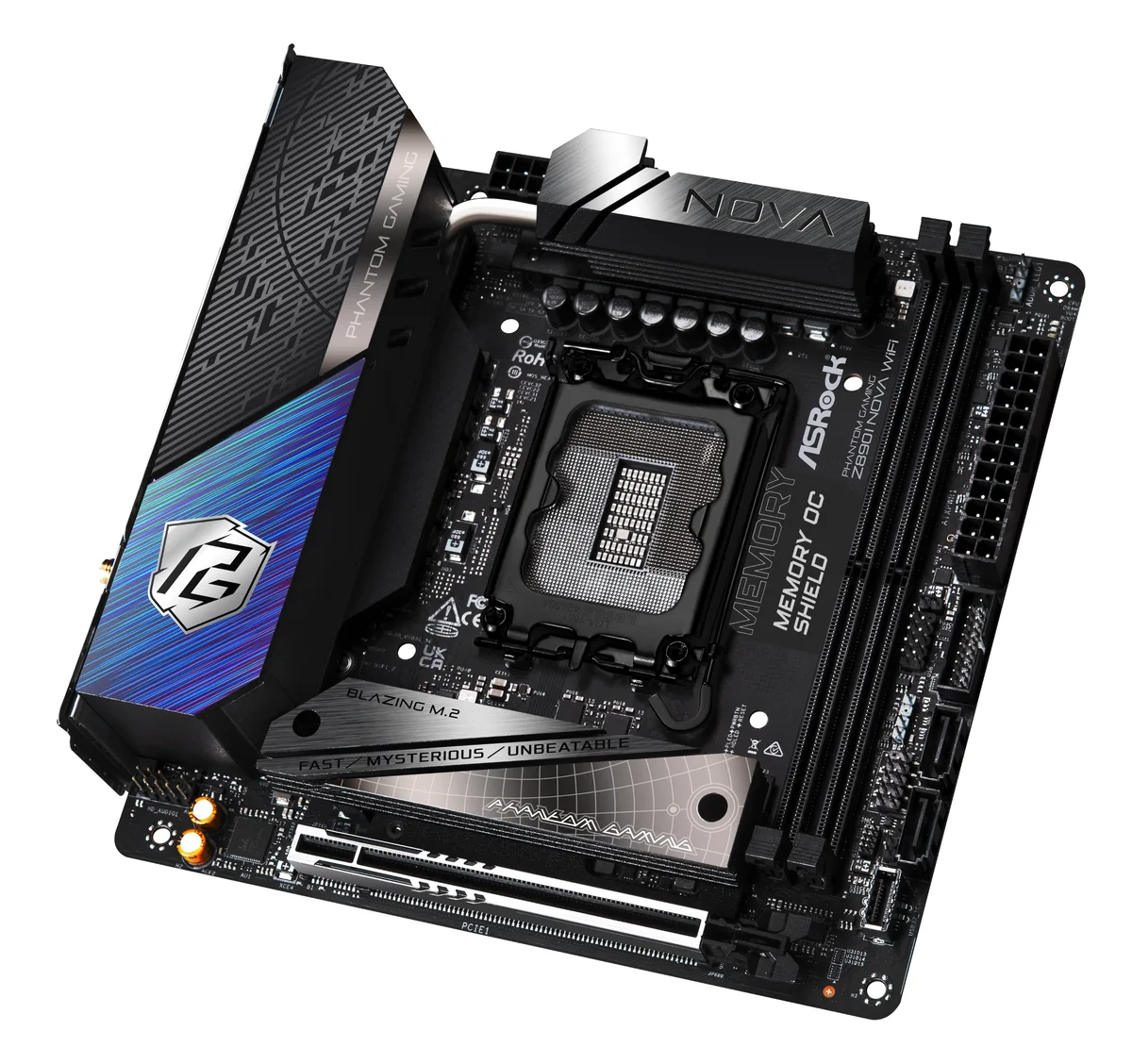

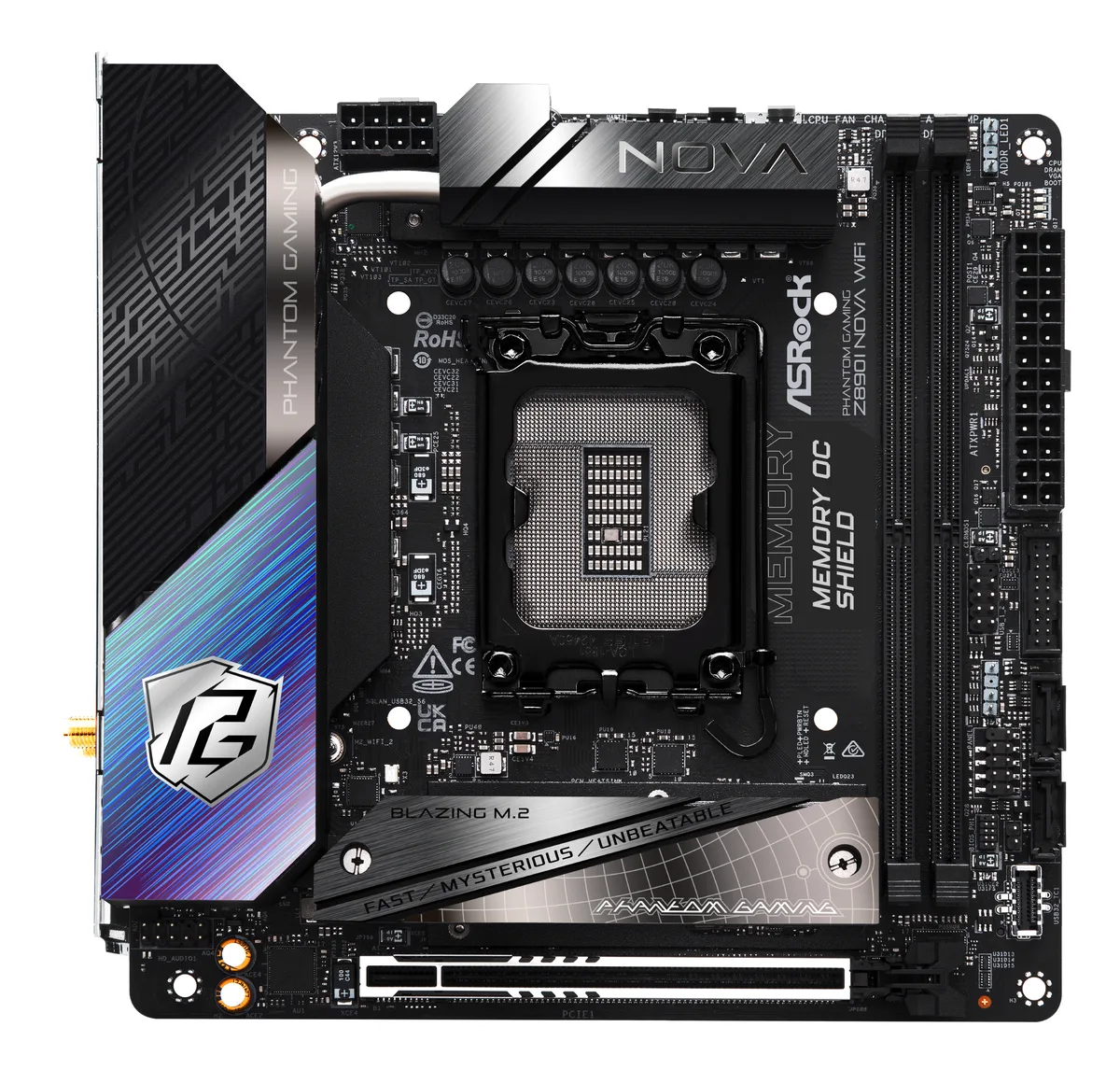

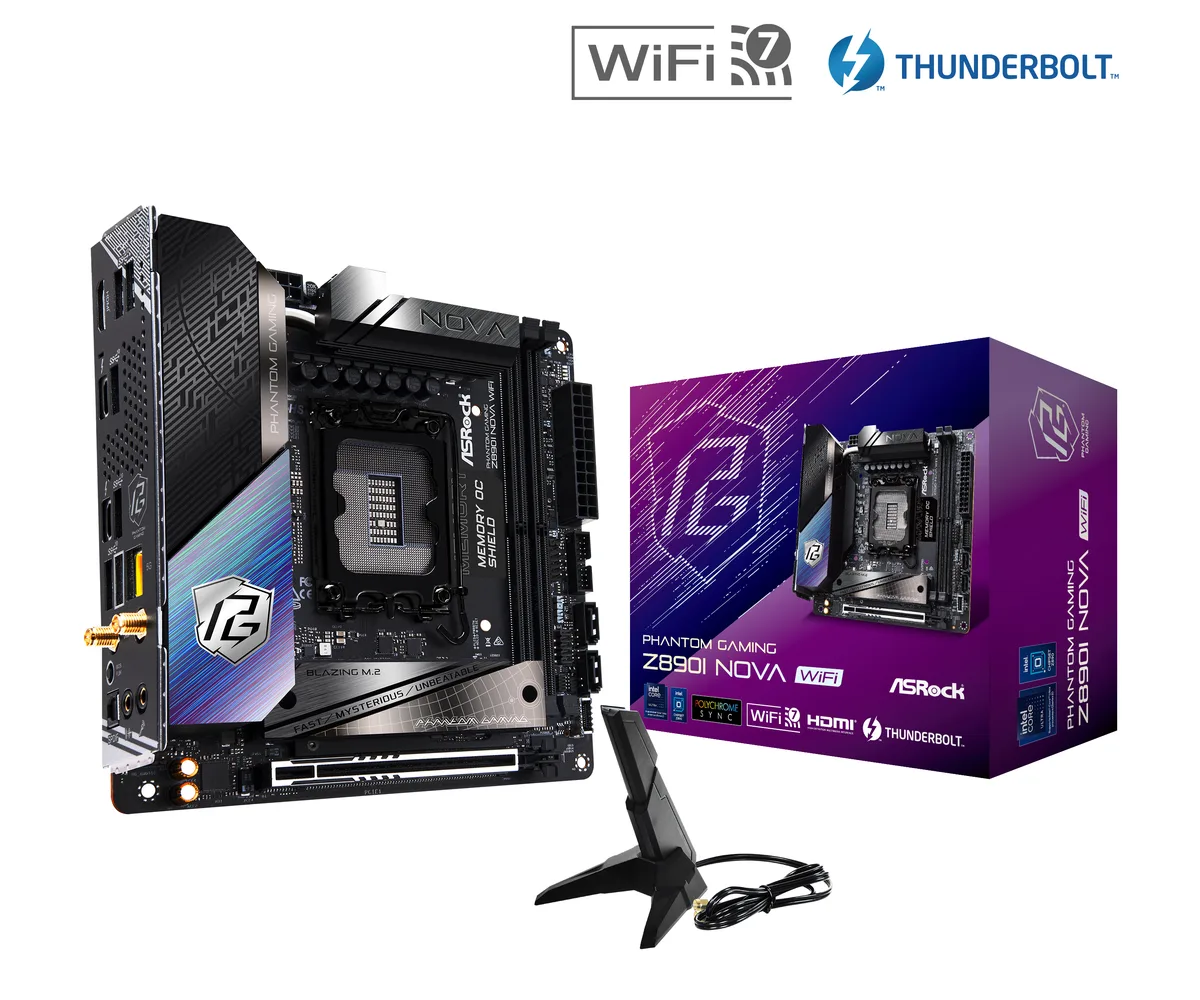

Compact Mini ITX motherboard with black PCB, silver heatsinks and rear I/O shield

ASRock

ASRock Z890I Nova WiFi Intel motherboard

SKU CH-EPT4-JXPHP MPN Z890I Nova WiFi

Mini-ITX Intel Z890 board for Core Ultra Series 2 with dual DDR5 up to 9866 MT/s, PCIe 5.0 x16, two M.2 slots and 5 Gb LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 /
  • Maximum Memory Supported128GB

Option Z890I Nova WiFi

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 12+1+1+1+1 power phase design with 110A SPS for stable CPU delivery
  • Dual-channel DDR5 up to 9866+ MHz (OC) with XMP 3.0 support
  • PCIe 5.0 x16 slot plus three M.2 sockets including Gen5x4 and Gen4x4
  • Realtek ALC4082 7.1 CH HD Audio with Nahimic Audio and 5Gbps LAN

Compact Intel Z890 platform

The ASRock Z890I Nova WiFi fits an LGA 1851 socket and Intel Z890 chipset into a Mini ITX board for Core Ultra Series 2 processors. It targets builders who need high-end features in a small chassis without sacrificing connectivity or power delivery. Two DDR5 slots and a single PCIe 5.0 x16 slot keep the layout focused on essential performance.

Dual-channel DDR5 up to 128 GB

Two 288-pin slots run dual-channel DDR5 with native 6400 MT/s and XMP 3.0 profiles reaching 9866 MT/s when overclocked. The 128 GB ceiling gives headroom for heavy multitasking and content workloads, while the 1DPC 1R topology keeps signal integrity tight at extreme speeds. Beyond the validated XMP ceiling, stability depends on memory quality and cooling.

12+1+1+1+1 phase VRM with 20K capacitors

The 110 A per phase design and 1000 µF 20K black capacitors replace thinner power stages found on lesser ITX boards. The upgrade is worth it when pushing Core Ultra clocks past stock limits or sustaining all-core loads in a compact case. Integrated 5 GbE, dual Thunderbolt 4 and three M.2 slots — two Gen5 and one Gen4 — complete the I/O leap.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 12+1+1+1+1 power phase design with 110A SPS for stable CPU delivery
  • Dual-channel DDR5 up to 9866+ MHz (OC) with XMP 3.0 support
  • PCIe 5.0 x16 slot plus three M.2 sockets including Gen5x4 and Gen4x4
  • Realtek ALC4082 7.1 CH HD Audio with Nahimic Audio and 5Gbps LAN

Specifications

BrandASRock
ModelZ890I Nova WiFi
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9466 / DDR5 9600 / DDR5 9866
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 9866+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
Supports Intel Extreme Memory Profile (XMP) 3.0x
- 1DPC 1R Up to 9866+ MHz (OC), 6400 MHz Natively.
- 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
* Supports NVMe SSD as boot disks
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
Serial ATA (SATA)2 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0 and RAID 1 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* Requires additional M.2 NVMe expansion cards to support RAID 10
Audio ChipsetRealtek ALC4082
Audio Channels7.1 CH HD Audio with Content Protection
Nahimic Audio
LAN ChipsetRealtek RTL8126CG
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Antenna Ports
1 x HDMI Port
2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
1 x Optical SPDIF Out Port
6 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Onboard USB1 x USB 2.0 Headers (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors1 x Thermistor Cable Header
2 x Addressable LED Headers*
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN and CHA_FAN1 support the fan power up to 2A (24W).
*** AIO_PUMP supports the fan power up to 3A (36W).
*** AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Supported
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 12+1+1+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
- Memory OC Shield
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Gaming
- 5G LAN, 802.11be Wi-Fi 7 Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Package Contents2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
1 x Thermistor Cable
3 x Screws for M.2 Sockets
Shipping weight1.32 kg
Package size231 × 185 × 95 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the board run with my existing DDR5-6400 memory kit?

The board natively supports DDR5-6400 and can run higher speeds through XMP 3.0 profiles up to DDR5-9866+(OC).

How can I verify the 5 Gbps LAN and Thunderbolt 4 ports are active after build?

Check Device Manager for Realtek RTL8126CG 5GbE adapter and two Thunderbolt 4 controllers; run a 5 Gbps network test and connect a Thunderbolt device to confirm link speed.

What cables and accessories ship with the Z890I Nova WiFi?

The box includes 2 SATA cables, 2 M.2 screws, a Wi-Fi/Bluetooth antenna kit and documentation.
