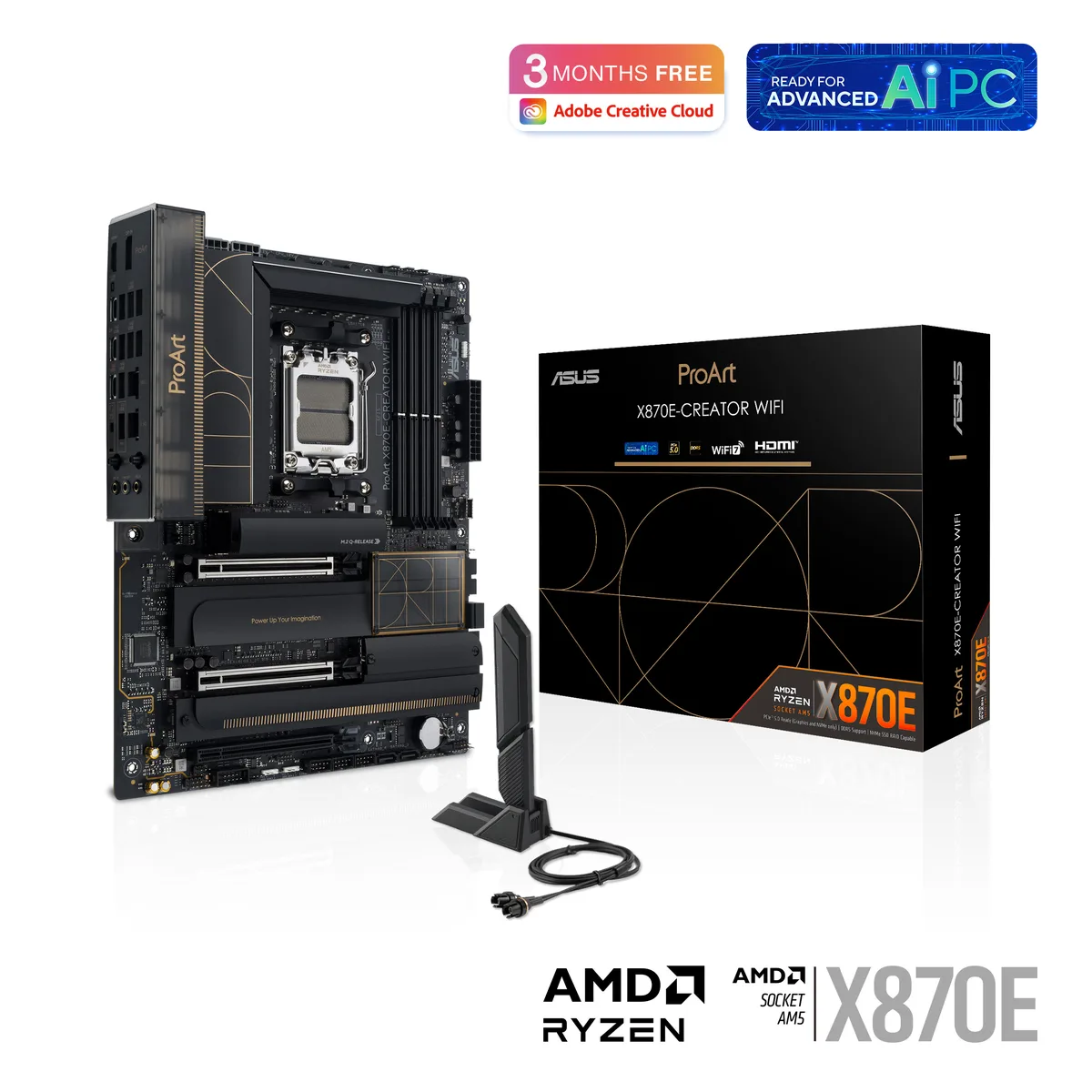

ATX motherboard in dark finish with silver heatsinks and rear I/O shield

ASUS

ASUS ProArt X870E-CREATOR WIFI AMD motherboard

SKU CH-X74Z-HS30B MPN ProArt X870E-CREATOR WIFI

AM5 motherboard with 16+2+2 power stages, dual USB4 ports, 10 Gb and 2.5 Gb LAN, WiFi 7, and four M.2 slots for Ryzen 7000, 8000 and 9000 CPUs

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB

Option ProArt X870E-CREATOR WIFI

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 16+2+2 teamed power stages deliver stable voltage for heavy workloads
  • Dual USB4 ports plus 10 Gb and 2.5 Gb Ethernet for fast I/O
  • Four M.2 slots with two PCIe 5.0 and two PCIe 4.0 interfaces
  • WiFi 7 and Realtek S1220A 7.1 channel audio built in

Socket AM5 workstation board

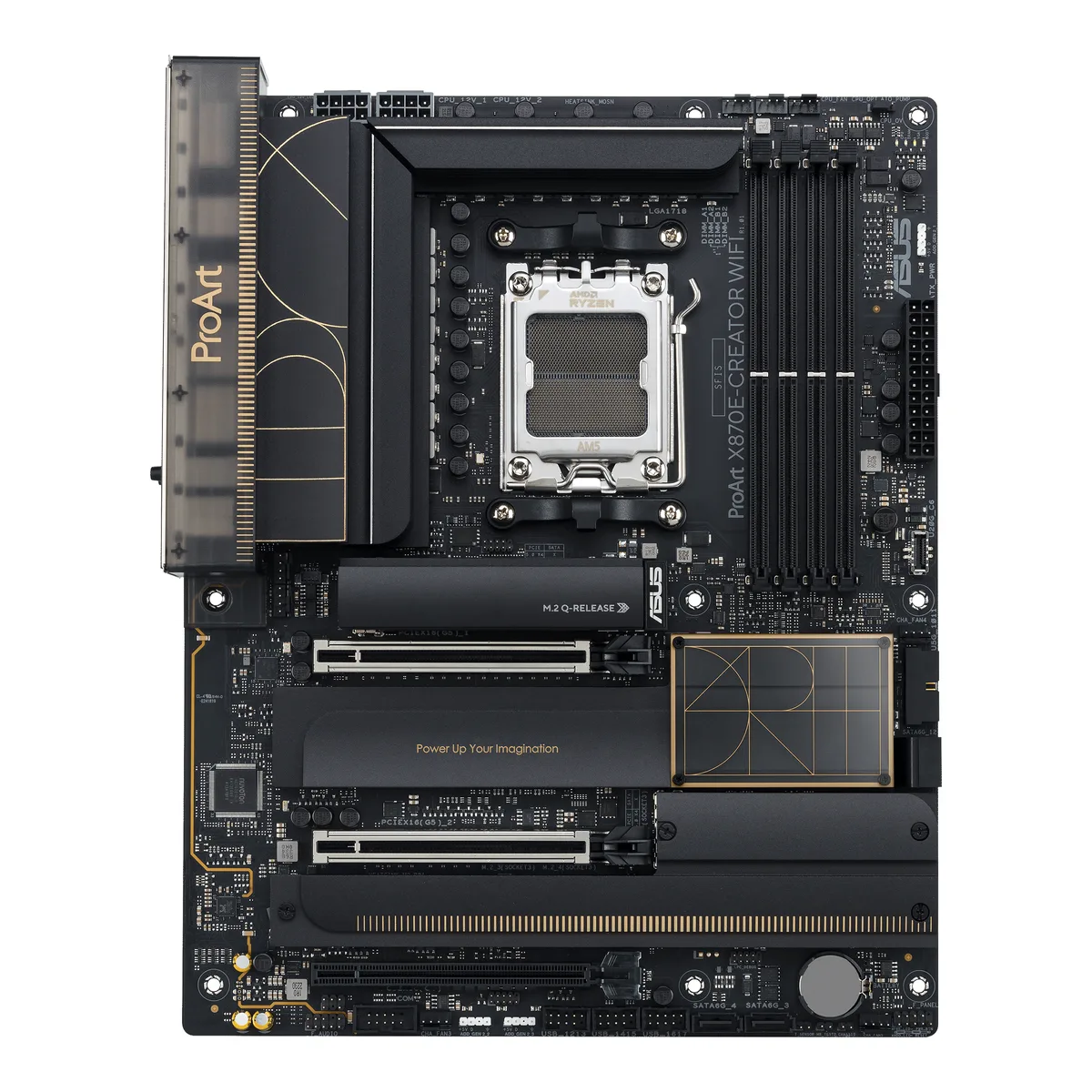

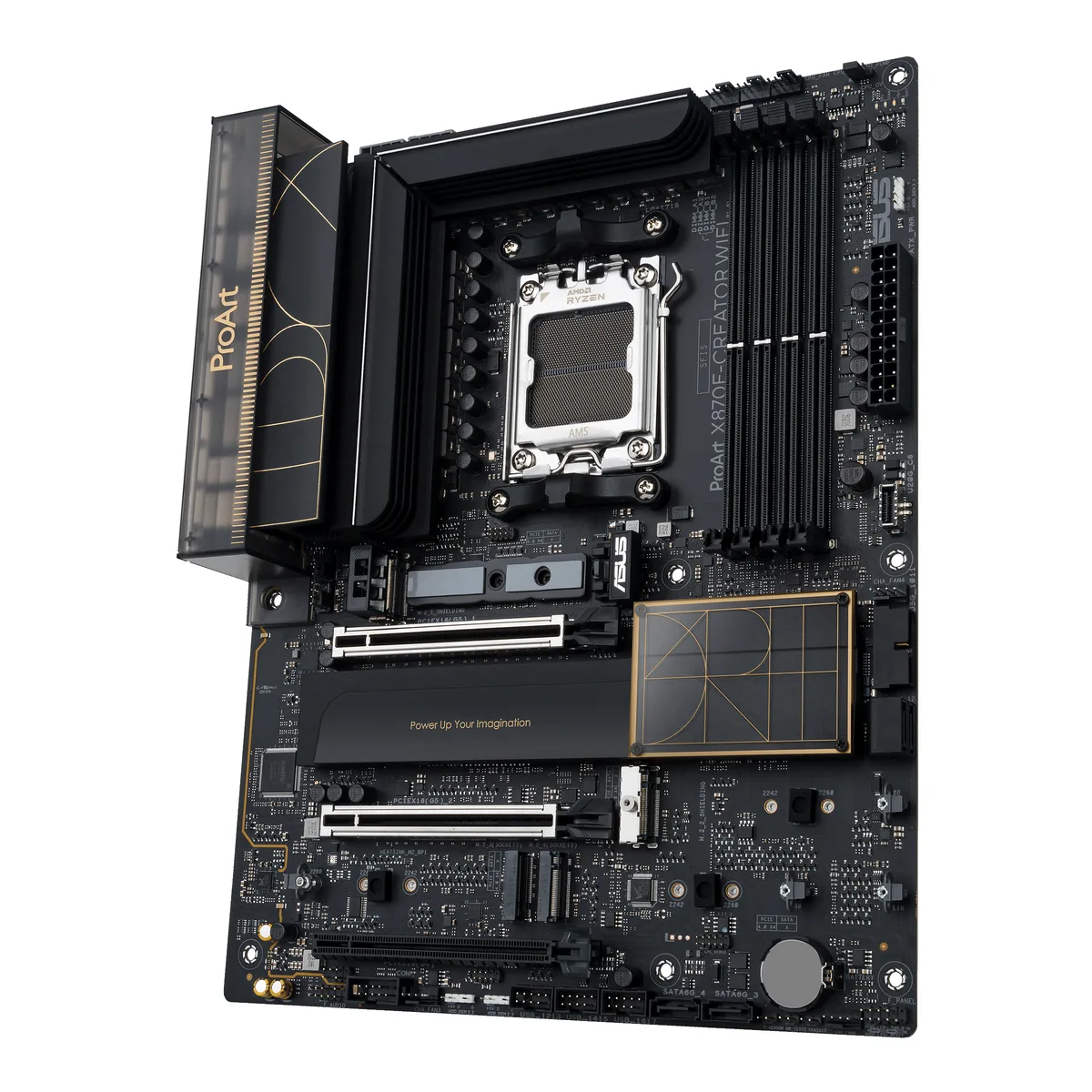

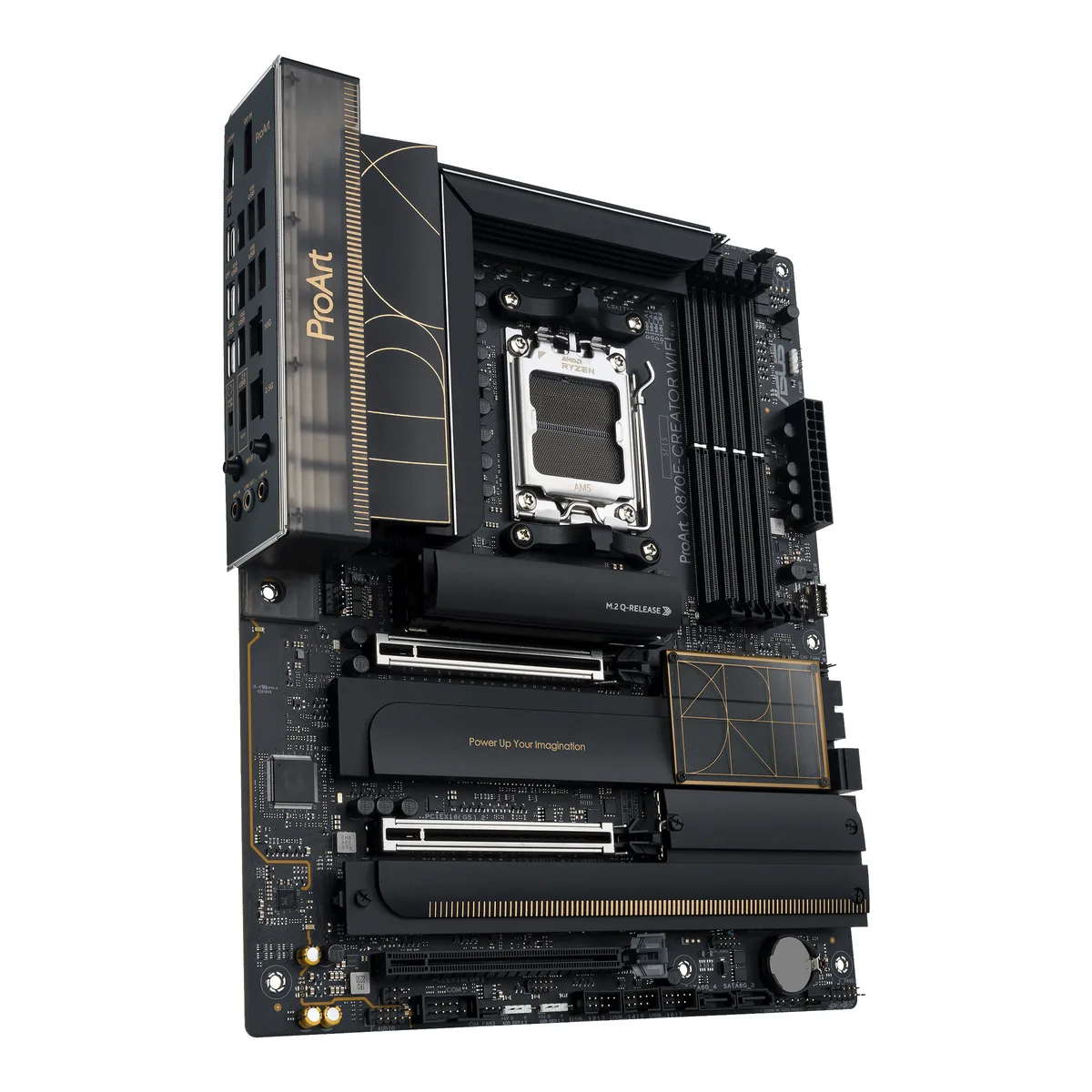

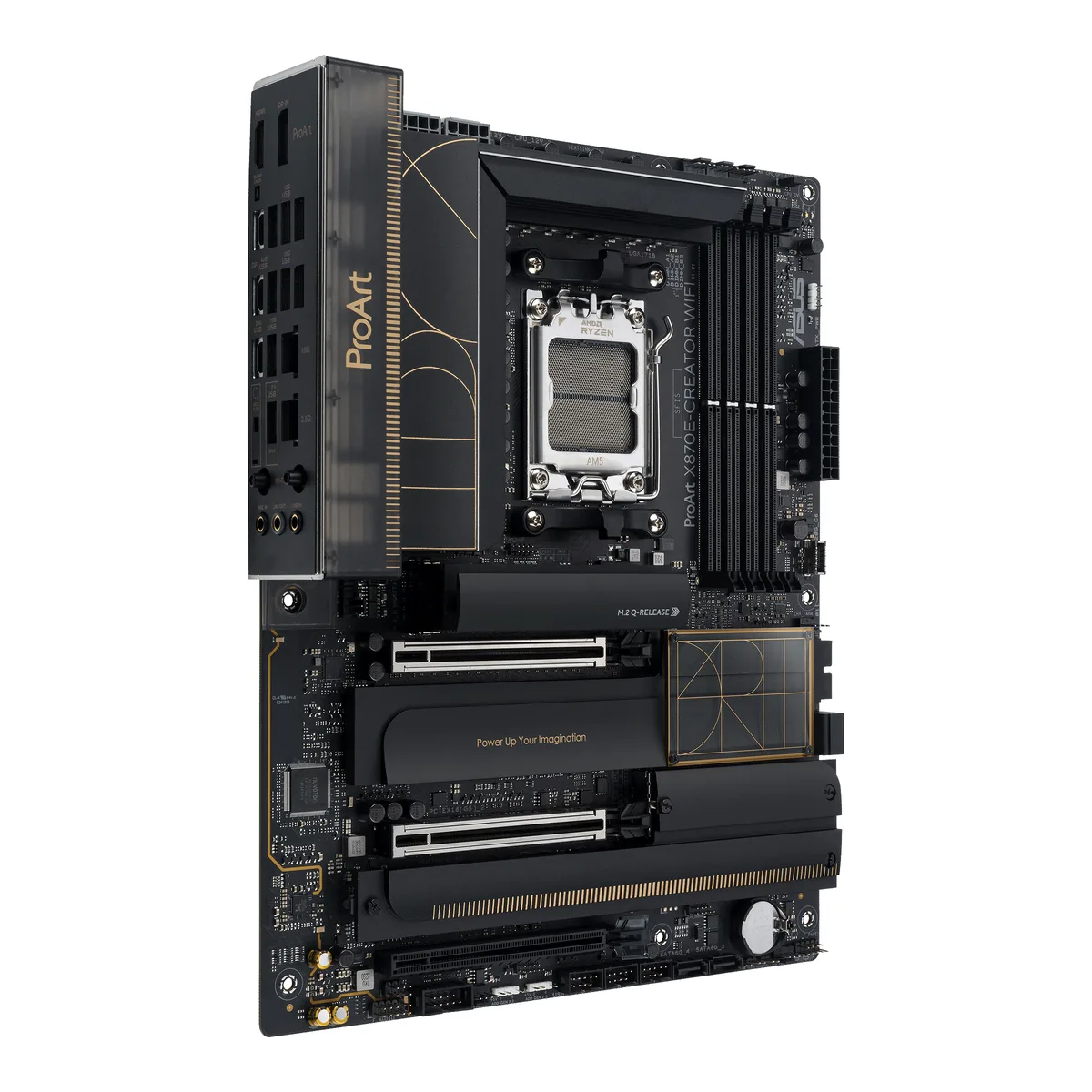

The ASUS ProArt X870E-CREATOR WIFI is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It targets content creators and AI developers who need high memory capacity and fast I/O. The X870E chipset unlocks PCIe 5.0 lanes for graphics and storage. Dual USB4 ports and 10 Gb Ethernet support demanding media workflows.

Verify CPU cooler clearance and PSU connectors

Confirm your chassis can fit an ATX board and that the CPU cooler mounting pattern matches AM5. The 16+2+2 power stage design uses ProCool II headers, so check that your power supply provides the required 8-pin and 24-pin connections. Four DDR5 slots accept up to 256 GB of un-buffered memory with EXPO profiles. Two PCIe 5.0 x16 slots share bandwidth with the second M.2 slot when both are populated.

Suits multi-GPU render farms

This board suits builders who need dual PCIe 5.0 x16 slots, four M.2 sockets and 10 Gb networking in one platform. WiFi 7 and 2.5 Gb Ethernet give flexible network options. Realtek S1220A 7.1 audio covers monitoring needs. Users who only need a single GPU, fewer M.2 drives or 1 Gb LAN can choose a less feature-dense X870 model.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 16+2+2 teamed power stages deliver stable voltage for heavy workloads
  • Dual USB4 ports plus 10 Gb and 2.5 Gb Ethernet for fast I/O
  • Four M.2 slots with two PCIe 5.0 and two PCIe 4.0 interfaces
  • WiFi 7 and Realtek S1220A 7.1 channel audio built in

Specifications

BrandASUS
ModelProArt X870E-CREATOR WIFI
Part Number90MB1IG0-M0AAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes

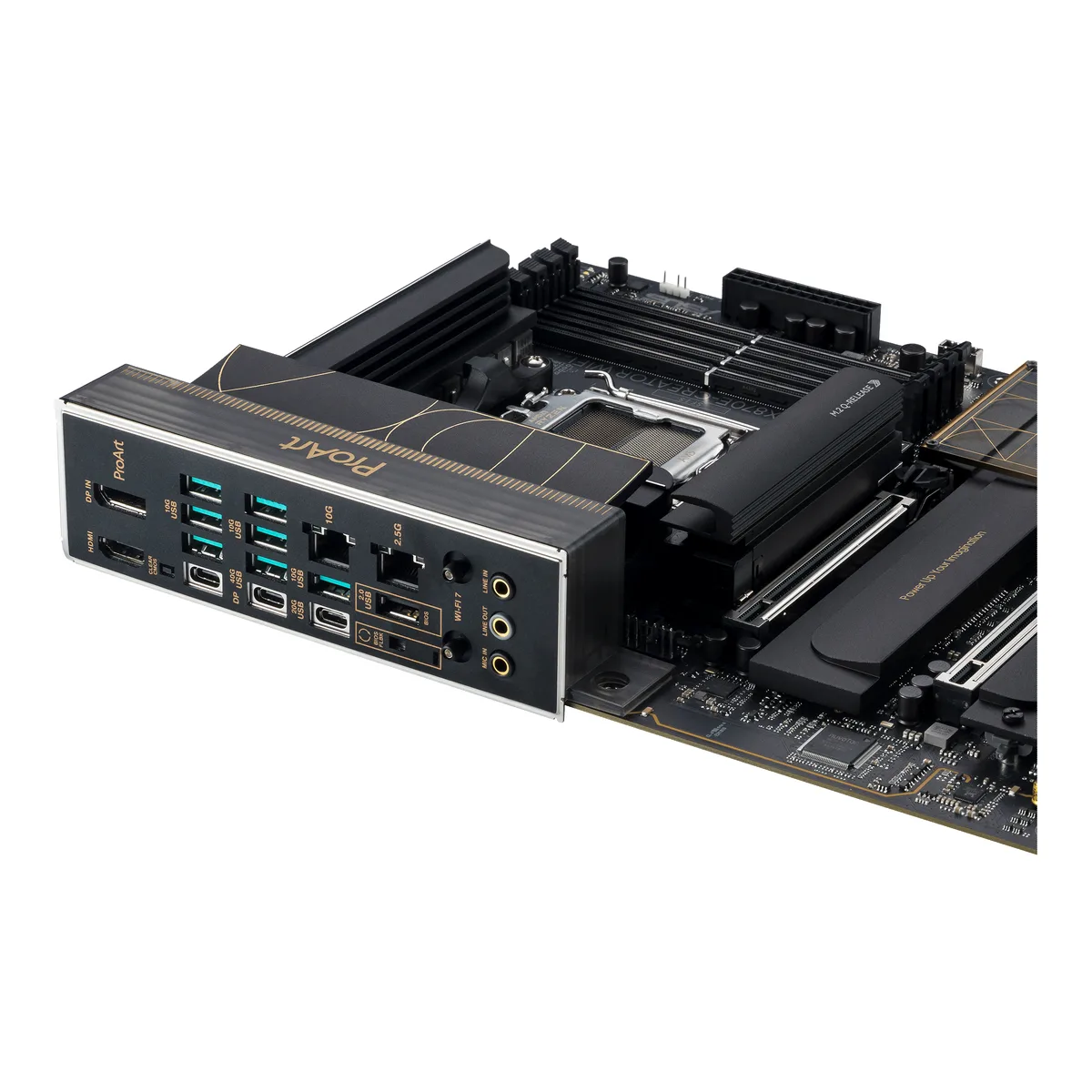

Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package ContentsCables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide
Shipping weight2.61 kg
Package size368 × 279 × 89 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the board ship with any cables, antennas or mounting hardware, or must I buy them separately?

The box includes the motherboard, I/O shield, SATA cables, M.2 screws, Q-Antenna, Q-Connector, documentation and driver disc. No extra cables are required for standard builds.

The specs list 256 GB maximum memory but the supplier description says 192 GB — which limit applies?

The board supports up to 256 GB of DDR5 across four slots; the 192 GB figure reflects an older specification and should be disregarded.

What real-world throughput can I expect from the two PCIe 5.0 M.2 slots when both are populated?

M.2_1 and M.2_2 each deliver PCIe 5.0 x4 bandwidth; M.2_2 shares lanes with the second x16 slot, so running that slot at x8 reduces M.2_2 to x4 without further loss.
