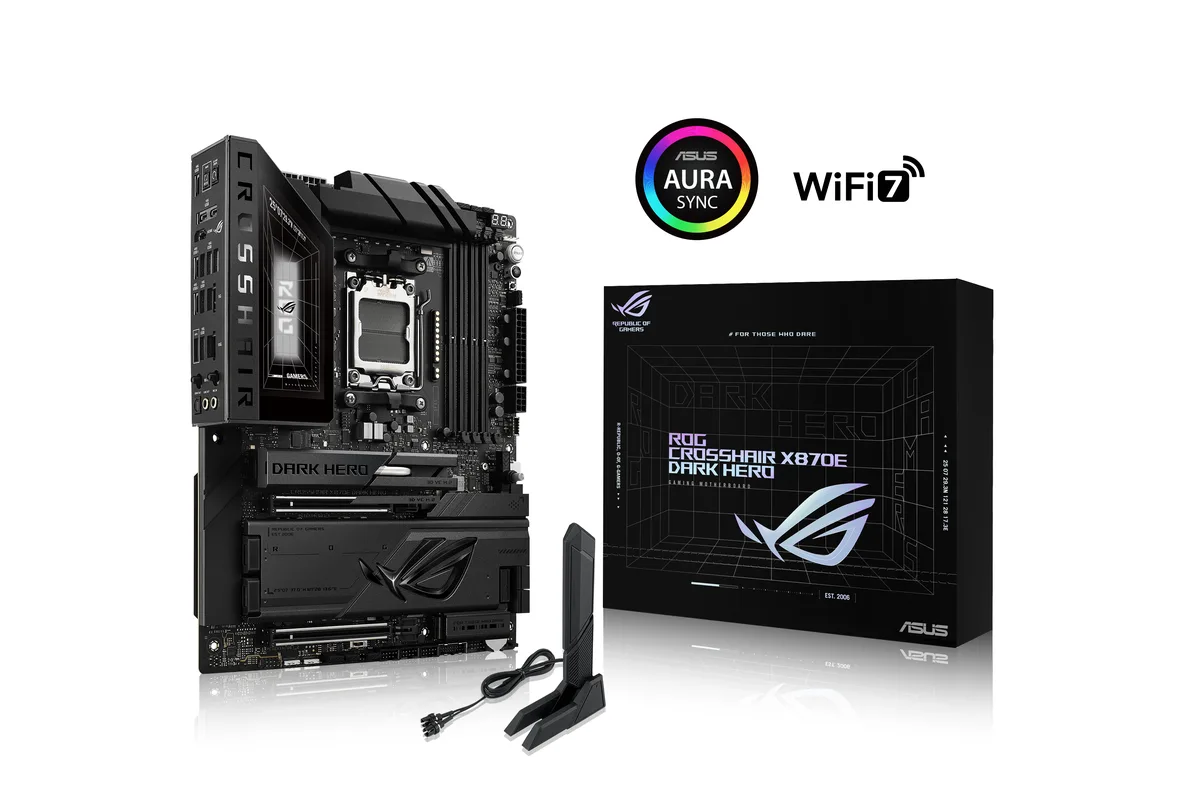

Dark ATX motherboard with massive heatsinks, four DDR5 slots, and integrated I/O shield

ASUS

ASUS ROG CROSSHAIR X870E DARK HERO AMD motherboard

SKU CH-BHR8-J7V1V MPN ROG CROSSHAIR X870E DARK HERO

ATX board for AM5 Ryzen 7000, 8000 and 9000 CPUs with 20+2+2 power stages, DDR5 up to 9600 MT/s, five M.2 slots, 10 GbE LAN, Wi-Fi 802.11 be and dual USB4

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 S
  • Maximum Memory Supported256GB

Option ROG CROSSHAIR X870E DARK HERO

  • AM5 socket supports Ryzen 7000 8000 9000 series processors
  • 20+2+2 power stages rated at 110A deliver stable overclocking headroom
  • DDR5 memory scales to 9600 MT/s with Ryzen 8000 series CPUs
  • Two PCIe 5.0 M.2 slots plus three PCIe 4.0 M.2 slots expand storage
  • Dual USB4 Type-C ports and 10 Gbps plus 5 Gbps LAN enable fast connectivity

AM5 platform for Ryzen 7000, 8000 and 9000 series

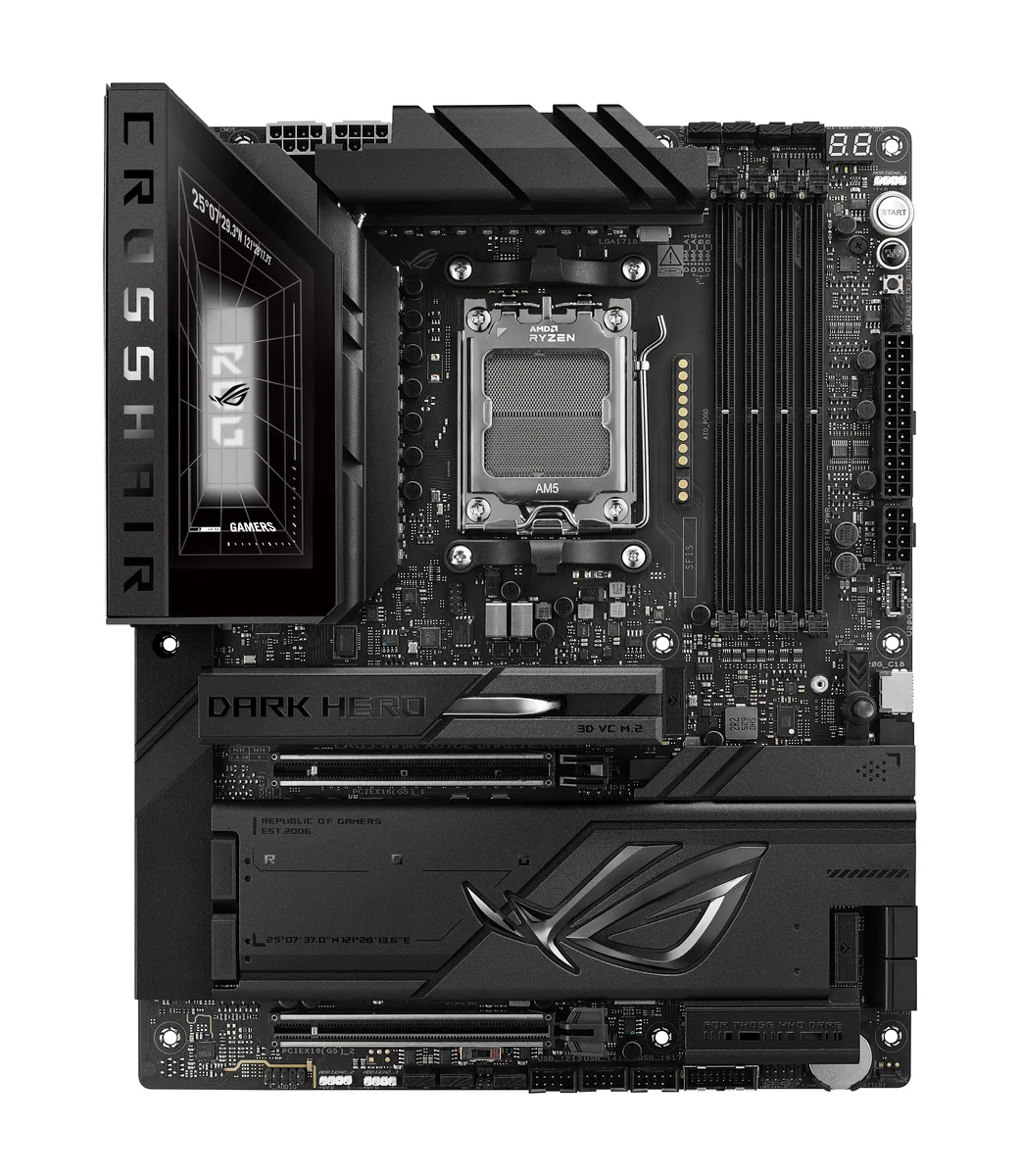

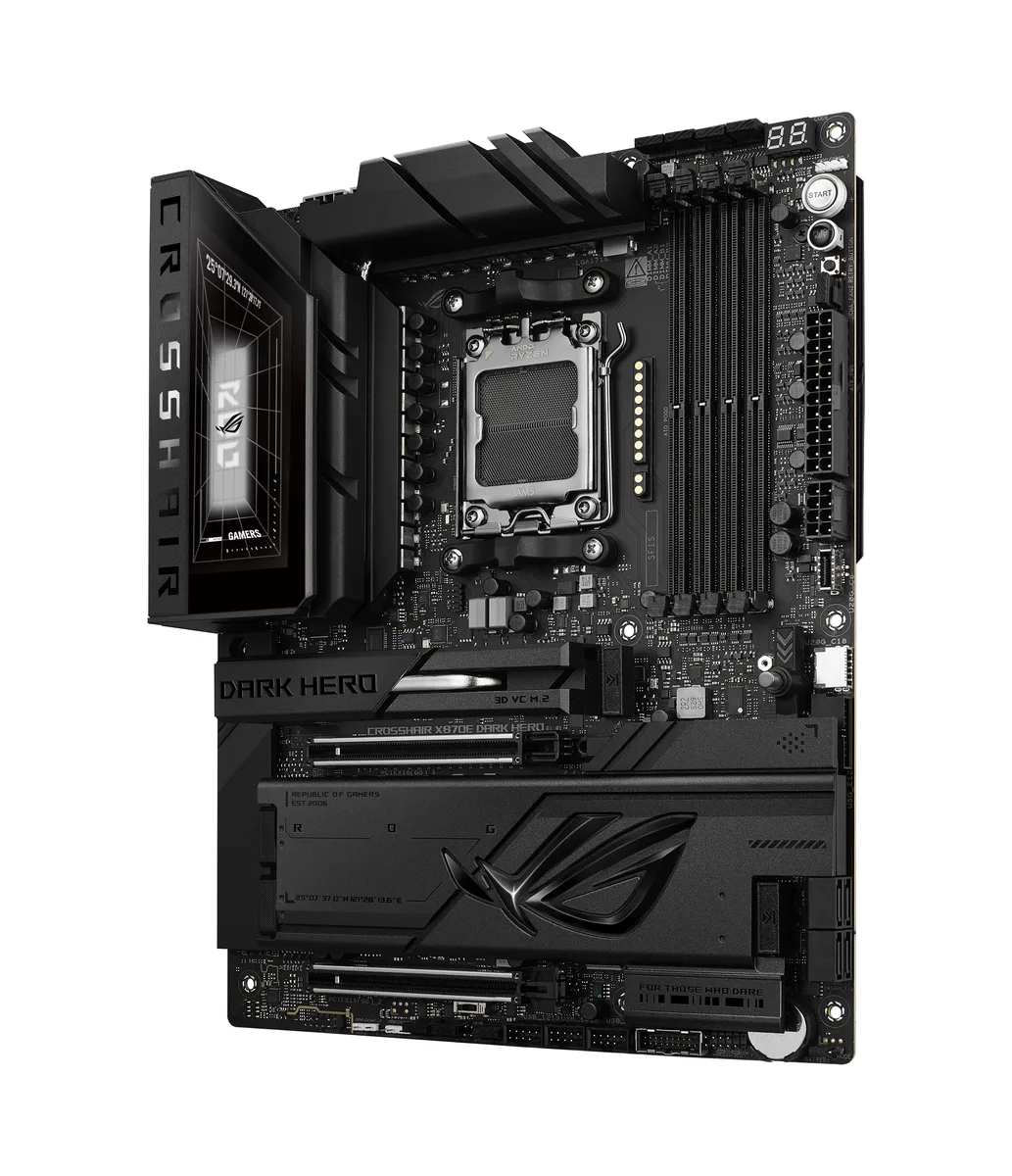

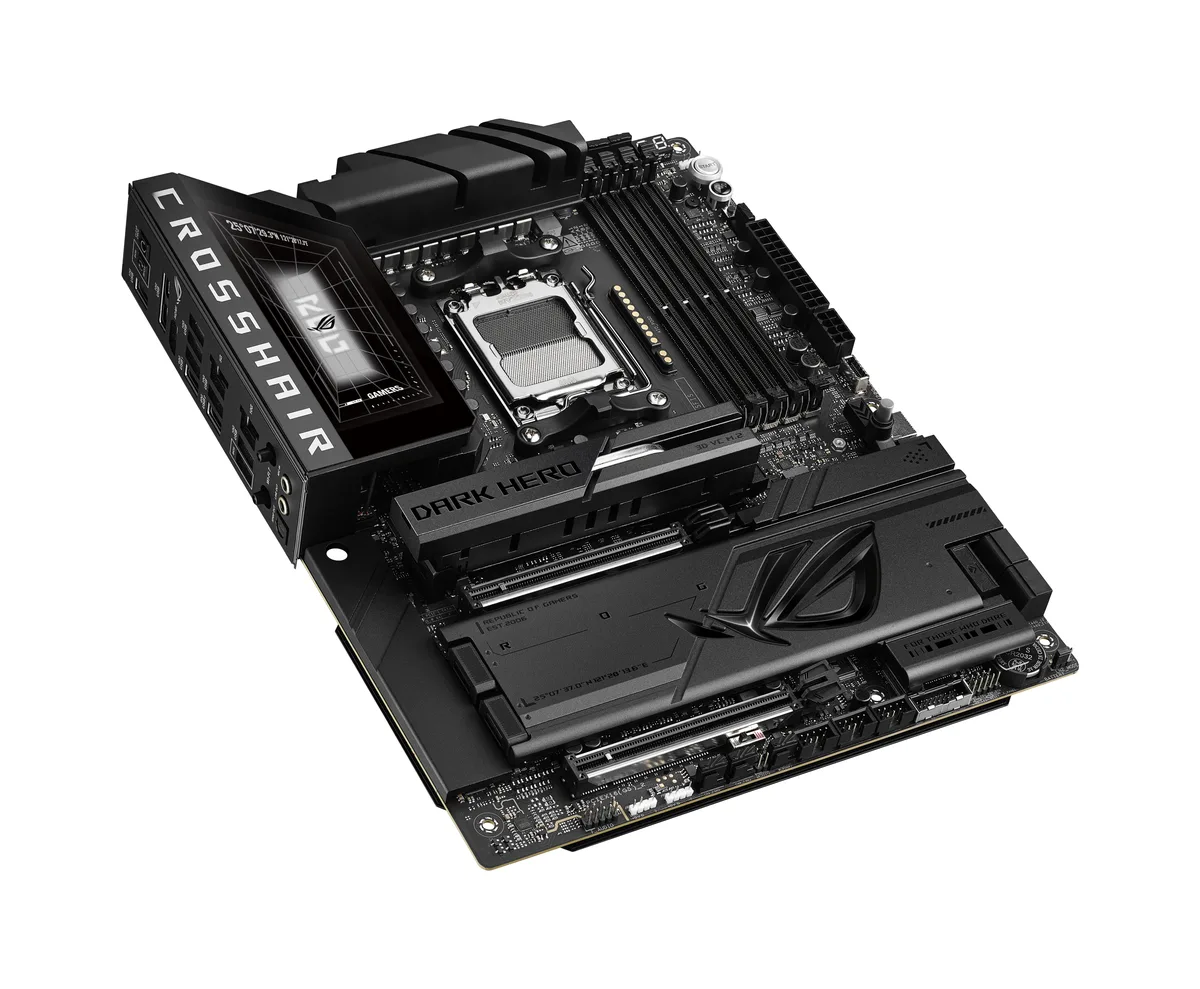

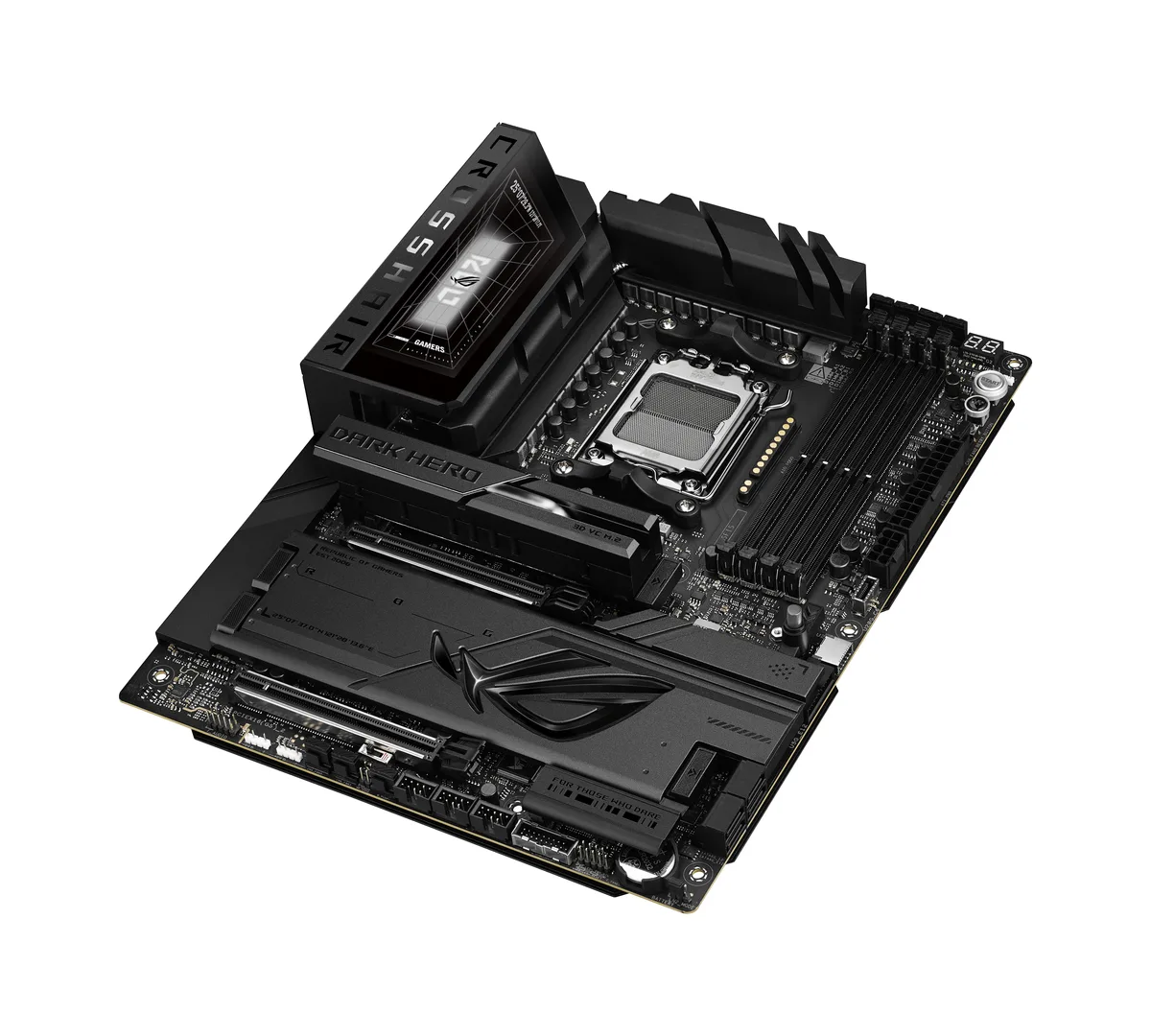

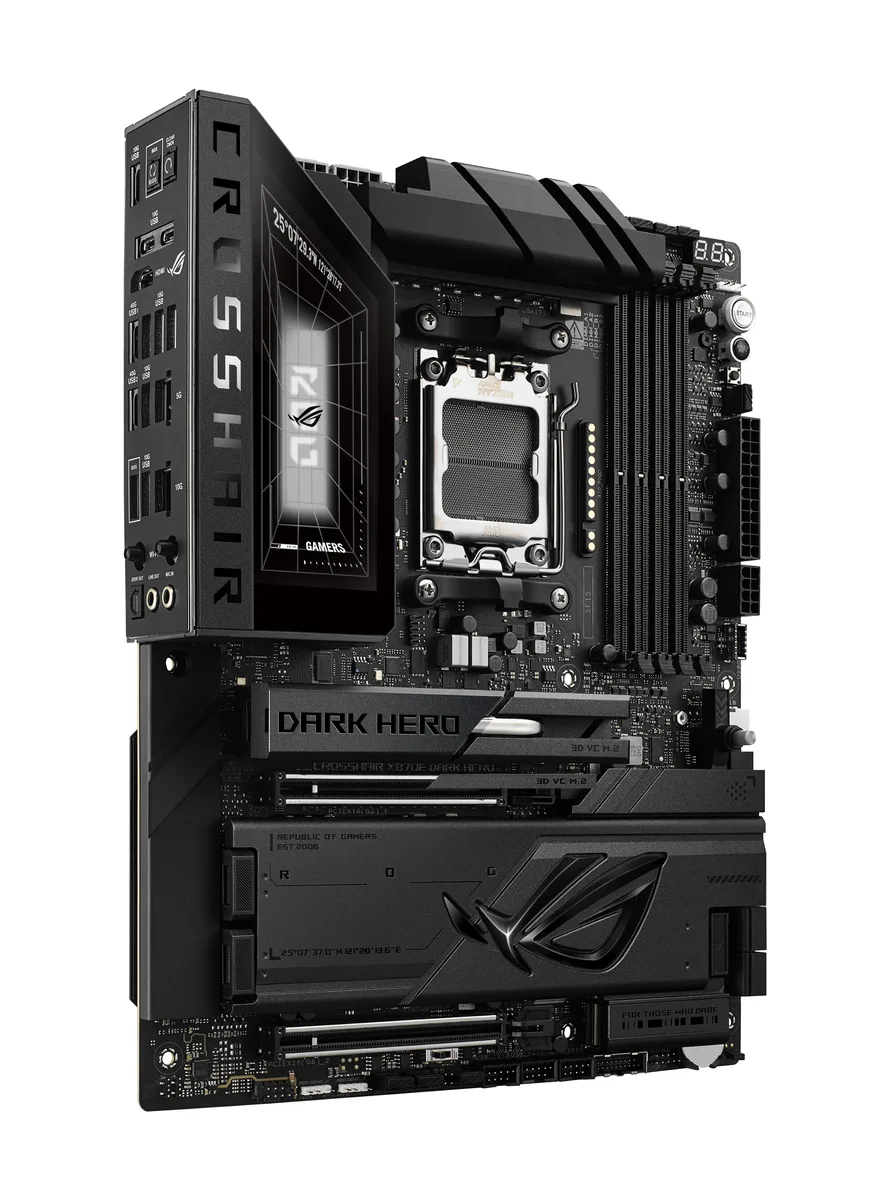

The ROG Crosshair X870E Dark Hero is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It targets enthusiasts who need a high-end foundation for gaming, content creation and AI workloads. The board delivers extensive connectivity and robust power delivery in a dark-themed design.

Sustained load behaviour with 20+2+2 power stages

A 20+2+2 phase design rated at 110 A per stage feeds the CPU through ProCool II connectors, MicroFine alloy chokes and premium metallic capacitors. Massive heatsinks integrated with the I/O cover join an L-shaped heatpipe and high-conductivity thermal pads to keep VRM temperatures controlled during prolonged heavy workloads. AI Cooling II adjusts fan curves in real time to maintain thermal headroom.

Five M.2 slots with a 3D vapour-chamber heatsink

The board provides five M.2 slots: two PCIe 5.0 x4 slots supporting 2242, 2260, 2280 and 22110 drives, plus three PCIe 4.0 slots. A 3D vapour-chamber heatsink covers the primary PCIe 5.0 slot while substantial heatsinks cool the remaining four, preserving peak SSD throughput under continuous data transfers.

Highlights

  • AM5 socket supports Ryzen 7000 8000 9000 series processors
  • 20+2+2 power stages rated at 110A deliver stable overclocking headroom
  • DDR5 memory scales to 9600 MT/s with Ryzen 8000 series CPUs
  • Two PCIe 5.0 M.2 slots plus three PCIe 4.0 M.2 slots expand storage
  • Dual USB4 Type-C ports and 10 Gbps plus 5 Gbps LAN enable fast connectivity

Specifications

BrandASUS
ModelROG CROSSHAIR X870E DARK HERO
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors
9600+MT/s(OC)/9200+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
*When both PCIEX16_1 and PCIEX16_2 are in use, they will each run in x8 mode.
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
2 x PCIe 4.0 x16 slots (Total bandwidth for x8)
AMD Ryzen 8500 & 8300 Series Desktop Processors
2 x PCIe 4.0 x16 slots (Total bandwidth for x4)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode)
*When both PCIEX16_1 a
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound au
Max LAN Speed10Gbps + 5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 10Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x AIO Q-Connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature64 MB (512Mb)
Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
- Polymo Lighting II
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- HWiNFO
- ASUS AI Advisor
- AIDA64 Extreme (1 year full version)
ASUS GlideX
- USB Wattage Watcher
TurboV Core
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- A
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Fan bracket
- 3D VC M.2 Heatsink
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- ProCool II
- Pre-mo
Package ContentsCables
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x ROG assistant fan (60mm)
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Documentation
1 x Quick start guide
Shipping weight4.22 kg
Package size368 × 305 × 114 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot does the 20+2+2 110A power-stage design run when the system is under sustained all-day load?

Massive heatsinks integrated with the I/O cover are joined by an L-shaped heatpipe and connected to the power stages with high-conductivity thermal pads to dissipate heat from the 20+2+2 110A power stages during extended operation.

Which DDR5 memory kit must I already own to reach the rated 9600 MT/s overclocked speed on this board?

A 4x288-pin DDR5 kit rated for AMD EXPO at 9600 MT/s or higher is required to hit the maximum overclocked frequency supported with Ryzen 8000 Series processors.

Will my existing PCIe 4.0 graphics card run at full x16 bandwidth in the primary PCIe 5.0 x16 SafeSlot?

Yes, a PCIe 4.0 graphics card will operate at x16 electrical speed in the primary PCIe 5.0 x16 slot when a Ryzen 9000 or 7000 Series processor is installed.
