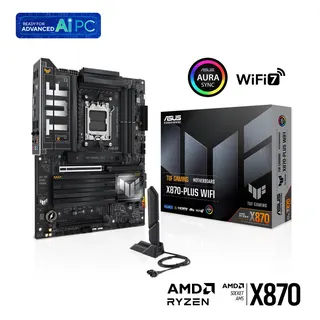

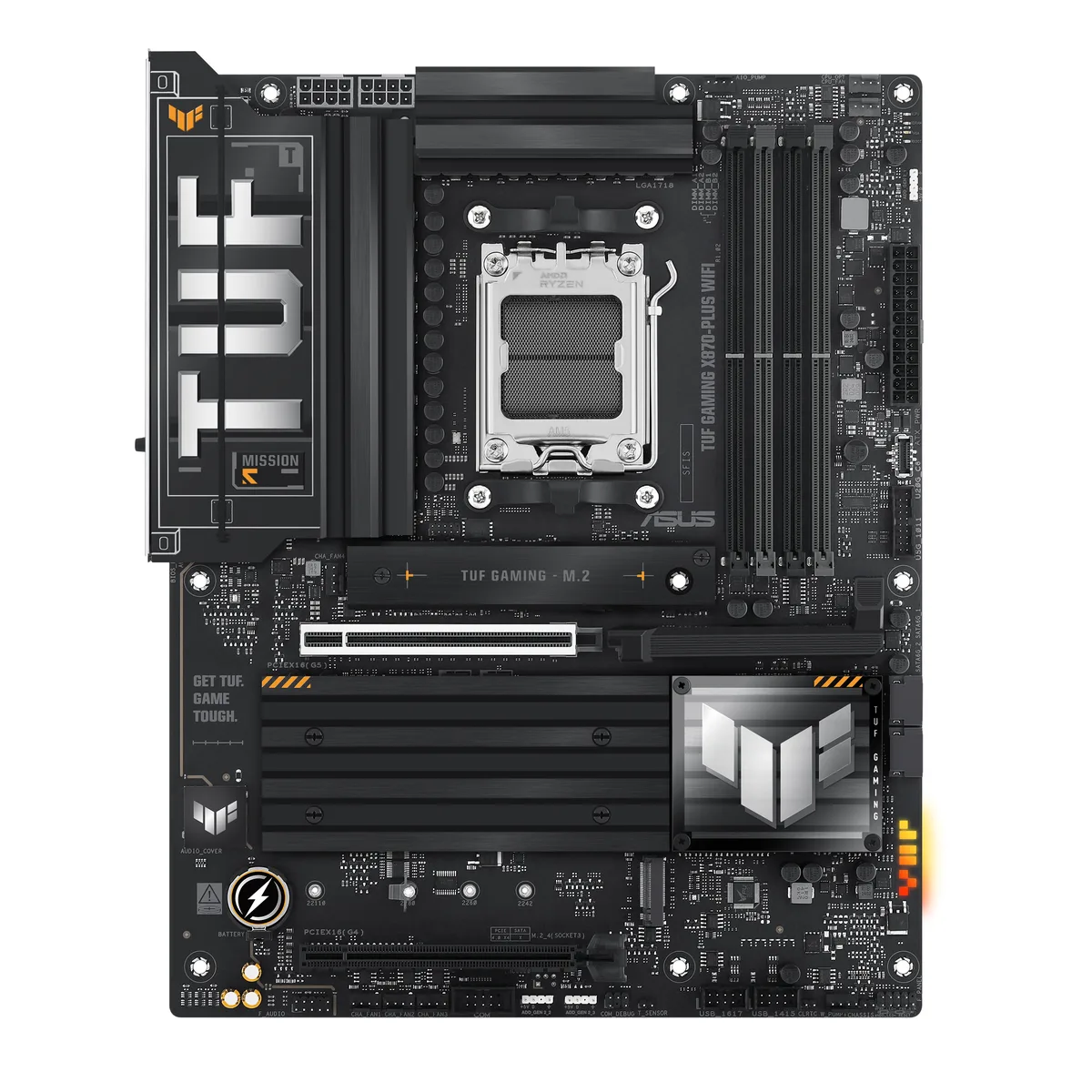

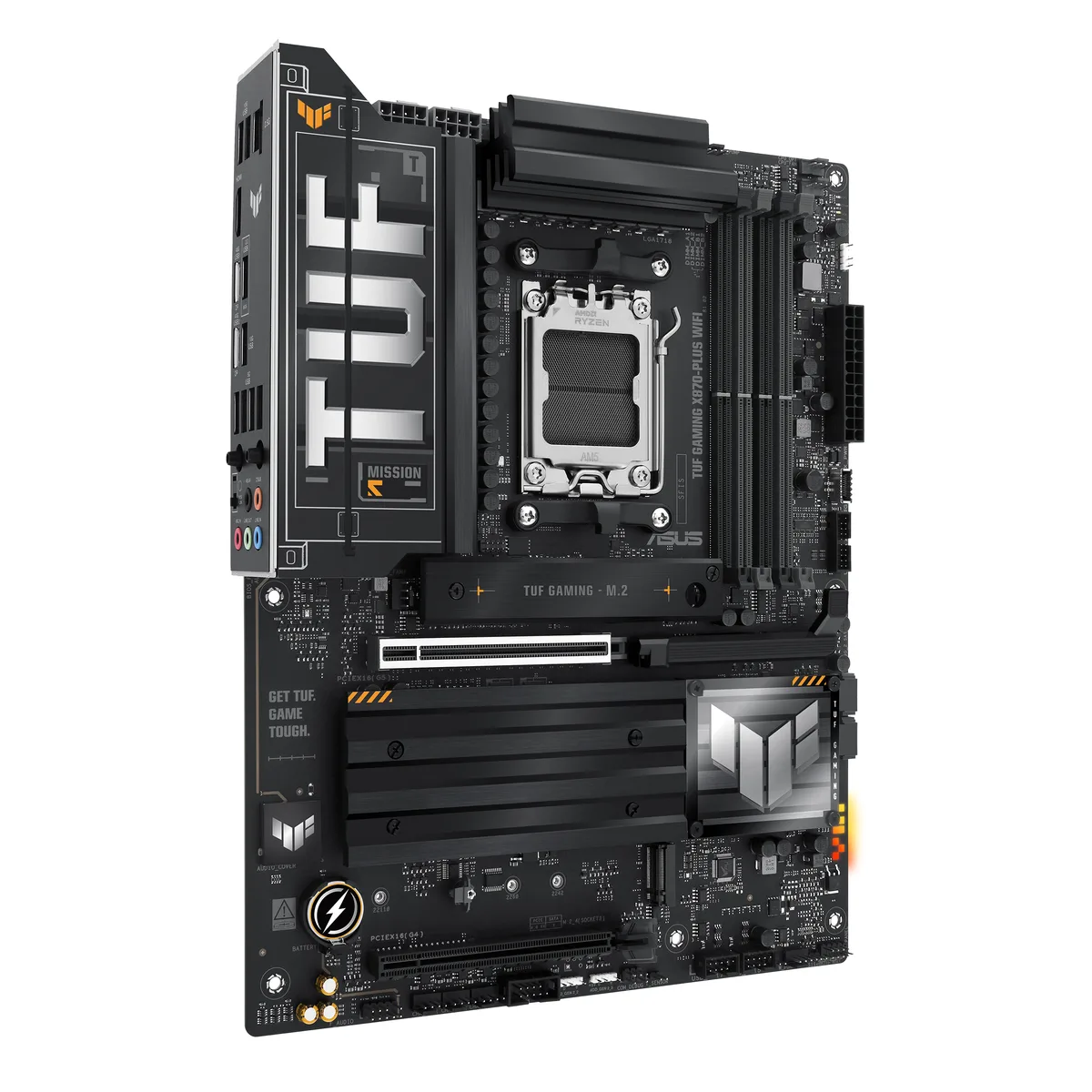

ATX motherboard with dark grey heatsinks and yellow accents

ASUS

ASUS TUF GAMING X870-PLUS WIFI AMD motherboard

SKU CH-43ZH-NH497 MPN TUF GAMING X870-PLUS WIFI

ATX motherboard for AM5 Ryzen 7000, 8000 and 9000 CPUs with 16+2+1 80A power stages, four DDR5 slots up to 256 GB, two PCIe 5.0 and two PCIe 4.0 M.2 sockets, Wi-Fi 7, 2.5Gb Ethernet.

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB

Option TUF GAMING X870-PLUS WIFI

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series processors
  • 16+2+1 power stages rated at 80A deliver stable CPU power
  • Four DDR5 slots accept up to 256GB with EXPO profiles
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots provide fast storage options
  • Wi-Fi 7 and 2.5Gb LAN give high-speed wired and wireless connectivity

AM5 DDR5 motherboard for Ryzen 7000 8000 9000 series

The ASUS TUF GAMING X870-PLUS WIFI uses the AMD X870 chipset and an AM5 socket. It supports Ryzen 7000, 8000 and 9000 series desktop processors. Four 288-pin DDR5 slots accept up to 256 GB of memory running at 4400 with AMD EXPO and AEMP profiles. The board provides 16+2+1 80A SPS power stages on an 8-layer PCB with ProCool connectors.

Suits builders who want four M.2 slots

This board suits users who need two PCIe 5.0 M.2 slots, two PCIe 4.0 M.2 slots and dual USB4 40Gbps Type-C ports plus a front USB 20Gbps Type-C with PD fast charge. Wi-Fi 7 and 2.5Gb LAN cover high-speed networking. Builders who only need a single M.2 slot or fewer high-speed USB ports should consider a simpler model.

Four M.2 slots with two at PCIe 5.0 x4

The motherboard provides four M.2 2280 slots. With Ryzen 9000 or 7000 series CPUs the first two slots run at PCIe 5.0 x4 while the remaining two run at PCIe 4.0 x4. With Ryzen 8000 series CPUs the first slot runs at PCIe 4.0 x4 and the others follow chipset lanes. This layout decides whether your storage plan fits.

Highlights

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series processors
  • 16+2+1 power stages rated at 80A deliver stable CPU power
  • Four DDR5 slots accept up to 256GB with EXPO profiles
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots provide fast storage options
  • Wi-Fi 7 and 2.5Gb LAN give high-speed wired and wireless connectivity

Specifications

BrandASUS
ModelTUF GAMING X870-PLUS WIFI
Part Number90MB1IU0-M0AAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u

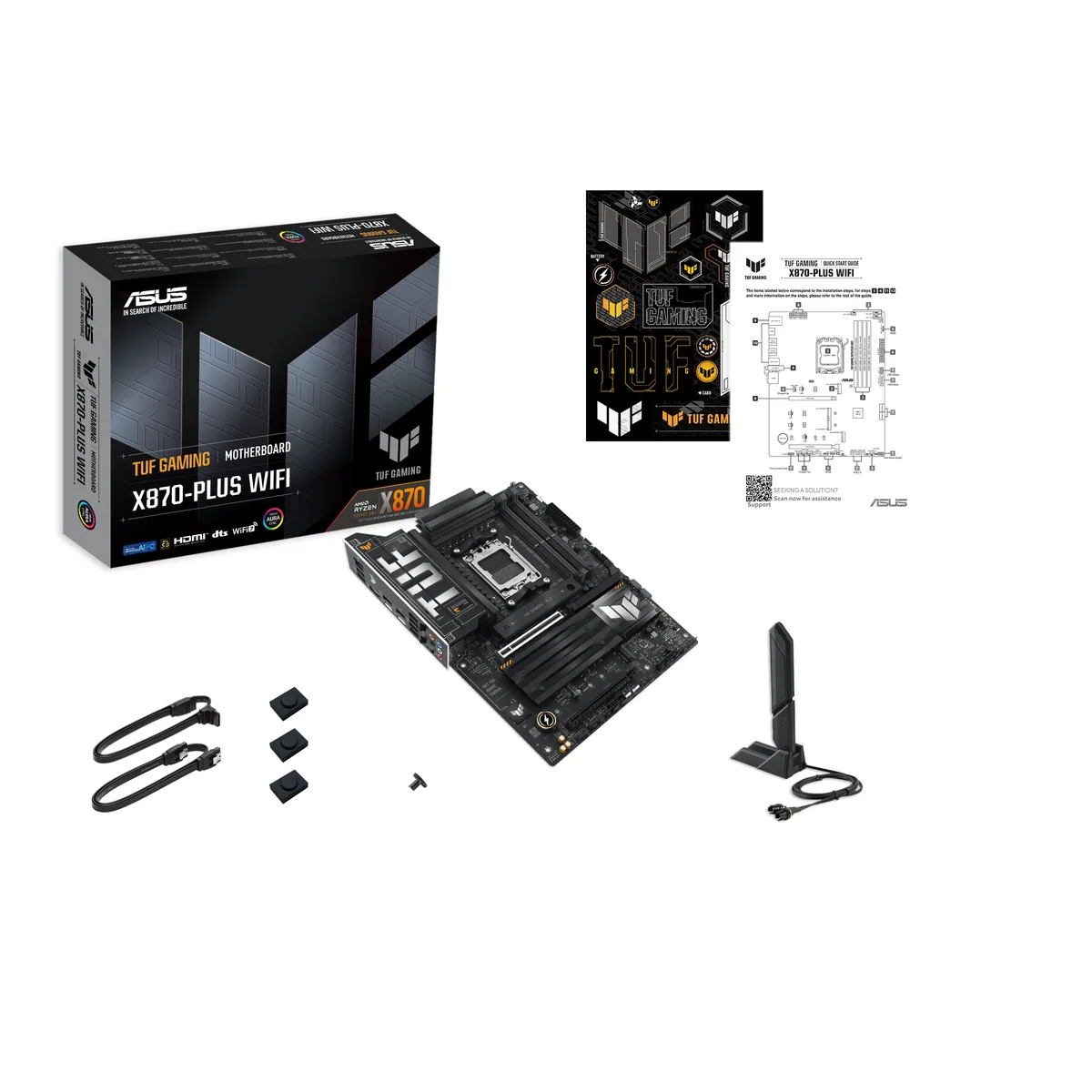

Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide
Shipping weight2.18 kg
Package size356 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a Ryzen 9000 series processor run at full PCIe 5.0 speed on the primary graphics slot?

The board provides one PCIe 5.0 x16 slot that operates at x16 mode with Ryzen 9000 and 7000 series CPUs.

How many M.2 drives can I install and which ones support PCIe 5.0?

Four M.2 2280 slots are fitted; the first two run at PCIe 5.0 x4 with Ryzen 9000 or 7000 series, the remaining two run at PCIe 4.0.

What memory capacity and speed does the board officially support?

Up to 256 GB of DDR5 4400 across four slots in dual-channel mode with AMD EXPO and AEMP profiles.
