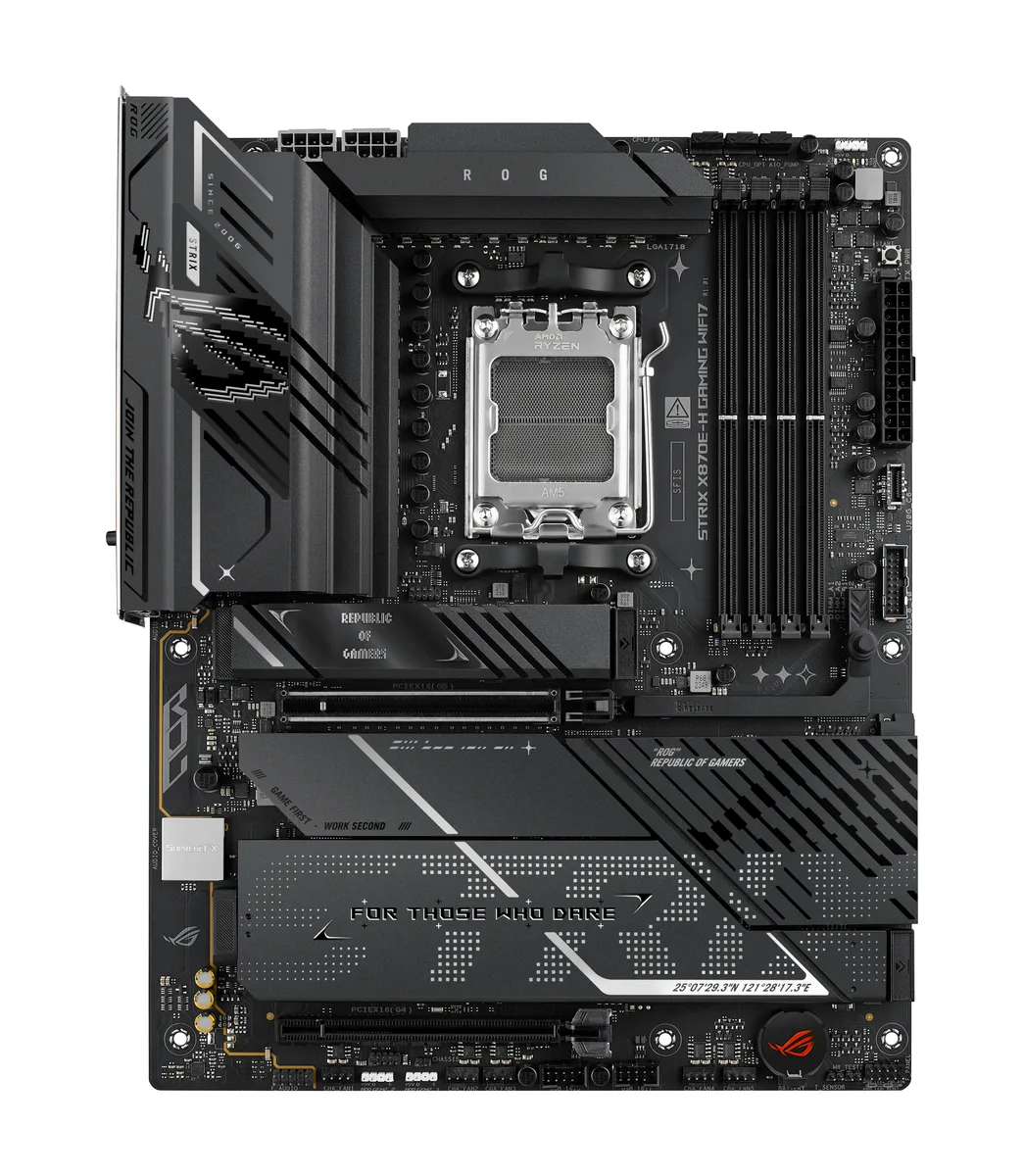

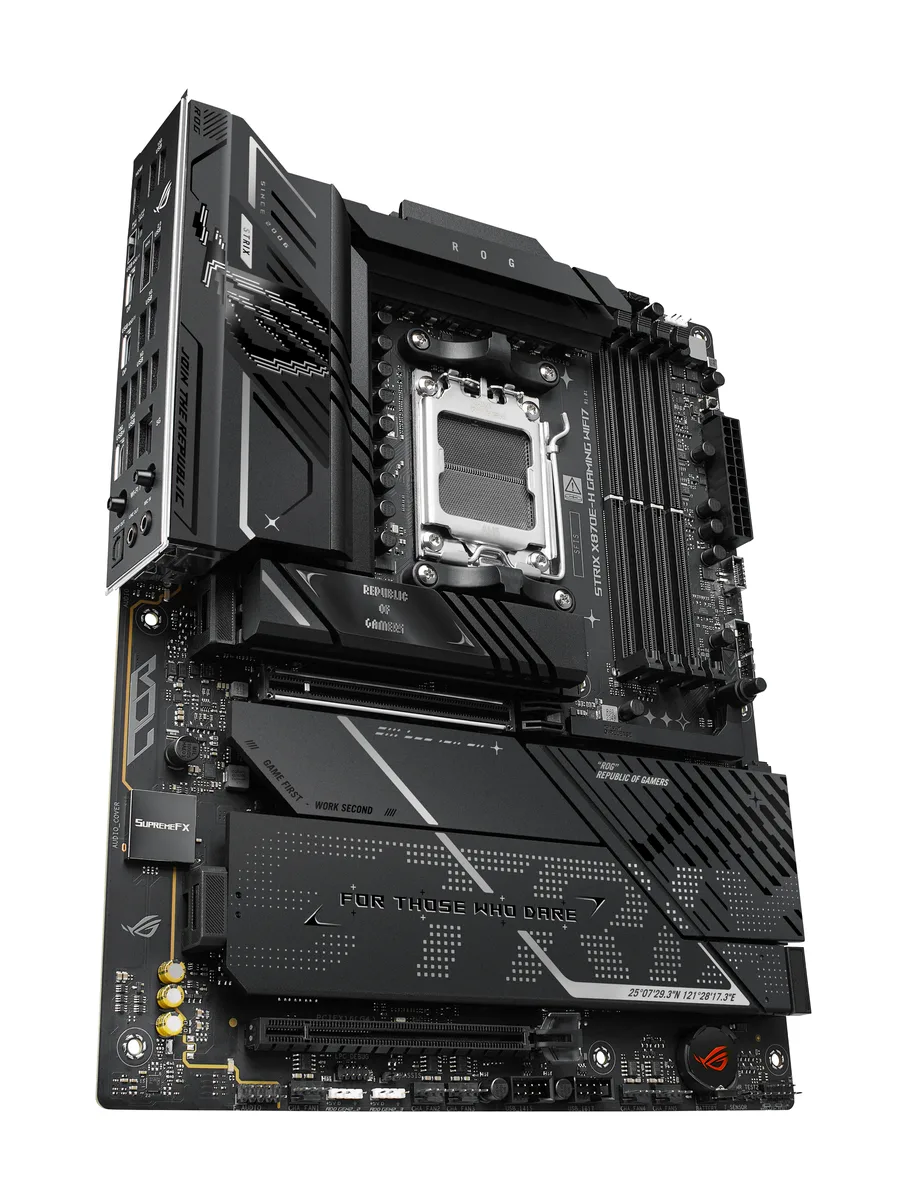

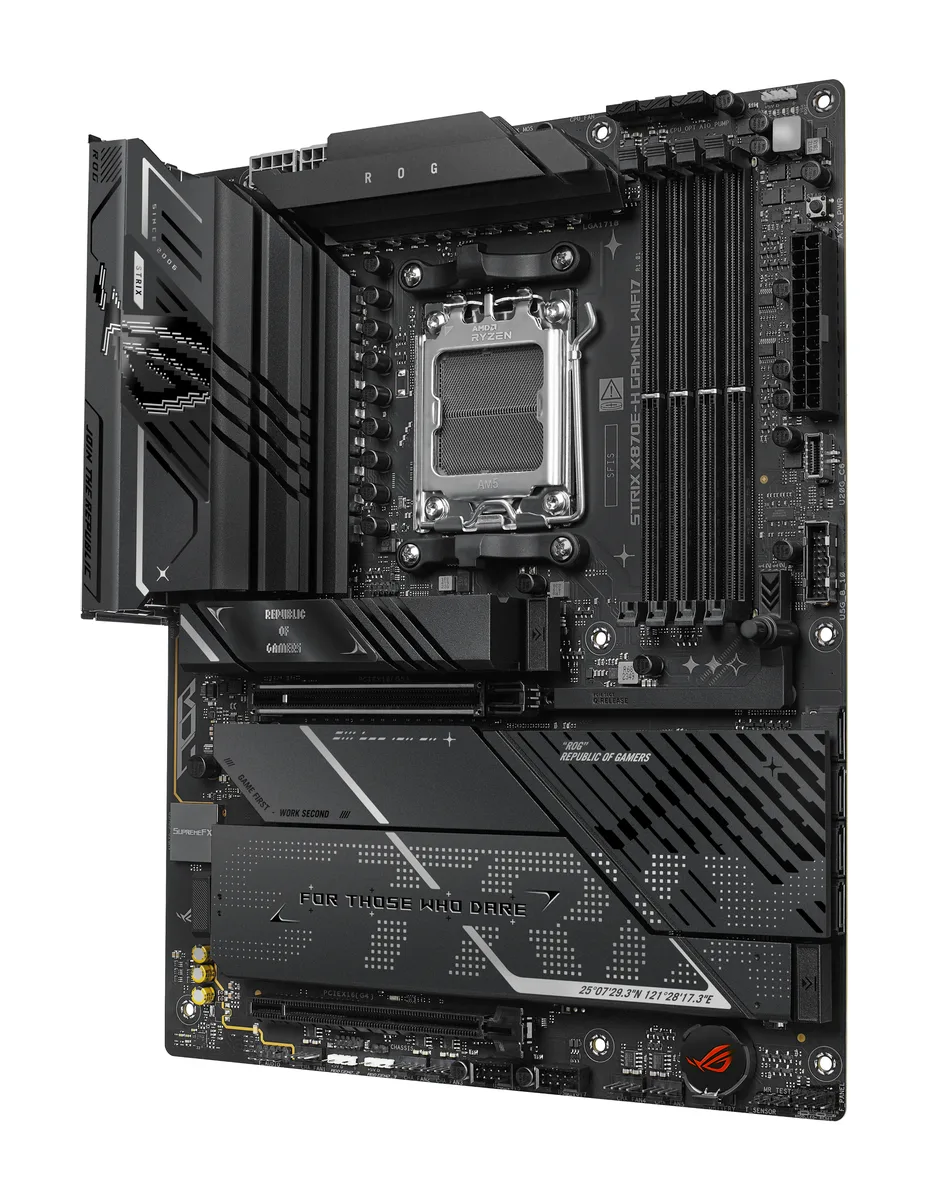

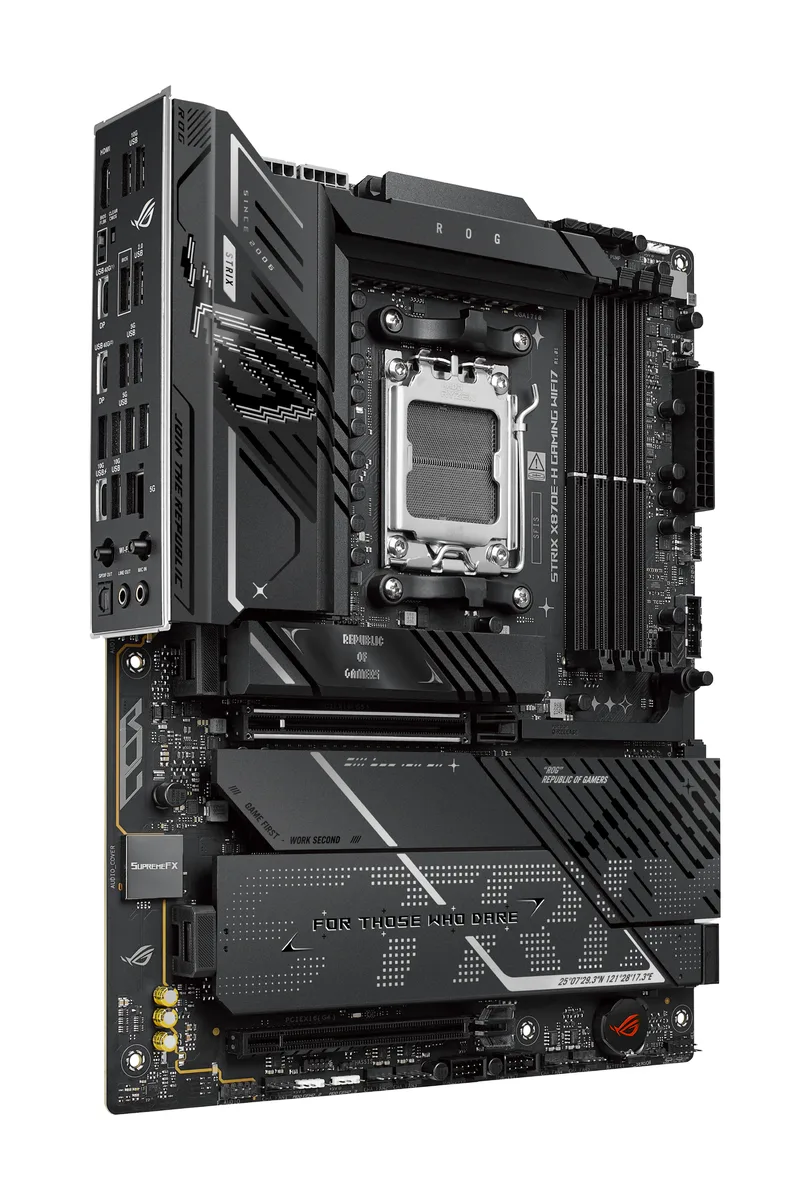

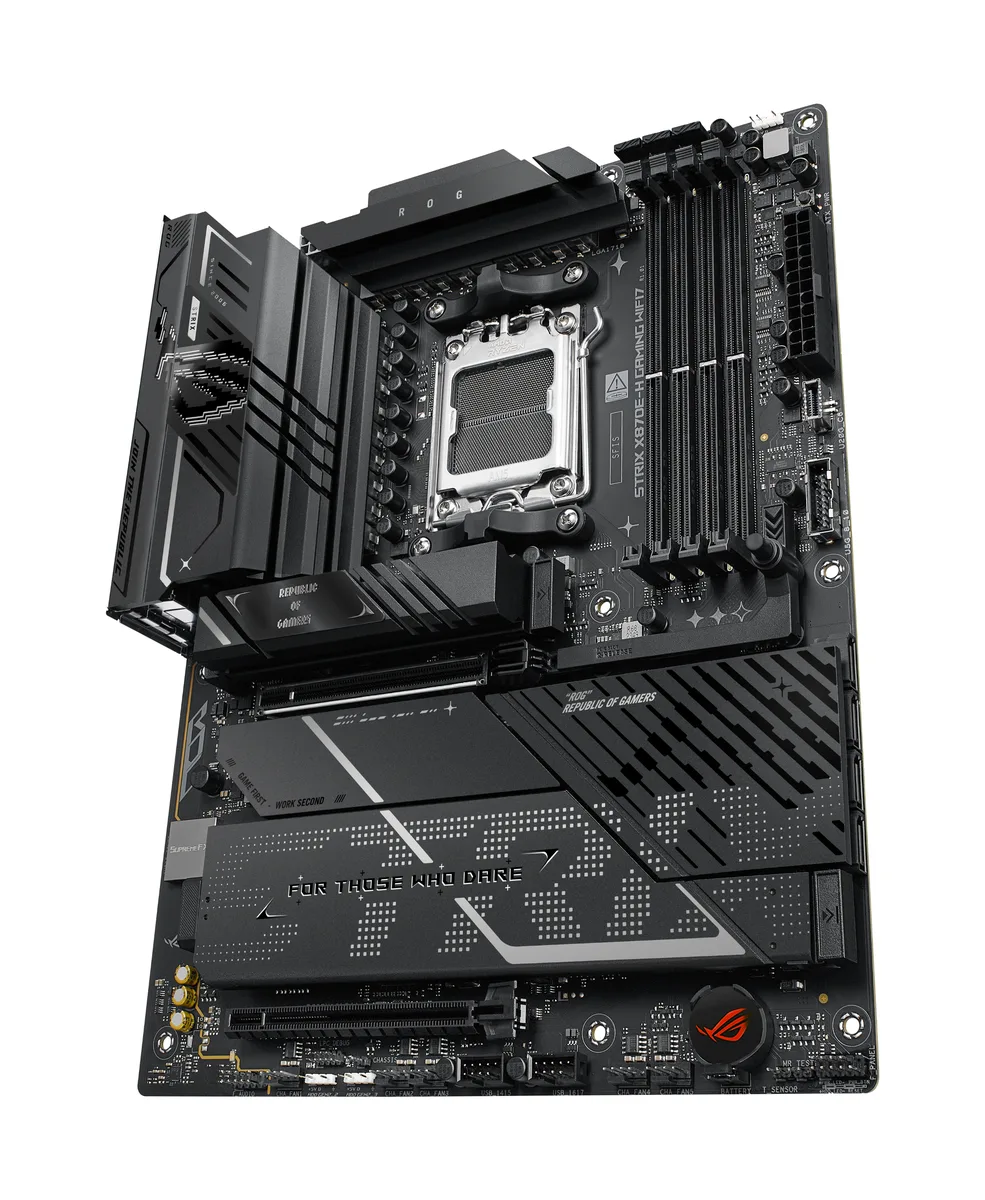

Rectangular ATX motherboard with black heatsinks covering the VRM and chipset, silver I/O shield, four DDR5 slots and multiple M.2

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD motherboard

SKU CH-X546-W1H9M MPN ROG STRIX X870E-H GAMING WIFI7

ATX AM5 board with 16+2+1 80A power stages, DDR5 up to 8000 MT/s, four M.2 slots, WiFi 7, 5 Gb Ethernet, dual USB4 and 10 Gbps USB-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB

Option ROG STRIX X870E-H GAMING WIFI7

  • Ready for Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors
  • DDR5 memory support up to 8000+MT/s OC with AMD EXPO profiles
  • Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots with substantial cooling
  • Onboard WiFi 7 and Realtek 5Gb Ethernet for high-speed networking

Ready for Ryzen 9000, 8000 and 7000 Series

This ATX motherboard uses the AMD X870E chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series desktop processors. It delivers a 16+2+1 power solution rated for 80A per stage with dual ProCool II connectors, alloy chokes and durable capacitors. Four DDR5 slots accept up to 256GB of non-ECC memory running at 8000+MT/s via AMD EXPO profiles. The board targets builders who need high core-count throughput and extensive I/O for advanced AI workloads.

Massive heatsinks with integrated I/O cover

Optimised thermal design uses massive heatsinks with an integrated I/O cover and high-conductivity thermal pads to dissipate heat from the VRM and M.2 areas. All four M.2 slots receive substantial cooling solutions, two operating at PCIe 5.0 x4 and two at PCIe 4.0 x4. Fan control is handled by one 4-pin CPU header, one CPU OPT header, one AIO pump header and five chassis fan headers. On-board WiFi 7 (802.11be) and Realtek 5Gb Ethernet provide high-performance networking with minimal added heat.

Dual USB4 40Gbps ports and four M.2 slots

The rear panel includes two USB4 Type-C ports at 40Gbps, four USB 10Gbps ports (three Type-A, one Type-C with 30W PD/PPS), six USB 5Gbps Type-A ports, two USB 2.0 Type-A ports and HDMI. Internal headers add one USB 20Gbps Type-C connector, one USB 5Gbps header and two USB 2.0 headers. Storage expands across two PCIe 5.0 x4 M.2 slots and two PCIe 4.0 x4 M.2 slots, all cooled. RAID support varies by CPU generation: Ryzen 9000 enables RAID 0/1/5/10, Ryzen 8000 enables RAID 0/1, Ryzen 7000 enables RAID 0/1/10.

Highlights

  • Ready for Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors
  • DDR5 memory support up to 8000+MT/s OC with AMD EXPO profiles
  • Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots with substantial cooling
  • Onboard WiFi 7 and Realtek 5Gb Ethernet for high-speed networking

Specifications

BrandASUS
ModelROG STRIX X870E-H GAMING WIFI7
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
M.22 x M.2 (Support PCIe 4.0 x4) / 2 x M.2 (Support PCIe 5.0 x4)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide
Shipping weight2.36 kg
Package size356 × 274 × 69 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the CPU into the AM5 socket and what step is often missed?

Lift the retention arm, align the processor triangle with the socket marker, lower the chip without pressure, close the frame and lock the arm; the step many miss is removing the plastic socket cover before seating the CPU.

Which component on this board will need replacement first during long-term use?

The CMOS battery on the board will eventually deplete and should be replaced when the system loses time or BIOS settings.

What thermal limit appears first on the 16+2+1 power stages under sustained heavy load?

The VRM heatsinks and integrated I/O cover are designed to dissipate heat from the 80A-rated power stages, so the practical limit is the thermal capacity of that cooling assembly before throttling occurs.
