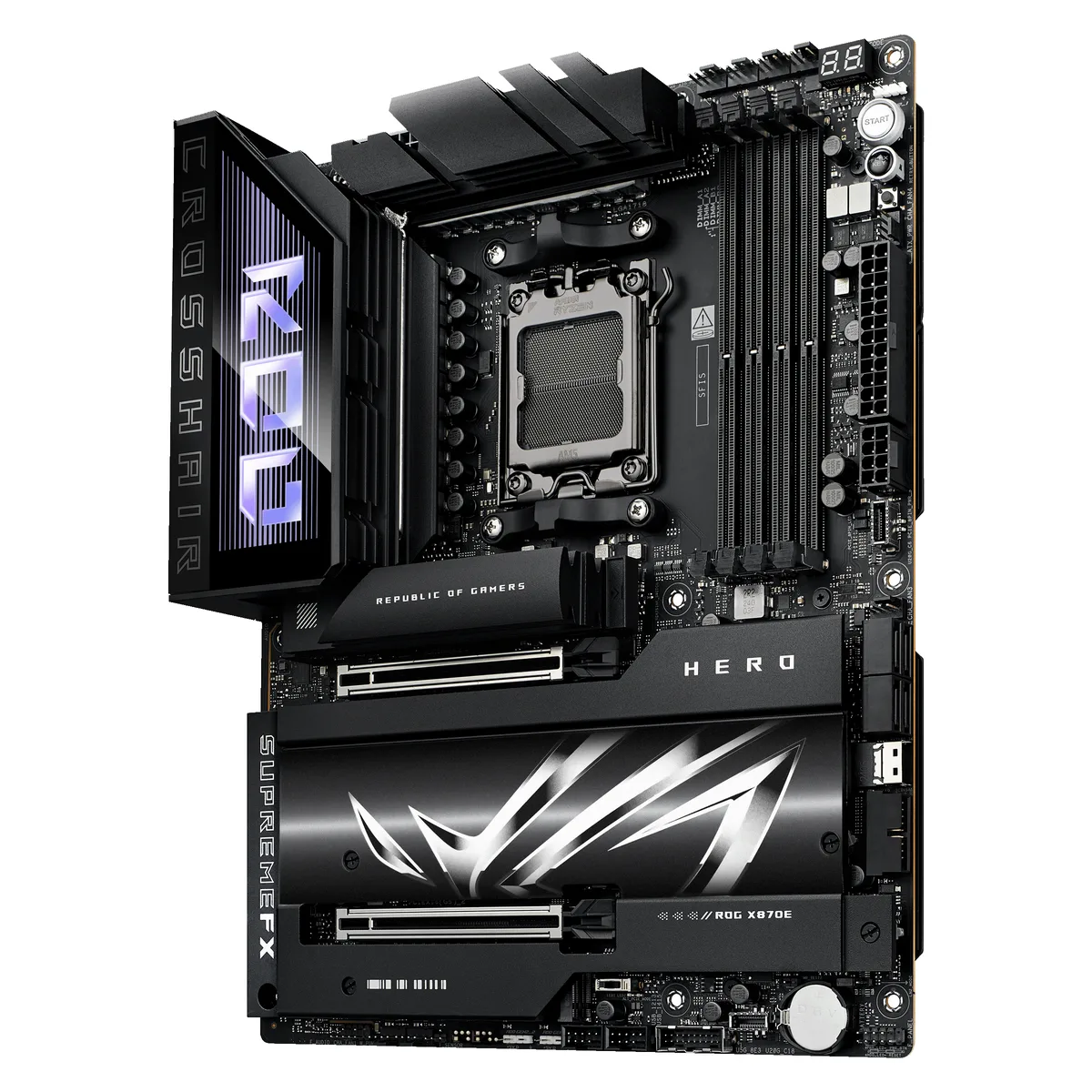

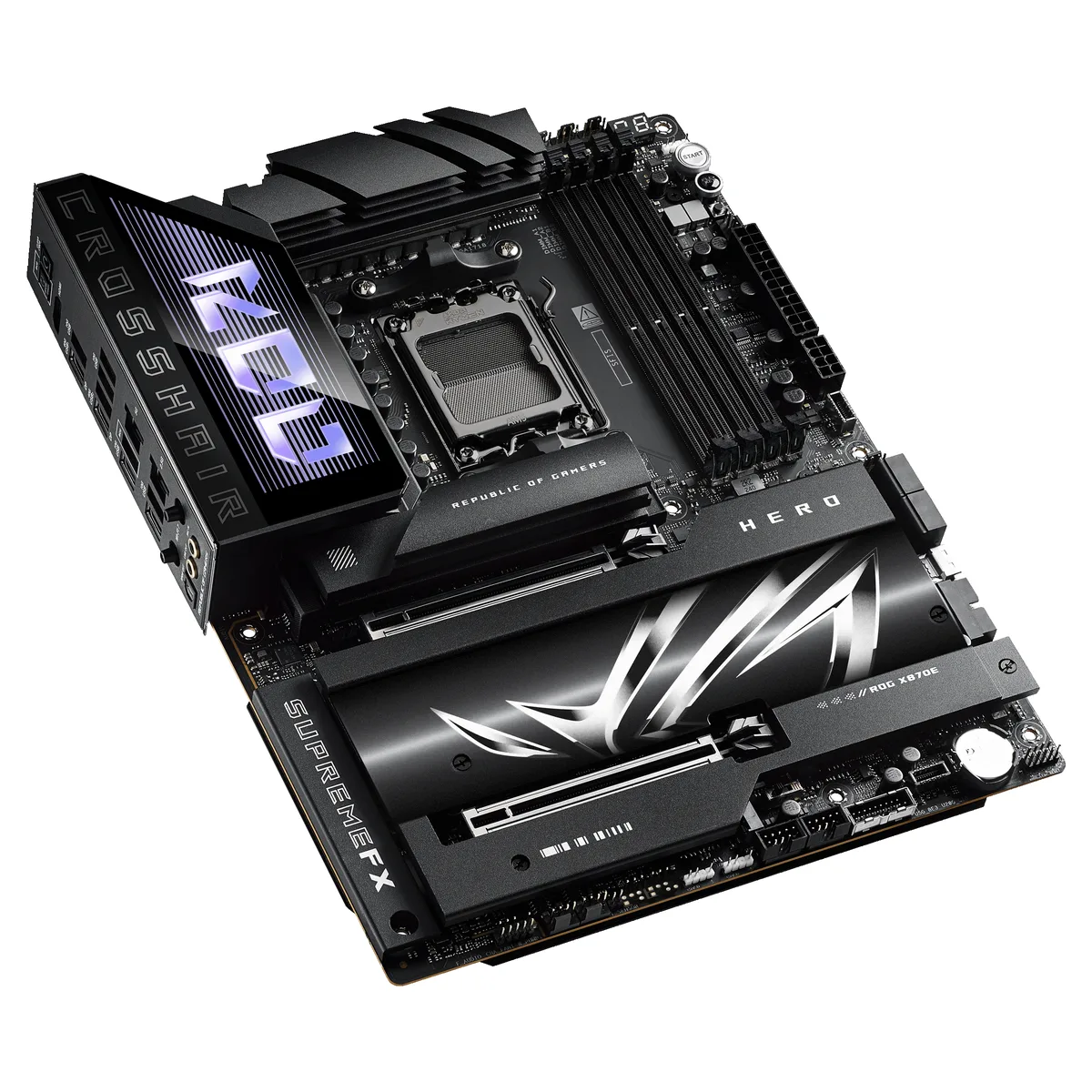

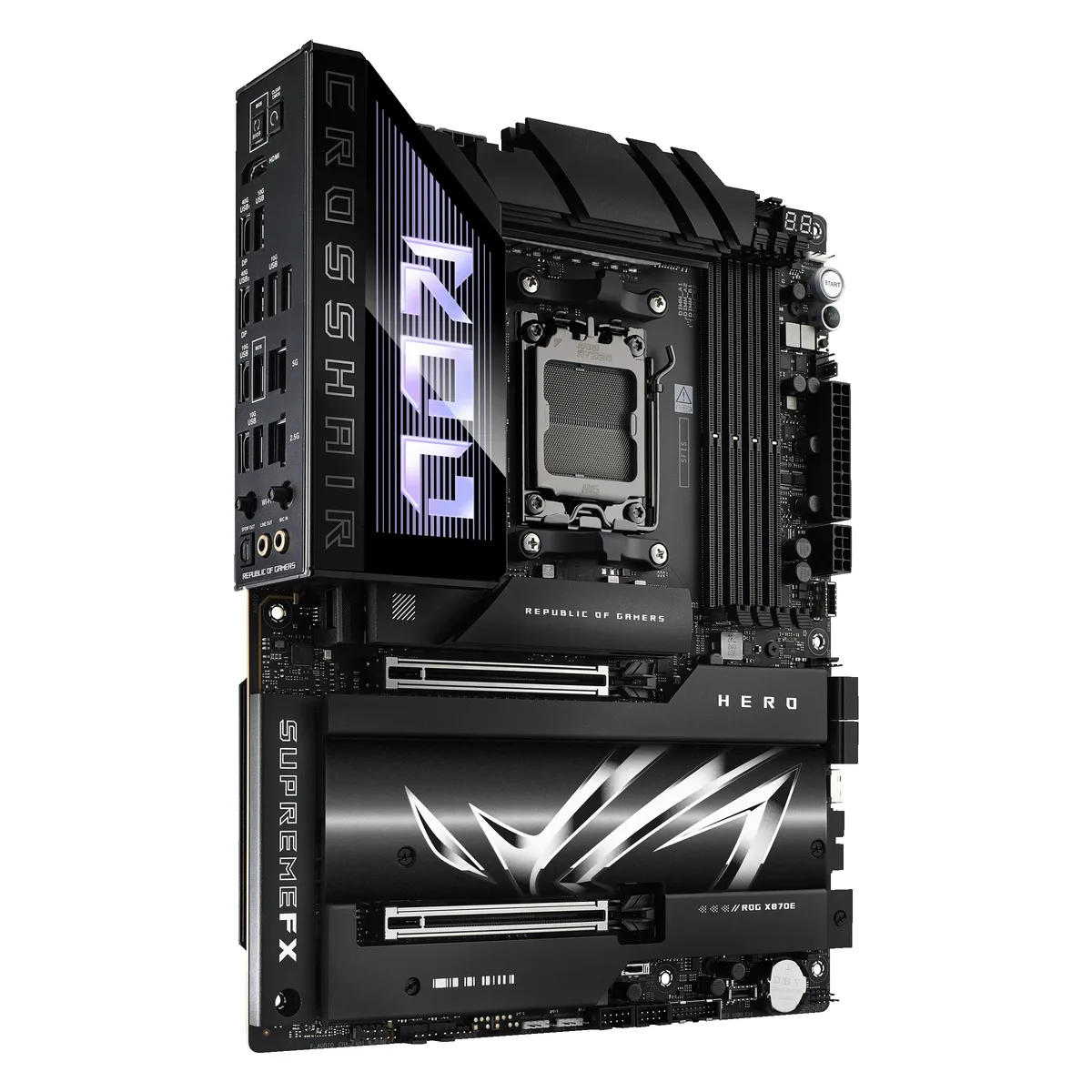

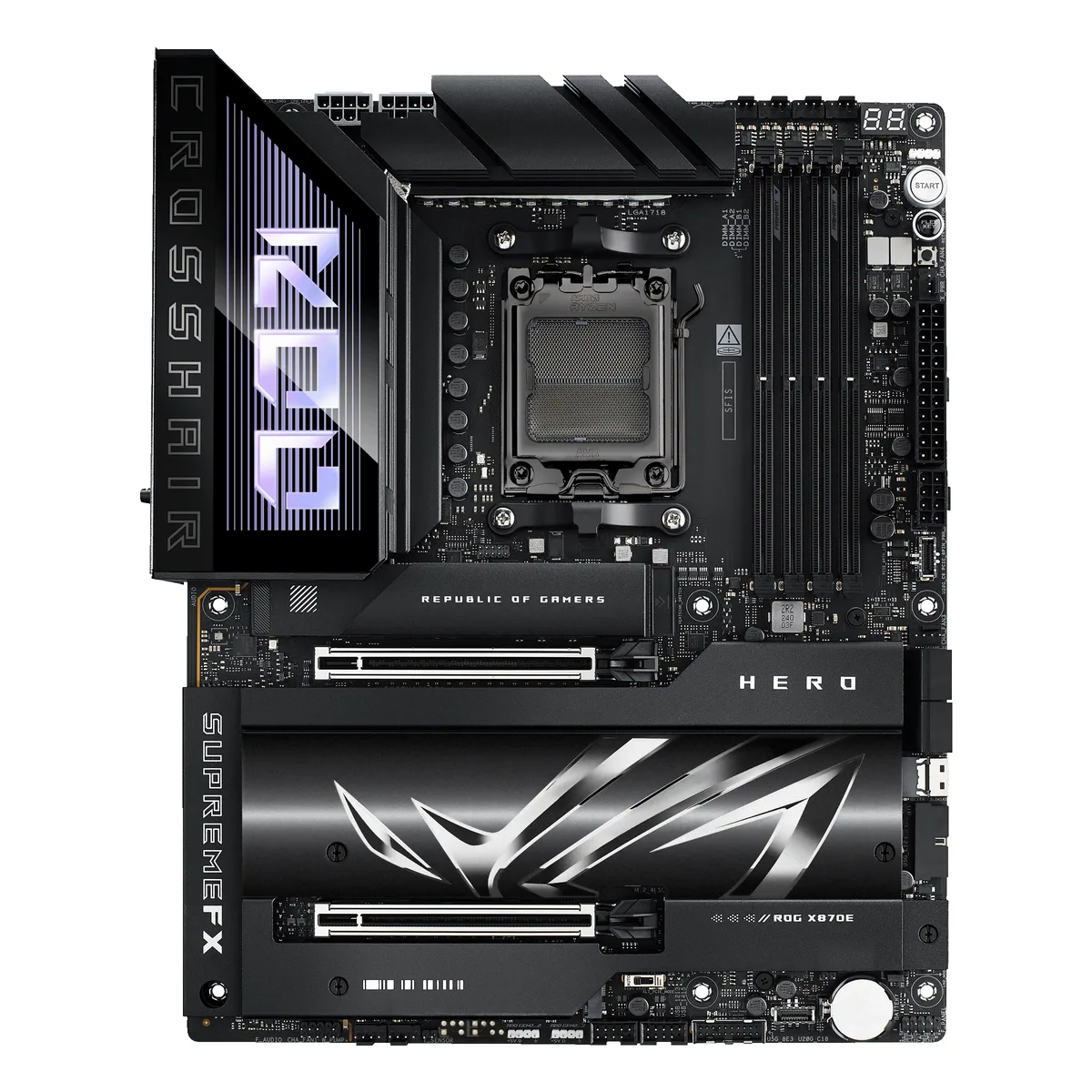

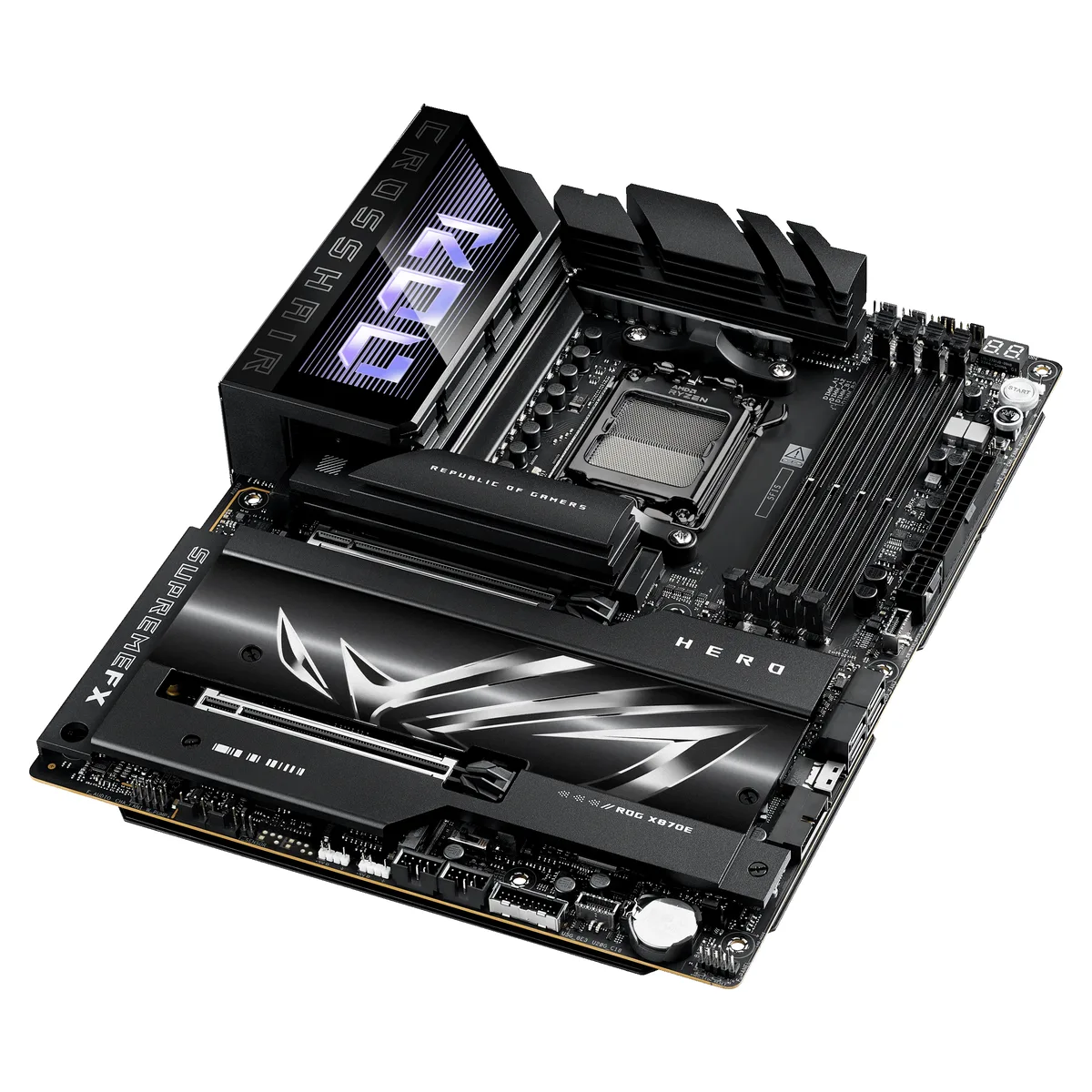

Dark ATX motherboard with nickel-plated heatsinks and Polymo Lighting II on the I/O shroud

ASUS

ASUS ROG CROSSHAIR X870E HERO AMD motherboard

SKU CH-NCDX-S67Y9 MPN ROG CROSSHAIR X870E HERO

An AM5 ATX board with 18+2+2 power stages, DDR5 to 8600+ MT/s, three PCIe 5.0 M.2 slots, Wi-Fi 7, 5 Gb and 2.5 Gb Ethernet, USB4 and AI overclocking tools

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800
  • Maximum Memory Supported256GB

Option ROG CROSSHAIR X870E HERO

  • AI-ready platform with AM5 socket for Ryzen 9000 series
  • 18+2+2 power stages rated at 110 A for stable overclocking
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots
  • Wi-Fi 7 and dual Ethernet at 5 Gbps and 2.5 Gbps
  • USB4 and DDR5 support up to 256 GB capacity

AI-ready AM5 platform

The ROG Crosshair X870E Hero is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It targets enthusiasts who want extensive overclocking tools, AI-assisted tuning and a high-density feature set in a single board.

PCIe 5.0 and DDR5 limits

Two PCIe 5.0 x16 slots share bandwidth in x8/x8 mode when both are populated. Three M.2 slots run at PCIe 5.0 x4 speeds while two additional slots use PCIe 4.0 x4. DDR5 memory tops out at 8200 MT/s with Ryzen 9000 CPUs and 8000 MT/s with Ryzen 7000 CPUs.

Upgrade path from X870 and earlier chipsets

Moving from an X870 or 600-series board adds a second PCIe 5.0 x16 slot, a third PCIe 5.0 M.2 slot and dual 5 Gbps plus 2.5 Gbps Ethernet. The jump is worthwhile when workloads need maximum PCIe 5.0 lane count and the highest DDR5 frequencies.

Highlights

  • AI-ready platform with AM5 socket for Ryzen 9000 series
  • 18+2+2 power stages rated at 110 A for stable overclocking
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots
  • Wi-Fi 7 and dual Ethernet at 5 Gbps and 2.5 Gbps
  • USB4 and DDR5 support up to 256 GB capacity

Specifications

BrandASUS
ModelROG CROSSHAIR X870E HERO
Part Number90MB1IE0-M0AAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
8600+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
NitroX Slot
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
AMD Ryzen 8700/8600 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen 8500/8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
- To ensure c
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (su
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial a
Audio Channels7.1 Channels
Max LAN Speed5Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature256Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
-
Package ContentsCables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Shipping weight3.97 kg
Package size362 × 305 × 112 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 4400 MT/s or 4800 MT/s DDR5 baseline for my Ryzen build?

Both are JEDEC baselines; the board runs either at stock and can exceed 8000 MT/s with Ryzen 7000, 8600 MT/s with Ryzen 8000, or 8200 MT/s with Ryzen 9000 when overclocked.

What does the 18+2+2 power-stage design actually deliver to the CPU?

Eighteen 110 A Vcore stages plus two 110 A SOC and two auxiliary stages feed the AM5 socket through ProCool II connectors, giving headroom for sustained high-current loads.

How fast are the three PCIe 5.0 M.2 slots in everyday use?

Each of the three Key-M slots (2242/2260/2280) runs at PCIe 5.0 x4, so a compatible drive can reach the interface’s full 5.0 bandwidth.
