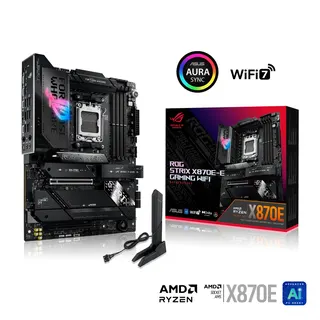

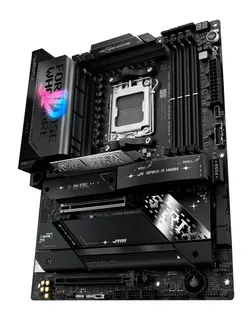

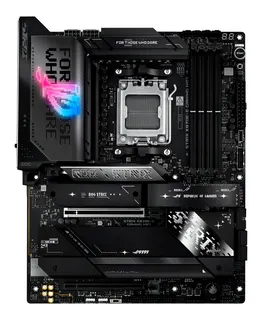

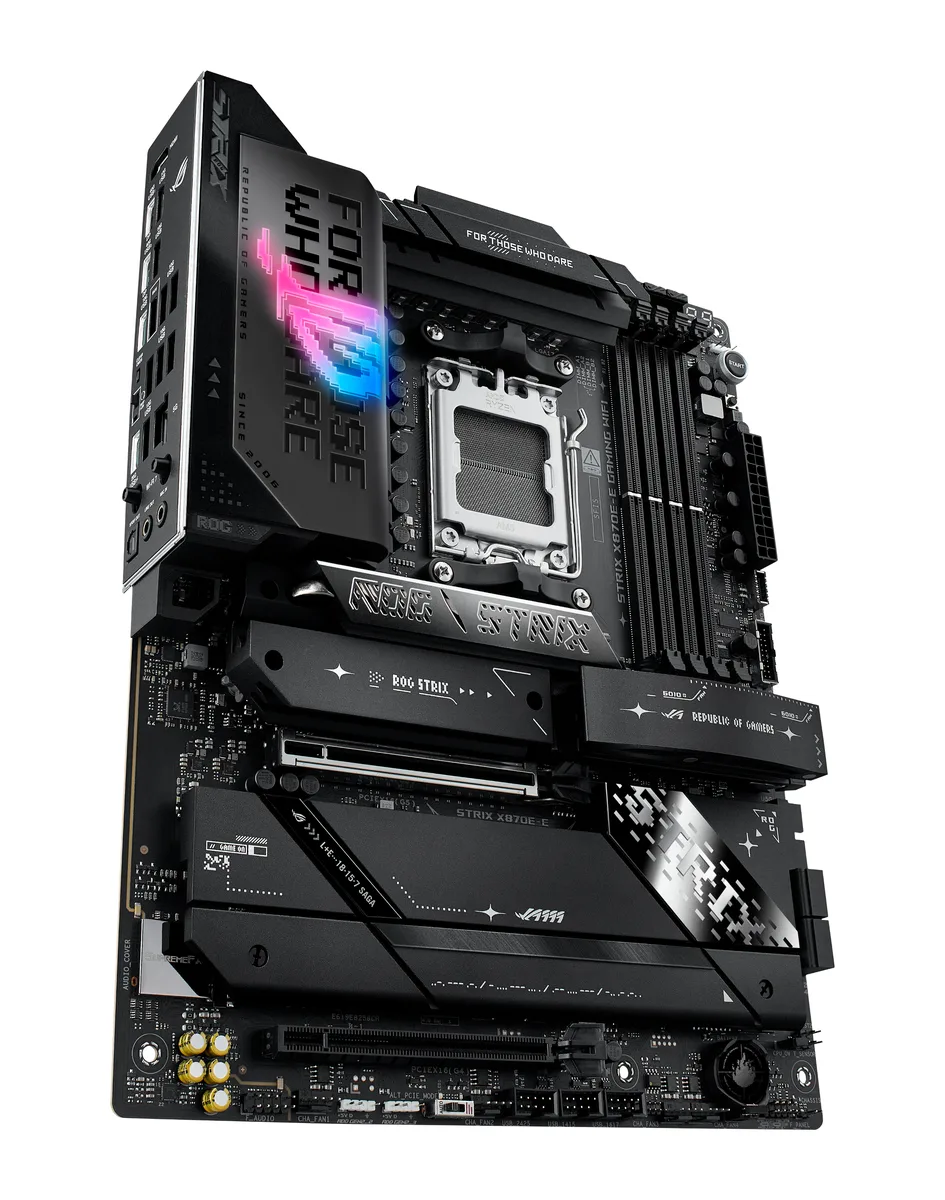

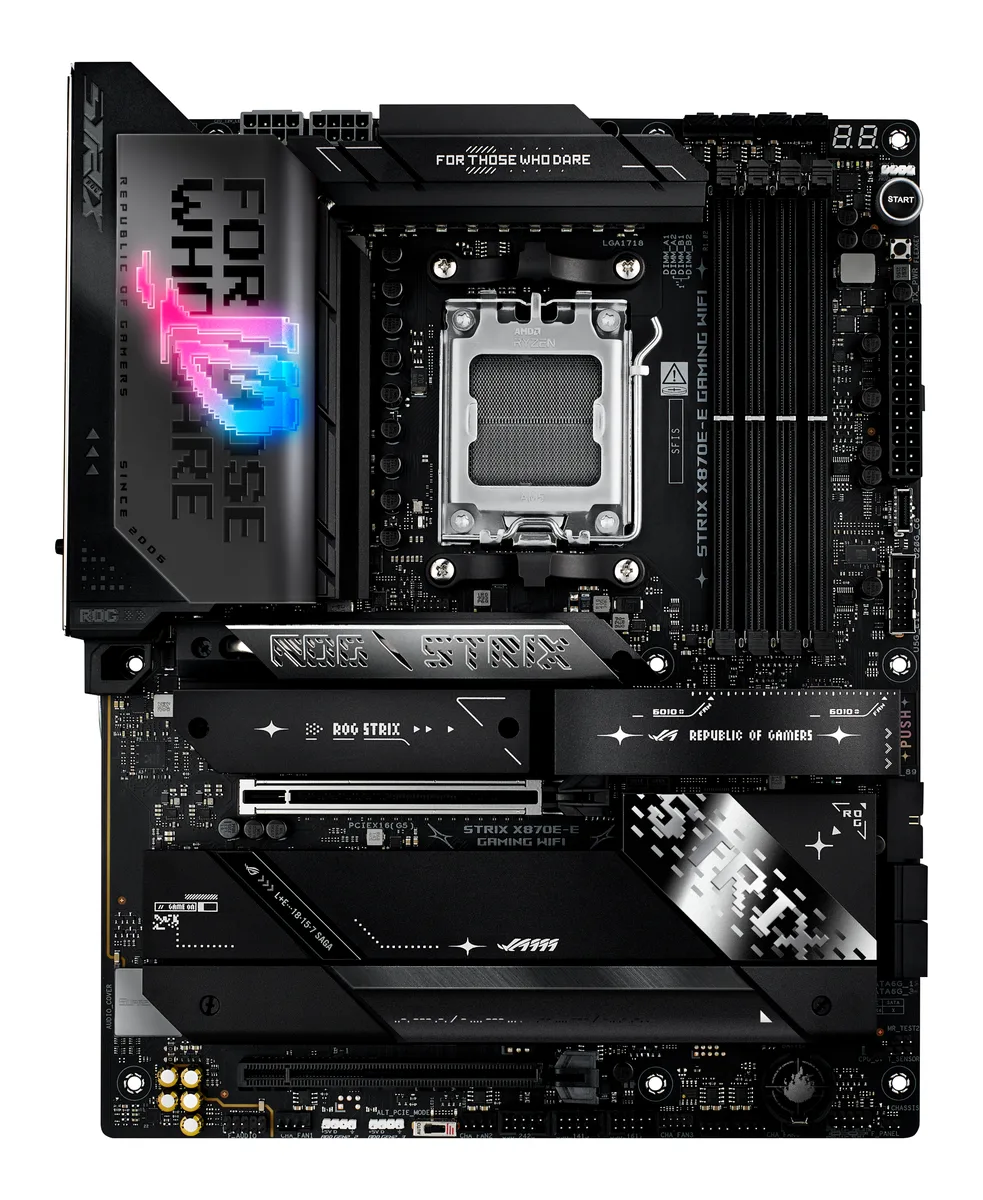

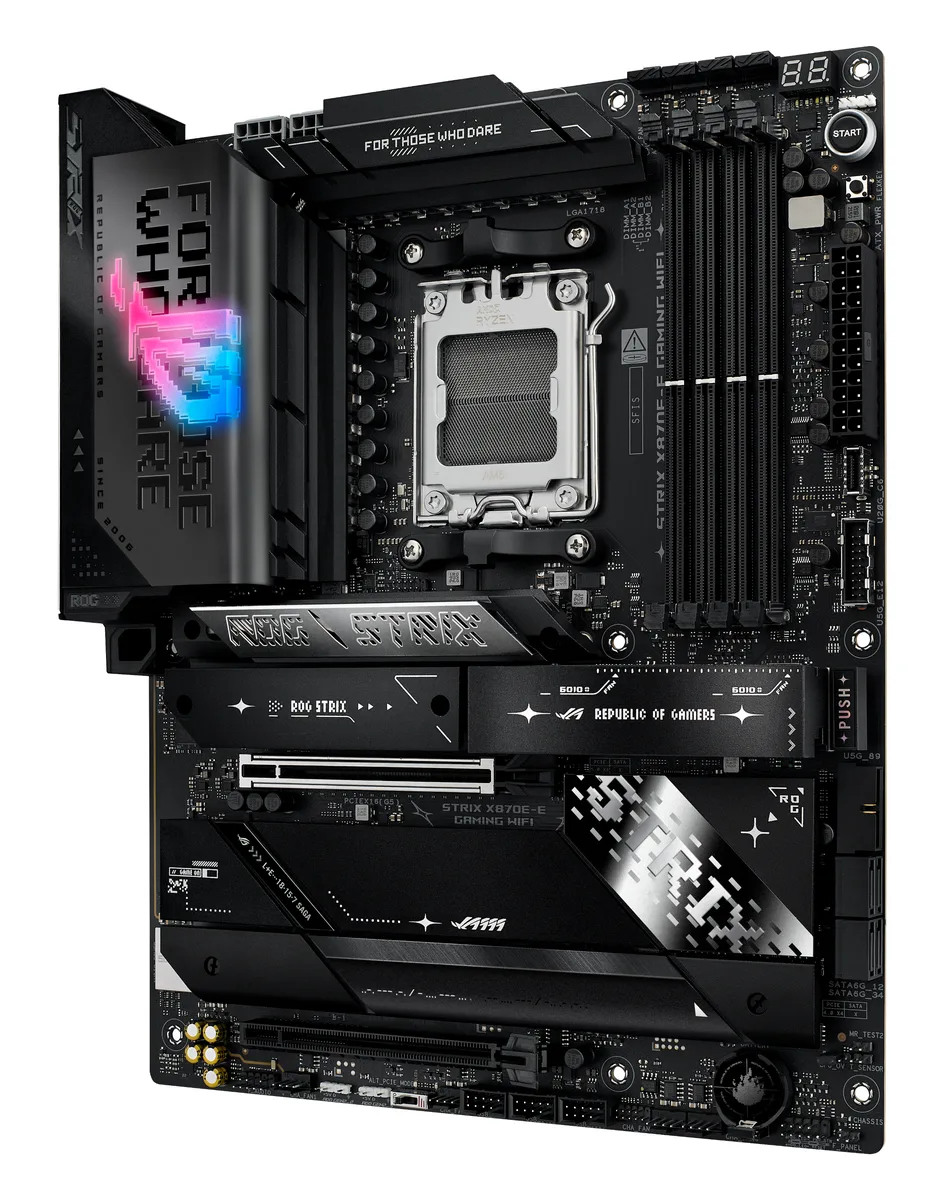

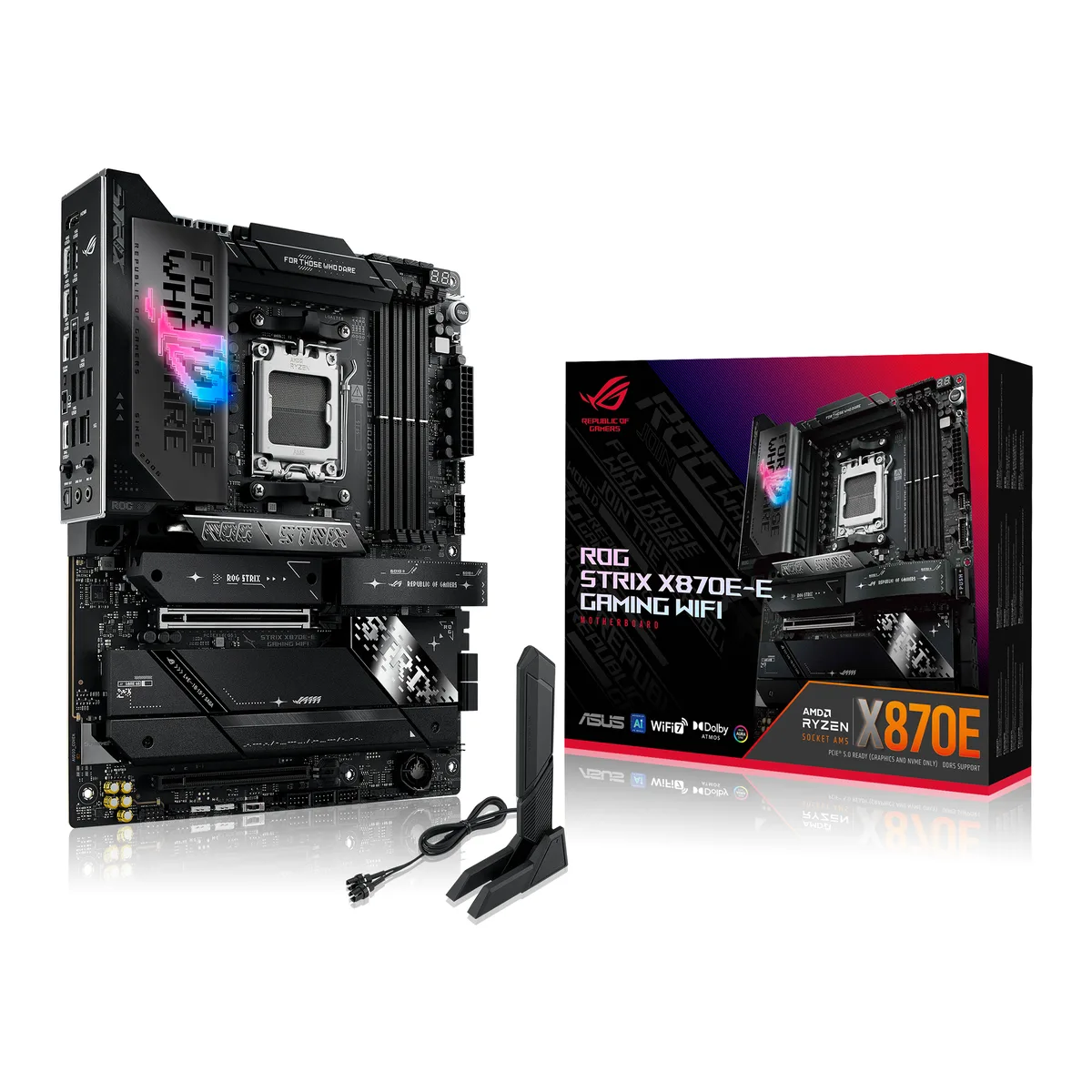

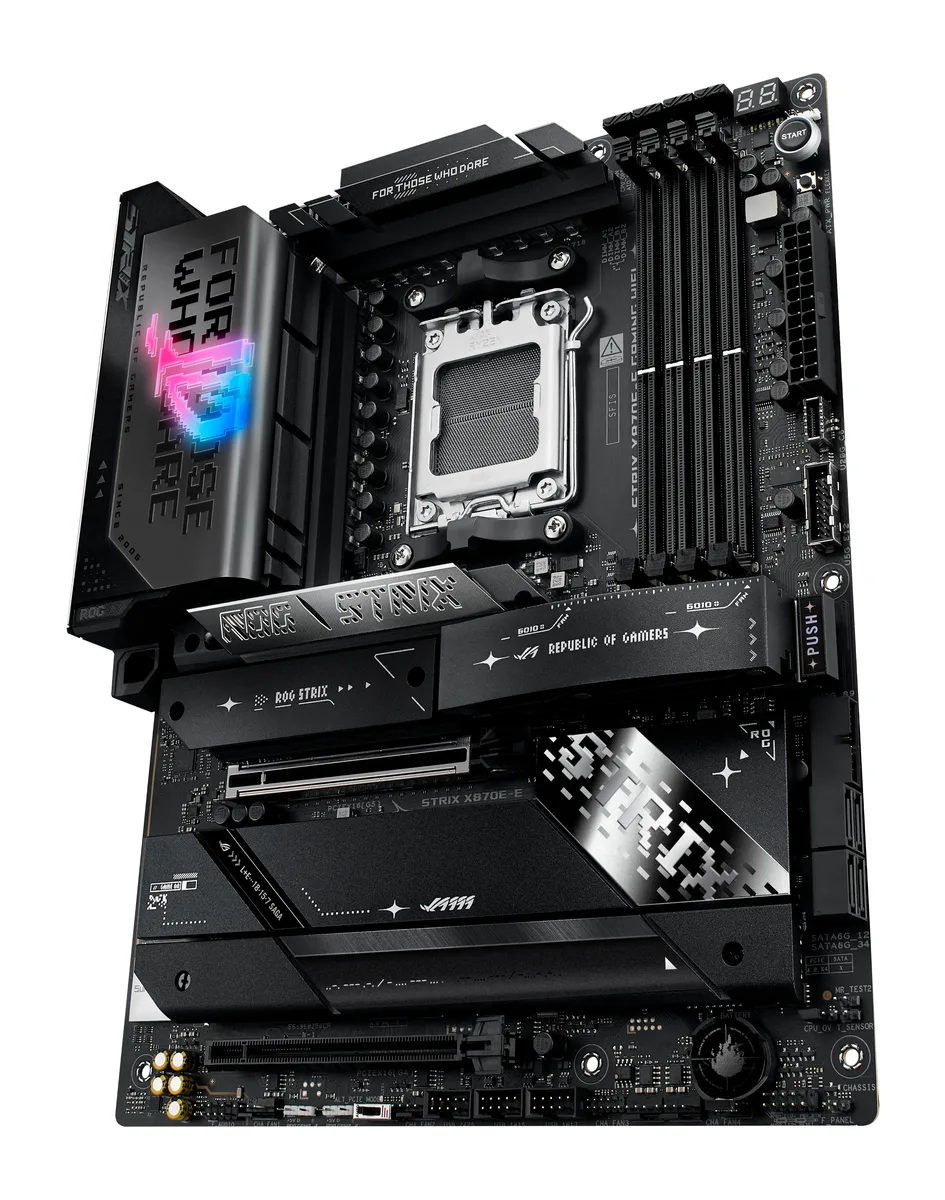

Black ATX motherboard with silver heatsinks and illuminated ROG logo

ASUS

ASUS ROG STRIX X870E-E GAMING WIFI AMD motherboard

SKU CH-3WHT-3017Q MPN ROG STRIX X870E-E GAMING WIFI

Supports Ryzen 7000, 8000 and 9000 series CPUs with 18+2+2 power stages, DDR5 up to 8400 MT/s, three PCIe 5.0 M.2 slots, WiFi 7 and dual USB4 ports

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB

Option ROG STRIX X870E-E GAMING WIFI

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series processors
  • 18+2+2 power stages rated at 110A each for stable multi-core performance
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots all with heatsinks
  • Dual USB4 Type-C ports and USB 20Gbps front-panel connector for fast peripherals
  • AI Overclocking, AI Cooling II and AI Networking simplify tuning and optimisation

AM5 Platform Ready

This ATX motherboard fits socket AM5 and runs AMD Ryzen 7000, 8000 and 9000 series processors. It targets enthusiasts who want a full feature set for gaming or workstation builds. The X870E chipset unlocks 18+2+2 power stages rated at 110A each for stable multi-core operation.

Connectivity And Cooling Extras

Dual USB4 Type-C ports, a USB 20Gbps front panel connector and one USB 10Gbps port with 30W PD 3.0 expand peripheral options. WiFi 7 and 5 Gigabit Ethernet handle networking. Five M.2 slots (three PCIe 5.0, two PCIe 4.0) plus four SATA 6Gb/s ports support RAID 0, 1, 5 and 10 with Ryzen 9000 CPUs.

High End Builds With AI Tools

Suits users who need maximum M.2 capacity, USB4 and robust power delivery for heavy workloads. AI Overclocking, AI Cooling II and AI Networking simplify tuning. Builders on tighter budgets or smaller cases should consider boards with fewer M.2 slots and reduced power phases.

Highlights

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series processors
  • 18+2+2 power stages rated at 110A each for stable multi-core performance
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots all with heatsinks
  • Dual USB4 Type-C ports and USB 20Gbps front-panel connector for fast peripherals
  • AI Overclocking, AI Cooling II and AI Networking simplify tuning and optimisation

Specifications

BrandASUS
ModelROG STRIX X870E-E GAMING WIFI
Part Number90MB1IB0-M0AAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to
8000+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x16AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slots (supports x16 mode)
PCI Express 4.0 x16AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
SATA RAID*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
Documentation
1 x Quick start guide
Shipping weight2.86 kg
Package size356 × 279 × 89 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long do the 110A-rated power stages and alloy chokes typically last before they need replacement?

The 18+2+2 power stages are rated for 110A each and use high-quality alloy chokes with durable capacitors, designed for the lifespan of the motherboard under normal operating conditions.

Which thermal limit is reached first when all three PCIe 5.0 M.2 slots run sustained heavy loads?

The substantial heatsinks on the three PCIe 5.0 M.2 slots are engineered to manage heat from concurrent high-speed storage traffic, with AI Cooling II adjusting fan curves to maintain safe temperatures.

How loud do the VRM and chipset fans get when the 18+2+2 power solution runs at full load all day?

AI Cooling II automatically balances fan speeds across the VRM and chipset heatsinks to minimise noise while keeping the 110A power stages within thermal limits during extended workloads.
