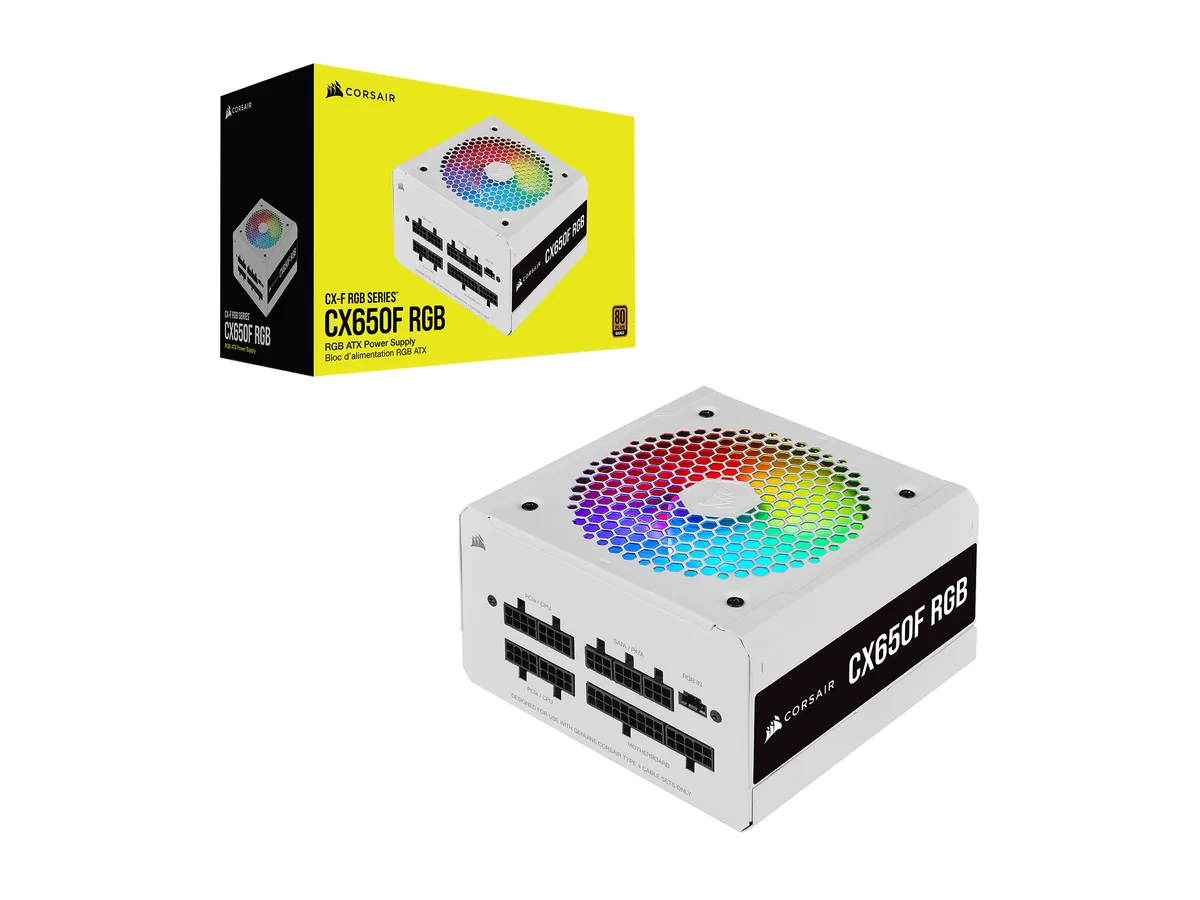

White ATX power supply with 120mm RGB fan and white modular cables

Corsair

Corsair CX650F RGB White power supply CP-9020226-NA

SKU CH-FT0C-9JA6V MPN CP-9020226-NA

A 650 W fully modular ATX unit with an 80 PLUS Bronze rating, a white 120 mm RGB fan and white cables for clean builds

  • ColorWhite
  • TypeATX12V / EPS12V
  • Maximum Power650 W
  • Fans1 x 120mm RGB Fan
  • Fan LEDRGB
  • Main Connector20+4Pin

Options CX-F RGB Series (650W)

  • 650 W output powers demanding components
  • 88% efficiency at 80 PLUS Bronze reduces heat
  • 120 mm RGB fan with eight addressable LEDs and ten preset modes
  • White housing and cables create a clean aesthetic

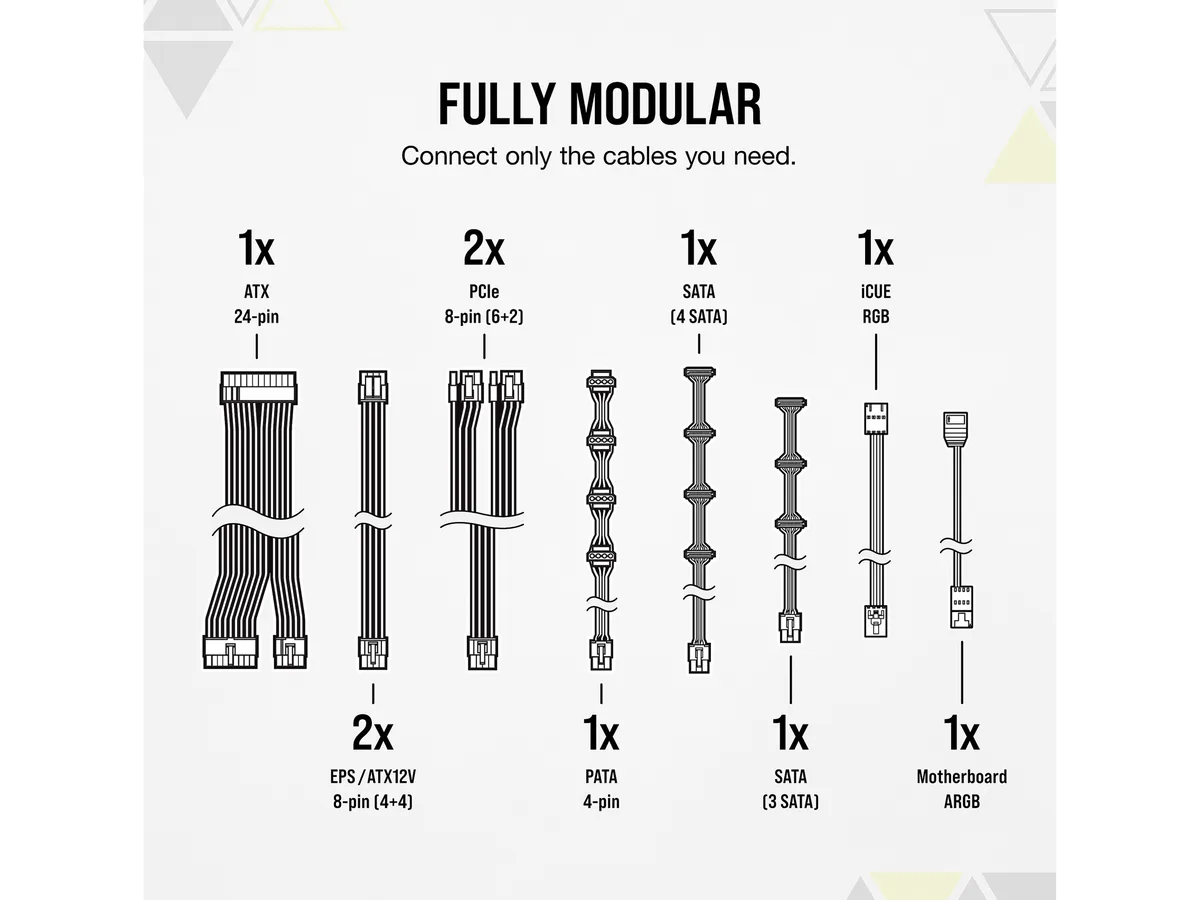

  • Fully modular design lets you connect only the cables you need

650 W ATX Power Supply

This 650 W ATX power supply delivers reliable power for mid-range desktop builds. The white housing and cables suit clean, light-themed systems. Fully modular cabling lets you connect only what the build requires. An 80 PLUS Bronze rating confirms up to 88% efficiency under typical loads.

RGB Lighting and Modular Cables

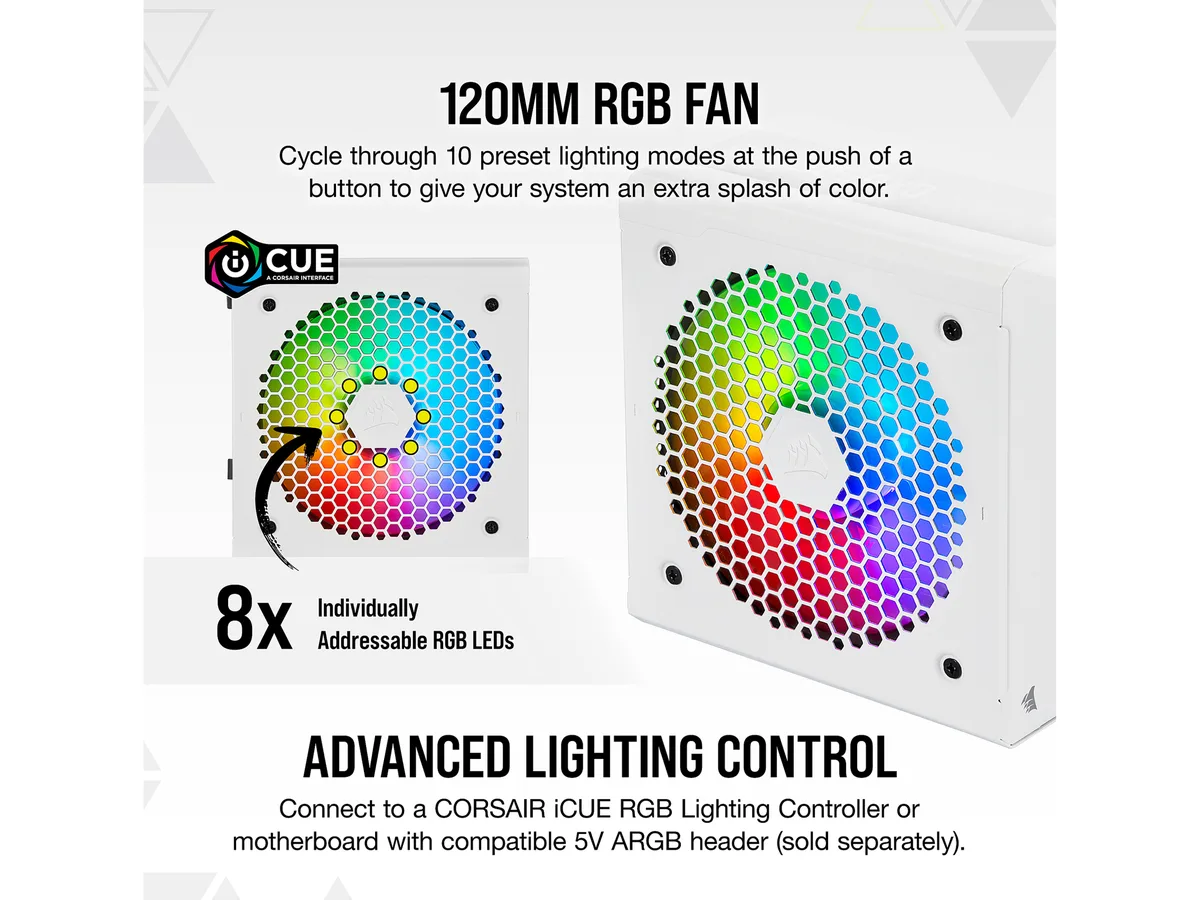

A 120 mm fan with eight addressable RGB LEDs offers ten preset modes controlled by a button on the unit. The included 5 V ARGB adapter enables synchronisation with motherboard software or a Corsair iCUE controller. Fully modular cables reduce clutter and improve airflow inside the case.

Clearance and Connector Check

Verify that the chassis can accommodate a 140 mm long unit before ordering. Confirm the motherboard accepts a 24-pin ATX and two 4+4-pin EPS connectors. Ensure the graphics card requires no more than four 6+2-pin PCIe connectors. Check that the 100-240 V input range matches the local mains supply.

Highlights

  • 650 W output powers demanding components
  • 88% efficiency at 80 PLUS Bronze reduces heat
  • 120 mm RGB fan with eight addressable LEDs and ten preset modes
  • White housing and cables create a clean aesthetic
  • Fully modular design lets you connect only the cables you need

Specifications

BrandCORSAIR
SeriesCX650F RGB White
ModelCP-9020226-NA
ColorWhite
TypeATX12V / EPS12V
Maximum Power650 W
Fans1 x 120mm RGB Fan
Fan LEDRGB
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector7
Max PSU Length140 mm
ModularFull Modular
Energy-Efficient80 PLUS BRONZE Certified
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10 - 5 A
Output+3.3V@20A, +5V@20A, +12V@54A, [email protected] , +5VSB@3A
Connectors1 x 24-pin ATX (24-pin) Connector
2 x ATX 12V/EPS12V (4+4-pin) Connector
4 x PCIe (6+2) Connectors
7 x SATA Connectors
4 x PATA Connectors

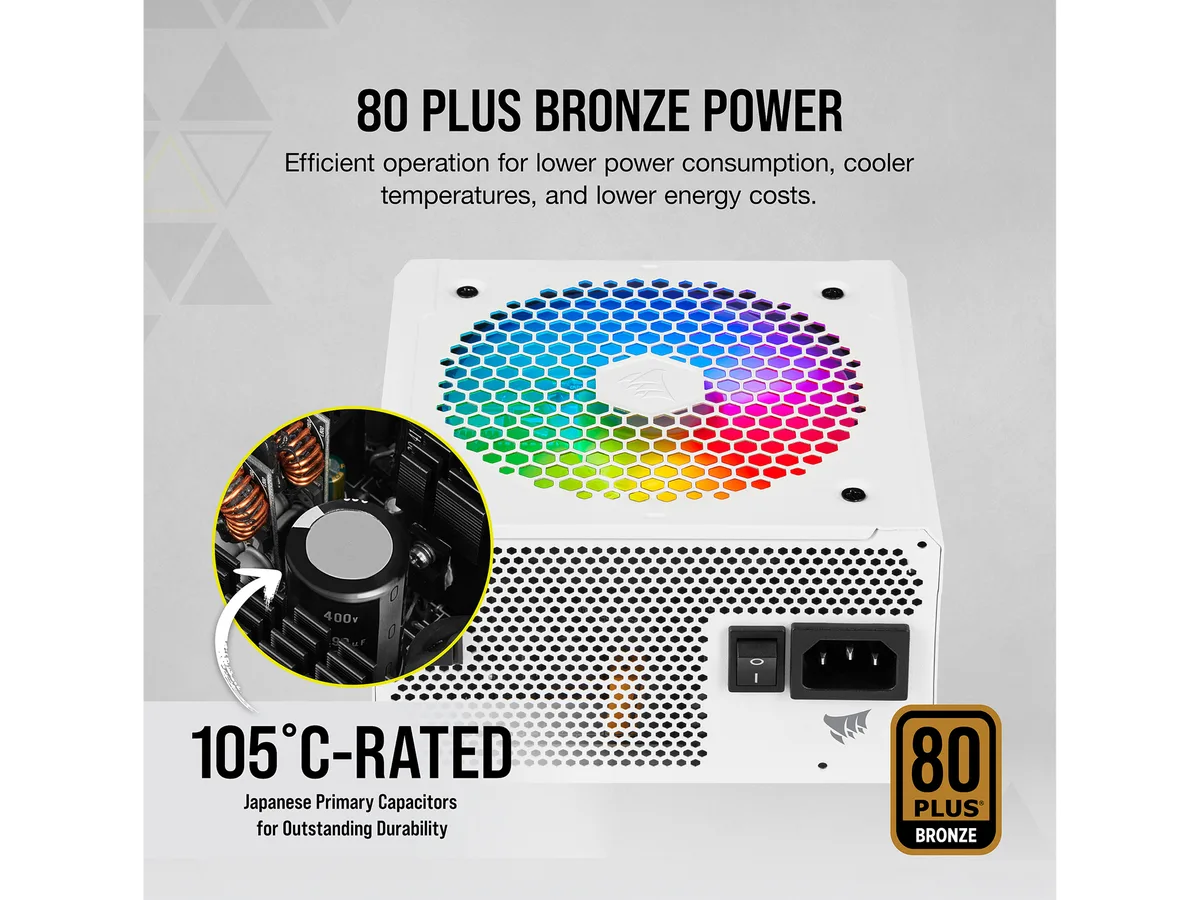

Features80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs.
120mm RGB Fan: Control eight individually addressable RGB LEDs at the push of a button, with ten preset lighting modes.
Brilliant White Housing and Cables: Matches the clean, refined look of other white CORSAIR products in your setup.
iCUE and Motherboard RGB Compatible: Connect to a CORSAIR iCUE RGB Lighting Controller (sold separately) or motherboard via the included 5V ARGB adapter for advanced RGB lighting control.

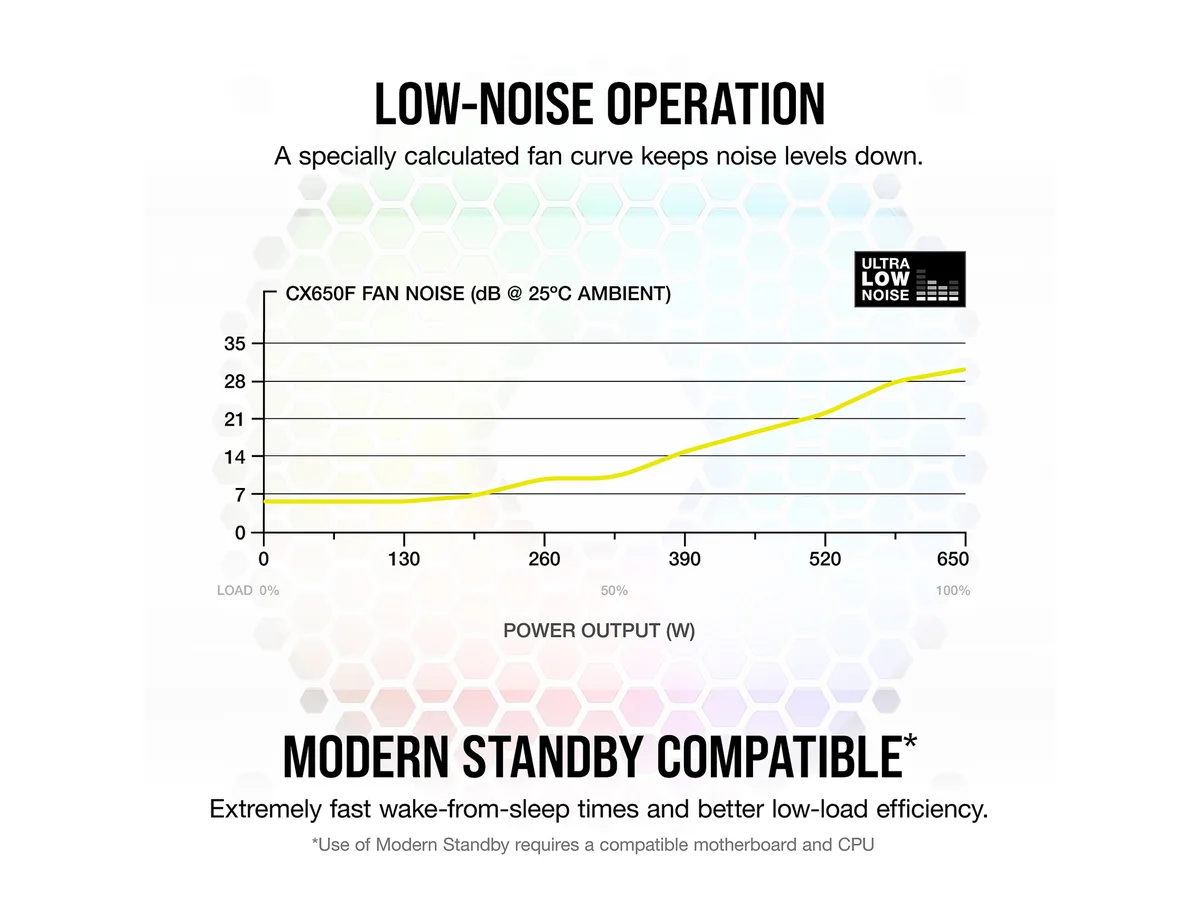

Optimized for Low Noise: A dedicated fan curv
Dimensions3.39" x 5.91" x 5.51"
Weight2.87 lbs.
Shipping weight1.17 kg
Package size305 × 191 × 132 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 120 mm RGB fan need replacement later?

The 120 mm RGB fan is the only moving part; its lifespan depends on operating temperature and dust buildup, and Corsair rates the primary capacitors at 105 °C for long-term reliability.

What limit appears first during sustained full-load use?

The single +12 V rail delivers up to 54 A, so the 650 W total-output ceiling is the first hard limit under continuous heavy demand.

How much noise and heat does the unit produce when running all day?

An optimised fan curve keeps acoustic output low, while 80 PLUS Bronze certification at up to 88 % efficiency reduces waste heat during extended operation.
