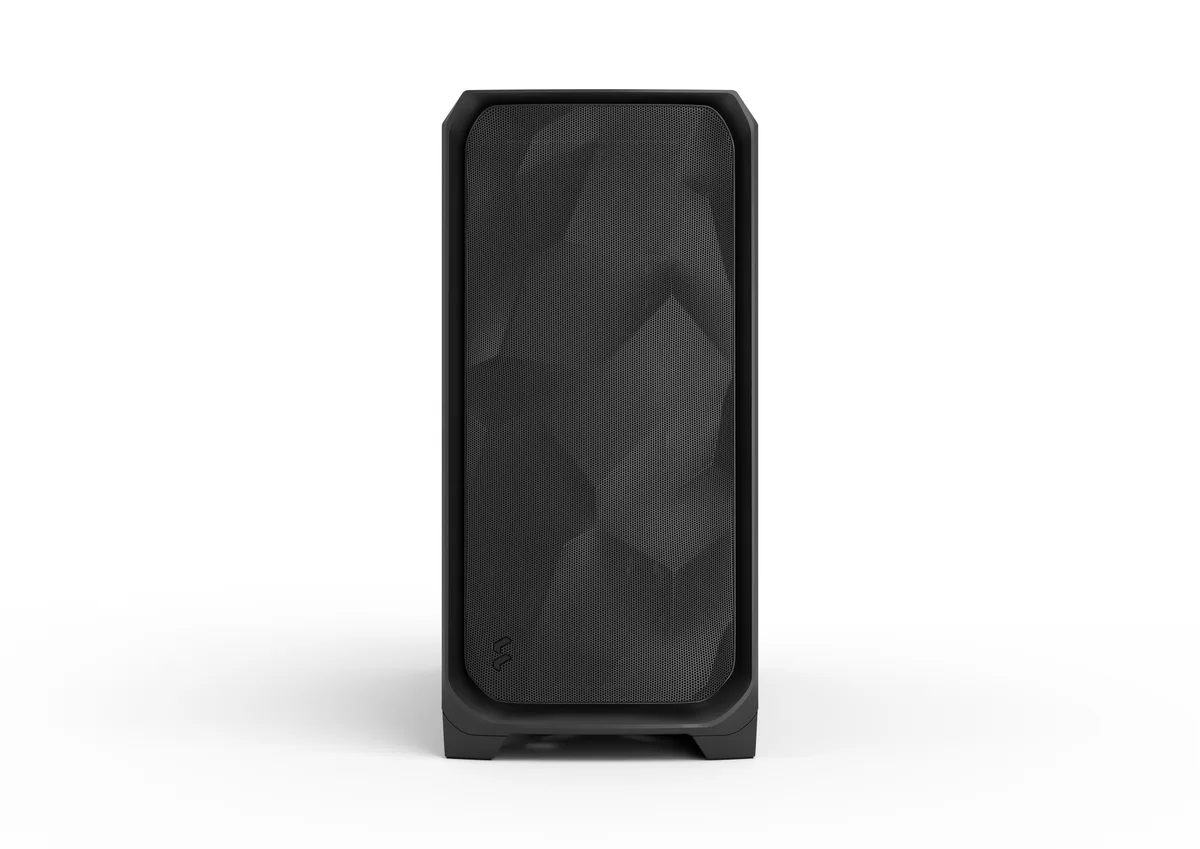

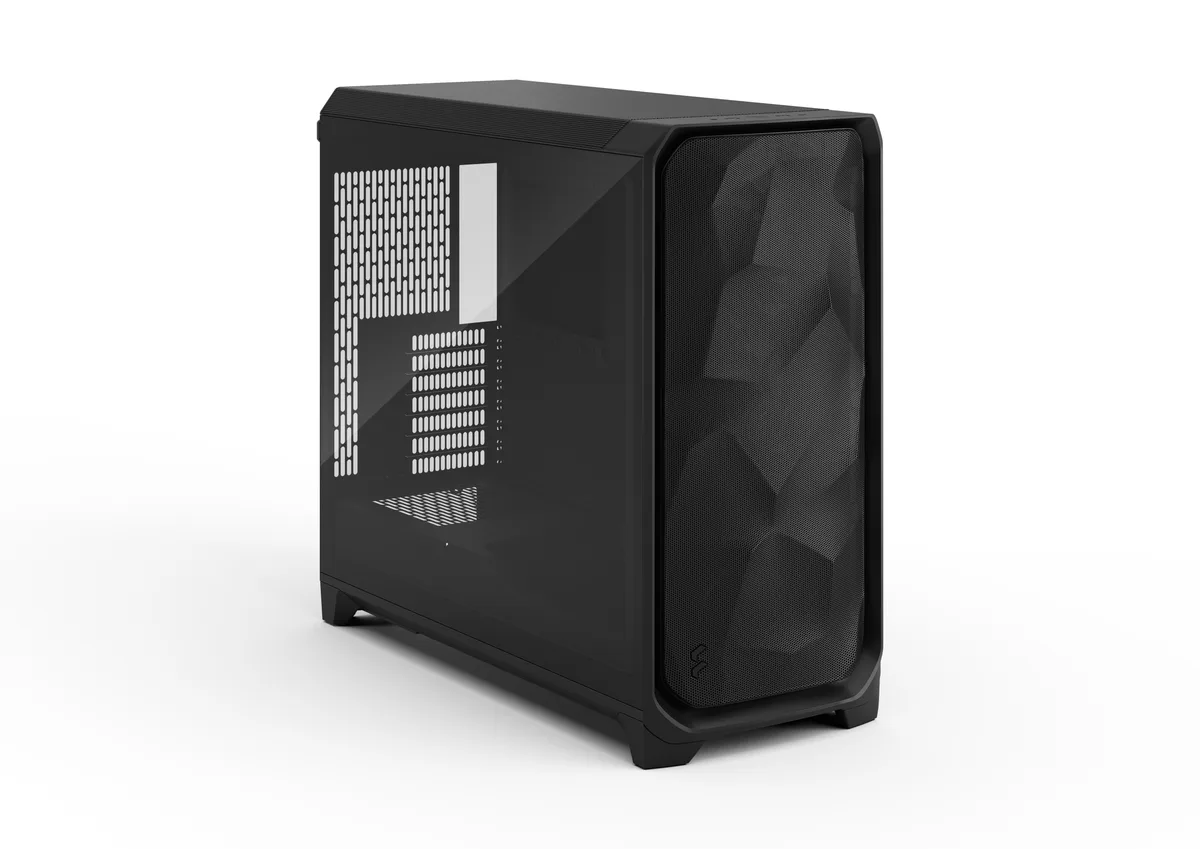

Large black steel full tower case with ventilated front mesh and light tinted tempered glass side panel

Fractal Design

Fractal Design FD-C-MES3X-02 Meshify 3 XL E-ATX Full Tower PC Case Black

SKU CH-30PC-EJ9M6 MPN FD-C-MES3X-02

Full-tower chassis with ventilated mesh front, light-tinted tempered-glass side panel and three pre-installed 140 mm RGB PWM fans

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB

Options Meshify 3 XL - TG Light Tint (Black)

  • Ventilated front mesh panel improves airflow with sculpted expression
  • Three pre-installed Momentum 14 RGB PWM fans deliver immediate cooling performance
  • Spacious interior supports up to 420 mm top and 360 mm front and side radiators for custom loops
  • Accessible I/O includes 20 Gbps USB-C, two USB 3.0 ports and audio combo jack
  • Cable aligners and air guide simplify cable management while directing air toward GPU

Meshify 3 XL E-ATX full tower

The Meshify 3 XL is a full-tower chassis built from steel with a black finish and a light-tinted tempered-glass side panel. It supports motherboards from Mini-ITX up to EE-ATX and SSI-EEB, making it suitable for high-end workstations or enthusiast gaming builds that need generous internal volume.

Suited for custom-loop builders

This case suits builders planning custom water-cooling loops thanks to support for 420 mm top radiators and 360 mm front and side radiators with removable brackets. It is less suited for users who need external 5.25-inch or 3.5-inch drive bays, or those wanting a compact footprint for limited desk space.

Three pre-installed 140 mm Momentum fans

Three 140 mm Momentum RGB PWM fans come fitted at the front, delivering immediate airflow. The front panel accepts three 120 or 140 mm fans or two 180 mm units, while the top, rear and side mounts add further cooling flexibility for air or liquid configurations.

Highlights

  • Ventilated front mesh panel improves airflow with sculpted expression
  • Three pre-installed Momentum 14 RGB PWM fans deliver immediate cooling performance
  • Spacious interior supports up to 420 mm top and 360 mm front and side radiators for custom loops
  • Accessible I/O includes 20 Gbps USB-C, two USB 3.0 ports and audio combo jack
  • Cable aligners and air guide simplify cable management while directing air toward GPU

Specifications

BrandFractal Design
SeriesMeshify 3 XL
ModelFD-C-MES3X-02
Part NumberFD-C-MES3X-02
TypeATX Full Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
Side PanelLight Tinted TG Side Panel
Dust FiltersBottom
External 5.25" Drive BaysNo
External 3.5" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays4 x 2.5" SSD behind MB tray
1 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3x 120/140 mm or 2x 180 mm (3 x Momentum 14 RGB PWM included)
Top: 3 x 120/140 mm
Rear: 1 x 120/140 mm
Side: 3x 140 mm (120 mm w/ radiator only)
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Rear - Up to 140mm / Side - Up to 280mm / Side - Up to 360mm / Top - Up to 360mm / Top - Up to 420mm
140mm Fans3 x Momentum 14 RGB PWM included
Max GPU LengthMax GPU Length: 512 mm
Max GPU Height: 189 mm (slot 7, including cables)
Max CPU Cooler Height182 mm
Max PSU Length230 mm
Dimensions22.64" x 9.65" x 20.28"
Weight24.03 lbs.
Package ContentMeshify 3 XL case
User manual
Accessory box
Shipping weight13.34 kg
Package size660 × 597 × 343 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often should the bottom dust filter be cleaned to maintain airflow?

The bottom dust filter is the only filter on the case; clean it whenever visible dust builds up to keep the three pre-installed 140 mm front fans and any additional fans feeding cool air into the chassis.

What is the maximum radiator length the top panel can accept before clearance becomes the limiting factor?

The top panel supports radiators up to 420 mm, so a 420 mm unit is the longest that will fit without interfering with motherboard components or the side panel.

How loud are the three included Momentum 14 RGB PWM fans when they run at full speed all day?

The three pre-installed 140 mm Momentum 14 RGB PWM fans are PWM controlled, so noise scales with speed; at maximum RPM they move more air but produce audible airflow noise typical of 140 mm PWM fans.
