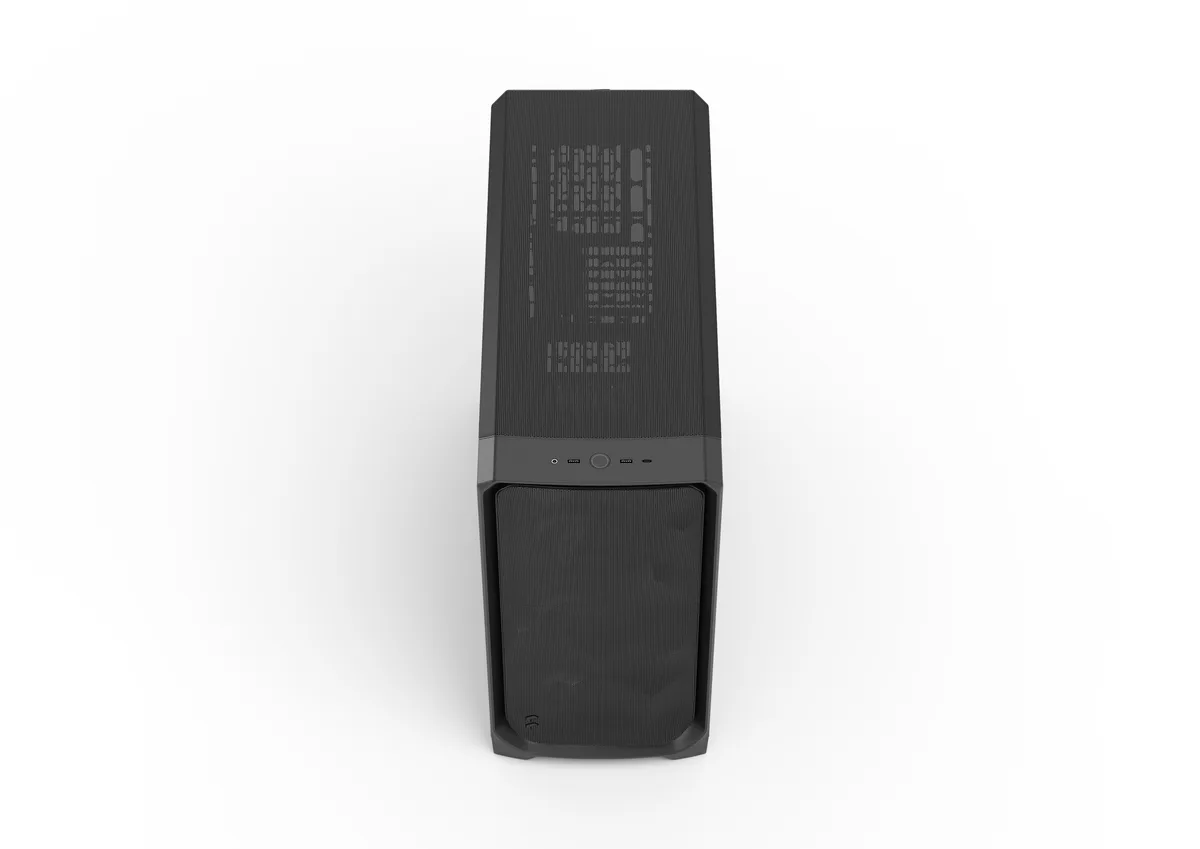

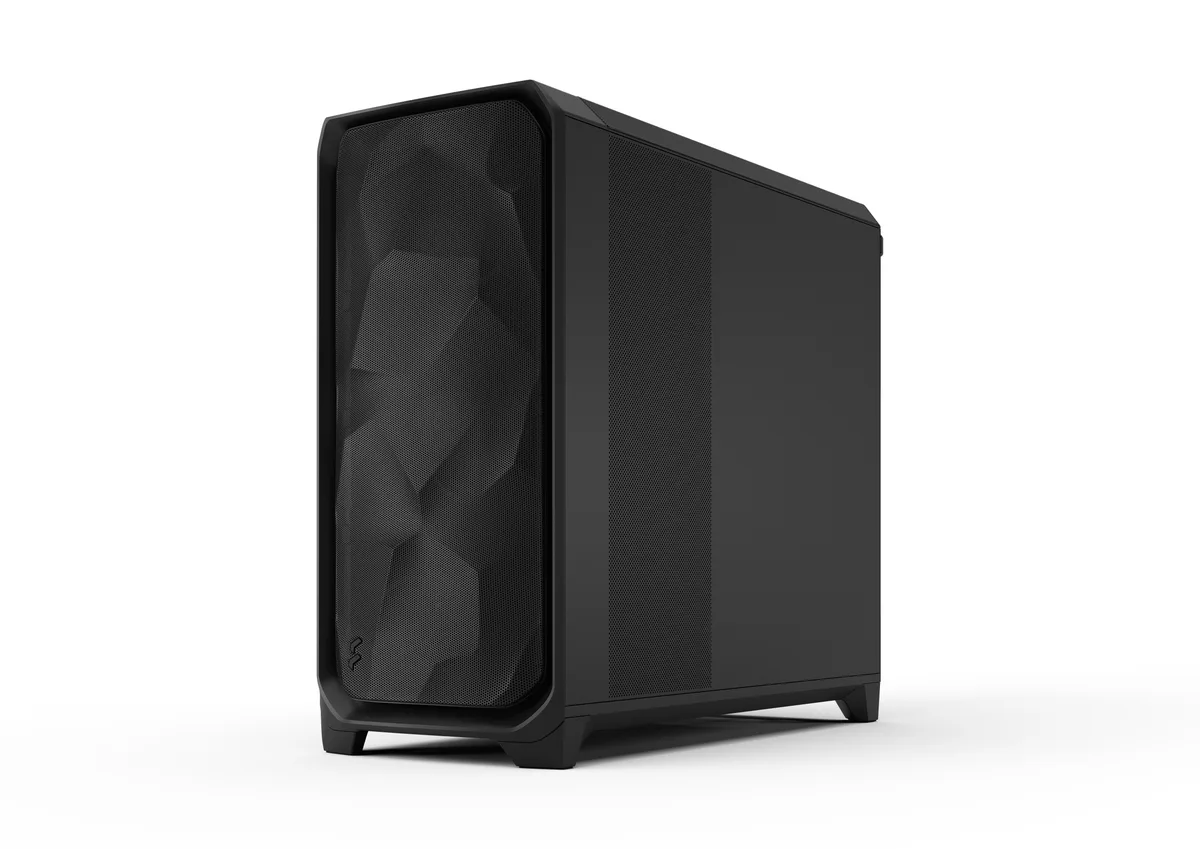

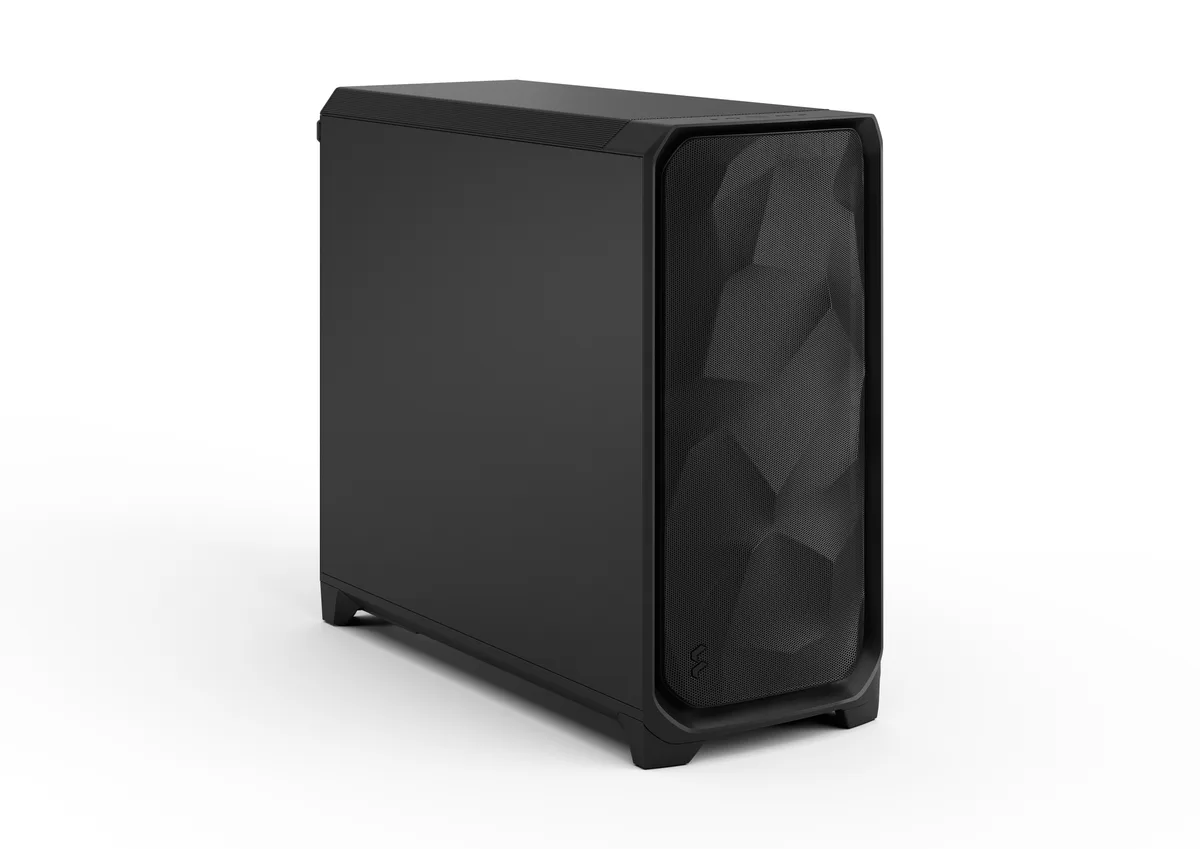

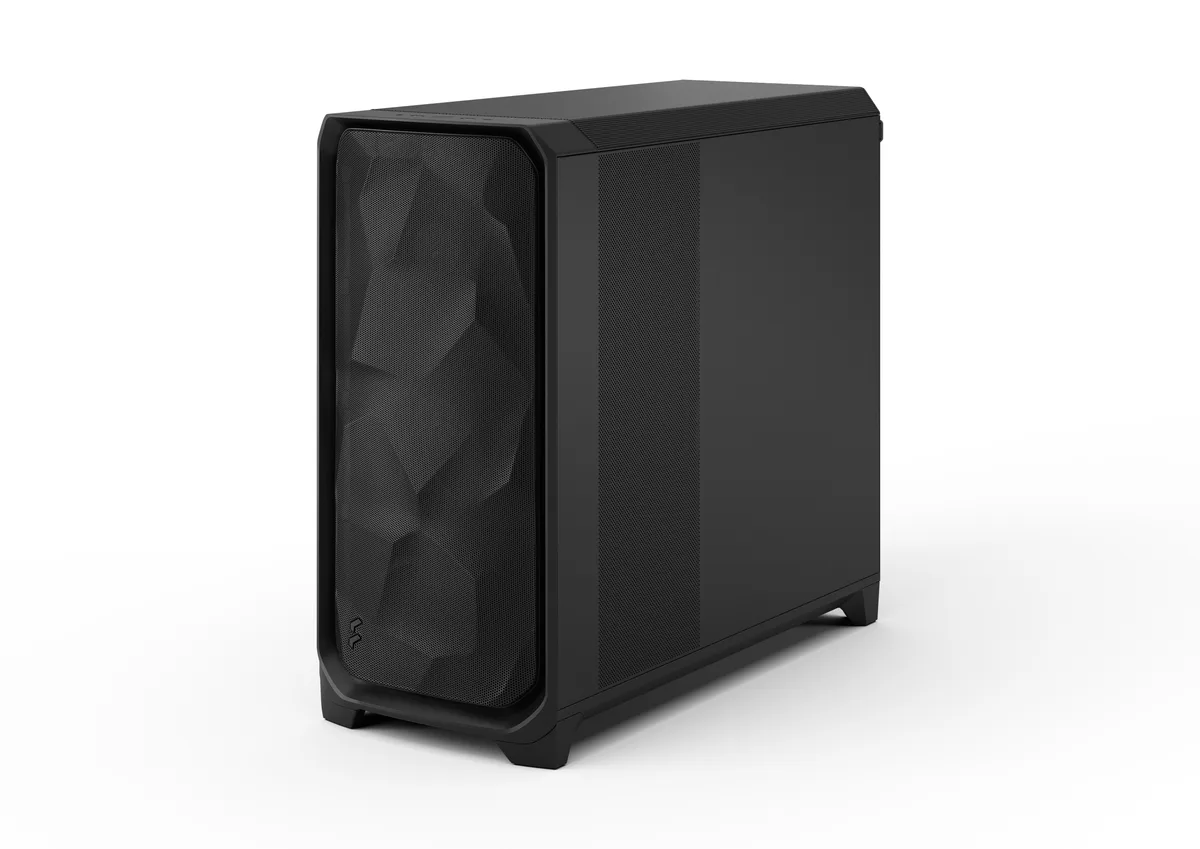

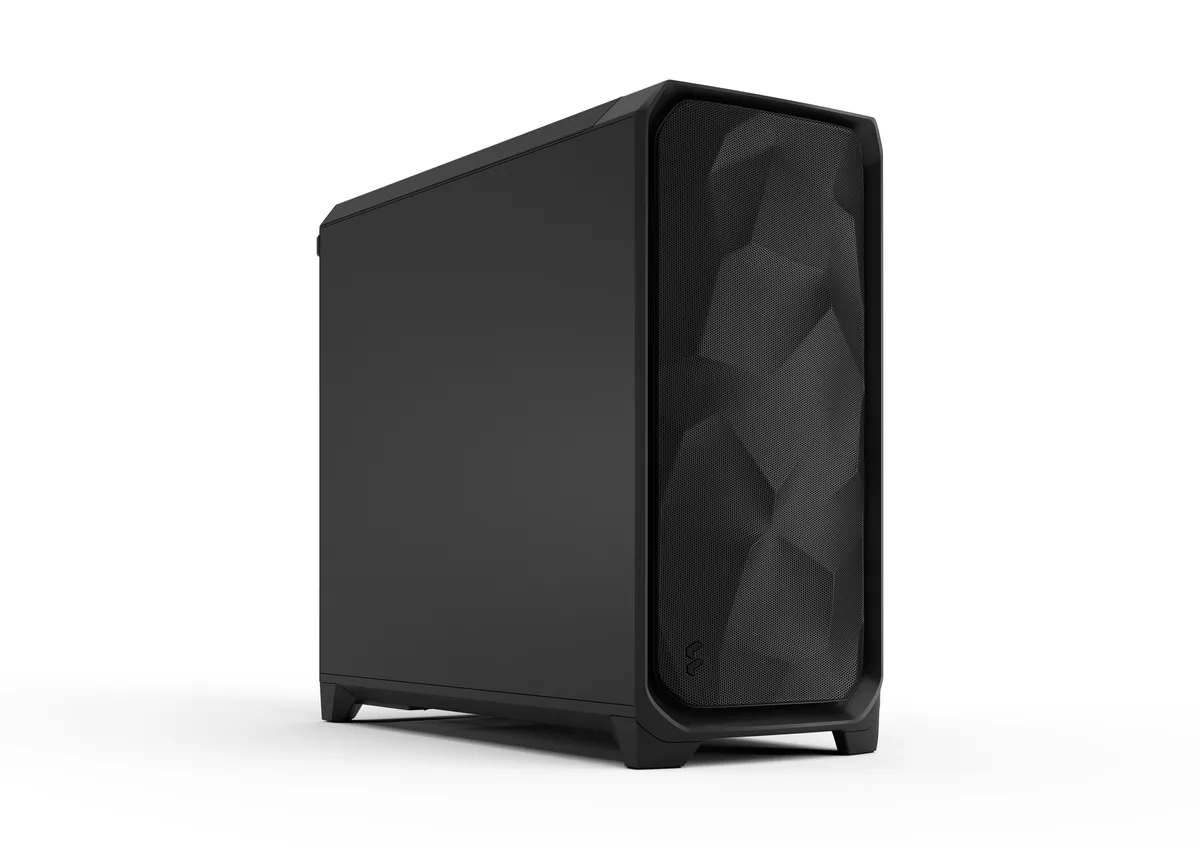

Black full-tower PC case with mesh front panel and solid side panel, three 140 mm fans visible behind mesh

Fractal Design

Fractal Design Meshify 3 XL FD-C-MES3X-01 PC Case

SKU CH-663E-4V1PN MPN FD-C-MES3X-01

Spacious E-ATX full tower with mesh front panel, three pre-installed 140 mm fans and room for a 420 mm top radiator

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB

Options Meshify 3 XL - Solid (Black)

  • Spacious interior fits EE-ATX motherboards and multi-radiator custom loops
  • Three pre-installed 140 mm Momentum fans deliver strong airflow out of the box
  • Front 20 Gbps USB-C and two USB-A ports keep peripherals within easy reach
  • Removable brackets simplify installing 420 mm top or 360 mm front and side radiators
  • New cable aligners and a dedicated floor SSD mount keep the build tidy

Meshify 3 XL full-tower chassis

The Meshify 3 XL is an ATX full-tower case built from steel with a black finish and a solid side panel. It accepts motherboards from Mini-ITX up to EE-ATX and SSI-EEB, giving builders a wide platform choice. Three Momentum 14 RGB PWM fans are pre-installed at the front, and the interior includes cable aligners for tidy routing.

Front-panel I/O and USB-C bandwidth

The top-mounted I/O cluster provides one USB Type-C port rated at 20 Gbps, two USB 3.0 Type-A ports and a combo audio jack. This gives fast external storage access and convenient headset connection without reaching the rear of the motherboard. No legacy 5.25-inch or 3.5-inch external bays are present.

Radiator clearance for custom loops

The case supports radiators up to 420 mm in the top chamber and 360 mm at the front and side, with removable brackets to simplify installation. This capacity makes the chassis suitable for high-end custom liquid-cooling configurations. Seven expansion slots provide room for large graphics cards and additional add-in cards.

Highlights

  • Spacious interior fits EE-ATX motherboards and multi-radiator custom loops
  • Three pre-installed 140 mm Momentum fans deliver strong airflow out of the box
  • Front 20 Gbps USB-C and two USB-A ports keep peripherals within easy reach
  • Removable brackets simplify installing 420 mm top or 360 mm front and side radiators
  • New cable aligners and a dedicated floor SSD mount keep the build tidy

Specifications

BrandFractal Design
SeriesMeshify 3 XL
ModelFD-C-MES3X-01
Part NumberFD-C-MES3X-01
TypeATX Full Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
Side PanelSolid Side Panel
Dust FiltersBottom
External 5.25" Drive BaysNo
External 3.5" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays4 x 2.5" SSD behind MB tray
1 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3x 120/140 mm or 2x 180 mm (3 x Momentum 14 RGB PWM included)
Top: 3 x 120/140 mm
Rear: 1 x 120/140 mm
Side: 3x 140 mm (120 mm w/ radiator only)
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Rear - Up to 140mm / Side - Up to 280mm / Side - Up to 360mm / Top - Up to 360mm / Top - Up to 420mm
140mm Fans3 x Momentum 14 RGB PWM included
Max GPU LengthMax GPU Length: 512 mm
Max GPU Height: 189 mm (slot 7, including cables)
Max CPU Cooler Height182 mm
Max PSU Length230 mm
Dimensions22.64" x 9.65" x 20.28"
Weight23.15 lbs.
Package ContentMeshify 3 XL case
User manual
Accessory box
Shipping weight13.15 kg
Package size660 × 597 × 343 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will an E-ATX motherboard fit with a 360 mm front radiator installed?

Yes, the case supports E-ATX boards and a 360 mm front radiator simultaneously, with removable brackets to ease installation.

Can I mount a 420 mm radiator in the top and still use the three included 140 mm front fans?

Yes, the top supports up to 420 mm while the front retains its three pre-installed 140 mm fans.

How many 2.5 inch SSDs can I install behind the motherboard tray?

Four 2.5 inch SSDs fit behind the tray, plus one dedicated 2.5 inch mount on the case floor.
