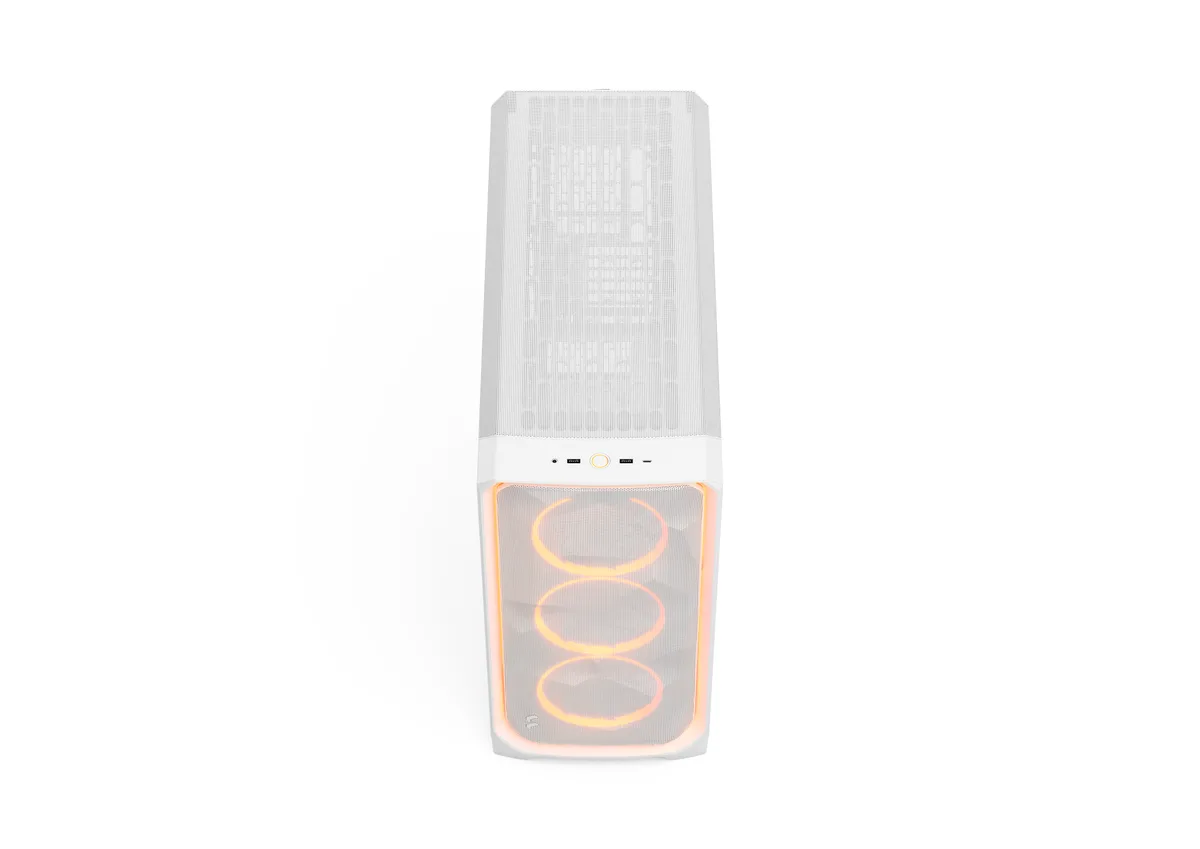

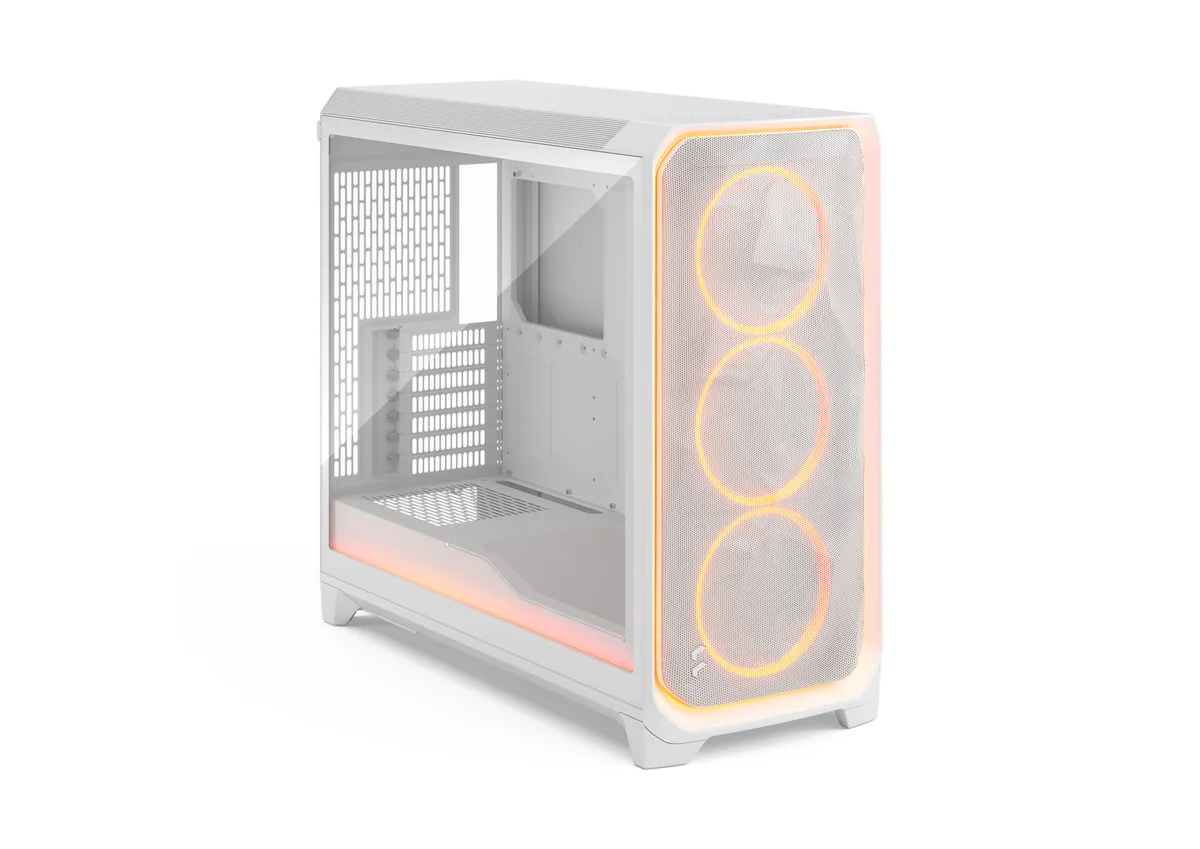

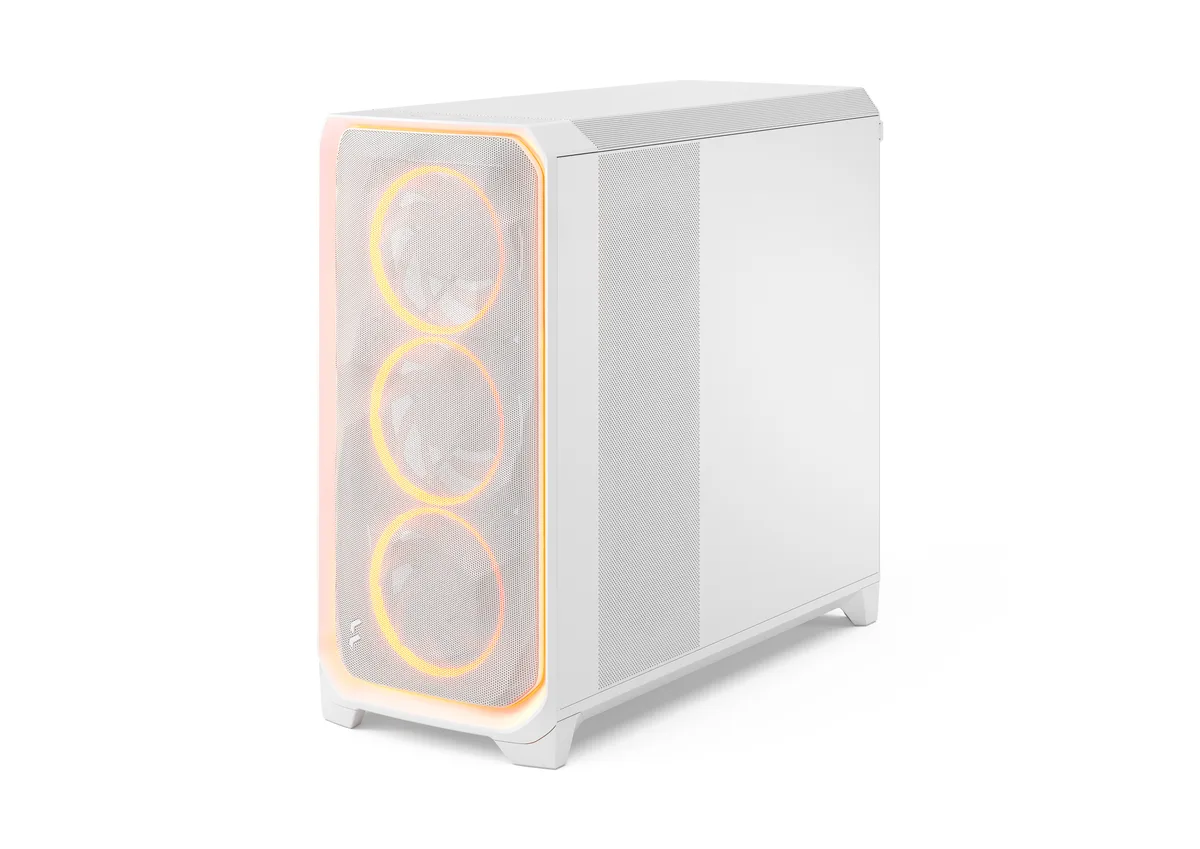

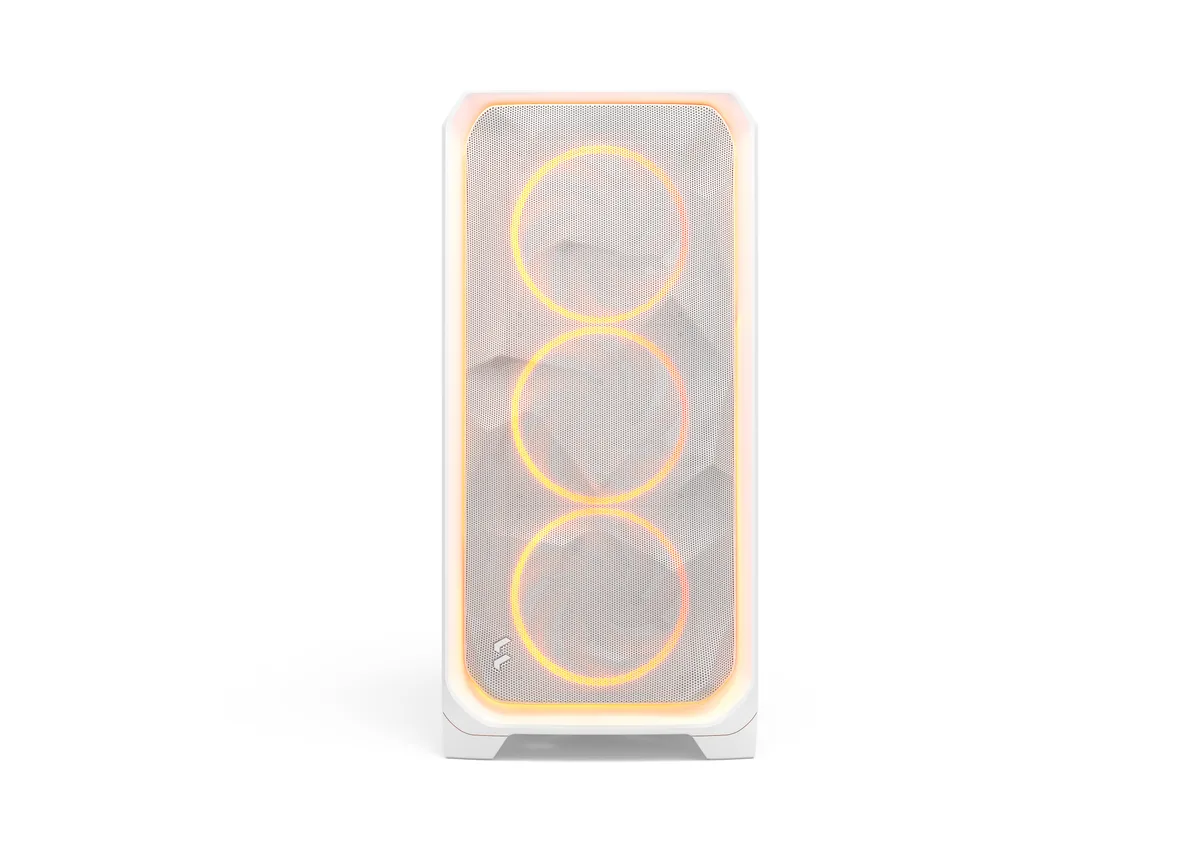

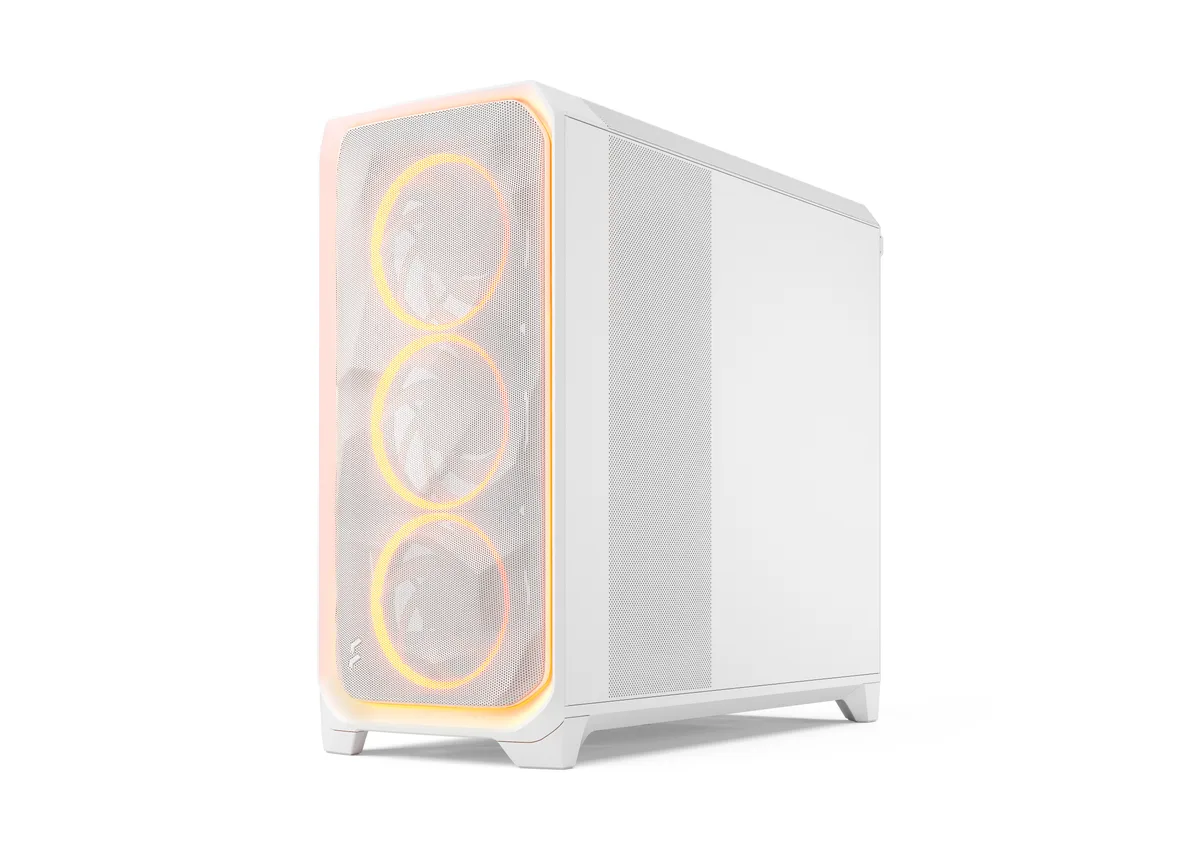

White full tower case with front mesh panel, clear tempered glass side panel, three 140 mm RGB fans installed

Fractal Design

Fractal Design Meshify 3 XL Ambience Pro RGB FD-C-MES3X-05 PC case

SKU CH-32KR-JYNZZ MPN FD-C-MES3X-05

Full-tower case with ventilated mesh front, ARGB lighting and three 140 mm fans included, supporting E-ATX boards and multi-radiator cooling

  • TypeATX Full Tower
  • ColorWhite
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB

Options Ambience Pro RGB - TG Clear Tint (White)

  • Ventilated front mesh panel maximises airflow for high-performance cooling
  • Advanced ARGB ambient lighting with startup effect enhances visual appeal
  • Software-free RGB customisation stored locally on the Adjust Pro Hub simplifies control
  • Spacious interior supports multi-radiator configurations up to 360 mm front and 280 mm side for custom loops
  • Easily accessible front I/O with 20 Gbps USB-C, two USB 3.0 ports and audio combo jack enables fast connectivity

Fractal Design Meshify 3 XL Ambience Pro RGB

The Meshify 3 XL Ambience Pro RGB is a white steel ATX full-tower case with a clear tempered-glass side panel and ARGB lighting. It supports E-ATX, ATX, mATX, Mini-ITX, EE-ATX, SSI-CEB and SSI-EEB motherboards. Three Momentum 14 RGB PWM fans are pre-installed at the front. A 20 Gbps USB Type-C port, two USB 3.0 ports and an audio combo jack sit on the top I/O panel.

Who this suits and who should look elsewhere

Builders who want extensive air or liquid cooling headroom will appreciate the front, top, rear and side fan mounts that accept 120 mm, 140 mm or 180 mm fans and multiple radiator lengths up to 360 mm. The Adjust Pro Hub stores lighting profiles locally for software-free ARGB control. Buyers who need 5.25 inch or 3.5 inch external drive bays should consider a different chassis.

Internal drive capacity and layout

Two 3.5 inch hard drives or four 2.5 inch SSDs mount behind the motherboard tray, with an additional four 2.5 inch SSDs in the same zone and one dedicated 2.5 inch SSD position on the case floor. Seven expansion slots provide room for full-length graphics cards and add-in cards. Bottom-mounted power supply location and integrated cable aligners keep the interior tidy.

Highlights

  • Ventilated front mesh panel maximises airflow for high-performance cooling
  • Advanced ARGB ambient lighting with startup effect enhances visual appeal
  • Software-free RGB customisation stored locally on the Adjust Pro Hub simplifies control
  • Spacious interior supports multi-radiator configurations up to 360 mm front and 280 mm side for custom loops
  • Easily accessible front I/O with 20 Gbps USB-C, two USB 3.0 ports and audio combo jack enables fast connectivity

Specifications

BrandFractal Design
SeriesMeshify 3 XL Ambience Pro RGB
ModelFD-C-MES3X-05
Part NumberFD-C-MES3X-05
TypeATX Full Tower
ColorWhite
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
Side PanelClear TG Side Panel
LEDARGB
Dust FiltersBottom
External 5.25" Drive BaysNo
External 3.5" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays4 x 2.5" SSD behind MB tray
1 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3x 120/140 mm or 2x 180 mm (3 x Momentum 14 RGB PWM included)
Top: 3 x 120/140 mm
Rear: 1 x 120/140 mm
Side: 3x 140 mm (120 mm w/ radiator only)
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Rear - Up to 140mm / Side - Up to 280mm / Side - Up to 360mm / Top - Up to 360mm / Top - Up to 420mm
140mm Fans3 x Momentum 14 RGB PWM included
Max GPU LengthMax GPU Length: 512 mm
Max GPU Height: 189 mm (slot 7, including cables)
Max CPU Cooler Height182 mm
Max PSU Length230 mm
Dimensions22.64" x 9.65" x 20.28"
Weight25.13 lbs.
Package ContentMeshify 3 XL case
User manual
Accessory box
Shipping weight13.74 kg
Package size673 × 597 × 343 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the case include fans so I can cool the system right away?

Three Momentum 14 RGB PWM fans come pre-installed at the front and connect to the included Adjust Pro hub for software-free ARGB control.

Will my existing 360 mm front radiator and 280 mm side radiator both fit at the same time?

The front supports up to 360 mm and the side up to 280 mm, so both radiators can be mounted simultaneously.

How can I confirm the ARGB lighting is active after the first boot?

A startup lighting effect runs automatically; if the LEDs cycle through colours the Adjust Pro hub is powered and the fans are communicating correctly.
