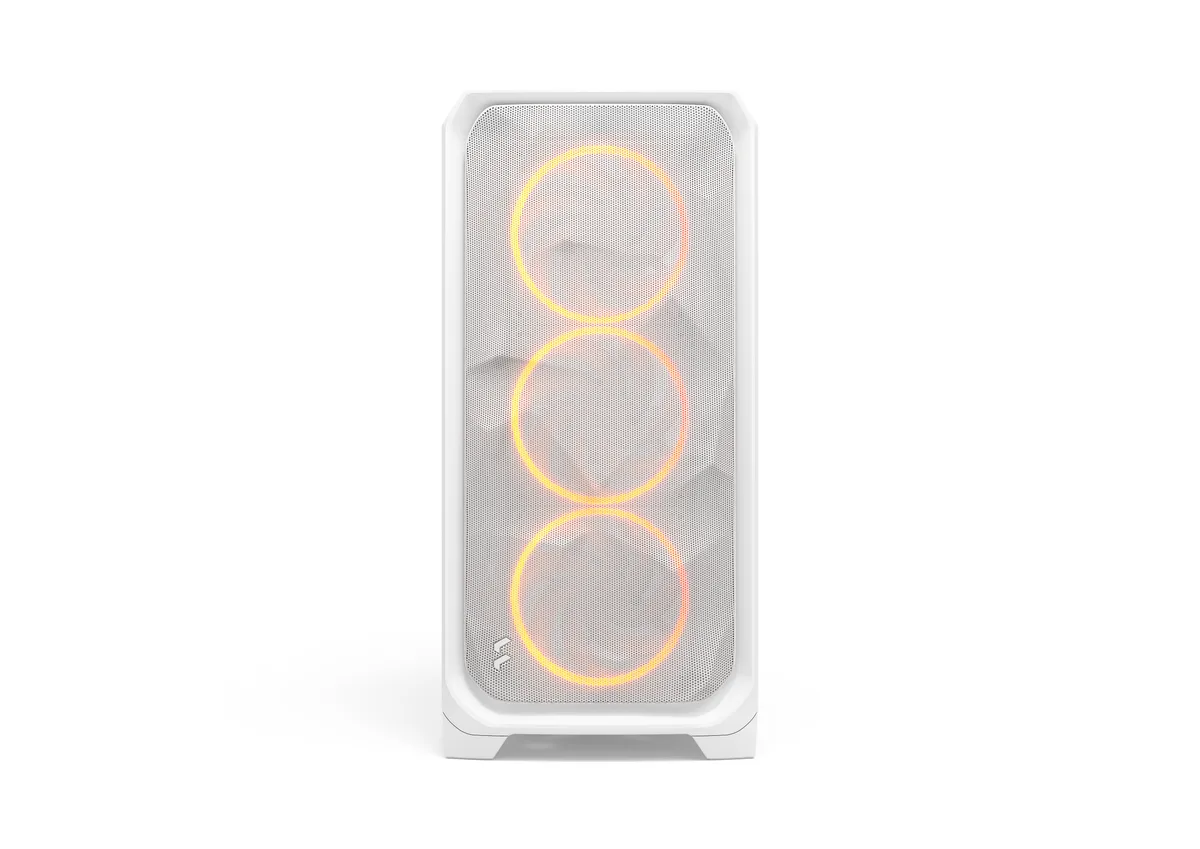

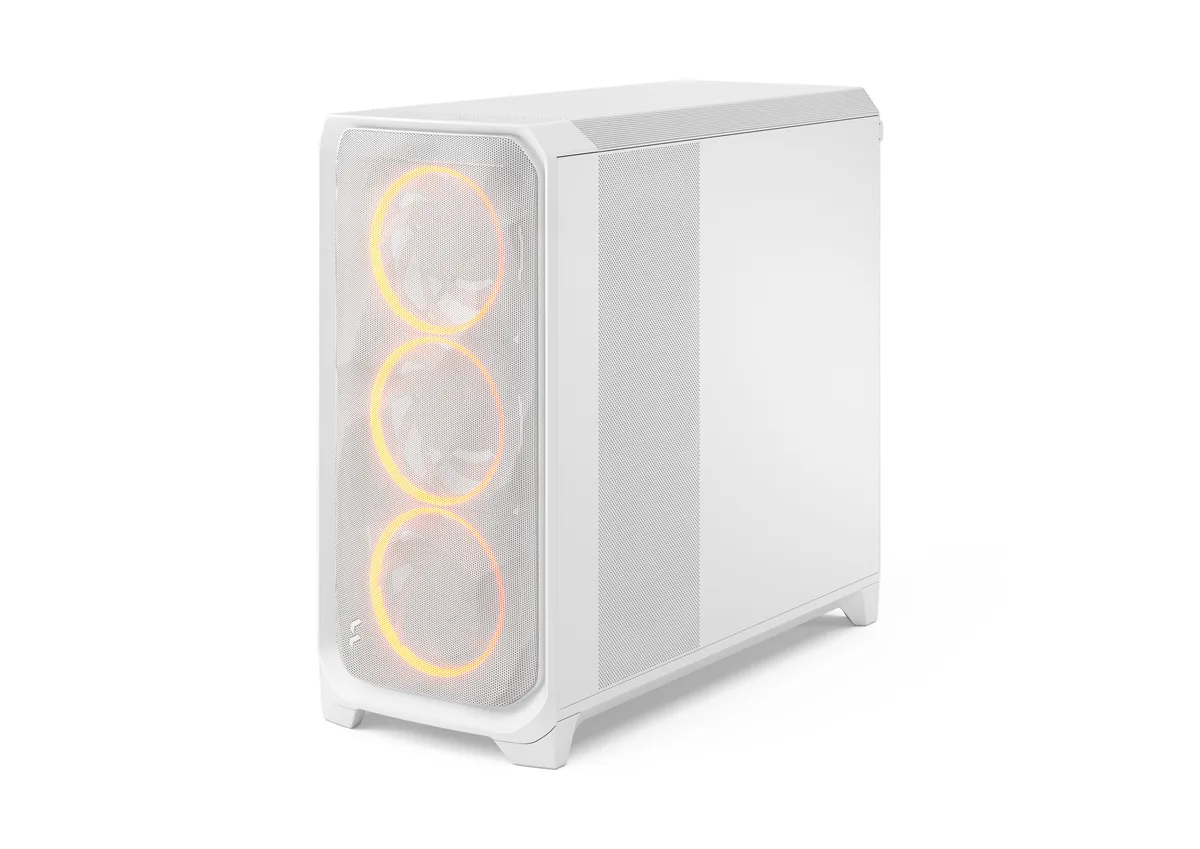

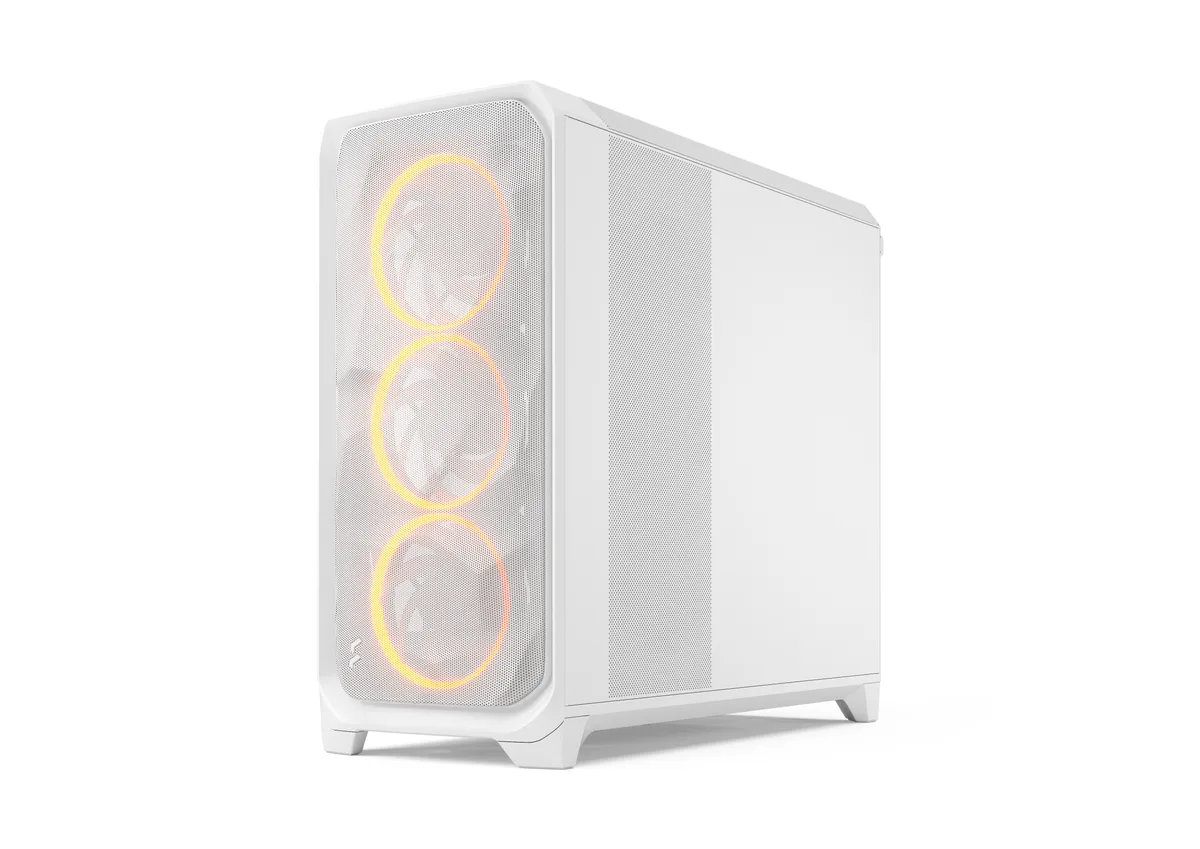

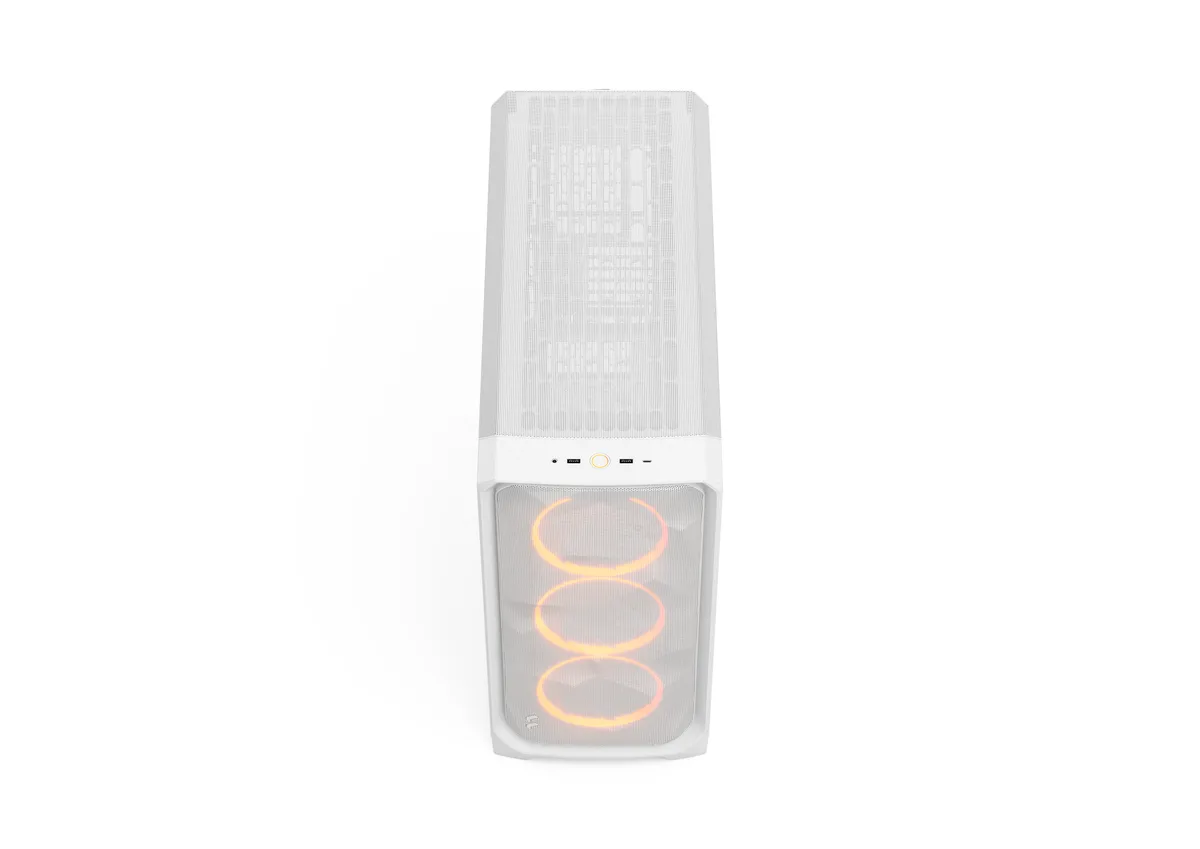

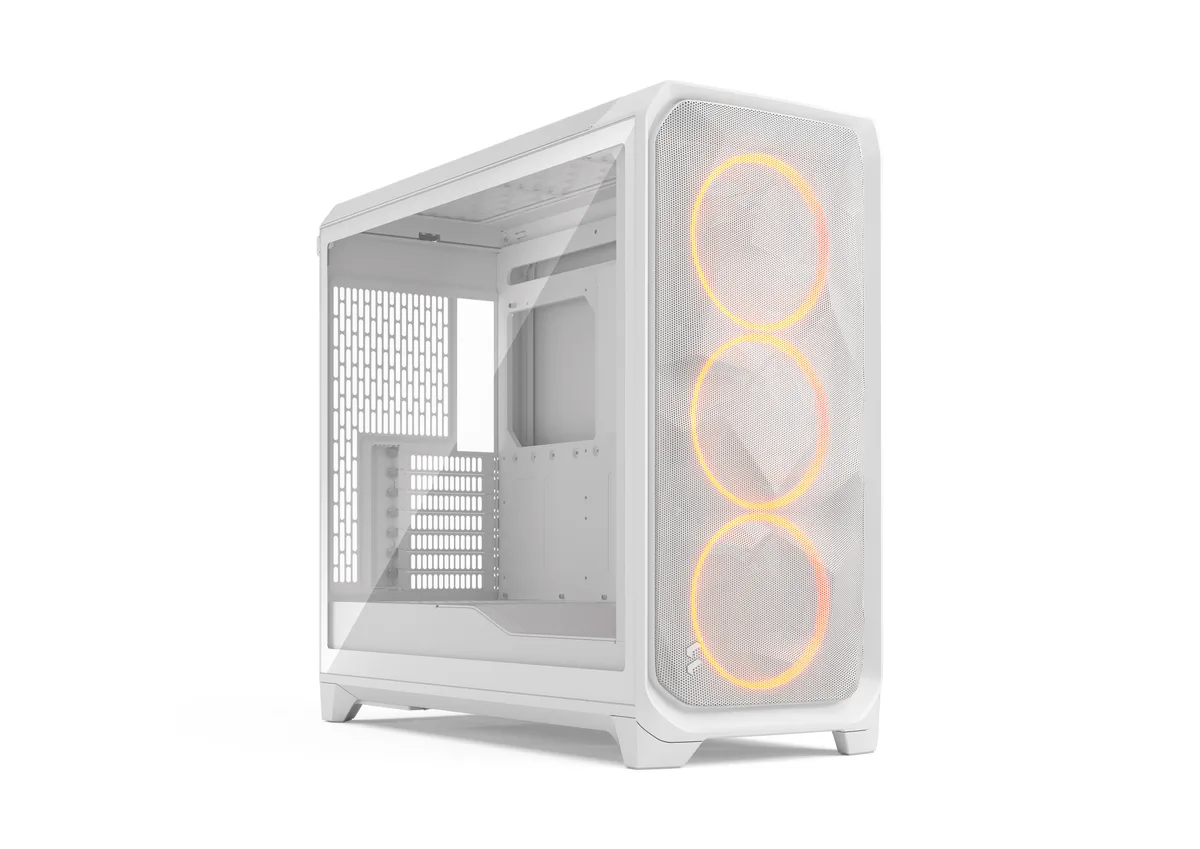

White full-tower PC case with front mesh panel and clear tempered-glass side panel

Fractal Design

Fractal Design Meshify 3 XL RGB FD-C-MES3X-06 PC case

SKU CH-QEDK-GQN19 MPN FD-C-MES3X-06

Full-tower ATX case with ventilated mesh front, tempered-glass side panel, three pre-installed 140 mm ARGB fans, 20 Gbps USB-C front I/O and support for up to 420 mm top radiators

  • TypeATX Full Tower
  • ColorWhite
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB

Options Meshify 3 XL RGB - TG Clear Tint (White)

  • Ventilated front mesh panel delivers high airflow for cooling performance
  • Three pre-installed Momentum 14 RGB PWM fans provide ARGB lighting and airflow out of the box
  • Supports up to 420 mm top radiator and 360 mm front and side radiators for custom-loop capacity
  • Front I/O includes 20 Gbps USB Type-C, two USB 3.0 ports and audio combo jack for fast connectivity
  • Cable aligners and dedicated SSD mounts behind the motherboard tray simplify cable management and storage layout

White full-tower chassis for E-ATX builds

The Meshify 3 XL RGB is a steel ATX full-tower case finished in white with a clear tempered-glass side panel. It accepts motherboards from Mini-ITX up to EE-ATX and SSI-EEB form factors. Three Momentum 14 RGB PWM fans are pre-installed at the front, and the interior includes cable aligners plus an air guide that directs airflow toward the graphics card. ARGB lighting is integrated throughout the included fans.

Front 20 Gbps USB-C decides high-speed peripheral

The front I/O panel provides one USB Type-C port rated at 20 Gbps, two USB 3.0 Type-A ports and a combo audio jack. This single high-speed Type-C connection determines whether the case can serve modern external SSDs, docks or capture devices at their rated throughput. No other front-panel interface is specified in the data.

Three included 140 mm RGB fans

The bundle adds three Momentum 14 RGB PWM fans, giving immediate front intake airflow without a separate purchase. Removable radiator brackets support up to 360 mm units at the front and side plus up to 420 mm at the top, simplifying custom-loop installation. Internal drive mounts hold two 3.5-inch drives or four 2.5-inch SSDs behind the motherboard tray, with one additional dedicated 2.5-inch SSD position on the case floor.

Highlights

  • Ventilated front mesh panel delivers high airflow for cooling performance
  • Three pre-installed Momentum 14 RGB PWM fans provide ARGB lighting and airflow out of the box
  • Supports up to 420 mm top radiator and 360 mm front and side radiators for custom-loop capacity
  • Front I/O includes 20 Gbps USB Type-C, two USB 3.0 ports and audio combo jack for fast connectivity
  • Cable aligners and dedicated SSD mounts behind the motherboard tray simplify cable management and storage layout

Specifications

BrandFractal Design
SeriesMeshify 3 XL RGB
ModelFD-C-MES3X-06
Part NumberFD-C-MES3X-06
TypeATX Full Tower
ColorWhite
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
Side PanelClear TG Side Panel
LEDARGB
Dust FiltersBottom
External 5.25" Drive BaysNo
External 3.5" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays4 x 2.5" SSD behind MB tray
1 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3x 120/140 mm or 2x 180 mm (3 x Momentum 14 RGB PWM included)
Top: 3 x 120/140 mm
Rear: 1 x 120/140 mm
Side: 3x 140 mm (120 mm w/ radiator only)
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Rear - Up to 140mm / Side - Up to 280mm / Side - Up to 360mm / Top - Up to 360mm / Top - Up to 420mm
140mm Fans3 x Momentum 14 RGB PWM included
Max GPU LengthMax GPU Length: 512 mm
Max GPU Height: 189 mm (slot 7, including cables)
Max CPU Cooler Height182 mm
Max PSU Length230 mm
Dimensions22.64" x 9.65" x 20.28"
Weight24.03 lbs.
Package ContentMeshify 3 XL case
User manual
Accessory box
Shipping weight13.49 kg
Package size673 × 602 × 351 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 20 Gbps USB-C front port actually deliver when connected to a 20 Gbps motherboard header?

It runs at the full 20 Gbps signalling rate, giving you the headline throughput for compatible drives and docks.

Which motherboard header is required for the front USB-C port and what does it limit?

The port needs a USB 3.2 Gen 2x2 (20 Gbps) header; on a slower header it will negotiate down to that header's maximum speed.

What clearance does the case provide for a top-mounted 420 mm radiator and the motherboard area?

The top chamber fits a 420 mm radiator with removable brackets, leaving standard motherboard component clearance underneath.
