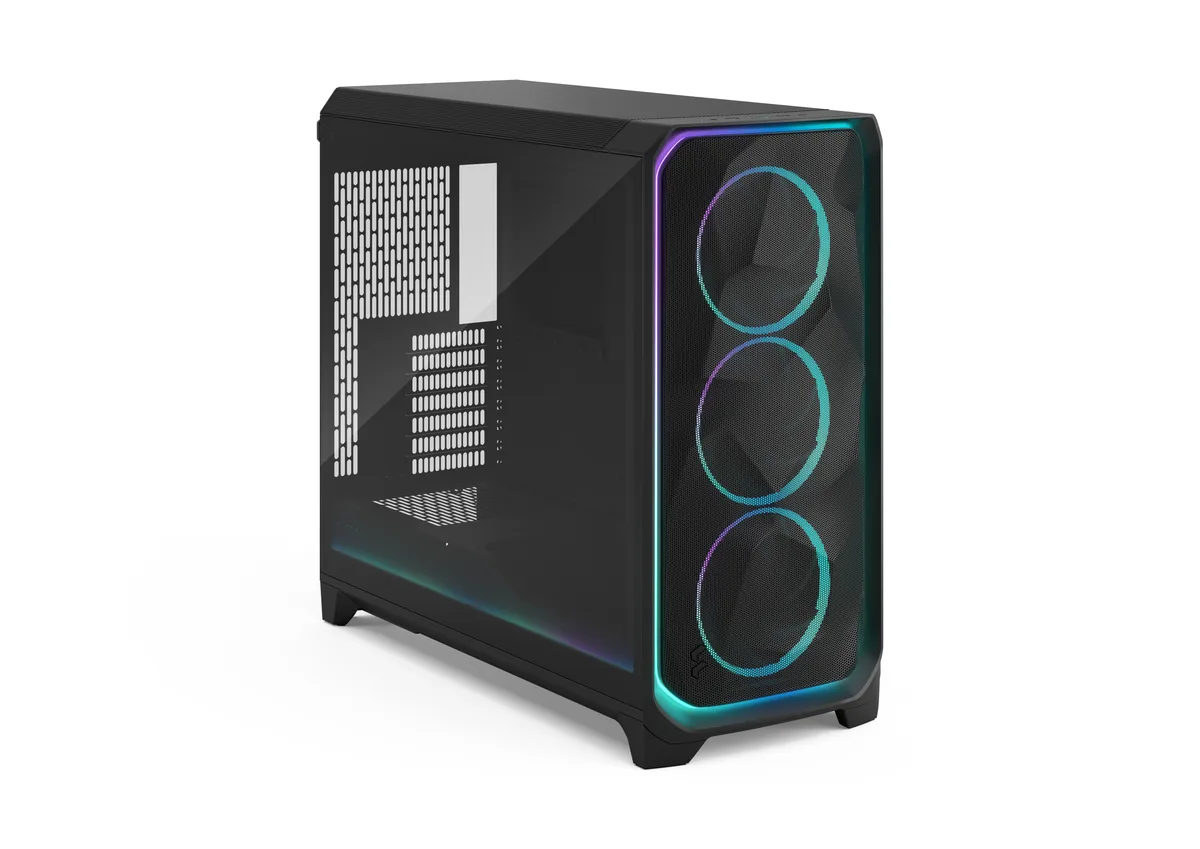

Black full-tower case with mesh front, light-tinted glass side panel and three 140 mm RGB fans visible

Fractal Design

Fractal Design Meshify 3 XL Ambience Pro RGB FD-C-MES3X-03 PC case

SKU CH-5PDR-FM2ZH MPN FD-C-MES3X-03

Full-tower ATX chassis with ventilated mesh front, three pre-installed 140 mm ARGB fans and a light-tinted tempered-glass side panel

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB

Options Ambience Pro RGB - TG Light Tint (Black)

  • Ventilated front mesh panel maximises airflow for high-performance cooling
  • Three included Momentum 14 RGB PWM fans deliver immediate ARGB lighting and airflow
  • Software-free RGB customisation stored locally on the Adjust Pro Hub
  • Spacious interior supports multi-radiator configurations up to 360 mm front and 280 mm side
  • Front I/O provides 20 Gbps USB-C, two USB 3.0 ports and an audio combo jack

Build target

The Fractal Design Meshify 3 XL Ambience Pro RGB is an ATX full-tower chassis built for high-airflow systems. A ventilated front mesh panel and three pre-installed Momentum 14 RGB PWM fans deliver strong intake performance. The steel frame supports E-ATX, ATX, mATX, Mini-ITX, EE-ATX, SSI-CEB and SSI-EEB motherboards.

Cooling focus

Builders planning custom loops or multi-radiator layouts will benefit from front, top, rear and side mounting points that accept up to 360 mm, 280 mm and 140 mm radiators respectively. The side panel allows three 140 mm fans but only 120 mm clearance when a radiator is fitted. Users needing external 5.25 inch or 3.5 inch bays should choose a different case.

Deciding spec

Seven expansion slots and a bottom-mounted power-supply position give room for full-length graphics cards and clean cable routing behind the motherboard tray. The front I/O provides one USB Type-C 20Gbps port, two USB 3.0 ports and an audio combo jack. ARGB lighting is controlled locally via the included Adjust Pro Hub without software.

Highlights

  • Ventilated front mesh panel maximises airflow for high-performance cooling
  • Three included Momentum 14 RGB PWM fans deliver immediate ARGB lighting and airflow
  • Software-free RGB customisation stored locally on the Adjust Pro Hub
  • Spacious interior supports multi-radiator configurations up to 360 mm front and 280 mm side
  • Front I/O provides 20 Gbps USB-C, two USB 3.0 ports and an audio combo jack

Specifications

BrandFractal Design
SeriesMeshify 3 XL Ambience Pro RGB
ModelFD-C-MES3X-03
Part NumberFD-C-MES3X-03
TypeATX Full Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
Side PanelLight Tinted TG Side Panel
LEDARGB
Dust FiltersBottom
External 5.25" Drive BaysNo
External 3.5" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays4 x 2.5" SSD behind MB tray
1 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3x 120/140 mm or 2x 180 mm (3 x Momentum 14 RGB PWM included)
Top: 3 x 120/140 mm
Rear: 1 x 120/140 mm
Side: 3x 140 mm (120 mm w/ radiator only)
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Rear - Up to 140mm / Side - Up to 280mm / Side - Up to 360mm / Top - Up to 360mm / Top - Up to 420mm
140mm Fans3 x Momentum 14 RGB PWM included
Max GPU LengthMax GPU Length: 512 mm
Max GPU Height: 189 mm (slot 7, including cables)
Max CPU Cooler Height182 mm
Max PSU Length230 mm
Dimensions22.64" x 9.65" x 20.28"
Weight25.13 lbs.
Package ContentMeshify 3 XL case
User manual
Accessory box
Shipping weight12.02 kg
Package size673 × 610 × 343 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the three included Momentum 14 RGB PWM fans and the Adjust Pro hub are functioning after assembly?

Power on the system; the fans should spin under PWM control and display the startup lighting effect stored locally on the hub, confirming both fan and ARGB operation without software.

What components are included in the box and what must be purchased separately?

The case includes three pre-installed 140 mm Momentum 14 RGB PWM fans and an Adjust Pro hub; a power supply, motherboard, drives and any additional cooling are not included.

Which version of the Meshify 3 XL Ambience Pro RGB should I choose for an E-ATX motherboard and a 360 mm front radiator?

This single model supports E-ATX, SSI-CEB and SSI-EEB boards and fits up to a 360 mm radiator in the front, so no other version is required.
