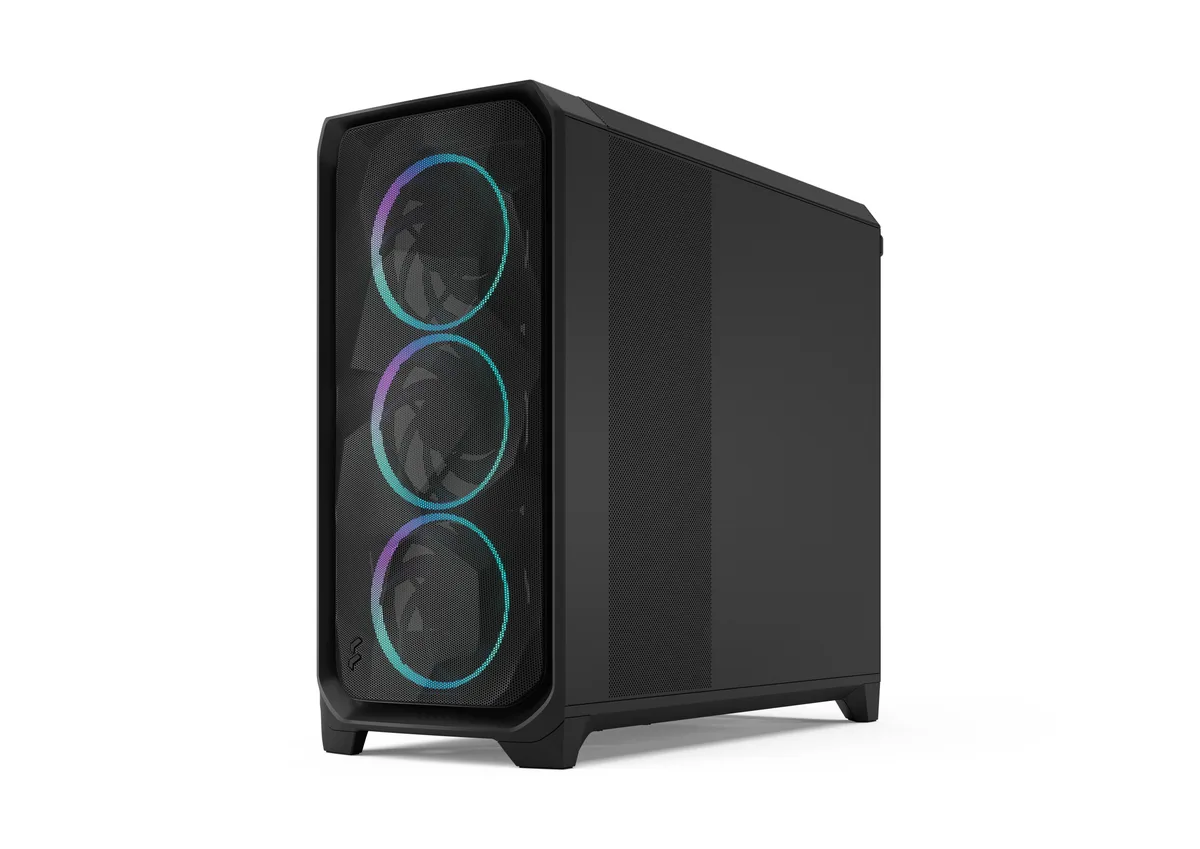

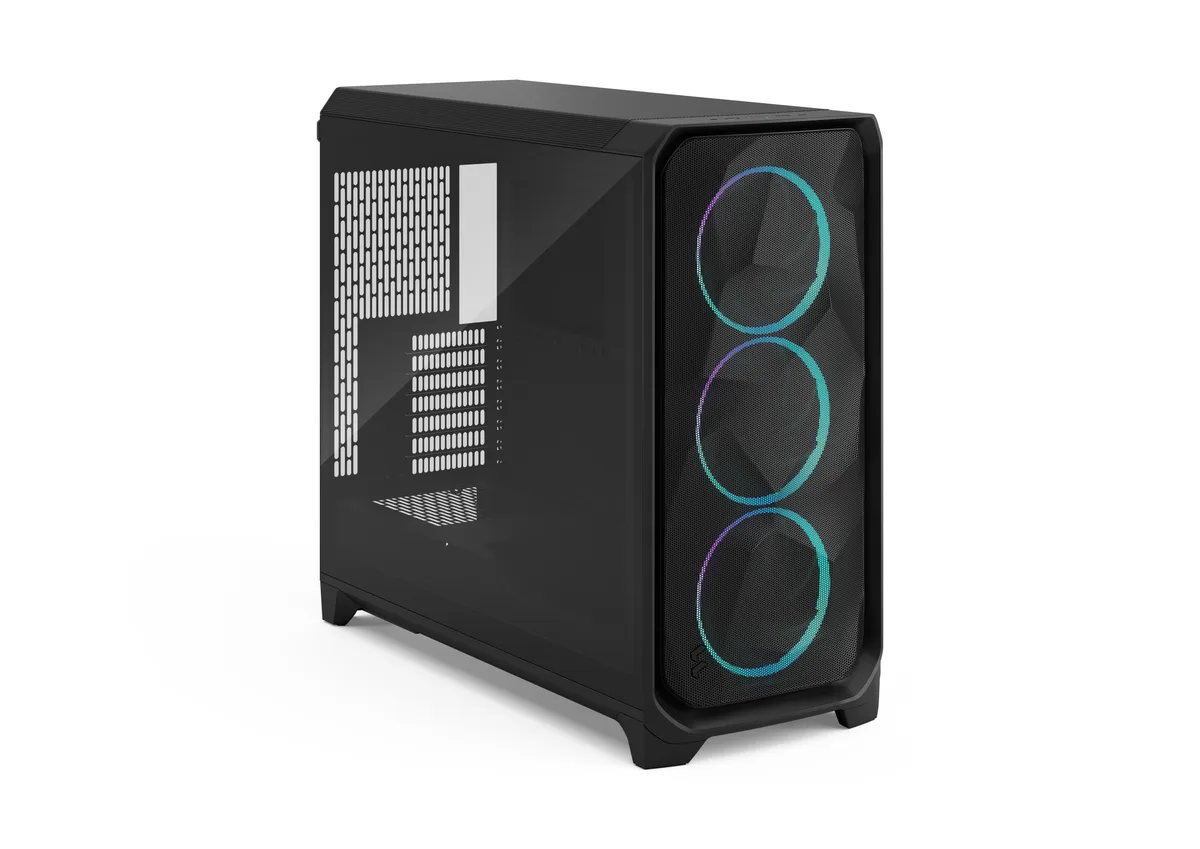

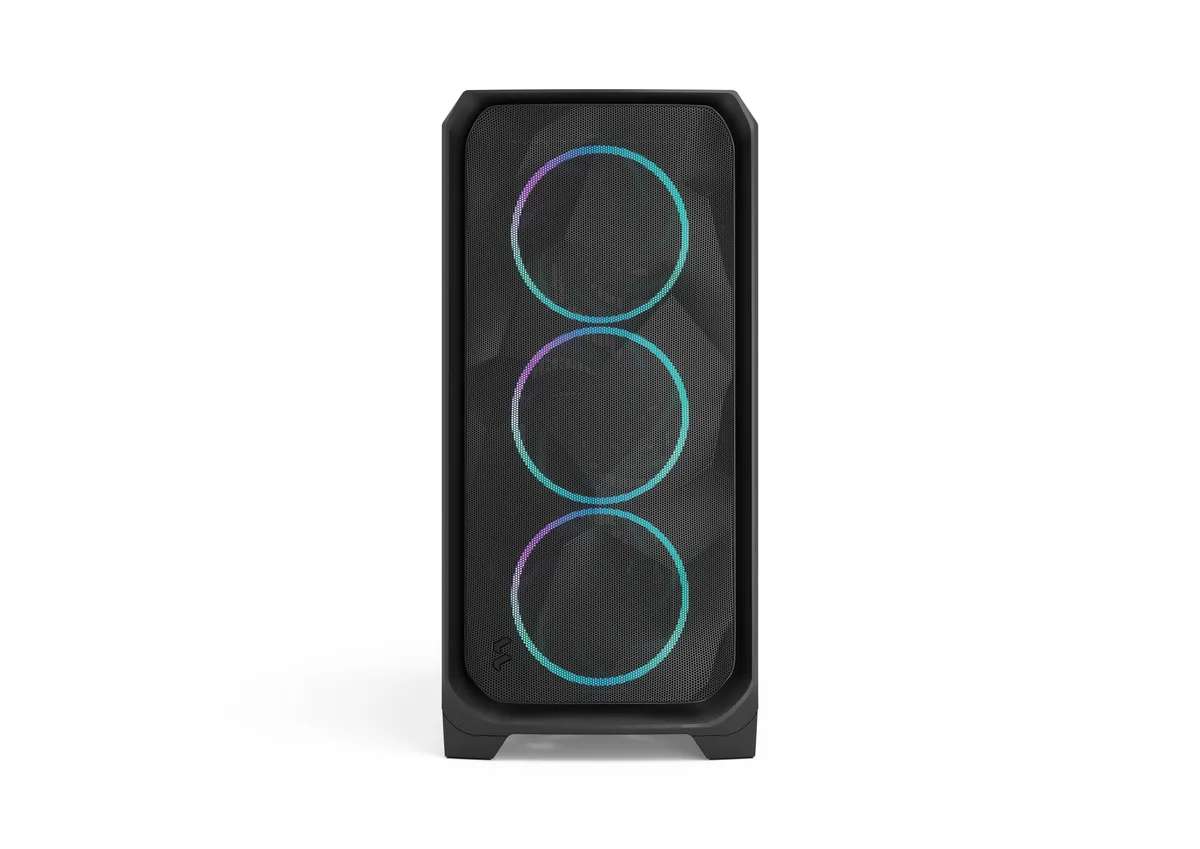

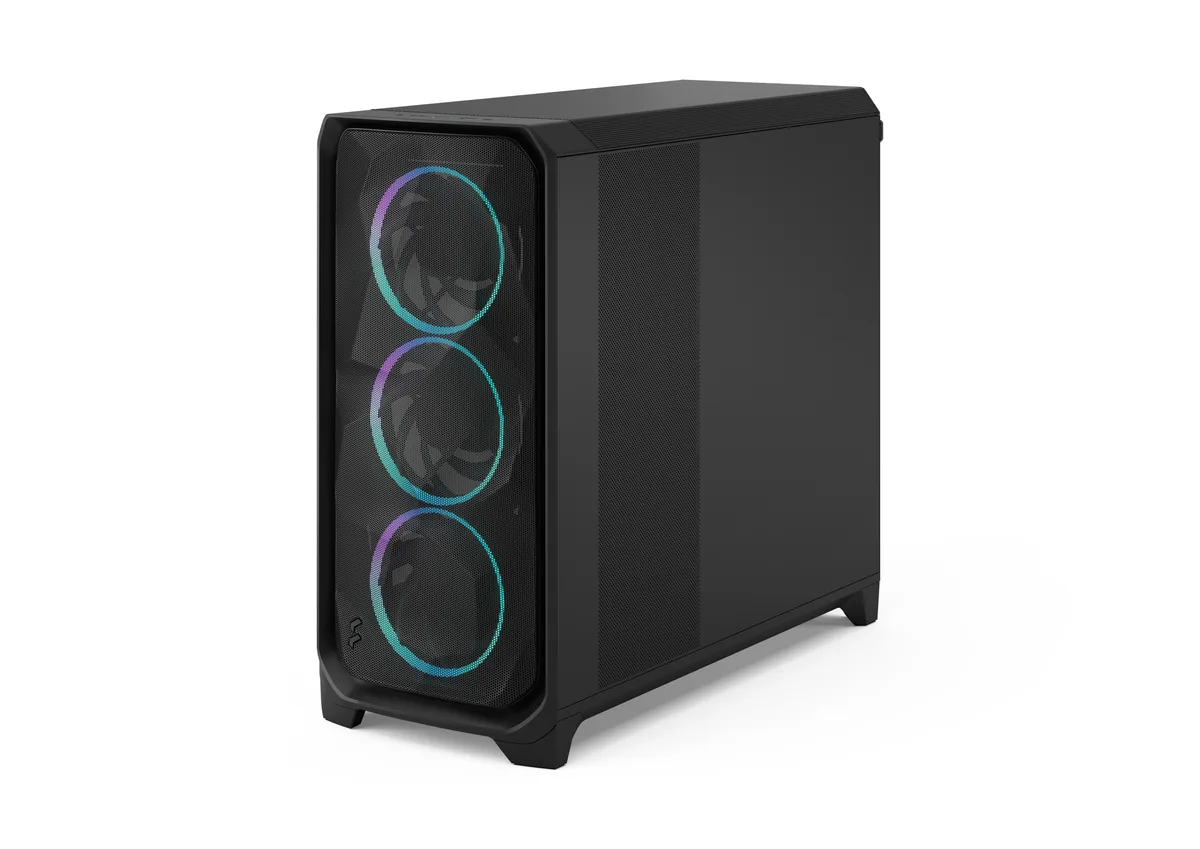

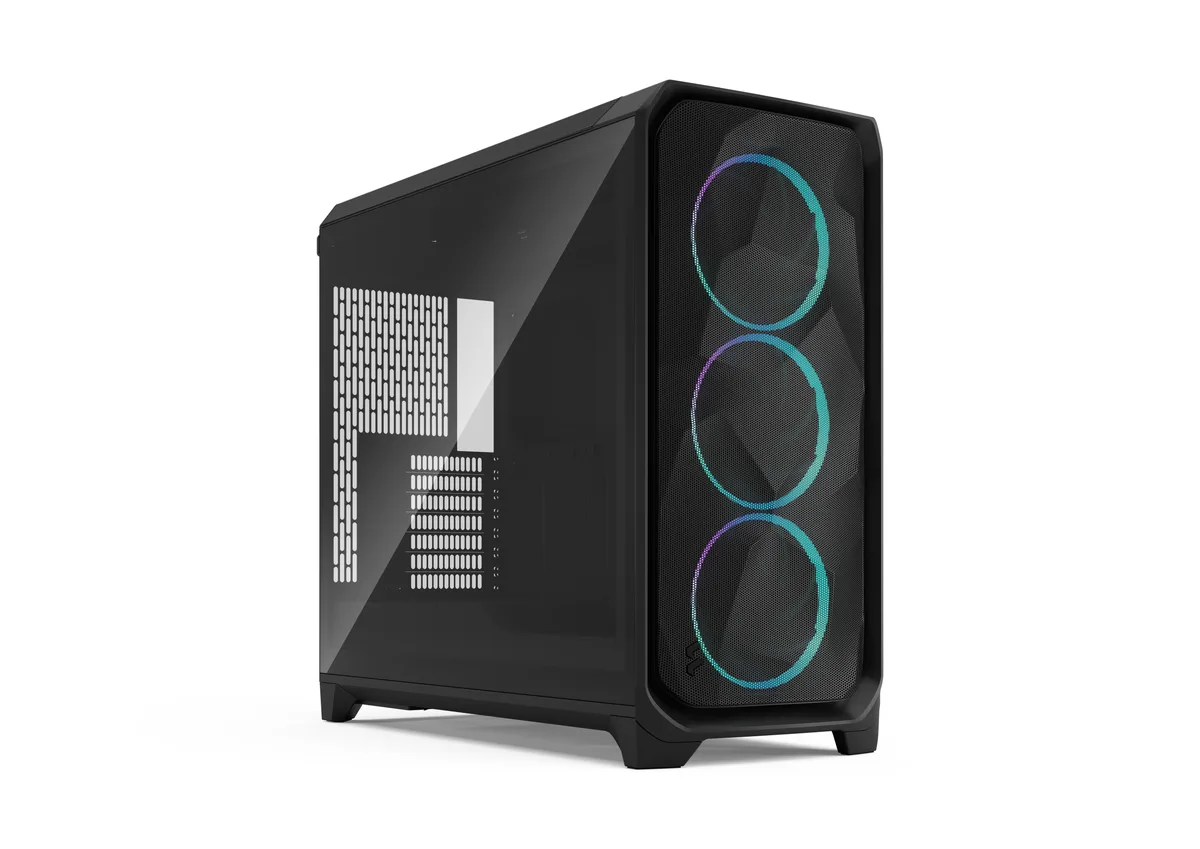

Black full-tower case with front mesh panel, light-tinted glass side, three 140 mm RGB fans visible

Fractal Design

Fractal Design FD-C-MES3X-04 Meshify 3 XL RGB PC case

SKU CH-PVNH-FHC0Y MPN FD-C-MES3X-04

Full-tower ATX case with ventilated mesh front, three included 140 mm ARGB fans, support for up to 420 mm top and 360 mm front radiators, and front I/O including 20 Gbps USB-C

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB

Options Meshify 3 XL RGB - TG Light Tint (Black)

  • Ventilated mesh front panel maximises airflow to components
  • Three pre-installed 140 mm ARGB fans deliver immediate cooling performance
  • Spacious interior supports radiators up to 420 mm on top and 360 mm on front and side
  • High-speed front I/O includes USB-C at 20 Gbps plus two USB 3.0 ports and audio jack
  • Flexible storage layout fits four 2.5" SSDs behind motherboard tray plus one dedicated 2.5" SSD on case floor

Built for E-ATX and custom loops

The Meshify 3 XL RGB is a full-tower chassis made from steel with a ventilated front mesh panel and a light tinted tempered-glass side panel. It ships with three Momentum 14 RGB PWM fans installed at the front and includes ARGB lighting. The case accepts motherboards up to EE-ATX and SSI-EEB, making it suitable for high-end workstation or enthusiast builds that need generous radiator clearance.

Best for multi-radiator water cooling

Builders planning a custom loop with 360 mm front and side radiators plus a 420 mm top radiator will benefit from the removable brackets and spacious interior. The side panel supports three 140 mm fans or 120 mm fans with a radiator, while the top fits three 120/140 mm fans. Systems that rely on 5.25-inch or external 3.5-inch bays, or that need a included power supply, should look elsewhere.

Deciding spec: 420 mm top radiator support

The maximum top radiator length of 420 mm is the critical measurement for custom-loop planners. If your loop design requires a 420 mm radiator in the roof, this chassis accommodates it; if your build only needs a 360 mm or smaller top radiator, a smaller case may suffice.

Highlights

  • Ventilated mesh front panel maximises airflow to components
  • Three pre-installed 140 mm ARGB fans deliver immediate cooling performance
  • Spacious interior supports radiators up to 420 mm on top and 360 mm on front and side
  • High-speed front I/O includes USB-C at 20 Gbps plus two USB 3.0 ports and audio jack
  • Flexible storage layout fits four 2.5" SSDs behind motherboard tray plus one dedicated 2.5" SSD on case floor

Specifications

BrandFractal Design
SeriesMeshify 3 XL RGB
ModelFD-C-MES3X-04
Part NumberFD-C-MES3X-04
TypeATX Full Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
Side PanelLight Tinted TG Side Panel
LEDARGB
Dust FiltersBottom
External 5.25" Drive BaysNo
External 3.5" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays4 x 2.5" SSD behind MB tray
1 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3x 120/140 mm or 2x 180 mm (3 x Momentum 14 RGB PWM included)
Top: 3 x 120/140 mm
Rear: 1 x 120/140 mm
Side: 3x 140 mm (120 mm w/ radiator only)
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Rear - Up to 140mm / Side - Up to 280mm / Side - Up to 360mm / Top - Up to 360mm / Top - Up to 420mm
140mm Fans3 x Momentum 14 RGB PWM included
Max GPU LengthMax GPU Length: 512 mm
Max GPU Height: 189 mm (slot 7, including cables)
Max CPU Cooler Height182 mm
Max PSU Length230 mm
Dimensions22.64" x 9.65" x 20.28"
Weight24.03 lbs.
Package ContentMeshify 3 XL case
User manual
Accessory box
Shipping weight13.43 kg
Package size678 × 602 × 351 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard form factors fit the Meshify 3 XL RGB?

The case supports E-ATX, ATX, mATX, Mini-ITX, EE-ATX, SSI-CEB and SSI-EEB boards.

How are the three included Momentum 14 RGB PWM fans connected, and what step is often missed?

Plug the fans into the motherboard PWM headers and the ARGB cables into a 5 V addressable RGB header; the RGB will stay dark if the ARGB connector is left unplugged.

Which dust filters need regular cleaning on this chassis?

Only the bottom filter is fitted; slide it out from underneath the case to clean it.
