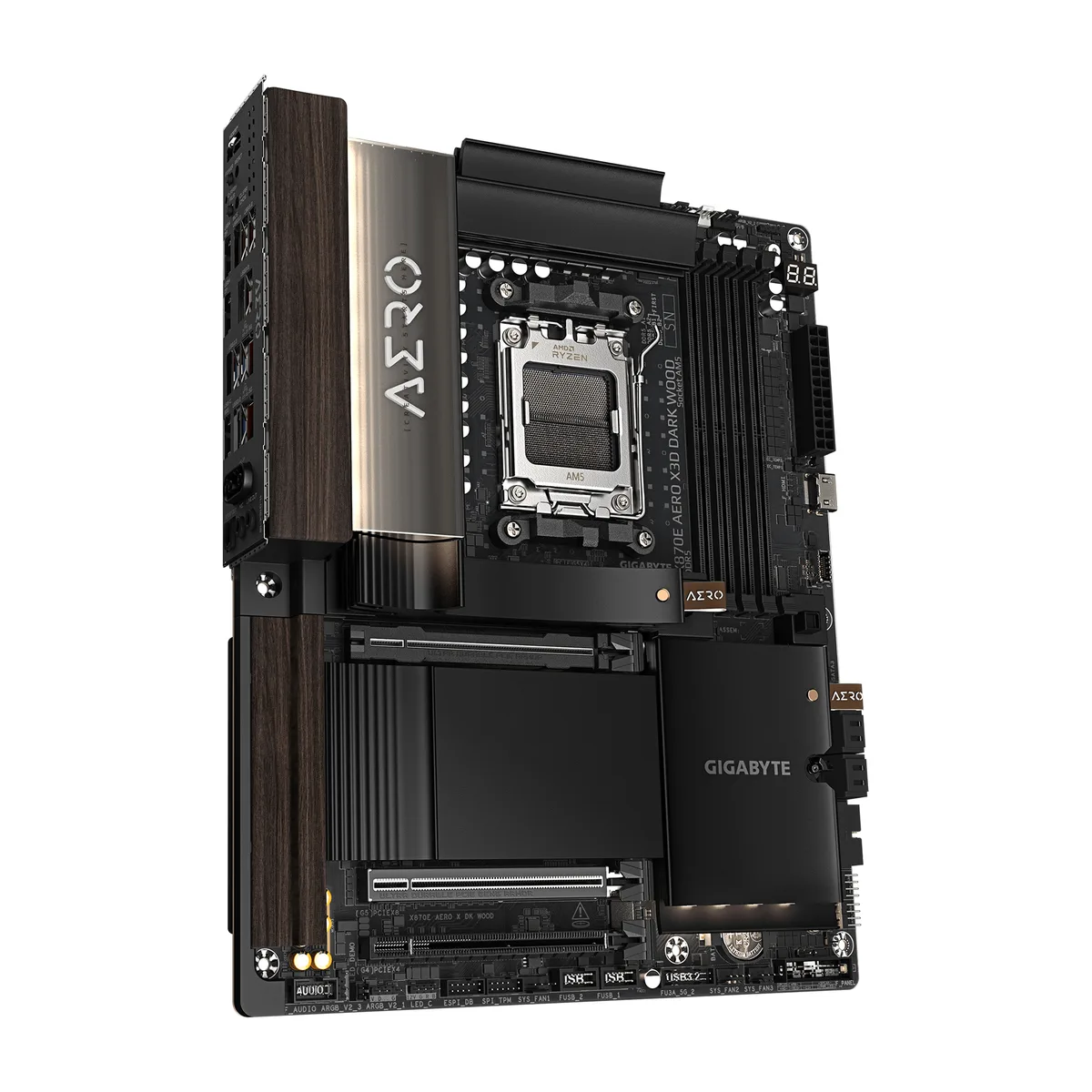

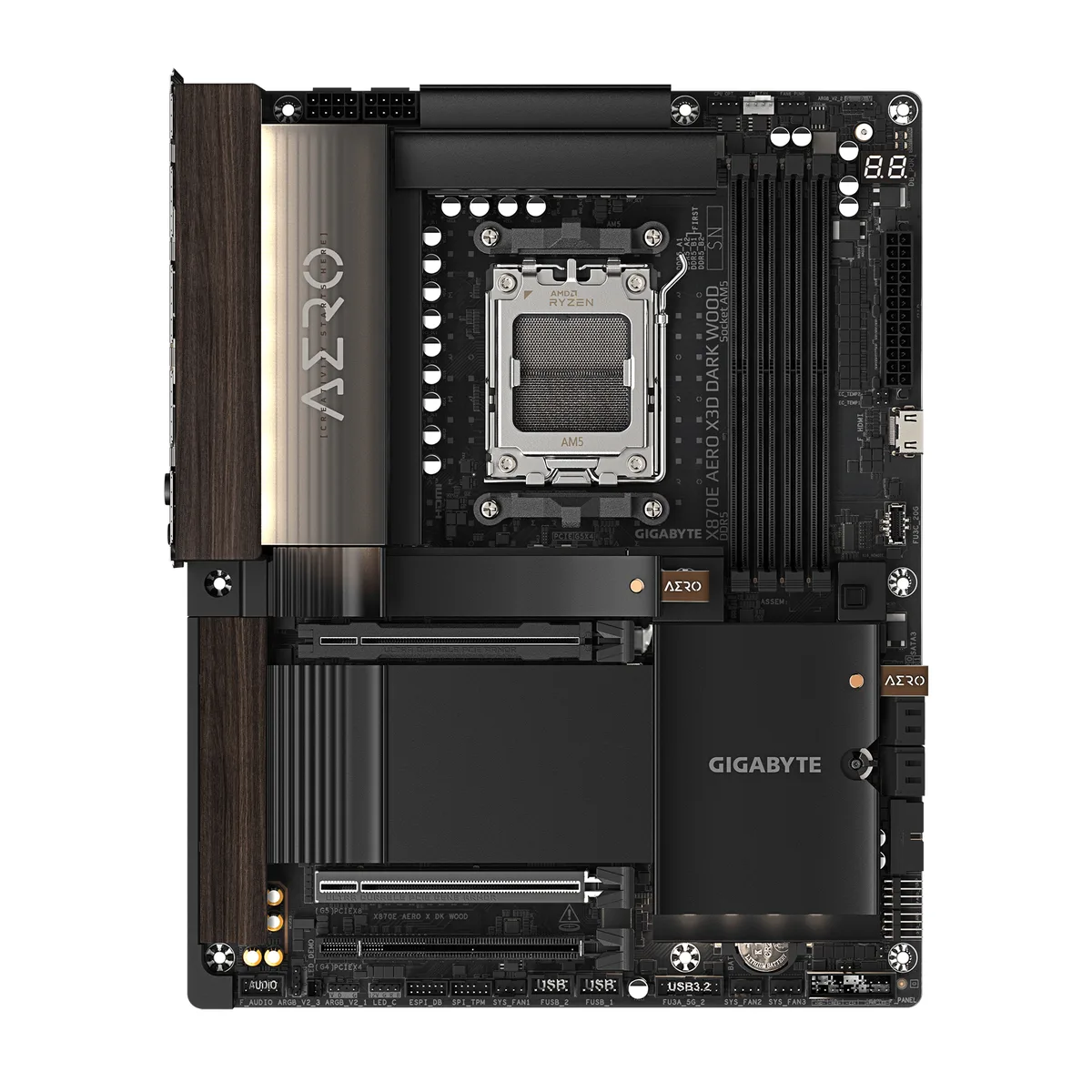

ATX motherboard with dark wood veneer panel and leather pull tab

GIGABYTE

GIGABYTE X870E AERO X DK WOOD AMD motherboard

SKU CH-1FM7-2JJ89 MPN X870E AERO X DK WOOD

An AM5 board for Ryzen 7000, 8000 and 9000 series with DDR5 support up to 256 GB, four M.2 slots, PCIe 5.0 graphics, USB4, WIFI7, Bluetooth 5.4, dual 5 GbE LAN and a wood-texture finish

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB

Model X870E AERO X DK WOOD

  • Supports Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • Digital Twin 16+2+2 power phases on 8-layer PCB deliver steady power
  • True one-piece VRM heatsink with 7 W/mK pads and M.2 Thermal Guard maximise heat dissipation
  • Four DDR5 slots up to 256 GB with AMD EXPO support
  • Dual 5 GbE LAN, WIFI7 and Bluetooth 5.4 for high-speed connectivity

AM5 Ryzen platform motherboard

The GIGABYTE X870E AERO X DK WOOD uses the AMD X870E chipset and an AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. It provides four 288-pin DDR5 slots with dual-channel architecture up to 256 GB capacity. The board targets enthusiasts who want a distinctive wood-accented design alongside high-end connectivity.

PCIe 5.0 and USB4 interface limits

One PCIe 5.0 x16 slot and two M.2 connectors run at PCIe 5.0 x4 speeds, while two additional M.2 slots operate at PCIe 4.0 x4. Dual USB4 Type-C ports with DisplayPort Alt Mode share bandwidth with the chipset, so simultaneous high-throughput devices may negotiate lower link rates. WIFI7 and Bluetooth 5.4 wireless performance depends on router capabilities and local spectrum conditions.

DIY-friendly installation with EZ-Latch

PCIe EZ-Latch Plus releases the graphics card with a single click, and M.2 EZ-Latch Click plus Plus secures SSDs and heatsinks without screws. The WIFI EZ-Plug antenna attaches magnetically, while DriverBIOS loads Wi-Fi drivers before the operating system starts. A leather pull tab aids board handling, though the unique wood veneer requires care to avoid scratches during assembly.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • Digital Twin 16+2+2 power phases on 8-layer PCB deliver steady power
  • True one-piece VRM heatsink with 7 W/mK pads and M.2 Thermal Guard maximise heat dissipation
  • Four DDR5 slots up to 256 GB with AMD EXPO support
  • Dual 5 GbE LAN, WIFI7 and Bluetooth 5.4 for high-speed connectivity

Specifications

BrandGIGABYTE
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x163 x PCI Express x16
PCI Express x41 x PCI Express x4
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetRealtek 5GbE
Max LAN Speed5Gbps + 5Gbps
BluetoothYes

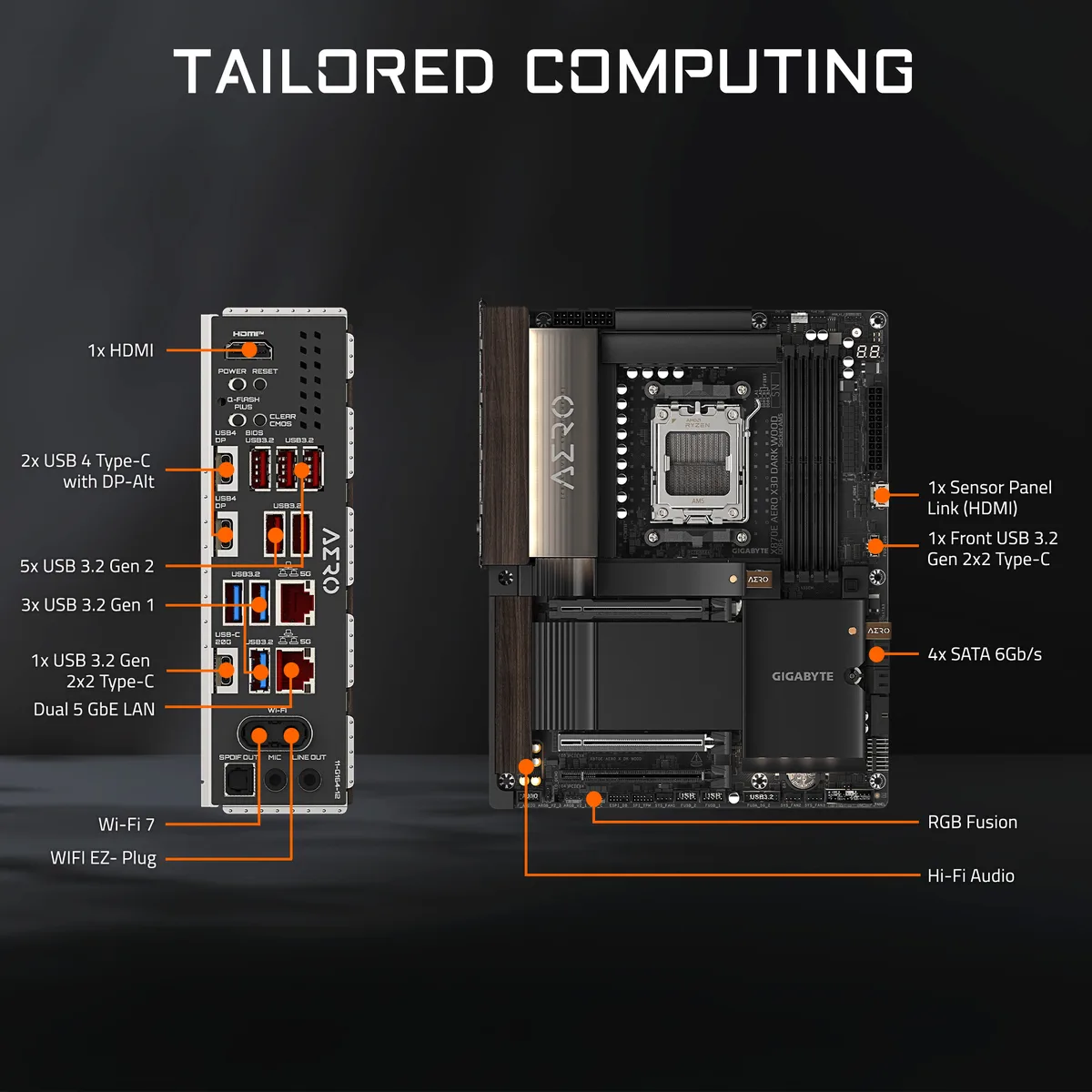

Back I/O Ports1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x power button, 1 x reset button, 1 x HDMI, 2 x USB4 Type-C, 1 x USB Type-C (USB 3.2 Gen 2x2), 5 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 2 x RJ-45, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out
HDMI1 x HDMI port
RJ452 x RJ45
DisplayPort2 x DisplayPort
S/PDIF Out1 x Optical
Audio Ports2 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 4 x USB 2.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin24 Pin
Shipping weight3.13 kg
Package size335 × 305 × 89 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which DDR5 capacity should I choose for the four 288-pin slots with a 256 GB maximum?

The board takes four DDR5 modules in dual-channel mode up to 256 GB total; pick matched kits that suit your workload and budget.

What does the 5200 MT/s memory standard mean once the system is running?

JEDEC 5200 MT/s is the guaranteed baseline speed; faster EXPO or XMP profiles will run at their rated speeds when enabled in BIOS.

How does the PCIe 5.0 x16 slot and the four M.2 sockets share bandwidth on the X870E chipset?

The primary x16 slot and two M.2 sockets run at PCIe 5.0 x4, while the remaining two M.2 sockets operate at PCIe 4.0 x4, all fed from the CPU and chipset lanes.
