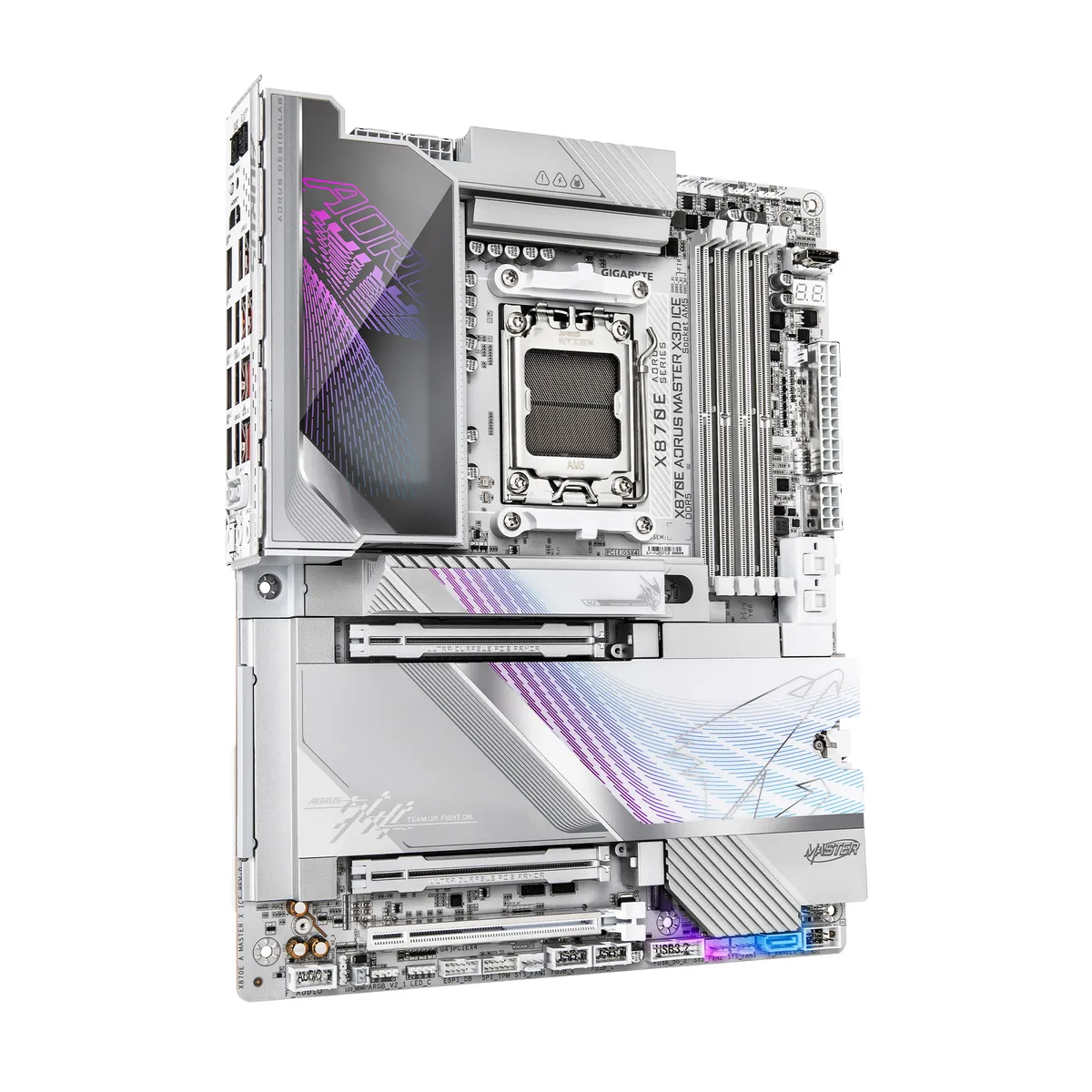

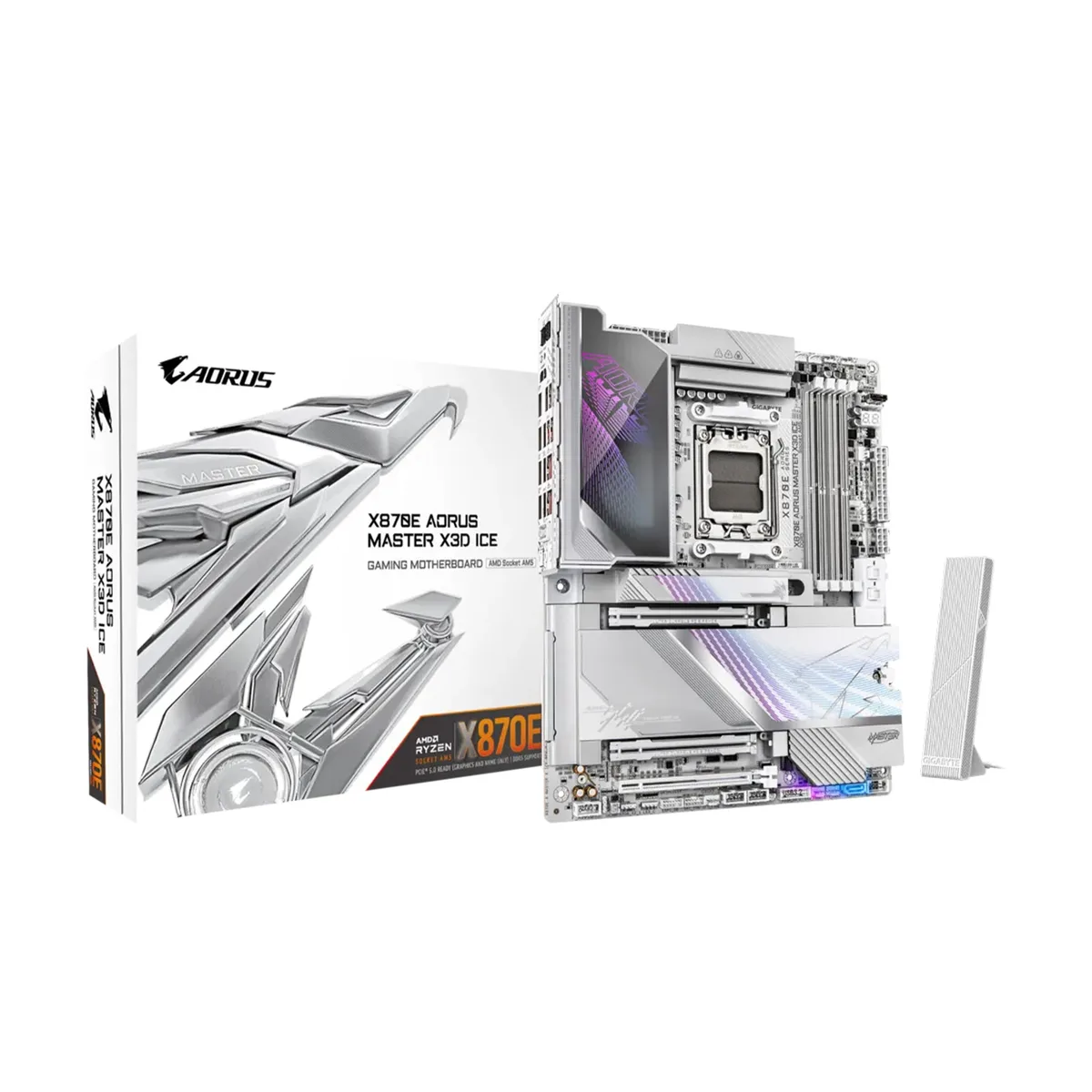

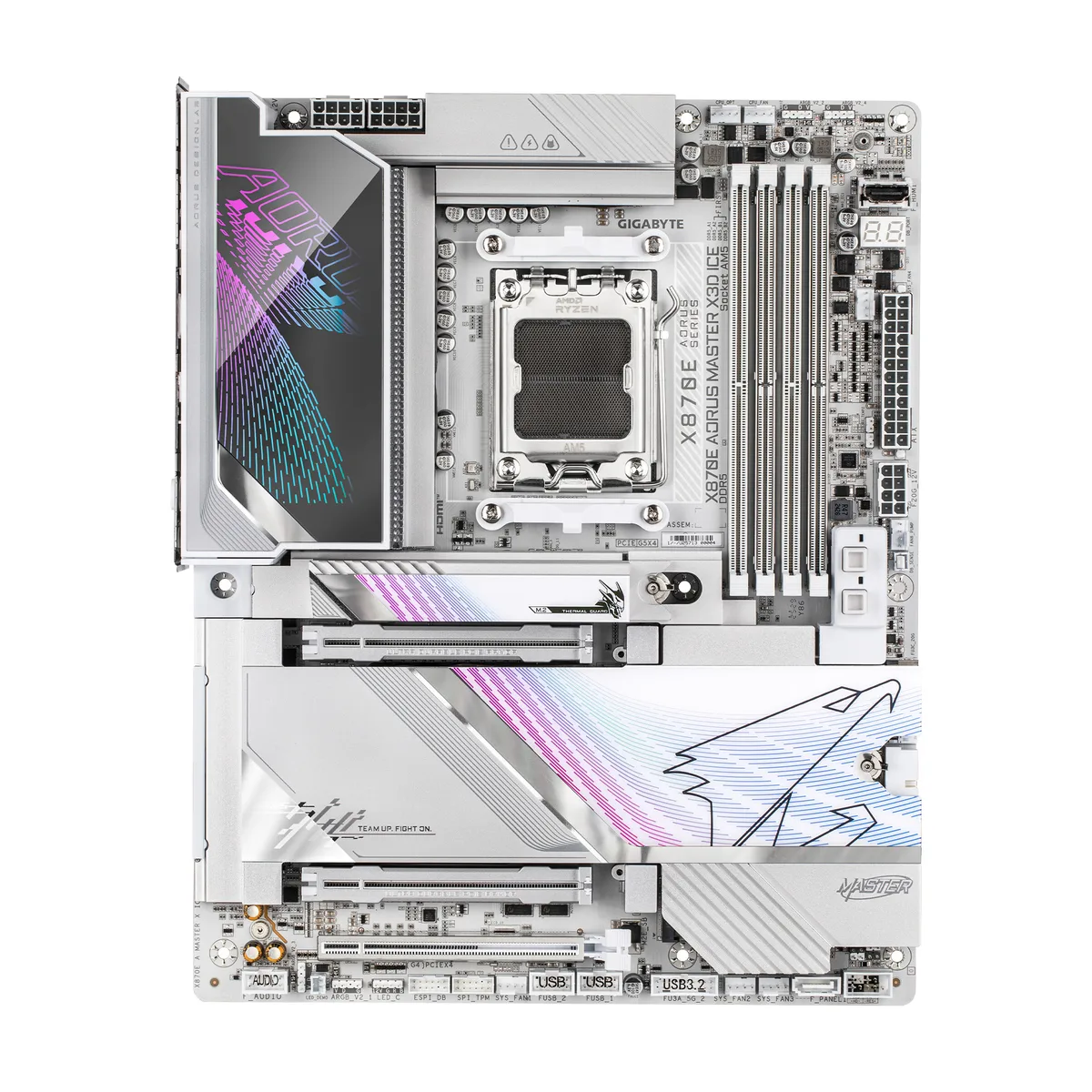

White ATX motherboard with silver heatsinks and integrated rear I/O shield

GIGABYTE

GIGABYTE X870E AORUS MASTER X3D ICE AMD motherboard

SKU CH-XTMH-7Q6P5 MPN X870E AORUS MASTER X3D ICE

Socket AM5 ATX board with 18+2+2 power phases, four DDR5 slots up to 9000 MT/s, five M.2 sockets, PCIe 5.0 graphics slot, USB4 Type-C, Wi-Fi 7 and 10 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 9000(O.C)
  • Maximum Memory Supported256GB

Model X870E AORUS MASTER X3D ICE

  • AI-driven X3D Turbo Mode 2.0 boosts gaming performance up to 25 percent
  • DDR5 memory overclocking reaches 9000 MT/s with AMD EXPO support
  • Digital twin 18+2+2 phase VRM delivers stable power for Ryzen 7000 8000 9000 series
  • PCIe 5.0 x16 plus five M.2 slots enable high-speed GPU and storage expansion
  • 10GbE LAN plus WIFI7 and BLUETOOTH 5.4 provide fast wired and wireless connectivity

AM5 X870E platform for Ryzen 7000, 8000 and 9000

This ATX motherboard uses the AMD X870E chipset and AM5 socket to support Ryzen 7000, 8000 and 9000 series processors. Four DDR5 slots accept up to 256GB of memory with EXPO and XMP 3.0 profiles. It targets enthusiasts who want high memory bandwidth and strong multi-threaded performance for gaming or content creation. The board also integrates Wi-Fi 7 and Bluetooth 5.4 for modern wireless connectivity.

18+2+2 phase VRM with screwless PCIe and flexible

A digital twin 18+2+2 phase power design delivers stable voltage to high-end CPUs under sustained loads. PCIe EZ-Latch Plus Duo provides screwless installation and quick release on two full-length slots. M.2 EZ-Flex uses a patented flexible baseplate to improve heat dissipation across the five M.2 connectors. Dual 10Gbps and 5Gbps LAN ports plus Realtek ALC1220 7.1 channel audio complete the rear I/O.

X3D Turbo Mode 2.0 adds AI optimisation for 3D

X3D Turbo Mode 2.0 applies an on-board AI model to tune Ryzen X3D processor parameters in real time, yielding up to 25% higher gaming performance in supported titles. DDR5 overclocking headroom reaches 9000 MT/s for memory-limited workloads. The upgrade is most valuable when moving from a non-X3D Ryzen 7000 CPU or an older AM4 platform to a 9000 series X3D part where the AI tuning and 5.0 PCIe lanes can be fully exploited.

Highlights

  • AI-driven X3D Turbo Mode 2.0 boosts gaming performance up to 25 percent
  • DDR5 memory overclocking reaches 9000 MT/s with AMD EXPO support
  • Digital twin 18+2+2 phase VRM delivers stable power for Ryzen 7000 8000 9000 series
  • PCIe 5.0 x16 plus five M.2 slots enable high-speed GPU and storage expansion
  • 10GbE LAN plus WIFI7 and BLUETOOTH 5.4 provide fast wired and wireless connectivity

Specifications

BrandGIGABYTE
ModelX870E AORUS MASTER X3D ICE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 9000(O.C)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in the M2B_CPU co
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed10Gbps + 5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

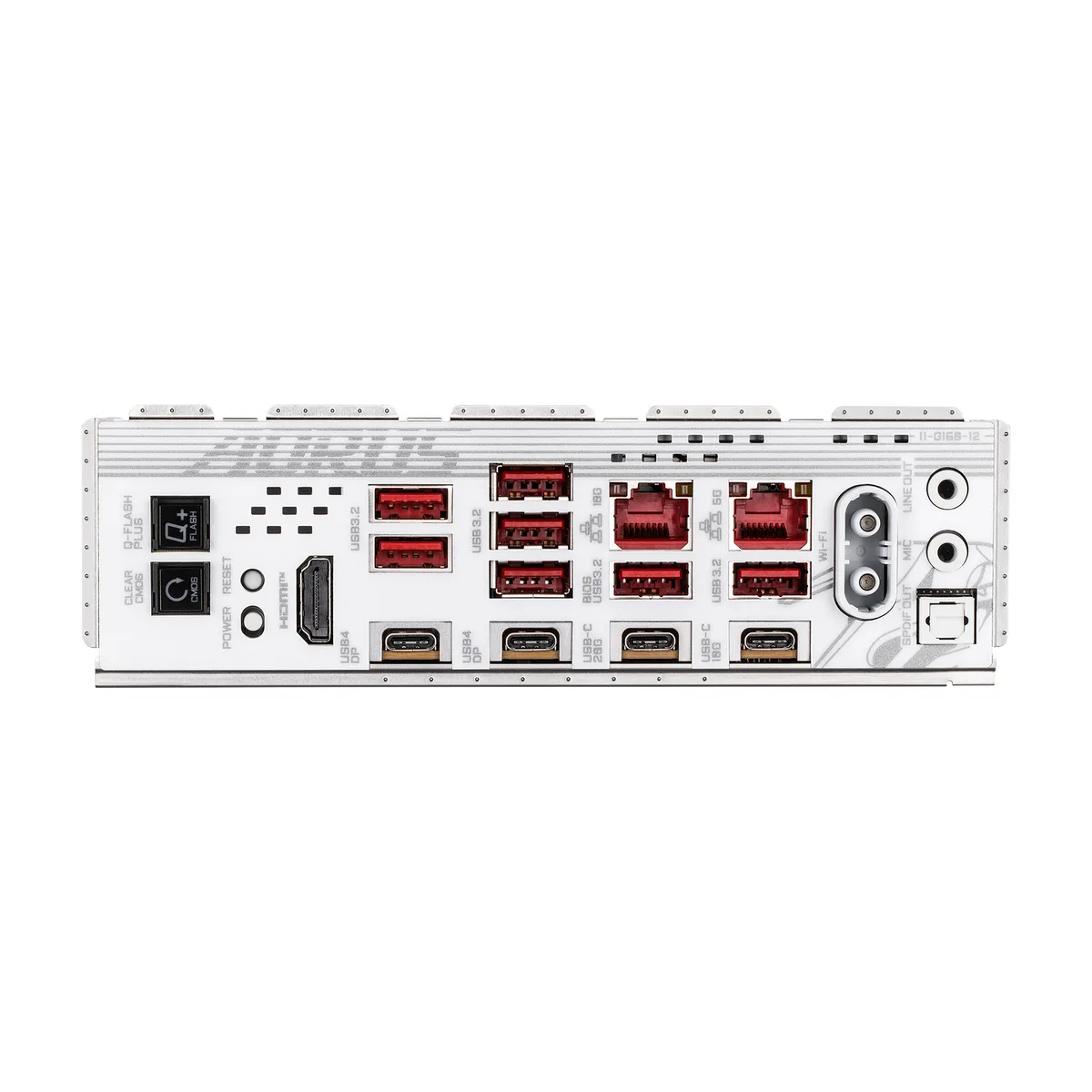

Back I/O Ports1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset button
1 x power button
1 x HDMI port (Note)
2 x USB4 USB Type-C ports (DisplayPorts (Note))
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
1 x system fan extension cable header (can extend three system fan headers through one cable)
1 x system fan/water cooling pump header
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x chassis intrusion header
1 x reset jumper
1 x Clear CMOS
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
BIOS Feature1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Shipping weight3.79 kg
Package size340 × 311 × 94 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe 5.0 lane width does the primary x16 slot deliver with a Ryzen 9000 CPU?

The primary PCIe 5.0 x16 slot runs at full x16 speed when a Ryzen 9000 or 7000 processor is installed, while Ryzen 8000 Phoenix 1 CPUs limit it to x8 mode.

What clearance does the M.2 EZ-Flex baseplate need inside a standard ATX case?

The patented M.2 EZ-Flex baseplate mounts on the motherboard itself and fits within the standard ATX keep-out zone, so no extra case clearance beyond normal motherboard spacing is required.

Which BIOS step activates X3D Turbo Mode 2.0 on a Ryzen X3D chip?

Enter the BIOS, locate the X3D Turbo Mode 2.0 toggle in the AI Tweaker or Advanced menu, enable it, save and exit; the AI model then optimises X3D parameters automatically on every boot.
