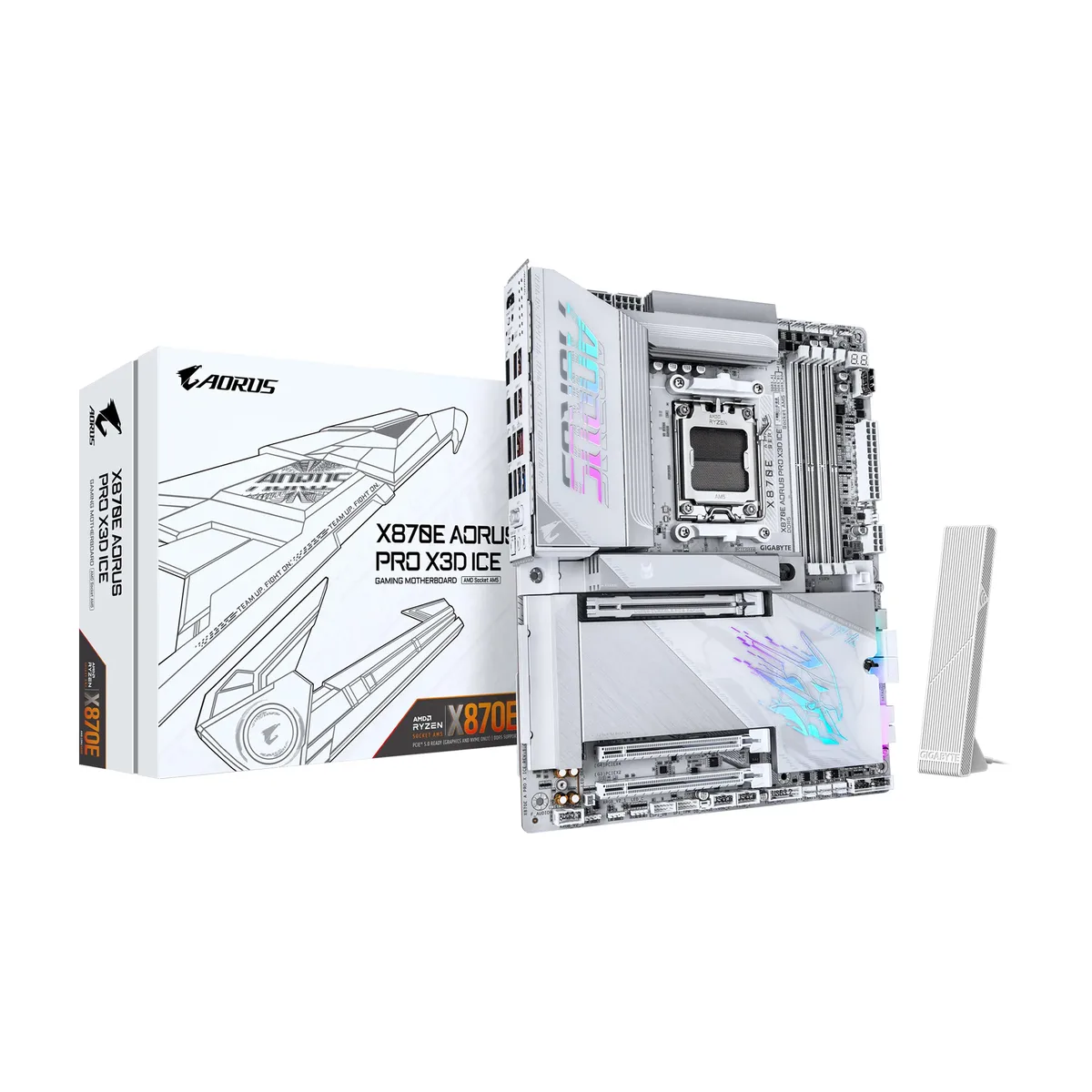

White ATX motherboard with silver heatsinks and blue accents

GIGABYTE

GIGABYTE X870E AORUS PRO X3D ICE AMD motherboard

SKU CH-HS3G-4MZF7 MPN X870E AORUS PRO X3D ICE

ATX motherboard for AMD Ryzen 7000, 8000 and 9000 processors with DDR5 up to 9000 MT/s, 18+2+2 power phases, four M.2 slots, PCIe 5.0, USB4 Type-C, WIFI7 and 5GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 9000(O.C)
  • Maximum Memory Supported256GB

Model X870E AORUS PRO X3D ICE

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 18+2+2 phase digital VRM delivers stable power for heavy workloads
  • DDR5 memory overclocking up to 9000 MT/s with AMD EXPO support
  • Four M.2 slots including one PCIe 5.0 x4 for fastest storage speeds
  • WIFI7 and 5 GbE LAN provide high-speed wired and wireless connectivity

AM5 X870E platform for Ryzen 7000 8000 9000

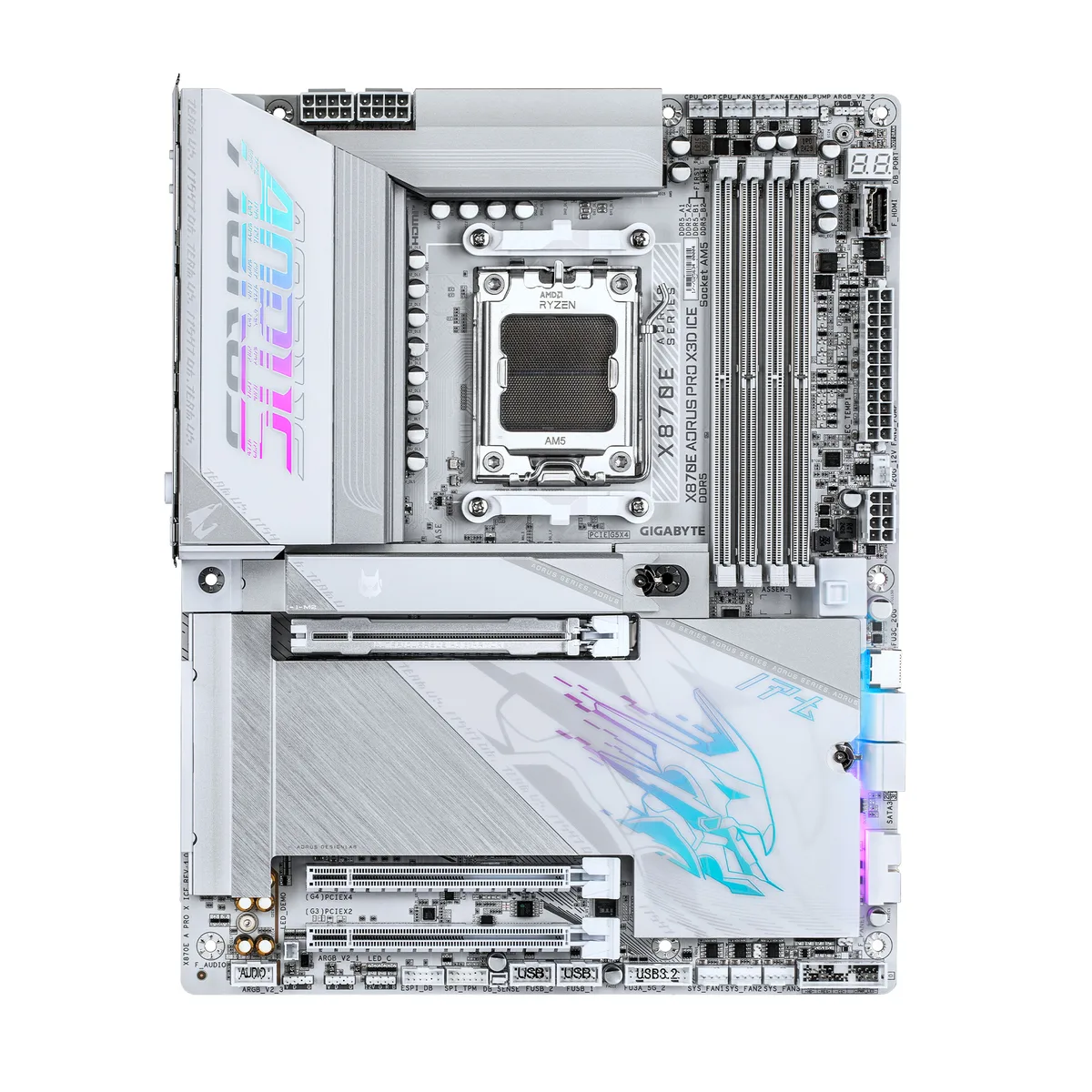

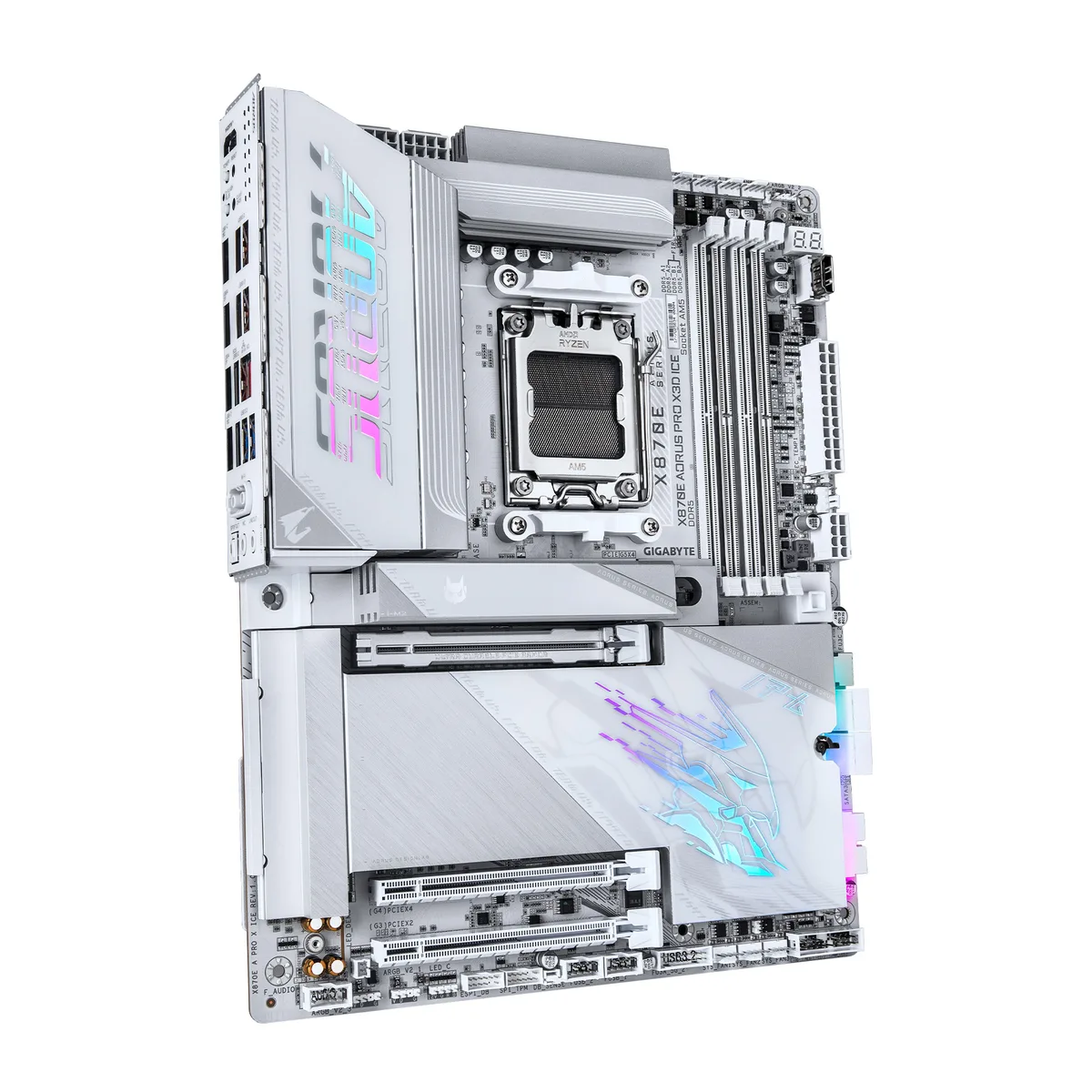

The X870E AORUS PRO X3D ICE uses the AMD X870E chipset on an ATX board with an AM5 socket that accepts Ryzen 7000 8000 and 9000 series processors. Four 288 pin DDR5 slots support up to 256 GB in dual channel mode with EXPO and XMP 3.0 profiles. The board is built for enthusiasts who want high memory speeds and strong multi tasking headroom.

18 plus 2 plus 2 digital VRM with AI BIOS tuning

A digital twin 18 plus 2 plus 2 phase power design feeds the CPU cleanly during long sessions. HyperTune BIOS and the D5 Bionic Corsa engine apply AI driven signal optimisation and memory timing adjustments that remain stable under sustained load rather than only in short bursts. M.2 EZ Flex heat dissipation keeps the primary SSD cool when throughput stays high for extended periods.

X3D Turbo Mode 2.0 upgrades X3D CPU performance

X3D Turbo Mode 2.0 replaces the first generation implementation with an on board AI model that adjusts X3D processor parameters in real time. The manufacturer cites up to 25 percent uplift in supported titles so the jump is worthwhile when pairing a Ryzen X3D chip with this board for gaming workloads that benefit from the extra cache optimisation.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 18+2+2 phase digital VRM delivers stable power for heavy workloads
  • DDR5 memory overclocking up to 9000 MT/s with AMD EXPO support
  • Four M.2 slots including one PCIe 5.0 x4 for fastest storage speeds
  • WIFI7 and 5 GbE LAN provide high-speed wired and wireless connectivity

Specifications

BrandGIGABYTE
ModelX870E AORUS PRO X3D ICE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 9000(O.C)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes

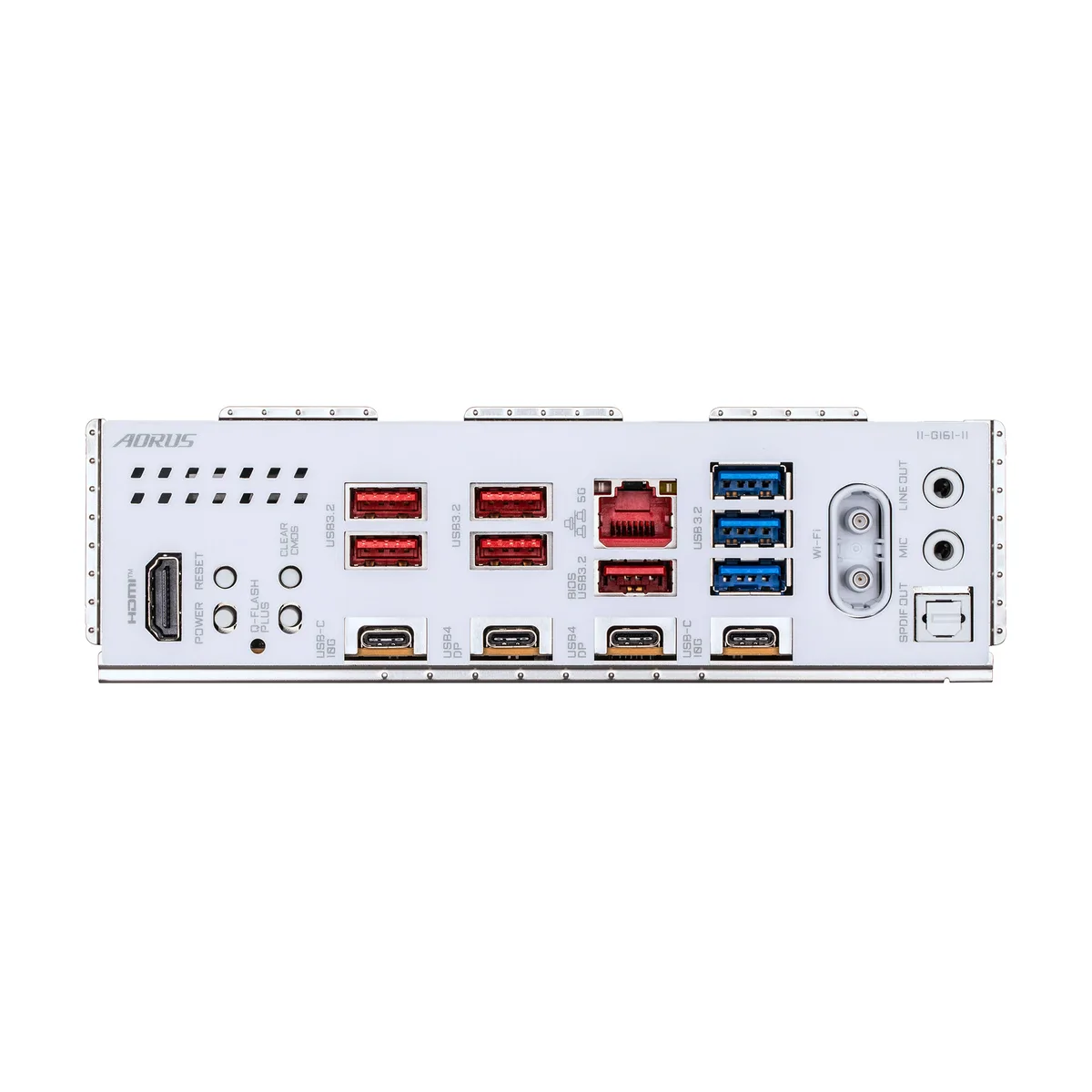

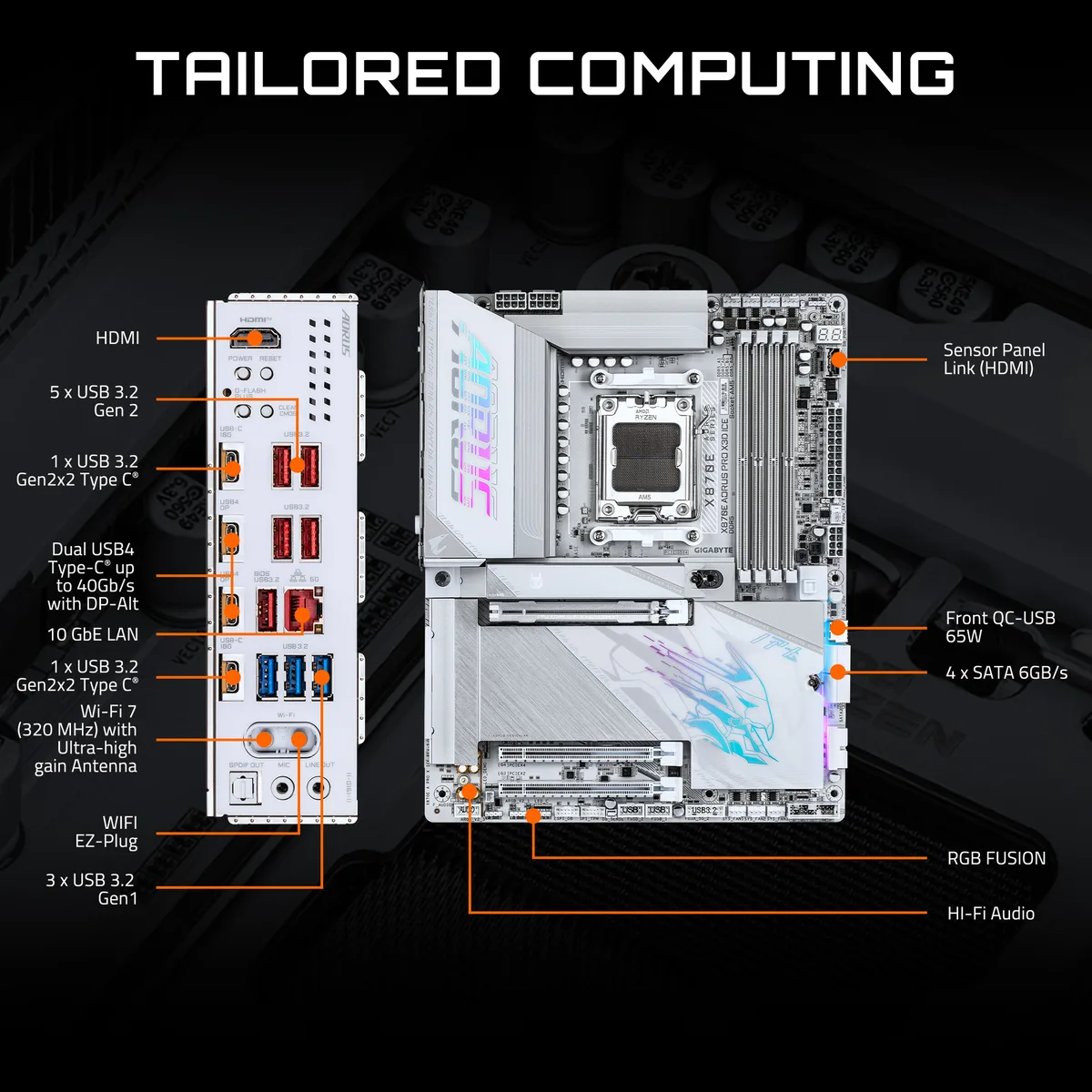

Back I/O Ports1 x HDMI port (Note)
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB Type-C ports, with USB 3.2 Gen 2 support
2 x USB4 USB Type-C ports (DisplayPort (Note))
1 x RJ-45 port
3 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x HDMI port (Note)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Shipping weight3.72 kg
Package size340 × 310 × 97 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the 18+2+2 phase VRM get when the board runs all day?

The digital twin 18+2+2 phase VRM design distributes load across many stages, keeping component temperatures lower during sustained workloads.

Which DDR5 memory kit do I need to have on hand before this motherboard will post?

Any DDR5 DIMM up to 9000 MT/s (O.C.) works; the board has four 288-pin slots supporting dual-channel and AMD EXPO profiles.

Will my existing PCIe 4.0 graphics card and SATA SSDs work at full speed on this X870E board?

The primary x16 slot runs at PCIe 5.0 with Ryzen 9000/7000 CPUs and falls back to PCIe 4.0 with Ryzen 8000 series, while four SATA 6Gb/s ports and four M.2 sockets accept current drives without speed loss.
