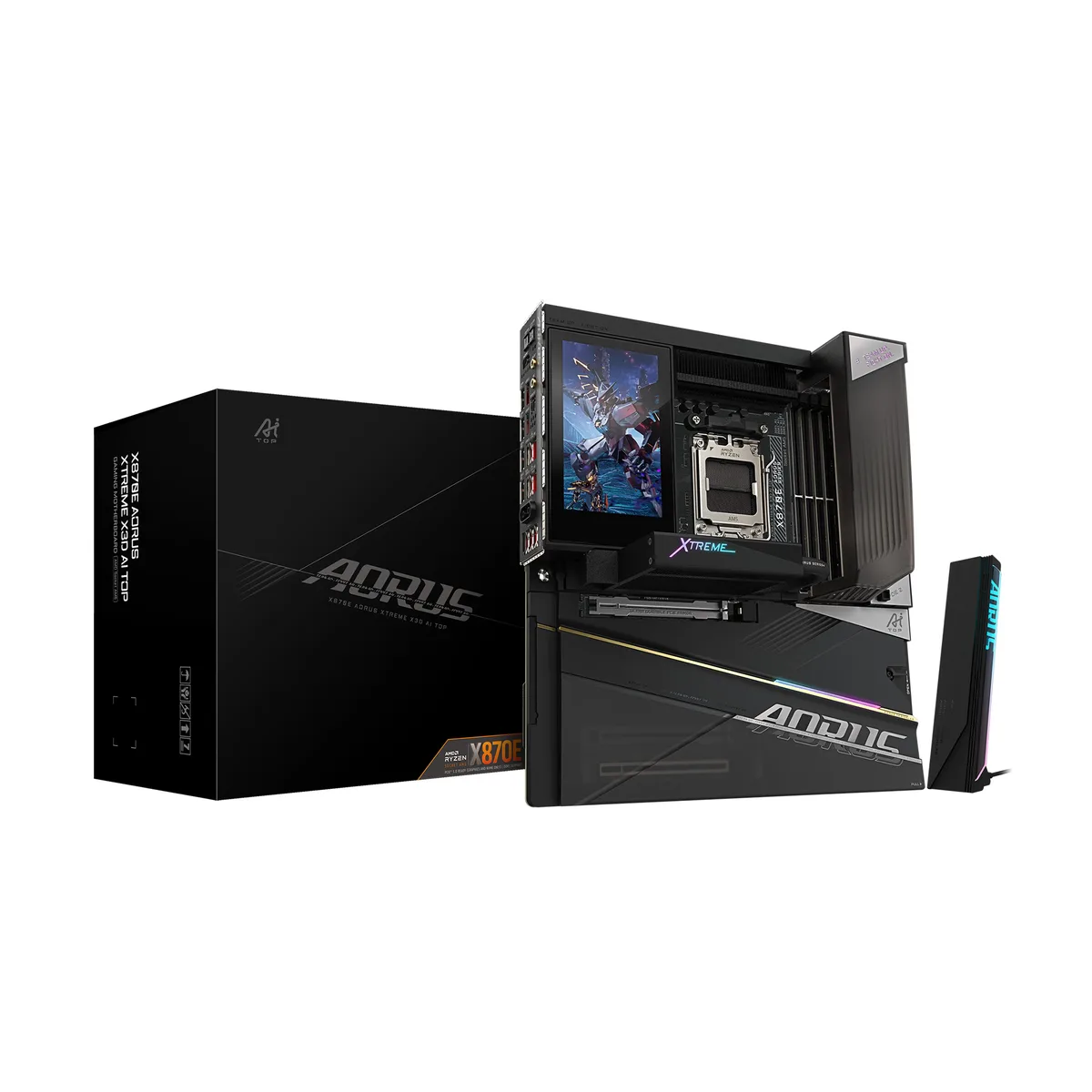

Large rectangular E-ATX motherboard with black metal heatsinks, silver accents and integrated rear I/O shield

GIGABYTE

GIGABYTE X870E AORUS XTREME X3D AI TOP AMD motherboard

SKU CH-ER71-S4JZP MPN X870E AORUS XTREME X3D AI TOP

E-ATX AM5 board with 24+2+2 power phases, 5 M.2 slots, PCIe 5.0 x16, dual 10 GbE LAN, WIFI7, Bluetooth 5.4 and USB4 Type-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 800
  • Maximum Memory Supported256GB

Model X870E AORUS XTREME X3D AI TOP

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 24+2+2 digital power phases deliver stable current to the processor
  • DDR5 memory up to 9000 MT/s overclocked across four slots for 256 GB capacity
  • PCIe 5.0 x16 slot plus five M.2 connectors for high-speed storage and graphics
  • Dual 10 GbE LAN, WIFI7 and Bluetooth 5.4 for fast wired and wireless networking

Socket AM5 Platform

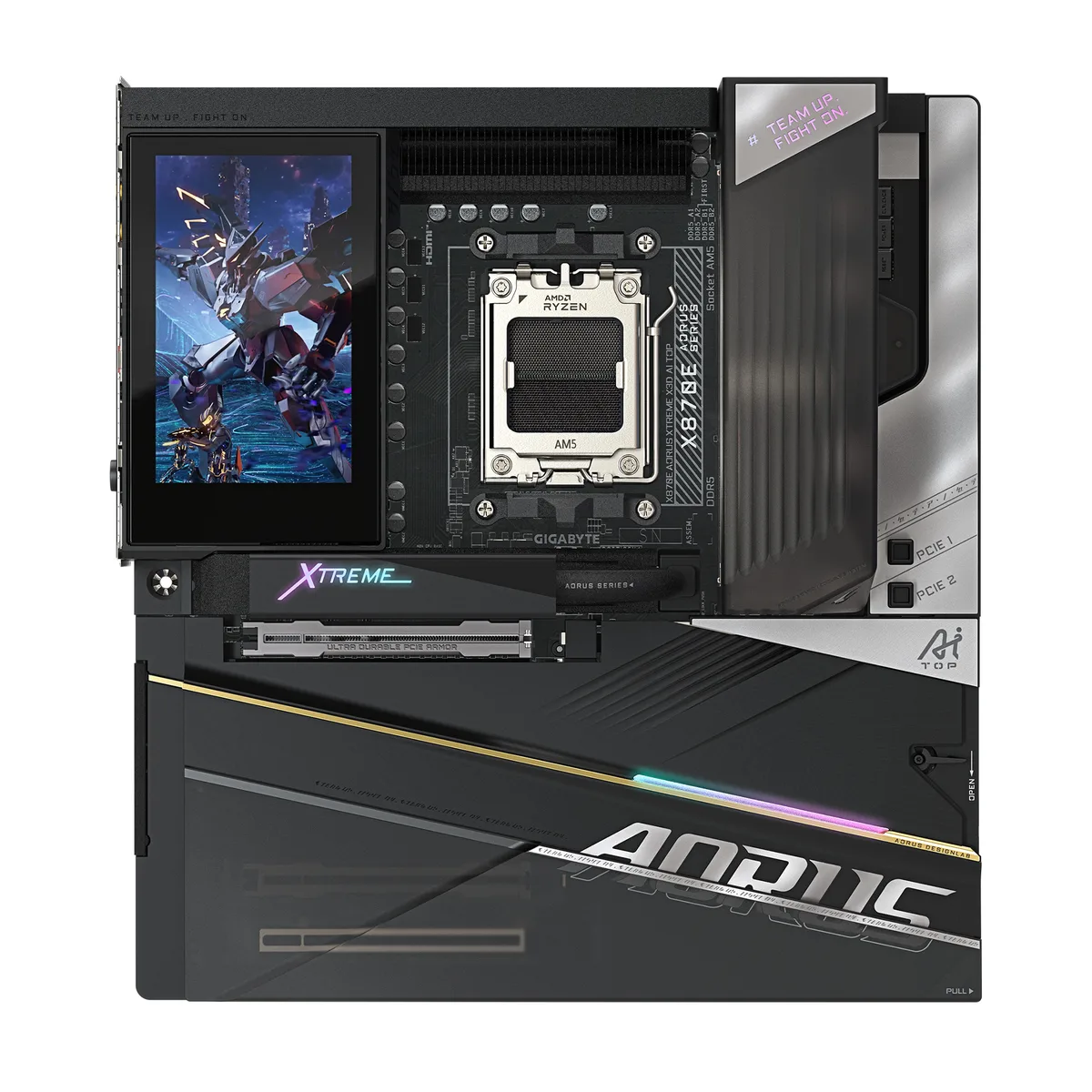

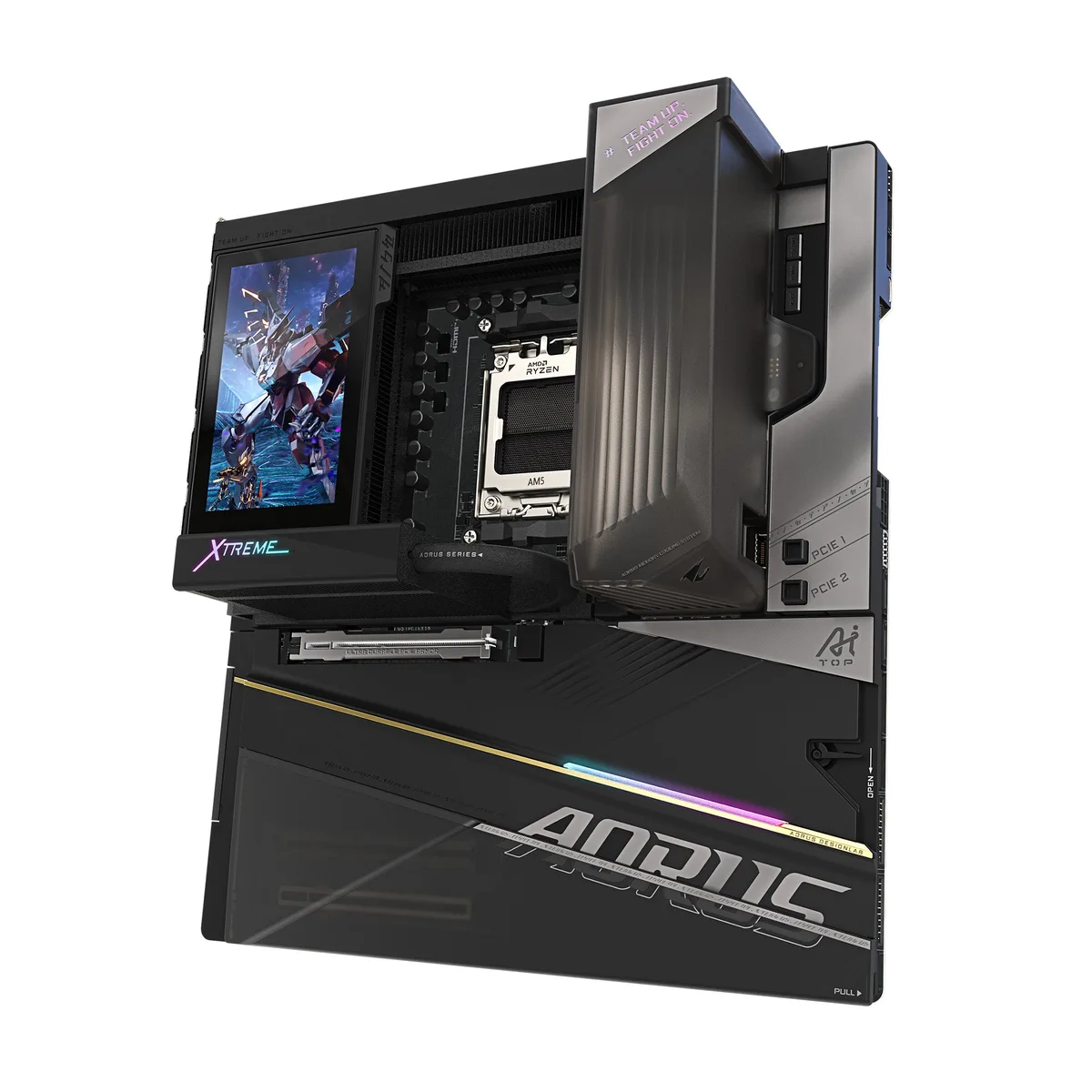

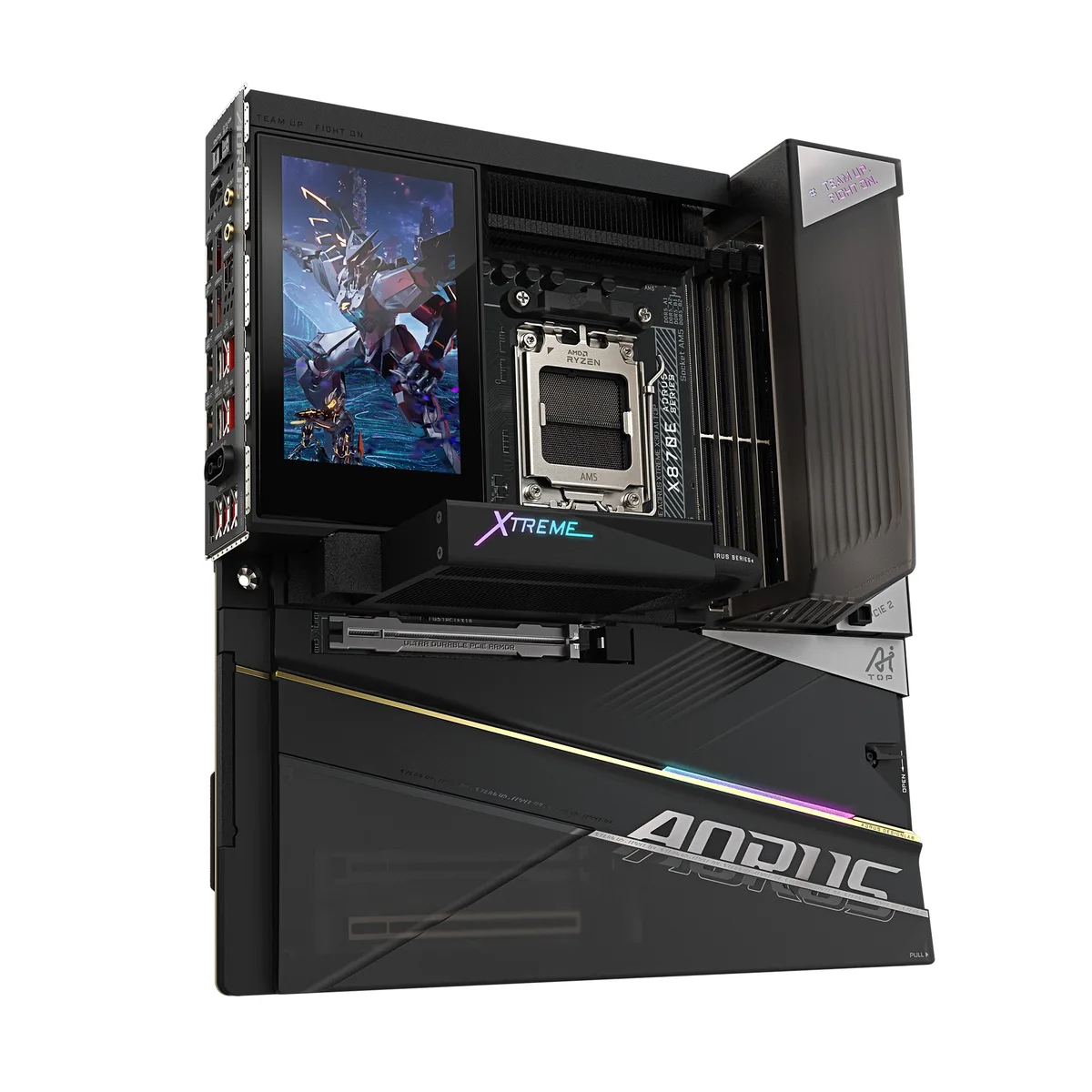

The GIGABYTE X870E AORUS XTREME X3D AI TOP motherboard is built for AMD Ryzen 9000, 8000 and 7000 series processors in the AM5 socket. It uses the X870E chipset and an E-ATX form factor to deliver a 24+2+2 digital twin power phase design across an 8-layer PCB. The board targets enthusiasts who need maximum CPU headroom and extensive I/O for high-end workstations or gaming builds.

Connectivity Bundle

The package adds two USB4 Type-C ports, a 65 W front-panel QC-USB connector and a Sensor Panel Link USB-C DP header for internal display panels. Dual 10 GbE LAN, WIFI7 and Bluetooth 5.4 provide wired and wireless throughput for heavy data movement. Five M.2 sockets (two PCIe 5.0, three PCIe 4.0) and four SATA 6 Gb/s ports give dense storage options with RAID 0, 1, 5 and 10 support for NVMe and SATA arrays.

Interface Limits

The primary PCIe 5.0 x16 slot runs at x16 with Ryzen 9000 and 7000 CPUs, but drops to x8 or x4 with Ryzen 8000 series processors. The chipset-linked PCIe 4.0 x4 slot becomes unavailable when the M2D_SB M.2 connector is populated. DDR5 memory tops out at 256 GB across four 288-pin slots with EXPO and XMP 3.0 profiles up to 9000 MT/s overclocked. Audio is limited to two channels via ESS ES9280AC and ES9080 DACs.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 24+2+2 digital power phases deliver stable current to the processor
  • DDR5 memory up to 9000 MT/s overclocked across four slots for 256 GB capacity
  • PCIe 5.0 x16 slot plus five M.2 connectors for high-speed storage and graphics
  • Dual 10 GbE LAN, WIFI7 and Bluetooth 5.4 for fast wired and wireless networking

Specifications

BrandGIGABYTE
ModelX870E AORUS XTREME X3D AI TOP
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
Serial ATA (SATA)2 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
Audio Chipset1 ESS ES9280AC DAC chip+2 ESS ES9080 chips
Audio Channels2 Channels
Max LAN Speed2 x 10Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

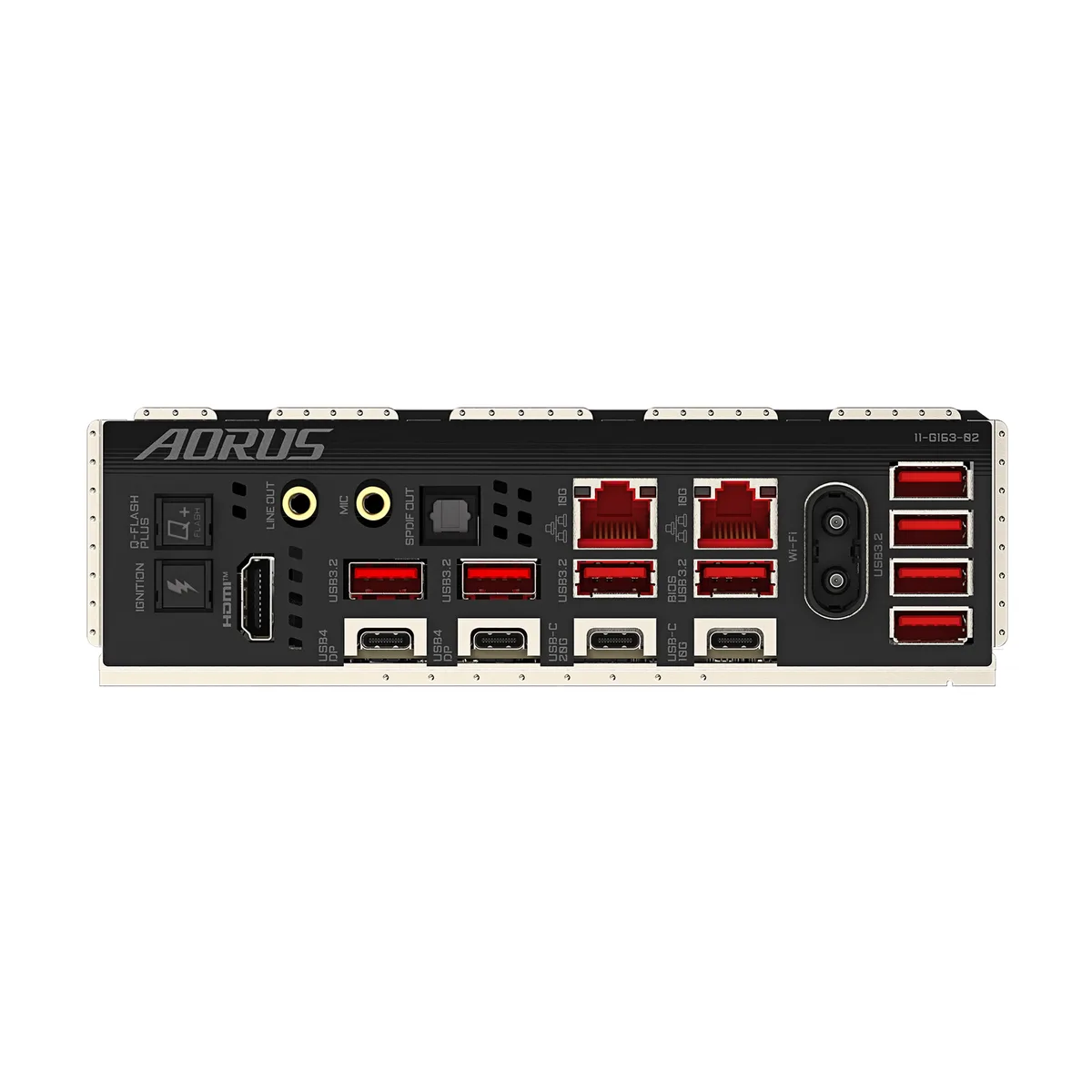

Back I/O Ports1 x Q-Flash Plus button
1 x OC Ignition button
1 x HDMI port (Note)
2 x USB4 USB Type-C ports (DisplayPorts (Note))
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
8 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB Type-C port (DisplayPort (Note)), with USB 2.0 support
2 x USB 3.2 Gen 1 headers
1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
Other Connectors1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan extension cable header (can extend three system fan headers through one cable)
1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)
1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header through one cable)
2 x SATA 6Gb/s connectors
5 x M.2 Socket 3 connectors
1 x front
Form FactorExtended ATX
Dimensions (W x L)12.0" x 11.2"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Shipping weight11.16 kg
Package size488 × 478 × 262 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing AM5 cooler fit this E-ATX board without blocking the top PCIe slot?

The board uses the standard AM5 socket with a 24+2+2 phase VRM layout and integrated I/O shield. Cooler clearance depends on the cooler's own dimensions; check the cooler maker's AM5 compatibility list for E-ATX boards.

Can I run four DDR5 sticks at 8000 MT/s on this motherboard?

The board supports DDR5 speeds up to 9000 MT/s (OC) across four 288-pin slots with AMD EXPO and Intel XMP 3.0 profiles. Achieving 8000 MT/s with all four slots populated depends on the memory kit and CPU memory controller quality.

Does the primary M.2 slot run at PCIe 5.0 x4 with a Ryzen 9000 series CPU?

Yes. The M2A_CPU slot is wired to the CPU and supports PCIe 5.0 x4/x2 SSDs when a Ryzen 9000 or 7000 series processor is installed. With Ryzen 8000 series the same slot runs at PCIe 4.0 speeds.
