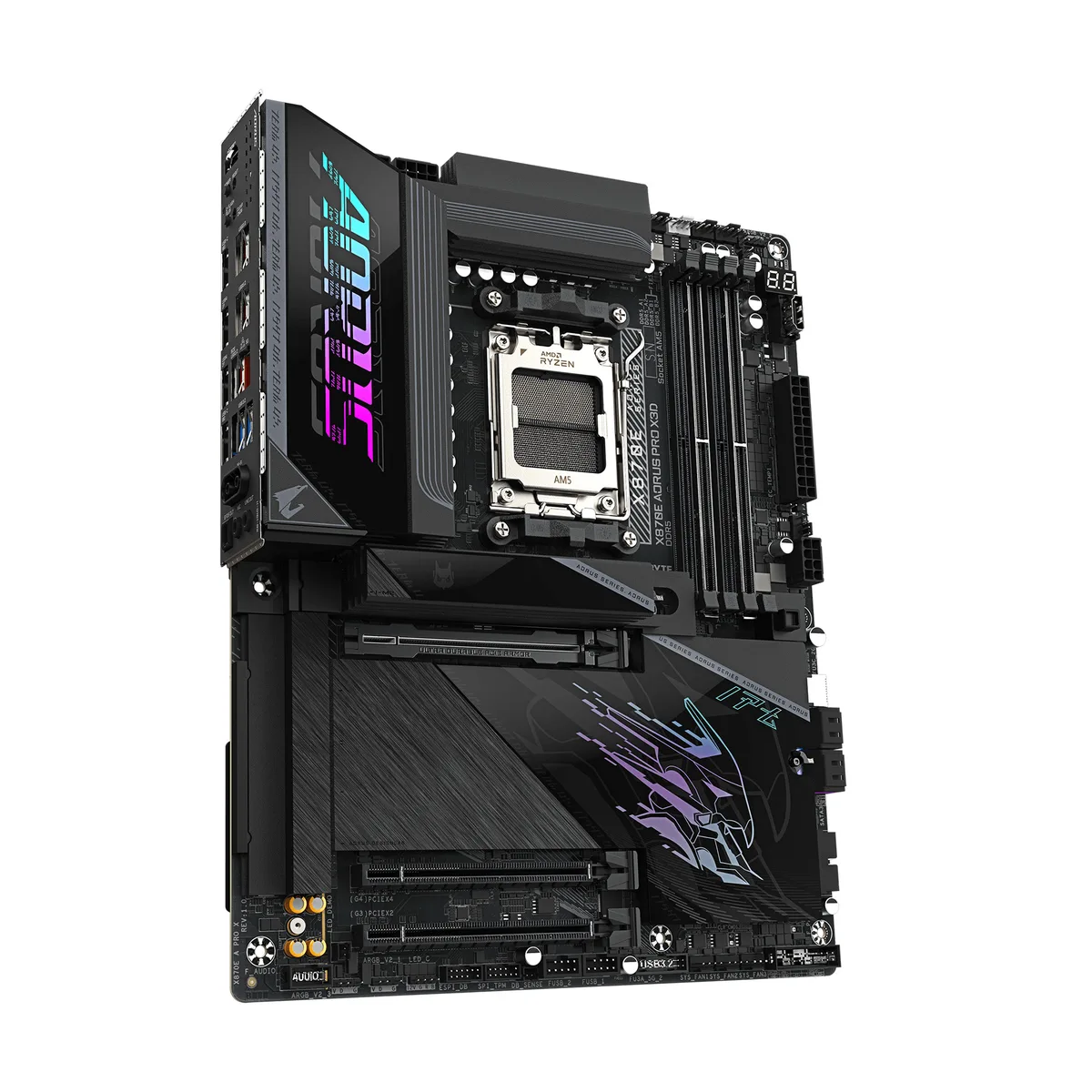

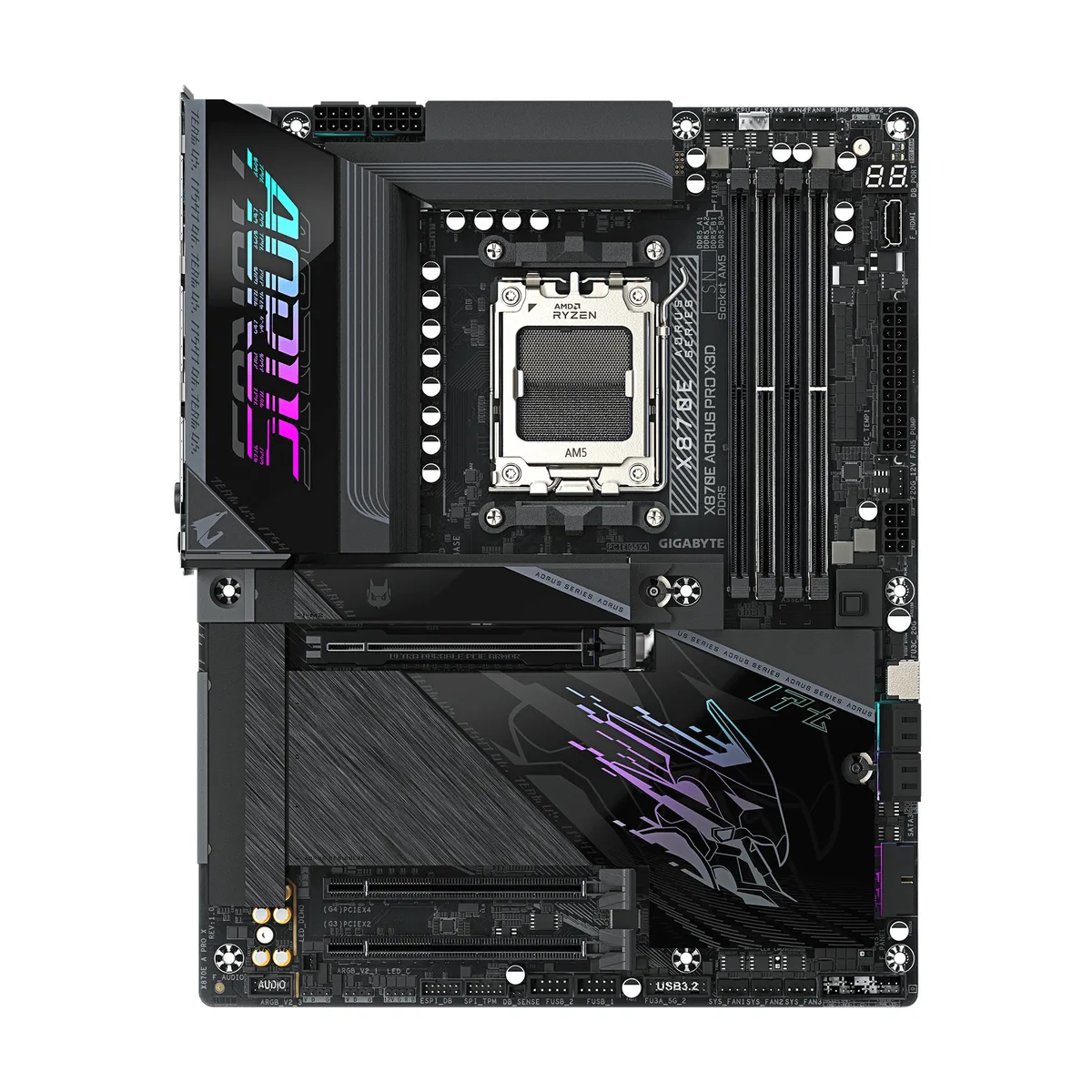

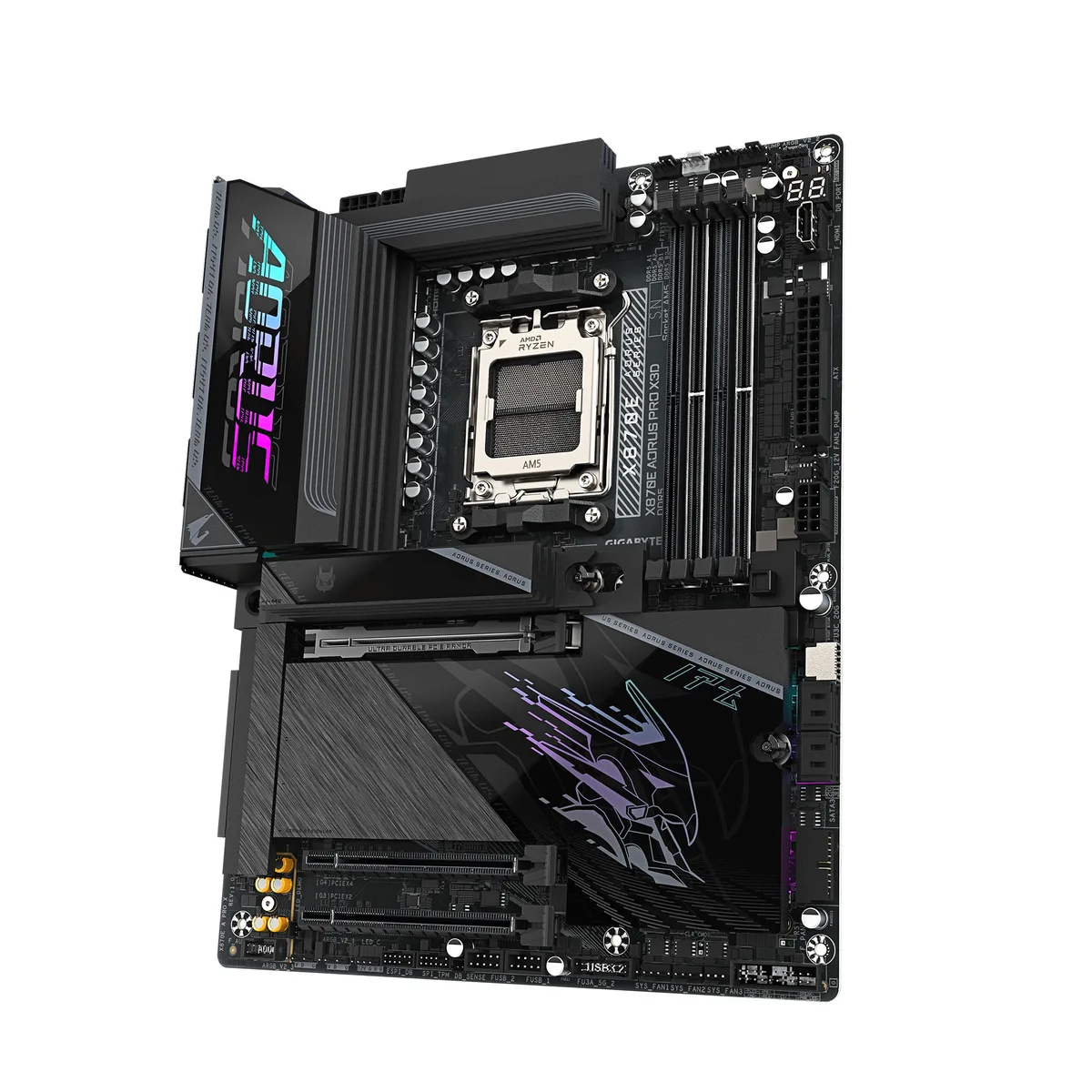

Rectangular ATX board in dark grey with silver heatsinks, four DDR5 slots, three long PCIe slots, four M.2 covers

GIGABYTE

GIGABYTE X870E AORUS PRO X3D AMD motherboard

SKU CH-RC0E-J150J MPN X870E AORUS PRO X3D

AM5 board for Ryzen 9000, 8000 and 7000 CPUs with DDR5 4800 support up to 256 GB, 18+2+2 power phases, four M.2 slots at PCIe 5.0 and 4.0, USB4 Type-C, WIFI7 and 5 GbE LAN

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • South BridgeAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800
  • Maximum Memory Supported256GB

Model X870E AORUS PRO X3D

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • Digital twin 18+2+2 power phase with 8-layer PCB delivers steady power
  • Four DDR5 slots up to 256 GB with AMD EXPO support
  • Four M.2 slots with PCIe 5.0 x4 and 4.0 x4 plus PCIe 5.0 x16 graphics slot
  • WIFI7, Bluetooth 5.4 and 5 GbE LAN for high-speed connectivity

Socket AM5 Platform

The GIGABYTE X870E AORUS PRO X3D is an ATX motherboard built for AMD Ryzen 9000, 8000 and 7000 series processors. It uses the AMD X870E chipset and a digital 18+2+2 power phase design on an 8-layer PCB. Four DDR5 slots support up to 256 GB of memory with AMD EXPO profiles.

Enthusiast Builder Fit

This board suits builders who need three full-length PCIe x16 slots, four M.2 sockets with two running at PCIe 5.0 x4, and a 5 GbE LAN port alongside WIFI7 and Bluetooth 5.4. Users requiring ECC memory or a smaller form factor should consider alternative models.

DIY Feature Impact

PCIe EZ-Latch Plus enables single-click graphics card release while M.2 EZ-Latch Click and Plus allow screwless SSD and heatsink installation. WIFI EZ-Plug simplifies antenna attachment and DriverBIOS provides pre-installed wireless drivers. The rear troubleshooting button and Sensor Panel Link HDMI port streamline system setup and diagnostics.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • Digital twin 18+2+2 power phase with 8-layer PCB delivers steady power
  • Four DDR5 slots up to 256 GB with AMD EXPO support
  • Four M.2 slots with PCIe 5.0 x4 and 4.0 x4 plus PCIe 5.0 x16 graphics slot
  • WIFI7, Bluetooth 5.4 and 5 GbE LAN for high-speed connectivity

Specifications

BrandGIGABYTE
SeriesAORUS
CPU Socket TypeAM5
ChipsetAMD X870E
South BridgeAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x163 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)4 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/10
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetRealtek 5GbE
Max LAN Speed5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

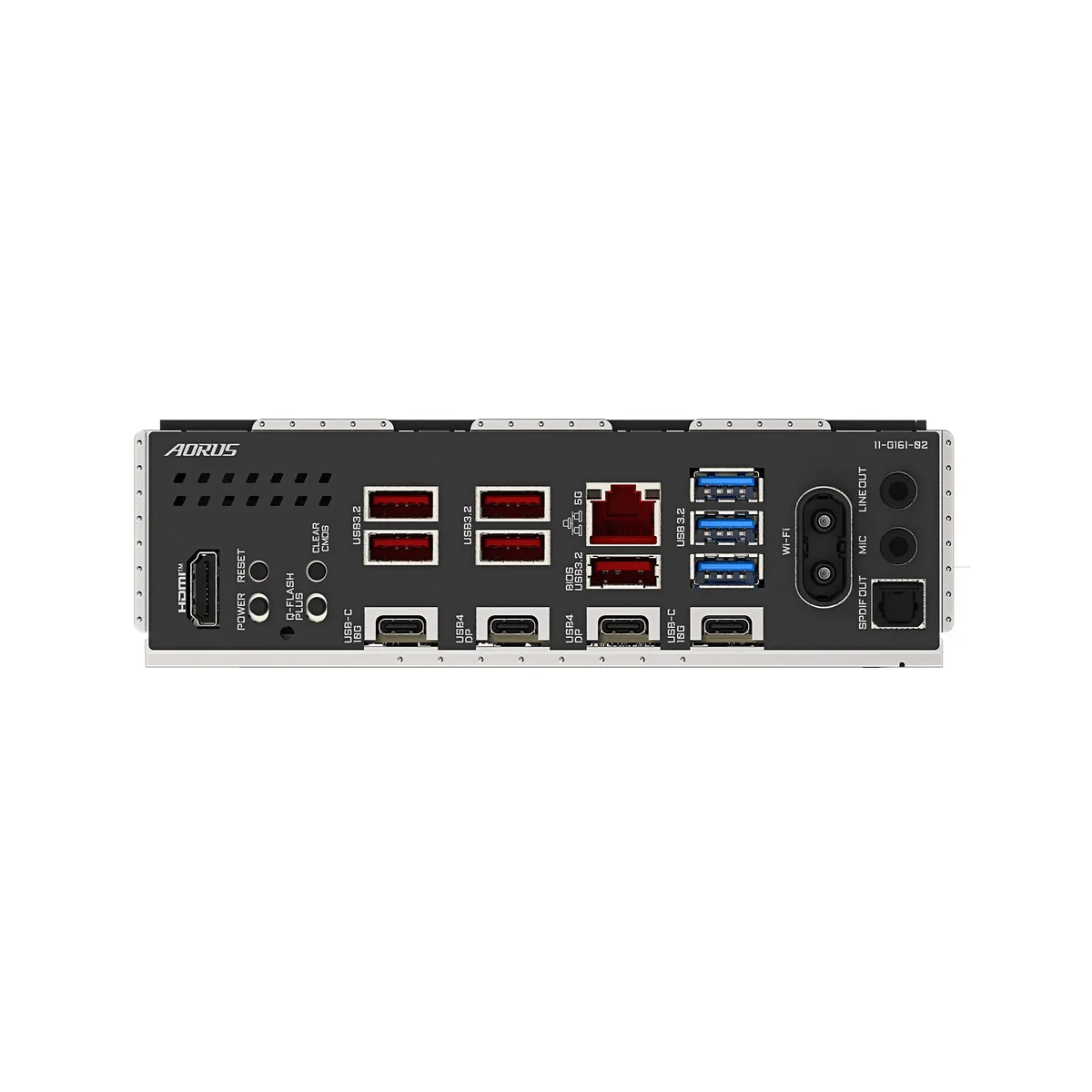

Back I/O Ports1 x HDMI port, 1 x reset button, 1 x power button, 1 x Clear CMOS button, 1 x Q-Flash Plus button, 5 x USB 3.2 Gen 2 Type-A ports, 2 x USB Type-C ports with USB 3.2 Gen 2 support, 2 x USB4 USB Type-C ports, 1 x RJ-45 port, 3 x USB 3.2 Gen 1 ports, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out connector
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
DisplayPort2 x DisplayPort
USB 3.111 x USB 3.1
USB 3.07 x USB 3.0
USB 1.1/2.04 x USB 2.0/1.1 ports
USB Type-C2 x USB4 USB Type-C® port, 2 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB Type-C® port with USB 3.2 Gen 2x2 support
S/PDIF Out1 x Optical
Game/MIDI Ports0
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Shipping weight3.72 kg
Package size343 × 310 × 86 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need a Ryzen 7000, 8000 or 9000 series CPU for the AM5 socket?

Yes, the board only accepts AM5 processors from the Ryzen 7000, 8000 and 9000 families.

Will my PCIe 4.0 graphics card run at full speed in the PCIe 5.0 x16 slot?

The PCIe 5.0 x16 slot is backward compatible, so a PCIe 4.0 card will operate at its native 4.0 speeds.

How can I confirm the DDR5 memory is running at the rated EXPO speed after build?

Enter the BIOS and verify the memory frequency shows 4800 MT/s or the EXPO profile you selected.
