Green circuit board with black chips, gold edge connector, no heatsink, M.2 2280 label

KingSpec

KingSpec XG 7000 512GB M.2 2280 PCIe 4.0 NVMe 1.4 internal SSD

SKU CH-42J3-5YGC9

512 GB PCIe 4.0 NVMe 1.4 M.2 2280 SSD with 7400 MB/s read, 6600 MB/s write, 720000/800000 IOPS and 300 TBW

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options XG 7000-512GB

Struck-through versions exist but are not stocked here.

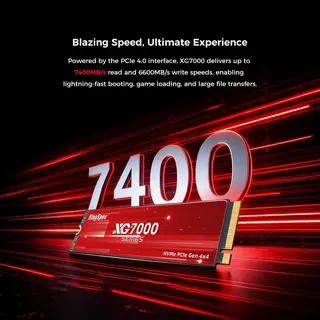

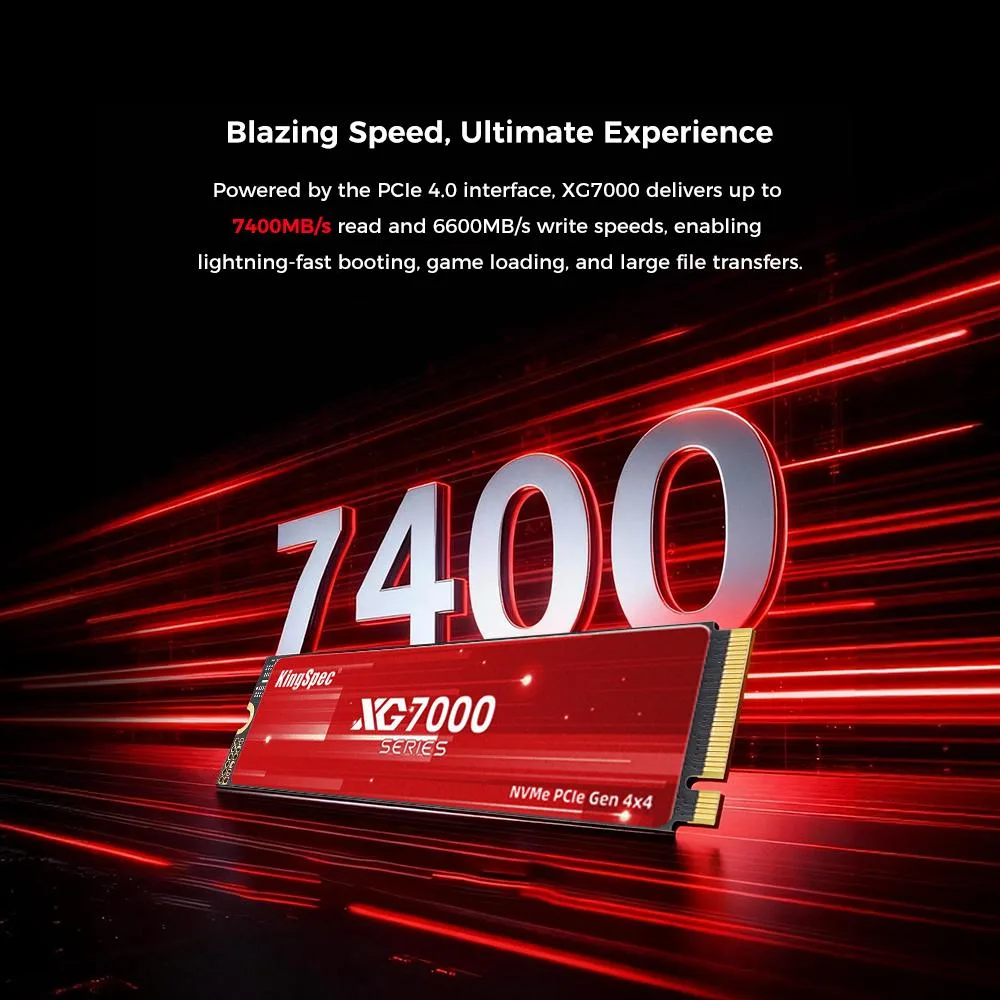

  • Sequential read up to 7400 MBps for rapid boot and load times
  • Sequential write up to 6600 MBps to move large files quickly
  • Random read up to 720000 IOPS keeps multitasking responsive
  • Random write up to 800000 IOPS handles heavy write workloads
  • 300 TBW endurance rating supports long-term daily use

KingSpec XG 7000 512GB PCIe 4.0 NVMe 1.4 SSD

This 512GB internal solid-state drive uses 3D NAND flash and a PCIe 4.0 x4 interface with NVMe 1.4 protocol. It targets gamers, content creators and power users who need fast boot times and quick application loading on desktops, laptops or a PS5 console.

Graphene heat spreader on M.2 2280 form factor

The drive includes an integrated graphene-based heat spreader measuring 2.1mm in height, keeping the 80.0mm by 22.0mm module within standard single-sided clearance. No separate heatsink is required, simplifying installation in thin laptops or the PS5 expansion slot while maintaining stable temperatures under load.

Verify M.2 key, PCIe generation and heatsink

Confirm your motherboard or laptop provides an M.2 2280 M-key slot wired for PCIe 4.0 x4 to reach the rated 7400 MBps read and 6600 MBps write speeds. The drive is backward compatible with PCIe 3.0 at reduced throughput. Ensure the 2.1mm module height fits your device’s thermal pad or cover specifications before ordering.

Highlights

  • Sequential read up to 7400 MBps for rapid boot and load times
  • Sequential write up to 6600 MBps to move large files quickly
  • Random read up to 720000 IOPS keeps multitasking responsive
  • Random write up to 800000 IOPS handles heavy write workloads
  • 300 TBW endurance rating supports long-term daily use

Specifications

BrandKingSpec
SeriesXG7000 Series
ModelXG7000 2280
Part NumberXG7000-512 2280
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
Max Sequential ReadUp to 7400 MBps
Max Sequential WriteUp to 6600 MBps
4KB Random ReadUp to 720,000 IOPS
4KB Random WriteUp to 800,000 IOPS
Terabytes Written (TBW)300TB
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)0.66W
Power Consumption (Active)8.18W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
Height80mm
Width22.0mm
Depth2.1mm
Weight30g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe generation does the XG 7000 use and what does it cap read speed at?

The drive runs on PCIe 4.0 x4 and reaches up to 7400 MBps sequential read.

What are the exact M.2 2280 dimensions and heatsink status of this model?

It measures 80.0 mm long, 22.0 mm wide and 2.1 mm high, and ships without a separate heatsink.

How is the XG 7000 installed in a PS5 and which step do users often miss?

Insert the drive at an angle into the M.2 slot, press it flat and secure it with the motherboard screw; many forget to tighten that screw.
