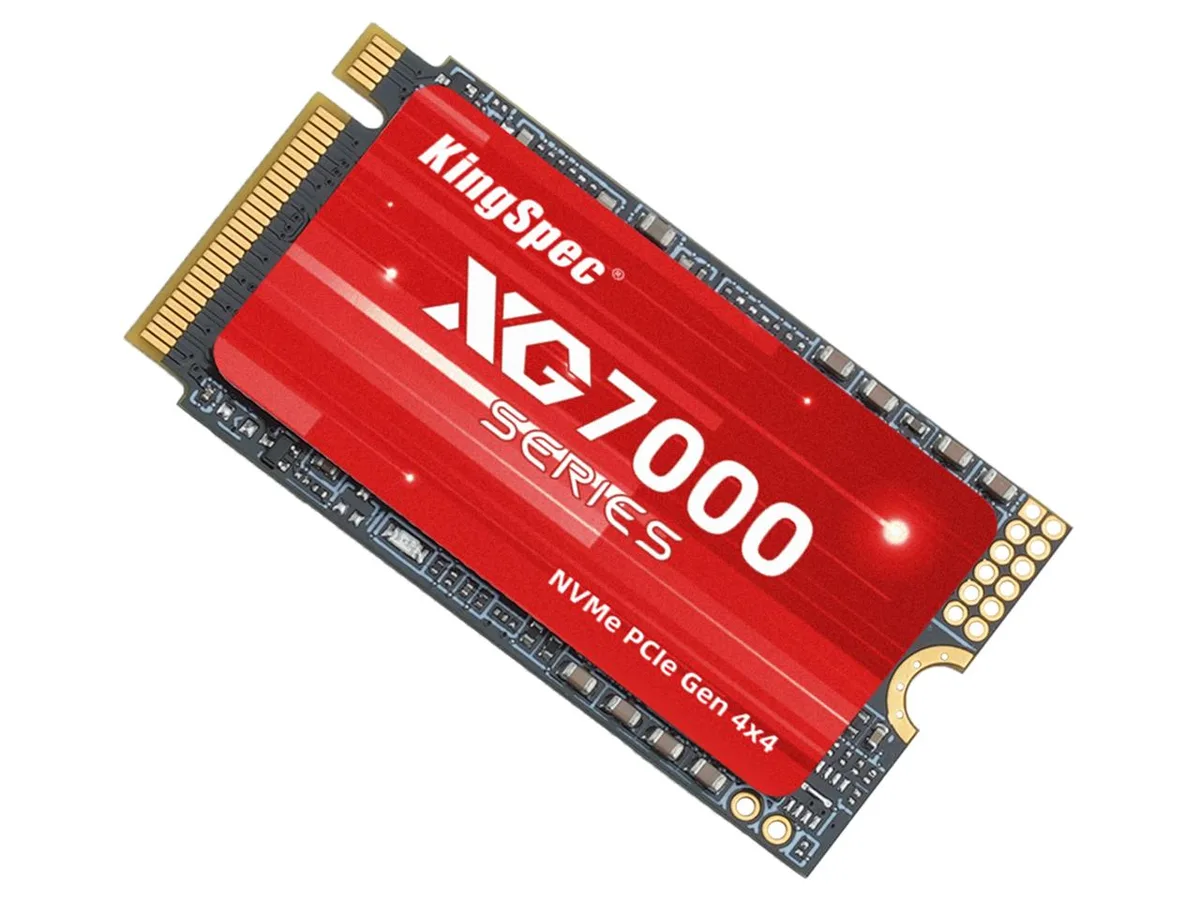

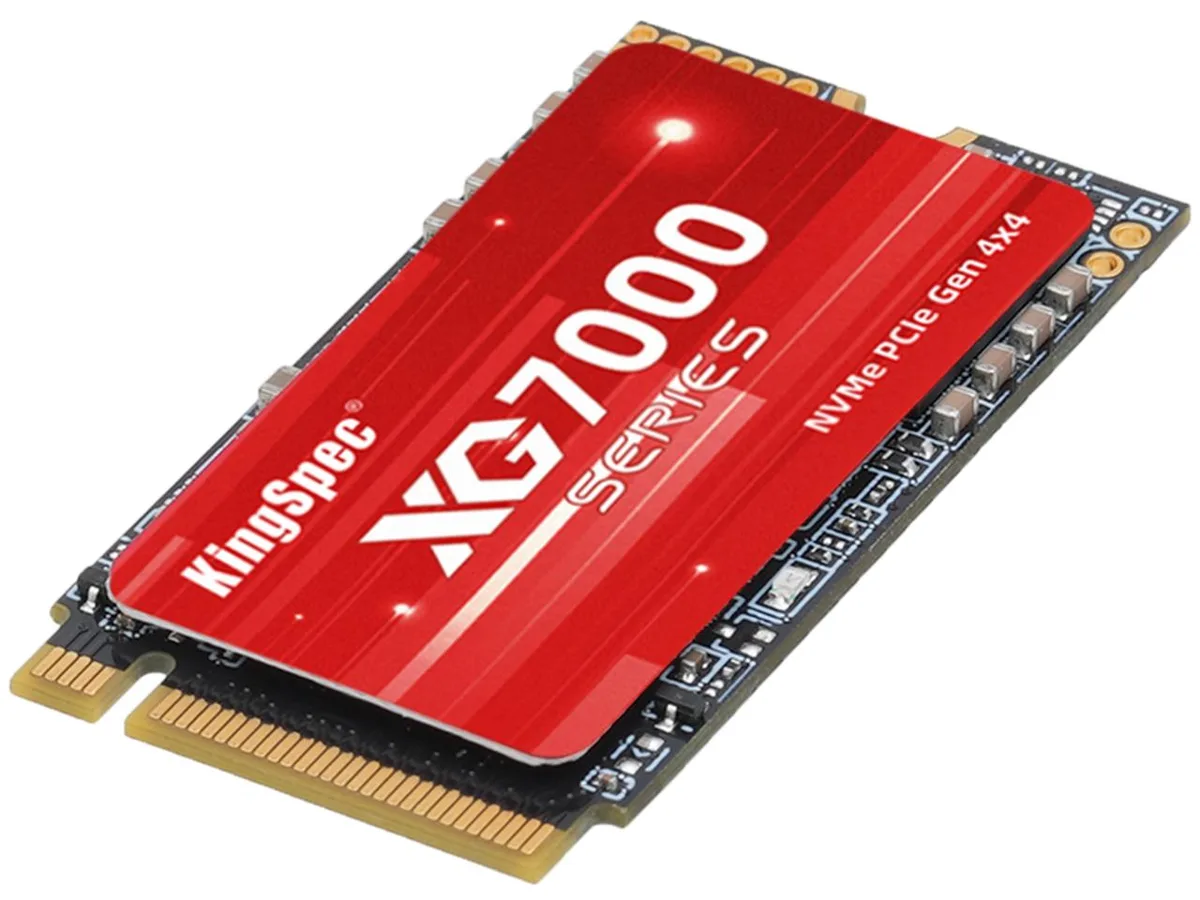

M.2 2242 SSD with integrated heatsink, 42 by 22 by 3.5 mm

KingSpec

KingSpec XG7000-2TB 2242 internal SSD with Heatsink

SKU CH-GB38-QTJK7

Compact M.2 2242 drive with heatsink delivers 2 TB storage and up to 7200 MB/s reads over PCIe 4.0 x4

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2242
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options XG 7000-2TB 2242

Struck-through versions exist but are not stocked here.

  • PCIe 4.0 x4 delivers up to 7200 MB/s reads for faster boot and load times
  • Sequential writes up to 6400 MB/s accelerate large file transfers and content creation
  • 700,000 random read IOPS and 650,000 write IOPS keep multitasking responsive
  • 1200 TBW and 1,000,000-hour MTBF indicate long-term endurance
  • Built-in heatsink maintains performance in compact M.2 2242 devices

Compact 2242 form factor

The KingSpec XG7000-2TB 2242 is a 2TB internal SSD built on PCIe 4.0 x4 and NVMe 1.4. It delivers sequential reads up to 7200 MB/s and writes up to 6400 MB/s with 3D NAND flash. A heatsink is included to manage thermals during sustained workloads.

Ideal for space-constrained upgrades

This drive suits laptops, ultrabooks and small-form-factor PCs that accept a 42.0 mm long M.2 module. The 0.96 W idle and 5.84 W active power draw help battery life. Systems limited to PCIe 3.0 or shorter M.2 slots will not realise the full performance or may not fit the drive.

Verify slot length and keying

Confirm your motherboard or laptop provides an M.2 2242 M-key slot with PCIe 4.0 x4 wiring. The drive measures 42.0 mm by 22.0 mm by 3.5 mm and requires a 3.3 V supply. Check BIOS for NVMe boot support and ensure adequate airflow around the heatsink.

Highlights

  • PCIe 4.0 x4 delivers up to 7200 MB/s reads for faster boot and load times
  • Sequential writes up to 6400 MB/s accelerate large file transfers and content creation
  • 700,000 random read IOPS and 650,000 write IOPS keep multitasking responsive
  • 1200 TBW and 1,000,000-hour MTBF indicate long-term endurance
  • Built-in heatsink maintains performance in compact M.2 2242 devices

Specifications

BrandKingSpec
SeriesXG7000 2242 Series
ModelXG7000-2TB 2242
Part NumberXG7000-2TB 2242
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2242
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 7200 MBps
Max Sequential WriteUp to 6400 MBps
4KB Random ReadUp to 700,000 IOPS
4KB Random WriteUp to 650,000 IOPS
Terabytes Written (TBW)1200TB
MTBF1,000,000 hours
HeatSinkwith HeatSink
Power Consumption (Idle)0.96W
Power Consumption (Active)5.84W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
Height42.0mm
Width22.0mm
Depth3.5mm
Weight20g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my motherboard need an M.2 2242 slot that supports PCIe 4.0 x4 for this drive?

Yes, the XG7000-2TB 2242 requires an M.2 2242 slot with PCIe 4.0 x4 and NVMe 1.4 support to reach its rated speeds of up to 7200 MB/s read and 6400 MB/s write.

Will it fit in a laptop that currently uses a 2280-length drive?

No, this model is 42.0 mm long (2242 form factor) while a 2280 drive is 80 mm long; the mounting screw position and physical space are different.

How can I confirm the drive is healthy after installation?

Check the SMART attributes for total bytes written (rated up to 1200 TBW), media errors and temperature (0°C–70°C operating range), and run a sequential read/write benchmark to verify speeds near 7200/6400 MB/s.
