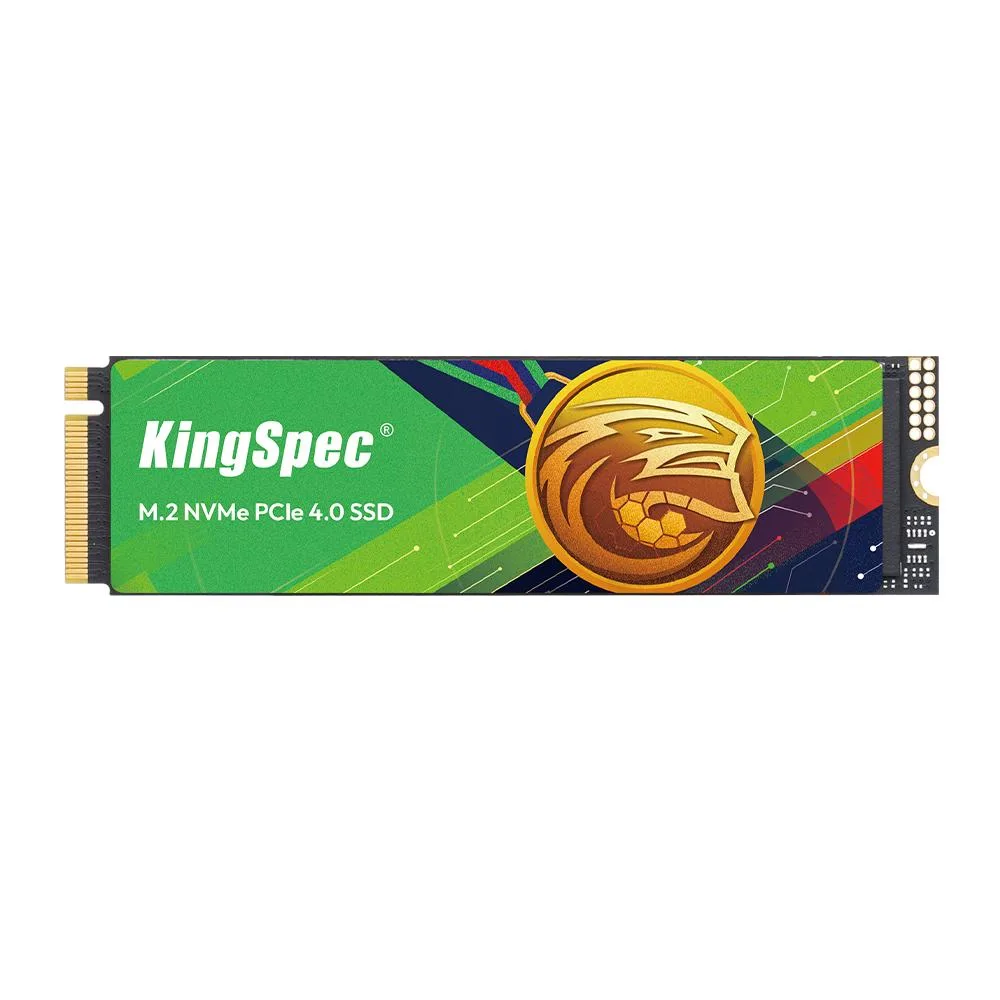

KingSpec XG7000-FB 2TB M.2 2280 internal SSD without heatsink

KingSpec

KingSpec XG7000-FB 2TB internal SSD

SKU CH-PFSV-JPZB9

A 2 TB PCIe 4.0 x4 NVMe 1.4 M.2 2280 SSD reaching 7400 MB/s read and 6600 MB/s write with 1200 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options XG7000-2TB-Soccer 2280

Struck-through versions exist but are not stocked here.

  • Up to 7400 MB/s read speeds via PCIe 4.0 x4
  • Up to 6600 MB/s write speeds for fast data transfers
  • 720,000 random read IOPS and 800,000 random write IOPS for responsive multitasking
  • 1200 TBW endurance rating with 1,000,000 hours MTBF for long-term reliability
  • Slim 2.1 mm profile without heatsink fits PS5, laptops and desktops

XG7000-FB 2TB PCIe 4.0 NVMe SSD

The KingSpec XG7000-FB is a 2TB internal solid state drive built on 3D NAND with a PCIe 4.0 x4 interface and NVMe 1.4 protocol. It delivers sequential reads up to 7400 MB/s and writes up to 6600 MB/s with random performance of 720000 read IOPS and 800000 write IOPS. The drive targets gamers and creators who need high throughput for large game libraries, 4K or 8K media, and heavy workloads. Endurance is rated at 1200 TBW with an MTBF of 1000000 hours.

Verify M.2 2280 slot, PCIe generation and heatsink

Confirm your motherboard or laptop provides an M.2 2280 M-key slot that supports PCIe 4.0 x4; the drive is backward compatible with PCIe 3.0 but will run at the slower link speed. The module measures 80.0 mm long, 22.0 mm wide and 2.1 mm high without a heatsink, so ensure the bay has enough vertical clearance, especially in slim laptops or the PS5 expansion slot. Active power draw reaches 8.18 W, so verify the platform can supply sufficient current under load.

Integrated graphene heat spreader and firmware

An integrated graphene-based heat spreader covers the controller and NAND to dissipate heat without adding a bulky metal heatsink, helping maintain consistent speeds during extended sessions. The firmware enables Host Memory Buffer and SLC caching to boost random IOPS and reduce latency for responsive game loading and multitasking. ECC and 3D NAND construction protect data integrity across the 1200 TBW endurance rating.

Highlights

  • Up to 7400 MB/s read speeds via PCIe 4.0 x4
  • Up to 6600 MB/s write speeds for fast data transfers
  • 720,000 random read IOPS and 800,000 random write IOPS for responsive multitasking
  • 1200 TBW endurance rating with 1,000,000 hours MTBF for long-term reliability
  • Slim 2.1 mm profile without heatsink fits PS5, laptops and desktops

Specifications

BrandKingSpec
SeriesXG7000-FB Series
ModelXG7000-FB 2280
Part NumberXG7000-2TB-FB 2280
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
Max Sequential ReadUp to 7400 MBps
Max Sequential WriteUp to 6600 MBps
4KB Random ReadUp to 720,000 IOPS
4KB Random WriteUp to 800,000 IOPS
Terabytes Written (TBW)1200TB
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)0.66W
Power Consumption (Active)8.18W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
Height80mm
Width22.0mm
Depth2.1mm
Weight30g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the KingSpec XG7000-FB 2TB include a heatsink or do I need to buy one separately?

The drive ships without a heatsink; it uses a graphene-based thermal spreader integrated into the PCB, so no separate heatsink is required unless your motherboard or PS5 slot demands one.

Which capacity in the XG7000-FB range gives me the 7400 MBps read and 6600 MBps write figures?

The 2 TB model delivers the headline 7400 MBps sequential read and 6600 MBps sequential write; smaller capacities in the same series typically run at lower peak speeds.

What do the 7400 MBps read and 6600 MBps write numbers mean once the SSD is installed in a PS5 or PCIe 4.0 desktop?

They are maximum sequential throughput over a PCIe 4.0 x4 link; real-world game loads and file copies will be lower but still far above PCIe 3.0 limits, and the drive remains backward compatible with PCIe 3.0 slots.
