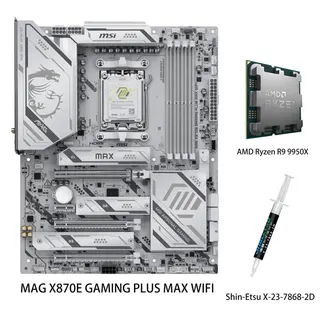

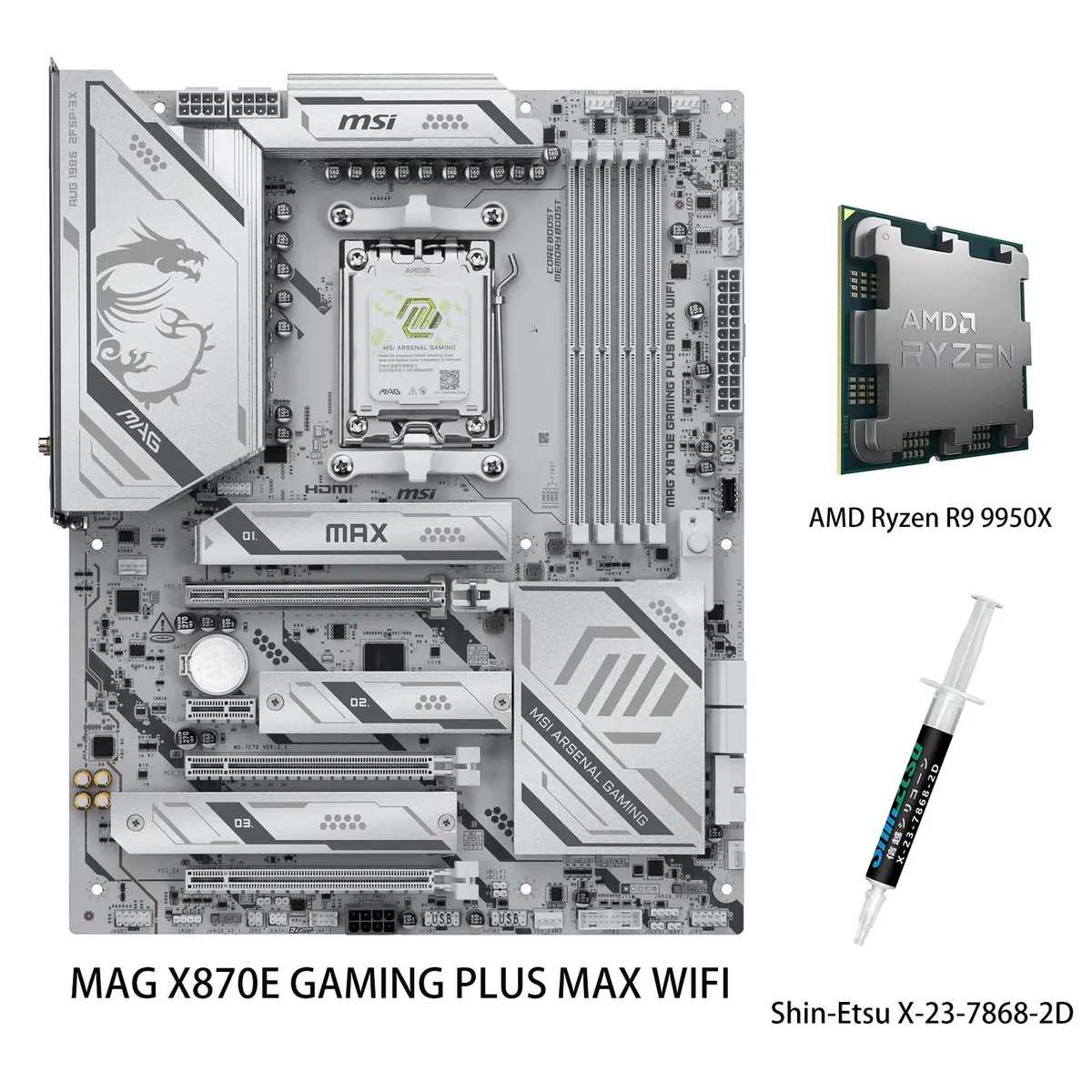

ATX motherboard in black and silver with large CPU cooler and Ryzen 9 9950X processor installed

MSI

MSI MAG X870E GAMING PLUS MAX WIFI & Ryzen 9 9950X Combo

SKU CH-F8NW-M9TN5

A motherboard and CPU combo with an AM5 socket board supporting DDR5 up to 8200 MT/s, PCIe 5.0 graphics and M.2, Wi-Fi 7, 5G LAN, and a 16-core 32-thread Ryzen 9 9950X processor

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processor
  • ChipsetAMD X870E
  • Number of Memory Slots4x DDR5 UDIMM
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB

CPU +Ryzen 9 9950X

  • 16-core CPU with 32 threads handles heavy workloads
  • DDR5 memory scales up to 8200 MT/s for fast data rates
  • PCIe 5.0 x16 slot and Gen5 M.2 deliver 128GB/s bandwidth
  • Wi-Fi 7 with 320MHz channel reaches 5.8Gbps peak speed
  • 5G LAN plus EZ PCIe Release and tool-less M.2 Shield simplify build and upgrades

AM5 Motherboard and Ryzen 9 9950X Combo

This bundle pairs an MSI MAG X870E GAMING PLUS MAX WIFI motherboard with an AMD Ryzen 9 9950X processor. The CPU delivers 16 cores and 32 processing threads for demanding workloads. The board uses the AMD X870E chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. It targets enthusiasts building high-performance desktop systems.

DDR5 Memory Limits and PCIe 5.0 Storage

Four DDR5 UDIMM slots accept up to 256GB in dual-channel configuration. Ryzen 9000 series processors reach 8200+ MT/s with one single-rank DIMM, 6400+ MT/s with one dual-rank DIMM, and lower speeds with two DIMMs per channel. JEDEC standard operation runs at 5600-4800 MT/s. One M.2 slot connects via CPU PCIe 5.0 x4 for 2280/2260 drives, while two chipset-linked slots provide PCIe 4.0 x4 bandwidth.

Wi-Fi 7 Network and 5G LAN Connectivity

The motherboard includes Wi-Fi 7 with a 320MHz channel capable of 5.8Gbps maximum transmission speed, which is 2.4 times faster than Wi-Fi 6. A 5G LAN port provides wired connectivity beyond standard gigabit rates. Verify your router supports Wi-Fi 7 and your switch or cabling handles multi-gigabit Ethernet to use these speeds. The 64MB BIOS ROM aids future CPU compatibility.

Highlights

  • 16-core CPU with 32 threads handles heavy workloads
  • DDR5 memory scales up to 8200 MT/s for fast data rates
  • PCIe 5.0 x16 slot and Gen5 M.2 deliver 128GB/s bandwidth
  • Wi-Fi 7 with 320MHz channel reaches 5.8Gbps peak speed
  • 5G LAN plus EZ PCIe Release and tool-less M.2 Shield simplify build and upgrades

Specifications

BrandMSI
ModelMAG X870E GAMING PLUS MAX WIFI+R9 9950X
Part NumberMAG X870E GAMING PLUS MAX WIFI+R9 9950X
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x DDR5 UDIMM
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x160 x PCI Express 3.0 x16
PCI Express x162 x PCI Express x16
PCI Express x11 x PCI Express x1
Serial ATA (SATA)4x SATA 6G
M.23 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_1 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M.2_2 slot (From CPU)
Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
M.2_3 slot (From CPU)
Supports up to
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek 8126VB
Max LAN Speed5Gbps
BluetoothYes
Back I/O Ports4 x USB 2.0
2 x USB 5Gbps Type A
2 x USB 10Gbps Type A
1 x USB 20Gbps Type C
1 x USB 40Gbps Type C
1 x HDMI
HDMI1 x HDMI
DisplayPort1 x DisplayPort
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 6 x USB 2.0
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x Direct OC Jumper (JBCLK)
Form FactorATX
LED LightingNone RGB
Dimensions (W x L)243.84mm x 304.8mm
Windows 11Supported
Features4x EZ Debug LED
1x EZ Memory Detection LED

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this combo support DDR5 memory running at 8200 MT/s out of the box?

The board lists DDR5 8200+ MT/s as an overclocked maximum with Ryzen 9000 series CPUs; JEDEC speeds are 5600–4800 MT/s, so 8200 MT/s requires manual tuning and a compatible 1DPC 1R kit.

How many M.2 drives can I install and which slot is PCIe 5.0?

Three M.2 slots are provided; M.2_1 runs PCIe 5.0 x4 from the CPU, while M.2_2 and M.2_3 run PCIe 4.0 x4 from the chipset, all supporting 2280 and 2260 lengths.

Does the included Ryzen 9 9950X come with a cooler?

The 16-core, 32-thread processor is sold as a tray/boxed CPU without a bundled cooler, so a separate AM5-compatible air or liquid cooler is required.
