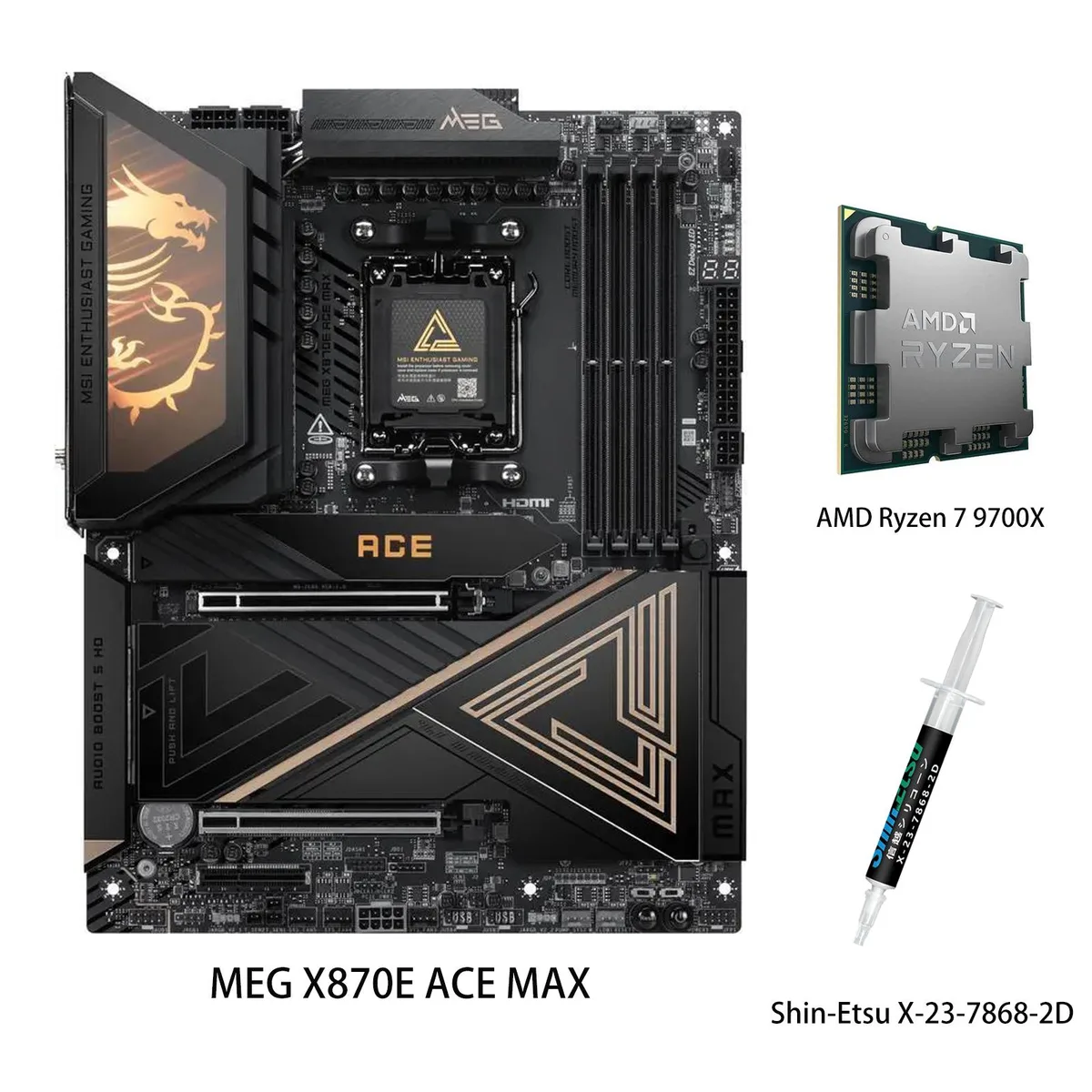

ATX motherboard with Ryzen 7 9700X CPU installed, black finish, silver heatsinks

MSI

MSI MEG X870E ACE MAX AMD motherboard & Ryzen 7 9700X CPU combo

SKU CH-K42H-VFZ98

ATX AM5 motherboard and 8-core Ryzen CPU with 16 threads, 5.5 GHz boost, 40 MB cache, 110 A VRM, DDR5 up to 9000 MT/s, 64 MB BIOS, 10 GbE plus 5 GbE LAN, four SATA ports and five M.2 slots

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • South BridgeAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

CPU +Ryzen 7 9700X

  • Ready for next-gen CPUs with 64 MB BIOS capacity
  • Maximum CPU power from 18+2+1 DRPS and 110A SPS
  • DDR5 speeds up to 9000+ MT/s overclocked on four slots
  • 10G and 5G LAN deliver high-throughput networking
  • Ryzen 7 9700X hits 5.5 GHz boost with 8 cores and 16 threads

Ready for next-gen AM5 builds

The combo pairs an MEG X870E ACE MAX motherboard with a Ryzen 7 9700X processor. The board supports Ryzen 9000, 8000 and 7000 series CPUs on the AM5 socket. The CPU delivers 8 cores and 16 threads with a max boost clock of 5.5 GHz and 40 MB cache. It is unlocked for overclocking and supports DDR5-5600 memory.

64 MB BIOS and OC Engine

A 64 MB BIOS ROM improves compatibility with future CPU upgrades. The OC Engine clock generator works with the 18+2+1 DRPS power design rated at 110A SPS to unlock maximum CPU performance. Frozr AI software coordinates the wavy fin heatsink, cross heat-pipe, aluminium cover, double-sided M.2 shields and metal backplate for thermal control.

10G and 5G LAN plus five M.2 slots

Onboard 10G and 5G LAN ports provide high-throughput wired networking. Five M.2 sockets accept PCIe 5.0 x4 and 4.0 x4 drives alongside four SATA 6Gb/s ports. The Realtek ALC4082 audio codec handles sound. Four DDR5 slots support up to 256 GB in dual channel at speeds beyond 9000 MT/s when overclocked.

Highlights

  • Ready for next-gen CPUs with 64 MB BIOS capacity
  • Maximum CPU power from 18+2+1 DRPS and 110A SPS
  • DDR5 speeds up to 9000+ MT/s overclocked on four slots
  • 10G and 5G LAN deliver high-throughput networking
  • Ryzen 7 9700X hits 5.5 GHz boost with 8 cores and 16 threads

Specifications

BrandMSI
SeriesMEG
ModelMEG X870E ACE MAX+R7 9700X
CPU Socket TypeAM5
ChipsetAMD X870E
South BridgeAMD X870E
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x162 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Other Slots1 x M.2 (Key-E)
Serial ATA (SATA)4 x SATA 6Gb/s
M.25 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/10
Audio ChipsetRealtek ALC4082
Audio Channels7.1 Channels
LAN ChipsetMarvell AQC113CS, Realtek 8126
Second LAN ChipsetRealtek 8126
Max LAN Speed10Gbps + 5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes
Back I/O Ports9 x USB 10Gbps Type-A, 2 x USB 10Gbps Type-C, 2 x USB 40Gbps Type-C, 1 x HDMI, 1 x 10G LAN, 1 x 5G LAN, 1 x Optical S/PDIF-Out
Video PortsHDMI + 2 x Display Port
S-VideoNo
HDMI1 x HDMI
RJ452 x RJ45
DisplayPort2 x DisplayPort
USB 3.111 x USB 3.1
USB 3.04 x USB 3.0
USB 1.1/2.04 x USB 2.0
USB Type-C2 x USB Type-C® port, with USB 40Gbps support; 2 x USB Type-C® port, with USB 10Gbps support; 1 x USB Type-C® port, with USB 20Gbps support
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB4 x USB 3.2 + 4 x USB 2.0 + 1 x USB Type-C header, with USB 3.2 Gen 2x2
Form FactorATX
LED LightingRGB
Dimensions (W x L)243.84mm x 304.8mm
Power Pin24 Pin
Windows 11Supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 64 MB BIOS ROM need to be updated for future CPU upgrades?

The 64 MB BIOS ROM is designed to support next-level CPU upgrades with better compatibility, so future processors should be recognised without a physical ROM replacement.

What limits the VRM under sustained heavy loads?

The 18+2+1 DRPS power stages are rated at 110 A SPS each, so the current ceiling of those stages is the first limit reached during prolonged all-core workloads.

How loud and hot does the Frozr heatsink get when the system runs all day?

The Wavy Fin design, direct-touch cross heat-pipe, aluminium cover, double-sided M.2 shields and metal backplate are managed by Frozr AI software to keep temperatures low and fan noise minimal during continuous operation.
