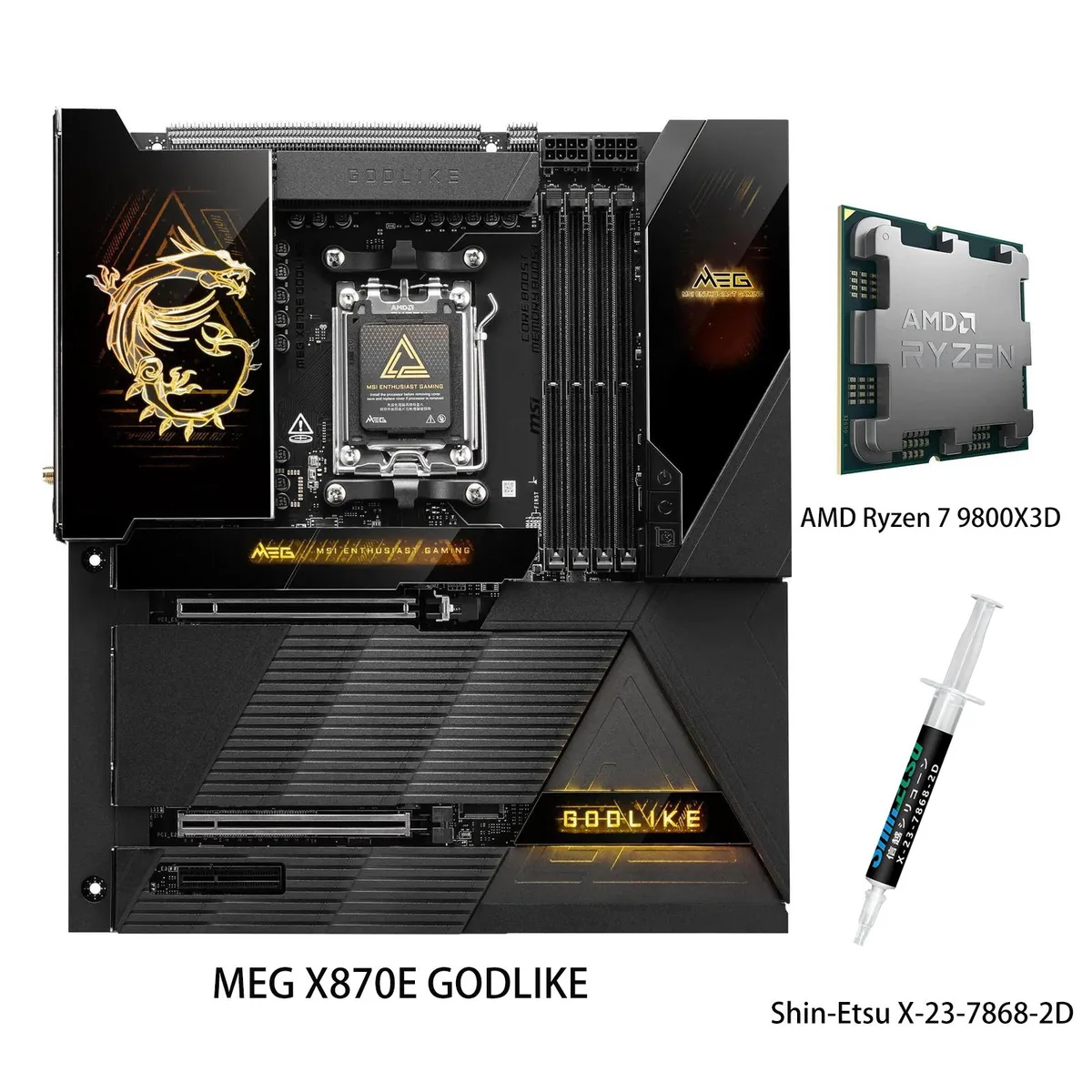

Large rectangular motherboard in dark finish with a small colour screen near the I/O panel

MSI

MSI MEG X870E GODLIKE AMD motherboard with Ryzen 7 9800X3D CPU

SKU CH-ZR9G-97G4X

X870E motherboard and Ryzen 7 9800X3D CPU combo with 3.99-inch LCD dashboard, 26+2+1+1 phase power, dual Thunderbolt 4, 10G and 5G LAN, WIFI 7, seven M.2 slots and four SATA ports

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

CPU +Ryzen 7 9800X3D

  • Real-time monitoring on a 3.99-inch LCD dashboard
  • Clean builds with consolidated front-panel, fan and ARGB headers
  • 26+2+1+1 DRPS power stages rated at 110A for stable overclocks
  • Dual Thunderbolt 4 ports deliver 40Gb/s and 8k display support
  • WIFI 7 with 320MHz channels plus 10G and 5G LAN

AM5 Motherboard and Ryzen 7 9800X3D Combo

This bundle pairs an extended ATX motherboard built on the AMD X870E chipset with a Ryzen 7 9800X3D processor. It targets enthusiasts who want a high-end platform for gaming and content creation without sourcing parts separately. The board includes a 3.99-inch LCD dashboard for hardware monitoring and BIOS updates. Dual Thunderbolt 4 ports provide 40Gb/s connectivity for external devices.

AM5 Socket DDR5 Memory and Power Requirements

Verify that your cooler uses the AM5 mounting pattern and that your power supply delivers enough 12V current for the 26+2+1+1 phase VRM rated at 110A per stage. The four DDR5 slots support up to 256GB at speeds up to 9000 MT/s when overclocked. Ensure your case fits an extended ATX board and has room for the EZ Bridge and EZ Control Hub cable routing system.

High-End Gaming and Workstation Builders

This combination suits builders who need 10Gbps and 5Gbps LAN, WIFI 7 with a 320MHz channel, and seven M.2 slots for dense storage arrays. The Realtek ALC4082 plus ESS ES9280AQ audio stack delivers 7.1-channel output at 32-bit/384 kHz. Users needing a smaller form factor, fewer expansion slots, or a lower-tier chipset should consider other AM5 boards.

Highlights

  • Real-time monitoring on a 3.99-inch LCD dashboard
  • Clean builds with consolidated front-panel, fan and ARGB headers
  • 26+2+1+1 DRPS power stages rated at 110A for stable overclocks
  • Dual Thunderbolt 4 ports deliver 40Gb/s and 8k display support
  • WIFI 7 with 320MHz channels plus 10G and 5G LAN

Specifications

BrandMSI
SeriesMEG X870E GODLIKE+R7 9800X3D
ModelMEG X870E GODLIKE+R7 9800X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
PCI Express 5.0 x162 x PCI Express 5.0 x16
PCI Express x41 x PCI Express x4
PCI Slots2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E3 slot
• Supports up to PCIe 4.0 x4
Serial ATA (SATA)4 x SATA 6Gb/s
M.27x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCI
SATA RAIDSupports RAID 0, RAID 1 and Raid 10 for SATA storage devices
Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC4082+ESS ES9280AQ
Audio ChannelsRealtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
LAN ChipsetAQC113+ Realtek 8125BG
Max LAN Speed1x Marvell® AQC113CS 10Gbps LAN
1x Realtek® 8126 5Gbps LAN
Wireless LANWi-Fi 802.11 be
Onboard 13941x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
1x Addressable V2 RGB LED connector (JARGB_V2)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports
Form FactorExtended ATX
Windows 11Supported
Features1x Dynamic Dashboard III
1x EZ Digit Debug LED
1x EZ LED Control switch

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the MEG X870E GODLIKE combo and what must be purchased separately?

The box contains the MEG X870E GODLIKE motherboard and the Ryzen 7 9800X3D processor. You must buy DDR5 memory modules, storage drives, a CPU cooler, a graphics card, a power supply and a chassis separately.

Which DDR5 speed should I choose for the four 288-pin slots on this board?

The board supports JEDEC speeds from 4800 to 5600 MT/s and overclocked speeds up to 9000 MT/s. With Ryzen 9000 series, a single-rank kit in one slot per channel can reach 8400+ MT/s.

What does the 3.99-inch Dynamic Dashboard III actually show once the system is running?

The LCD displays real-time hardware monitoring, POST codes for troubleshooting, allows BIOS updates and can show custom images or animations you upload.
