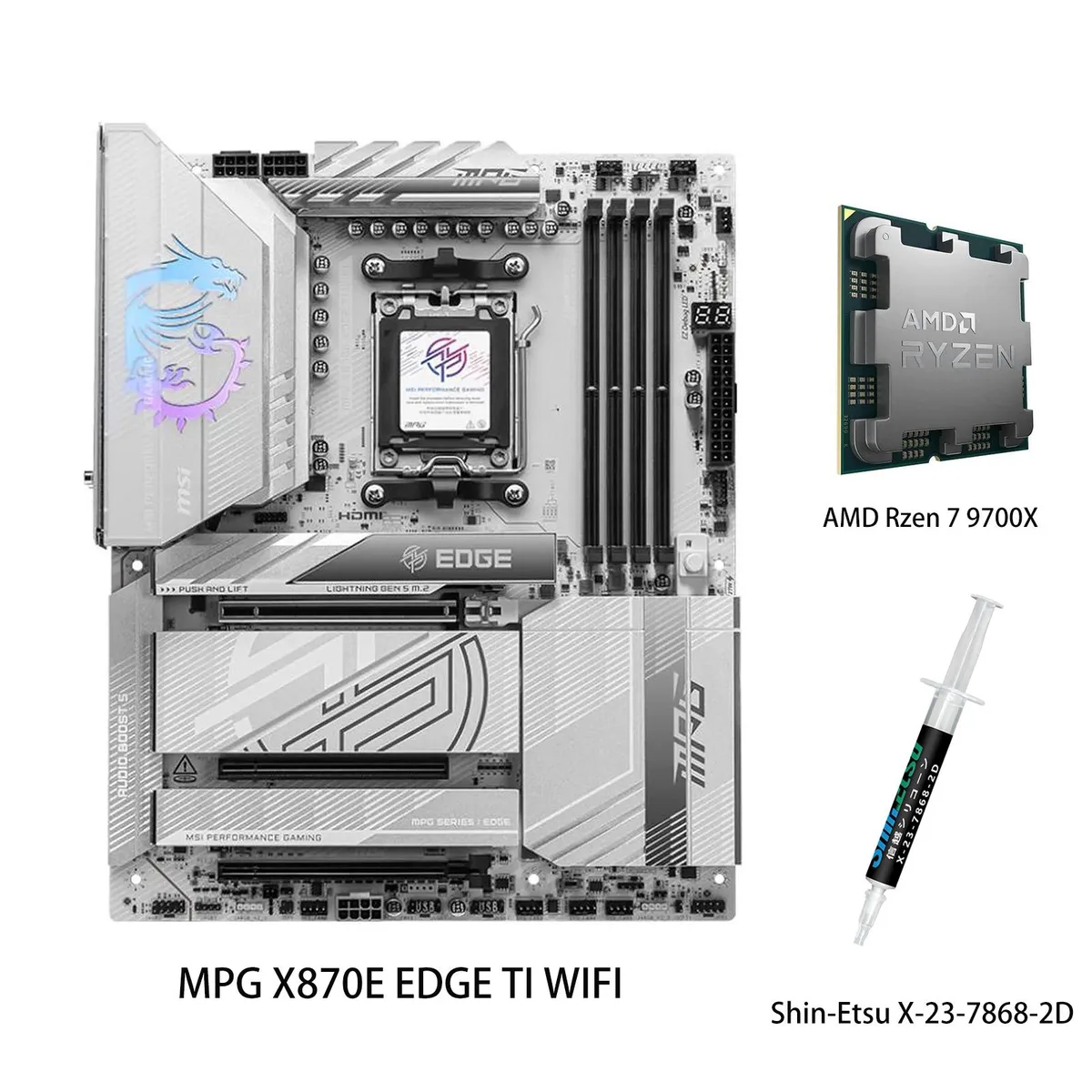

ATX motherboard in silver and black with large heatsinks, four DDR5 slots and multiple M.2 shields

MSI

MSI MPG X870E EDGE TI WIFI + Ryzen 7 9700X AMD motherboard CPU combo

SKU CH-KCBP-SXPQ4

Pairs an AM5 X870E board with a Ryzen 7 9700X, offering 8 cores, 16 threads, DDR5 up to 8400 MT/s, four M.2 slots, PCIe 5.0 graphics, 5G LAN and Wi‑Fi 7

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB

CPU +Ryzen 7 9700X

  • Ready-to-build combo with Ryzen 7 9700X included
  • 8 cores and 16 threads for high-frame-rate gaming
  • DDR5 memory support up to 8400 MT/s with 256 GB capacity
  • PCIe 5.0 x16 and four M.2 slots for fastest storage and graphics
  • 5G LAN and Wi-Fi 7 with 320 MHz channel for low-latency networking

AM5 Motherboard and Ryzen 7 9700X Combo

This bundle pairs an MSI MPG X870E EDGE TI WIFI motherboard with an AMD Ryzen 7 9700X processor. The board uses the AMD X870E chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. The included 8‑core 16‑thread chip runs on Zen 5 architecture with a 5.5 GHz max boost clock and is unlocked for overclocking. It targets enthusiasts building a high‑performance desktop.

Compatibility Checklist

Verify that your chassis fits an ATX board and that your power supply provides the required EPS connectors for the CPU and board. Ensure any DDR5 UDIMM kits you plan to use are on the vendor QVL for speeds up to 8400 MT/s. Confirm your graphics card will occupy the PCIe 5.0 x16 slot and that M.2 drives match the 2280 or 22110 form factors supported by the four onboard slots.

Ideal Builds and Alternatives

Suits gamers and creators wanting a ready‑to‑go AM5 platform with 5G LAN, Wi‑Fi 7 and PCIe 5.0 storage bandwidth. The 256 GB memory ceiling and four DIMM slots suit heavy multitasking. Builders needing ECC memory, smaller ITX form factor or a lower‑cost chipset should consider other options.

Highlights

  • Ready-to-build combo with Ryzen 7 9700X included
  • 8 cores and 16 threads for high-frame-rate gaming
  • DDR5 memory support up to 8400 MT/s with 256 GB capacity
  • PCIe 5.0 x16 and four M.2 slots for fastest storage and graphics
  • 5G LAN and Wi-Fi 7 with 320 MHz channel for low-latency networking

Specifications

BrandMSI
SeriesMPG X870E EDGE TI WIFI+R7 9700X
ModelMPG X870E EDGE TI WIFI+R7 9700X
Part NumberMPG X870E EDGE TI WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manua
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI SlotsPCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Serial ATA (SATA)4 x SATA 6Gb/s
M.24x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slo
Audio ChannelsRealtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Max LAN Speed1x Realtek® 8126 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
BluetoothYes
Back I/O PortsClear CMOS Button
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 10Gbps Type-C
Optical S/PDIF Out
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Ligh

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the combo include the Ryzen 7 9700X cooler or must I buy one separately?

The combo bundles the motherboard and CPU only; the Ryzen 7 9700X ships without a cooler, so a separate AM5-compatible air or liquid cooler is required.

Which DDR5 speed should I target for the 8400 MT/s overclocking headroom shown in the specs?

With the Ryzen 7 9700X installed, a 1DPC 1R kit rated at 8400 MT/s or higher will reach the board’s maximum overclocked memory frequency.

What real-world throughput does the 5G LAN port deliver compared with a standard 1G connection?

The Realtek 8126 5G LAN controller supports up to 5 Gb/s, roughly five times the bandwidth of a typical 1 Gb/s link for large file transfers and low-latency gaming.
