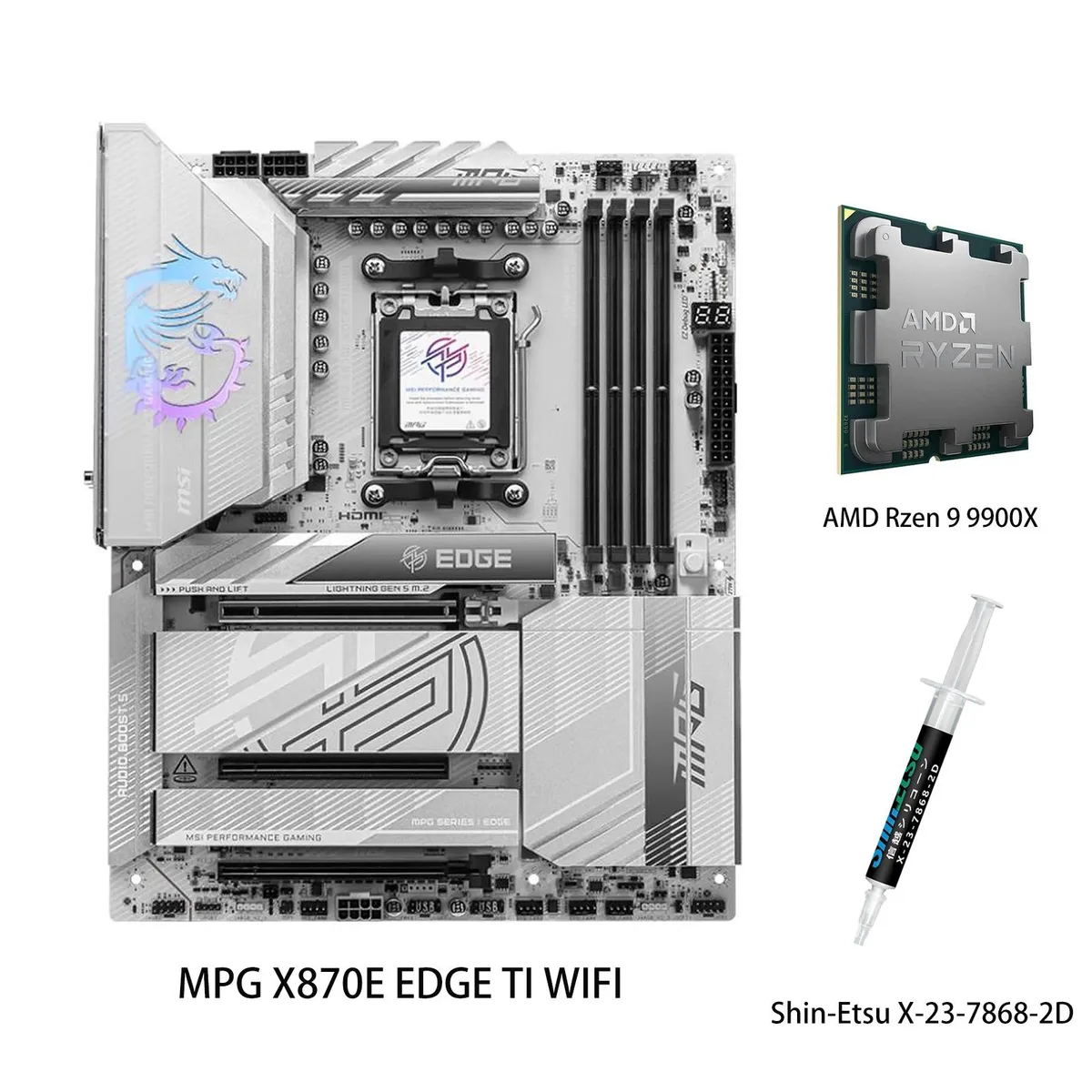

ATX motherboard with silver heatsinks and installed Ryzen 9 9900X CPU

MSI

MSI MPG X870E EDGE TI WIFI + Ryzen 9 9900X AMD motherboard CPU combo

SKU CH-2ARS-HWWWM

AM5 motherboard and CPU combo with 12-core Ryzen 9 9900X, DDR5 to 8400 MT/s, four M.2 slots up to PCIe 5.0, 5G LAN and Wi-Fi 7

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB

CPU +Ryzen 9 9900X

  • 12-core Ryzen 9 9900X delivers 24 threads for heavy multitasking
  • DDR5 memory scales to 8400 MT/s for high bandwidth
  • PCIe 5.0 M.2 slots enable 128 GB/s storage throughput
  • 5G LAN plus Wi-Fi 7 with 320 MHz channels for fast networking
  • Premium thermal design with heat-pipe MOSFET heatsink keeps components cool

Motherboard & CPU Combo for AM5 Builds

This bundle pairs the MSI MPG X870E EDGE TI WIFI motherboard with an AMD Ryzen 9 9900X processor. It targets enthusiasts assembling a high-end desktop on the Socket AM5 platform. The combination delivers a ready-to-run foundation for demanding workloads and gaming.

256GB DDR5 Capacity with 8400 MT/s Headroom

Four 288-pin slots accept up to 256GB of DDR5 memory. With Ryzen 9000 series processors the board can reach 8400 MT/s in a single-rank single-DIMM-per-channel configuration. JEDEC speeds settle at 5600 MT/s, while dual-channel operation remains the standard topology.

12-Core Ryzen 9 9900X with 5.6 GHz Boost

The included CPU provides 12 cores and 24 threads based on the Zen 5 architecture. It offers a maximum boost frequency of 5.6 GHz, 64 MB of L3 cache and unlocked multipliers for overclocking. This processor defines the performance ceiling of the combo.

Highlights

  • 12-core Ryzen 9 9900X delivers 24 threads for heavy multitasking
  • DDR5 memory scales to 8400 MT/s for high bandwidth
  • PCIe 5.0 M.2 slots enable 128 GB/s storage throughput
  • 5G LAN plus Wi-Fi 7 with 320 MHz channels for fast networking
  • Premium thermal design with heat-pipe MOSFET heatsink keeps components cool

Specifications

BrandMSI
SeriesMPG X870E EDGE TI WIFI+R9 9900X
ModelMPG X870E EDGE TI WIFI+R9 9900X
Part NumberMPG X870E EDGE TI WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manua
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI SlotsPCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Serial ATA (SATA)4 x SATA 6Gb/s
M.24x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slo
Audio ChannelsRealtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Max LAN Speed1x Realtek® 8126 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
BluetoothYes
Back I/O PortsClear CMOS Button
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 10Gbps Type-C
Optical S/PDIF Out
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Ligh

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing DDR5 memory run at its rated speed with the Ryzen 9 9900X installed?

The board supports DDR5 up to 8400 MT/s overclocked with Ryzen 9000 series CPUs. JEDEC speeds of 4800 to 5600 MT/s are supported natively. Enable EXPO in BIOS to reach the kit's rated frequency.

How can I confirm the PCIe 5.0 x16 slot and the CPU-direct M.2 sockets are active after building?

In BIOS the PCI_E1 slot will show PCIe 5.0 x16 when a Ryzen 9000 or 7000 processor is detected. M.2_1 and M.2_2 run at PCIe 5.0 x4 from the CPU; M.2_3 and M.2_4 run at PCIe 4.0 from the chipset.

Does the combo include a CPU cooler, Wi-Fi antennas or mounting screws for the four M.2 slots?

The bundle contains the motherboard and Ryzen 9 9900X processor only. A compatible AM5 cooler, Wi-Fi 7 antennas and M.2 mounting screws must be purchased separately.
