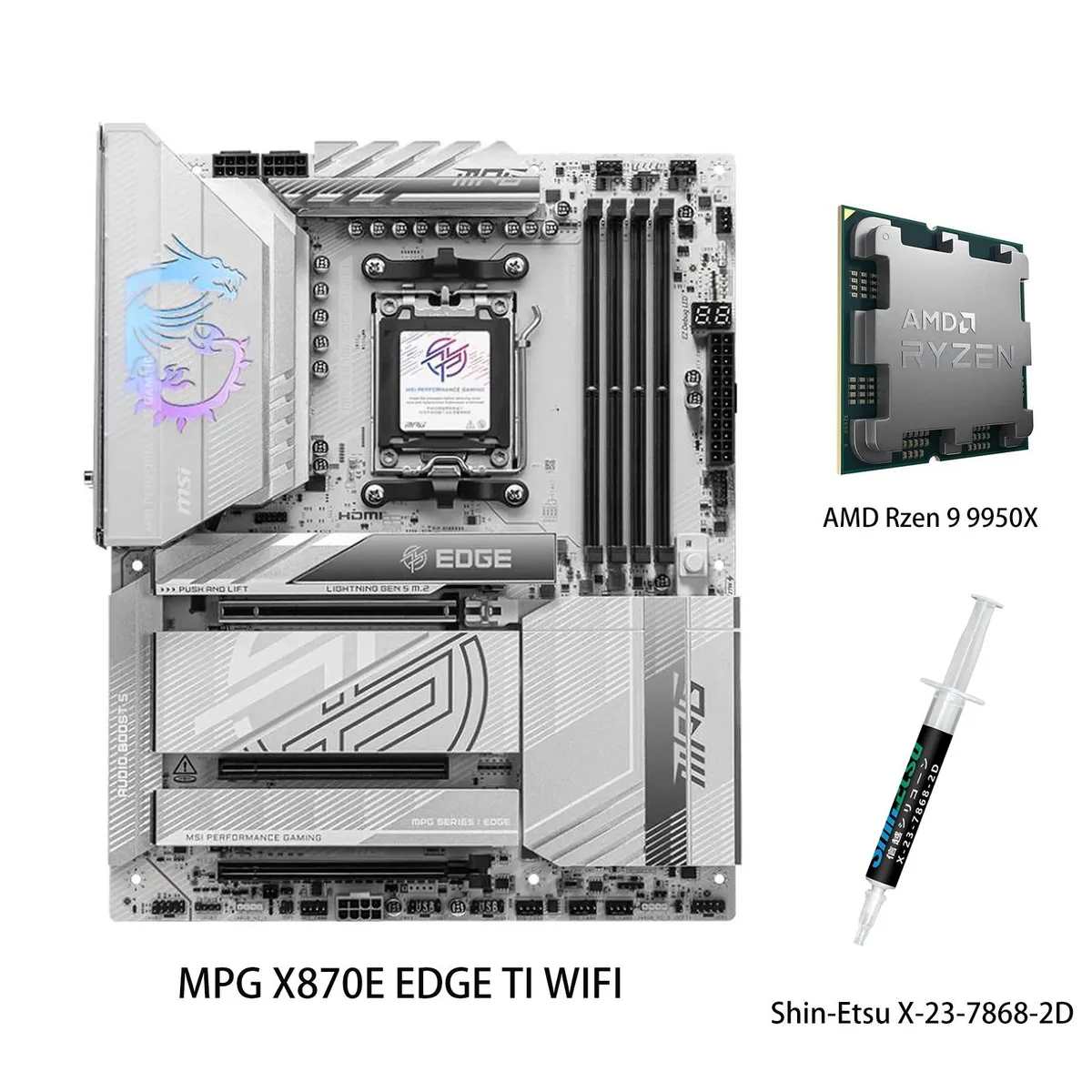

ATX motherboard with silver heatsinks and black PCB, Ryzen 9 9950X CPU in AM5 socket

MSI

MSI MPG X870E EDGE TI WIFI + Ryzen 9 9950X AMD motherboard CPU combo

SKU CH-BG0Q-FXD5D

Pairs an AMD X870E ATX board with a 16-core Ryzen 9 9950X, delivering 5.7 GHz boost, DDR5 up to 8400 MT/s, four M.2 slots, 5G LAN and Wi-Fi 7

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB

CPU +Ryzen 9 9950X

  • 16 cores and 32 threads handle heavy multitasking
  • DDR5 up to 8400 MT/s with 256 GB capacity speeds workloads
  • PCIe 5.0 x16 and dual M.2 5.0 slots enable 128 GB/s bandwidth
  • 5G LAN plus Wi-Fi 7 with 320 MHz channel cuts latency
  • Premium thermal design with heat-pipe MOSFET heatsink keeps temps low

Socket AM5 Combo for Ryzen 9000 Series

This bundle pairs the MSI MPG X870E EDGE TI WIFI motherboard with the AMD Ryzen 9 9950X processor. The board uses the AMD X870E chipset on the AM5 socket and supports Ryzen 9000, 8000 and 7000 series CPUs. It targets builders who want a ready-to-run platform for high-core-count workloads and fast storage.

Sustained Load Thermal and Power Delivery

The motherboard employs a heavy plated MOSFET heatsink linked by a heat-pipe, 7W/mK MOSFET thermal pads and additional choke thermal pads. Onboard M.2 Shield Frozr cooling covers the primary slots. This design is intended to maintain stable voltage regulation and SSD temperatures during extended multi-threaded rendering, compilation or compute tasks.

16-Core Zen 5 CPU with 5.7 GHz Max Boost

The included Ryzen 9 9950X delivers 16 cores and 32 threads based on the Zen 5 architecture. It reaches a 5.7 GHz maximum boost clock, is unlocked for overclocking and provides 64MB L3 plus 16MB L2 cache. This core count and frequency ceiling are the decisive figures for throughput-heavy applications.

Highlights

  • 16 cores and 32 threads handle heavy multitasking
  • DDR5 up to 8400 MT/s with 256 GB capacity speeds workloads
  • PCIe 5.0 x16 and dual M.2 5.0 slots enable 128 GB/s bandwidth
  • 5G LAN plus Wi-Fi 7 with 320 MHz channel cuts latency
  • Premium thermal design with heat-pipe MOSFET heatsink keeps temps low

Specifications

BrandMSI
SeriesMPG X870E EDGE TI WIFI+R9 9950X
ModelMPG X870E EDGE TI WIFI+R9 9950X
Part NumberMPG X870E EDGE TI WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manua
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI SlotsPCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Serial ATA (SATA)4 x SATA 6Gb/s
M.24x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slo
Audio ChannelsRealtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Max LAN Speed1x Realtek® 8126 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
BluetoothYes
Back I/O PortsClear CMOS Button
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 10Gbps Type-C
Optical S/PDIF Out
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Ligh

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot or loud does the MPG X870E EDGE TI WIFI get when the Ryzen 9 9950X runs at 5.7 GHz all day?

The board uses a heavy plated MOSFET heatsink with heat-pipe, 7W/mK thermal pads, extra choke pads and M.2 Shield Frozr to dissipate heat from the 16-core CPU during sustained loads.

What memory must I already own to use the four DDR5 slots on this motherboard?

You need DDR5 UDIMM modules; the board supports up to 256 GB across four 288-pin slots at speeds from 4800 MT/s JEDEC to 8400 MT/s when overclocked with Ryzen 9000 series.

Will my PCIe 3.0 x16 graphics card work in the third slot alongside the Ryzen 9 9950X?

Yes, the third PCIe slot runs at 3.0 x16 electrically and is compatible with older graphics cards while the primary slot operates at 5.0 x16 for the new CPU.
