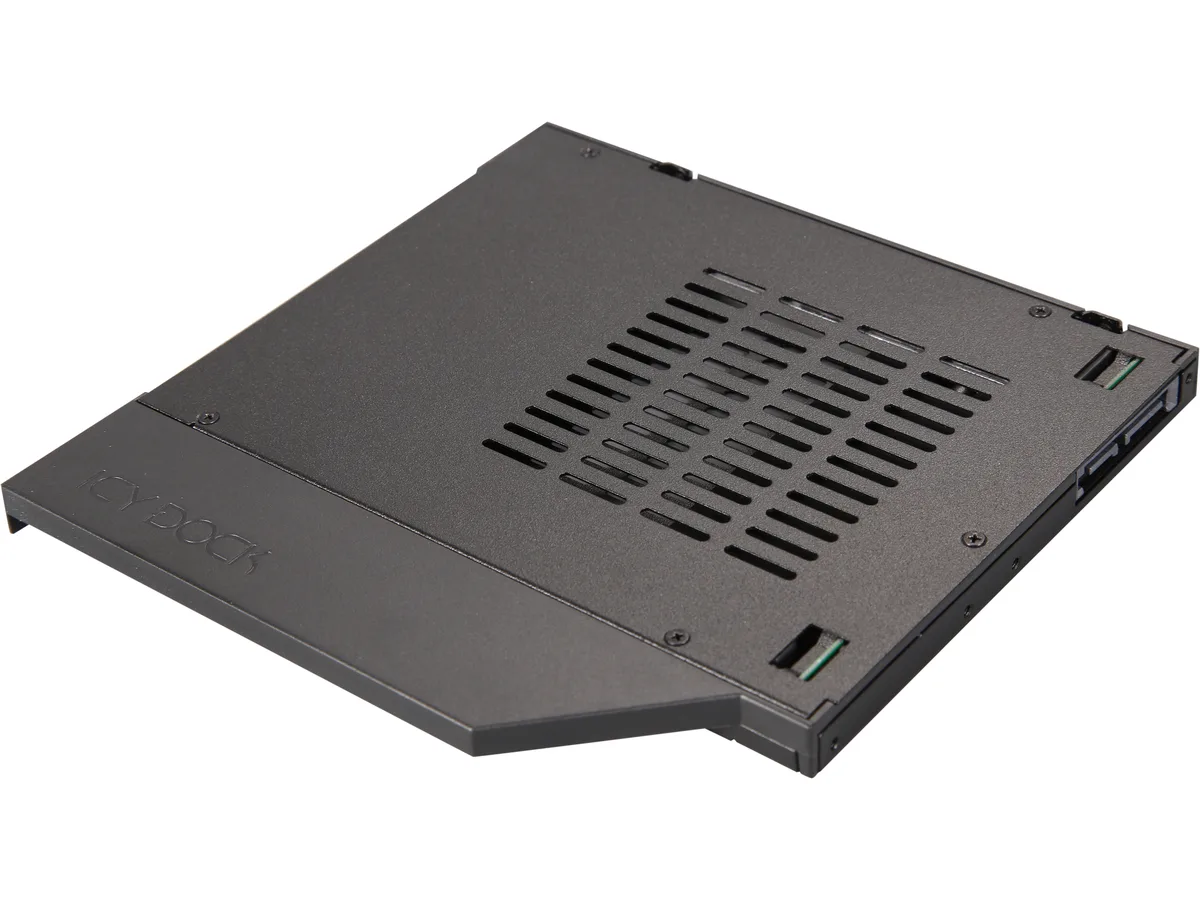

Black metal mobile rack for 2.5 inch SATA drive in 9.5mm ultra slim ODD bay

ICY DOCK

ICY DOCK MB411SPO-2B 2.5" SATA HDD/SSD mobile rack for 9.5mm ultra slim ODD bay

SKU CH-27BZ-7XEAJ MPN MB411SPO-2B

Fits a 2.5" SATA drive up to 7mm into a 9.5mm ultra-slim ODD bay with hot-swap tray and full-metal heat dissipation

  • ColorBlack
  • Mobile Rack Drives Support1 x 2.5" Drive to 5.25" Bay
  • Mobile Rack InterfaceHost Interface : 1 x Slimeline SATA 7pin Drive Fit : 1 x 2.5
  • Protection CaseSingle Drive
  • Compatible Products2.5"
  • SpecificationsMaximum Transfer Rate (Depending on drive speed) : Up to 6Gb

Model ToughArmors Ultra Slim ODD

顯示另外 4 款選項

Option ToughArmor Ultra Slim ODD

  • Fits ultra-slim 9.5mm optical bay
  • Full-metal construction withstands harsh environments
  • Hot-swap tray enables quick drive changes
  • Supports up to 6Gbps SATA transfer speeds
  • Rated for 10000 drive insertions

Ultra-Slim ODD Bay Mobile Rack

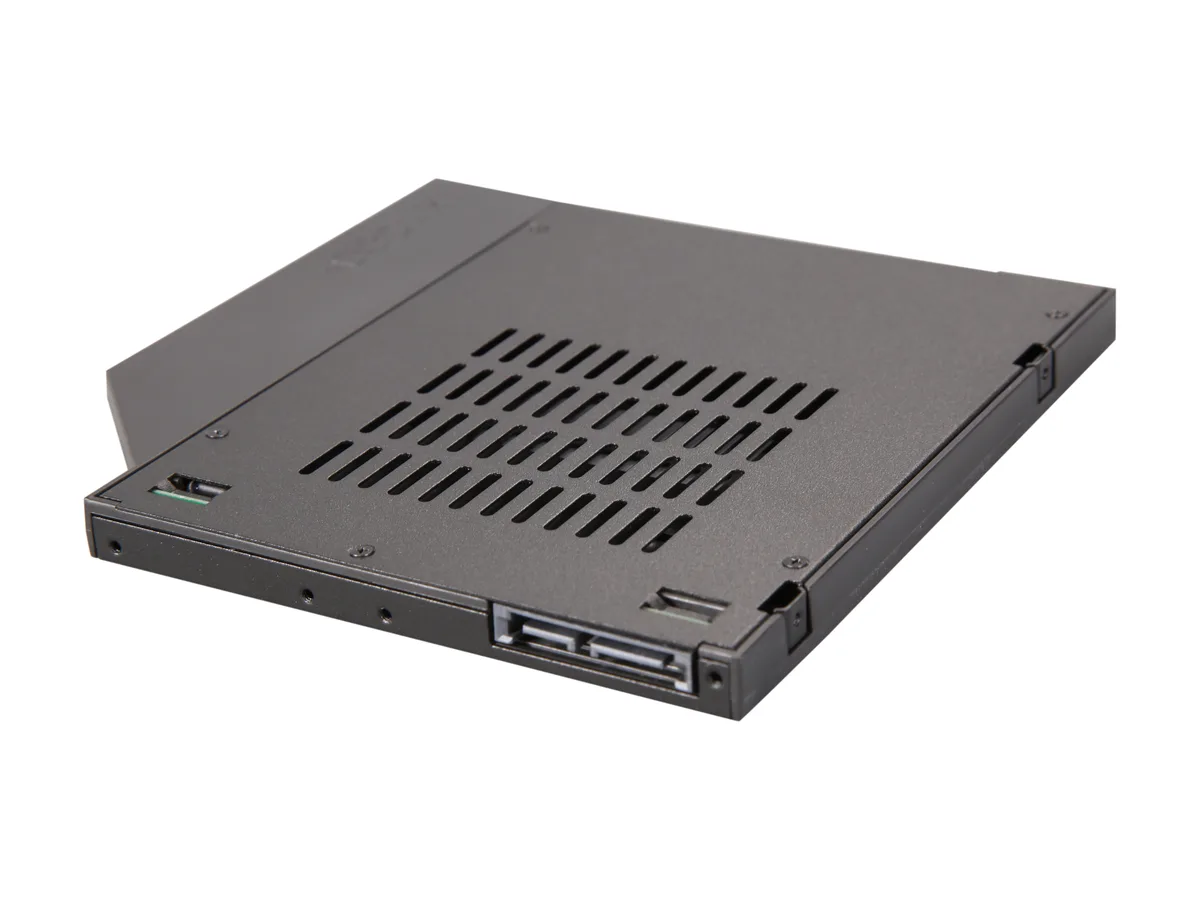

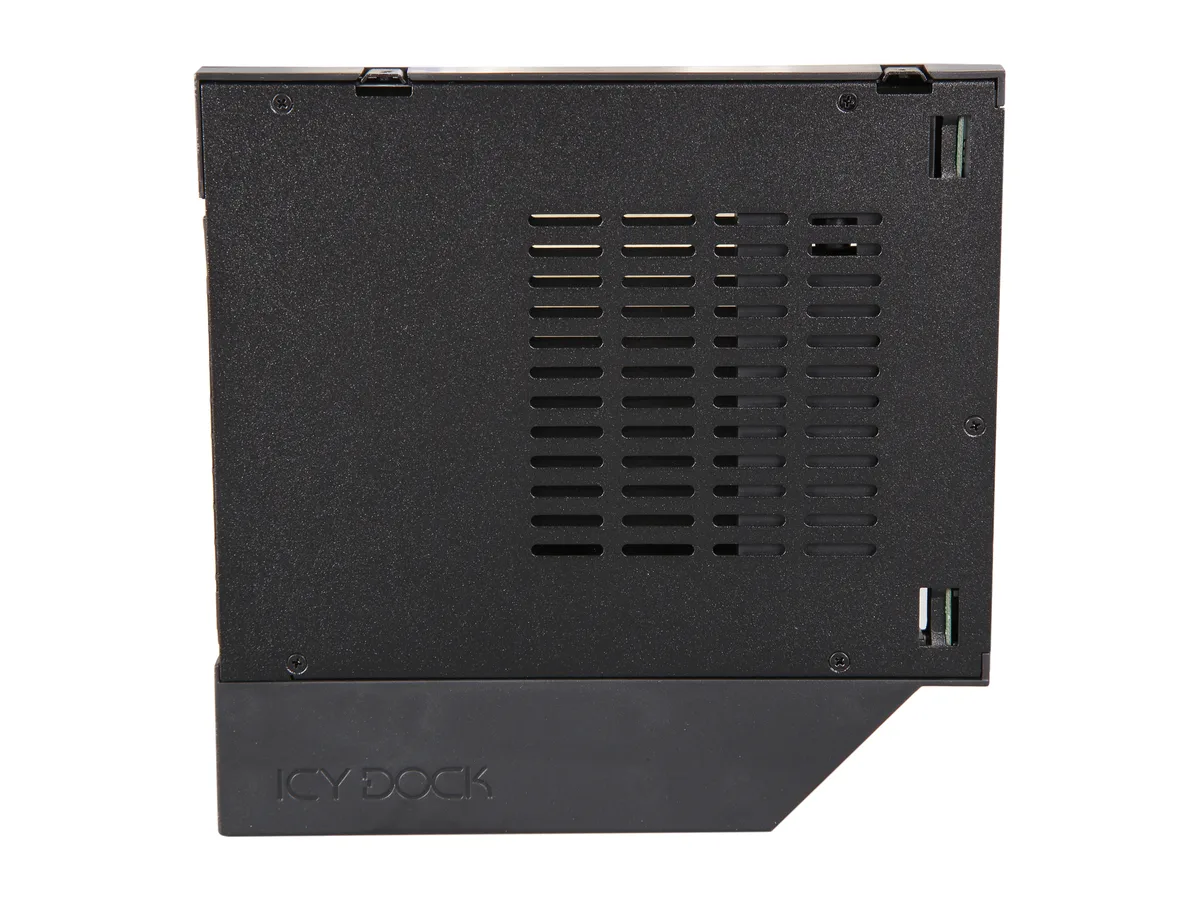

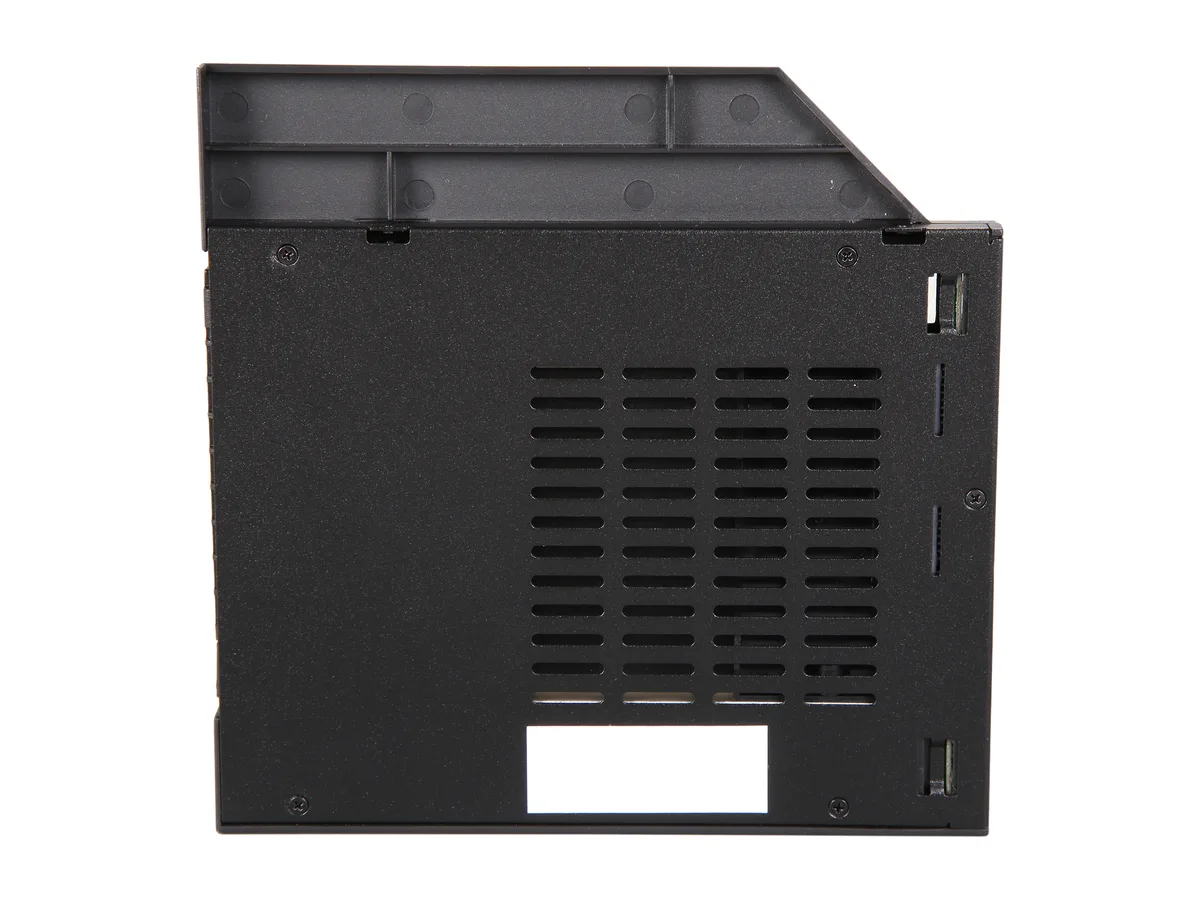

The ICY DOCK ToughArmor MB411SPO-2B is a full-metal mobile rack that installs a single 2.5 inch SATA hard drive or SSD into a 9.5mm ultra-slim optical drive bay. It mirrors the exact outer dimensions and port locations of a standard ultra-slim ODD. The enclosure uses a Slimline SATA 7-pin host interface and a SATA 6-pin slimline power connector. Hot-swap capability allows quick drive removal without powering down the host system.

Suited For Removable Storage Needs

This unit suits users who require a robust, removable drive bay for data transport or secure storage in laptops, workstations, or compact desktops equipped with a 9.5mm optical slot. It supports drives between 5mm and 7mm height and handles transfer rates up to 6Gbps depending on the installed drive. Builders lacking a 9.5mm ultra-slim bay or needing to mount drives thicker than 7mm must look at alternative form-factor enclosures.

Slimline SATA 7-Pin Host Interface

The rack connects via a single Slimline SATA 7-pin data connector rated for up to 10000 drive insertion cycles, ensuring long-term reliability for frequent hot-swap operations. A matching SATA 6-pin slimline power connector supplies the drive. Metal construction provides structural rigidity and acts as a heatsink for passive drive cooling. No additional interface types or protocols are supported by this specific model.

商品特色

  • Fits ultra-slim 9.5mm optical bay
  • Full-metal construction withstands harsh environments
  • Hot-swap tray enables quick drive changes
  • Supports up to 6Gbps SATA transfer speeds
  • Rated for 10000 drive insertions

商品規格

BrandICY DOCK
ModelMB411SPO-2B
ColorBlack
Mobile Rack Drives Support1 x 2.5" Drive to 5.25" Bay
Mobile Rack InterfaceHost Interface : 1 x Slimeline SATA 7pin
Drive Fit : 1 x 2.5" SATA SSD/HDD (up to 7mm height)
Device Fit : 1 x Ultra Slim ODD bay (9.5mm height)
Protection CaseSingle Drive
Compatible Products2.5"
SpecificationsMaximum Transfer Rate (Depending on drive speed) : Up to 6Gb/sec (Depending on hard drive speed)
Power Input : 1 x SATA 6pin power Slimeline connector
Structure : Full Metal
Drive Cooling : Metal heat dissipation
HDD Access Indicator :
Device power : Solid green
Drive activity : Flashing green
Hot Swap : Yes
Dimension (L x W x H) : 127.8 x 9.5 x 129.4mm
FeaturesExact same form factor of an ultra slim optical drive.
Fits 1 x 5mm to 7mm height 2.5" SAS / SATA HDD / SSD in a 9.5mm ultra slim ODD bay.
Supports transfer speed up to 6Gbps (SAS host is required for SAS drives).
The receiving SATA connector rated for up to 10,000 drive insertions
Removable EZ Slide Slim drive tray for easy maintenance.
Heavy duty full metal construction design - perfect for enterprise applications
Multi-Flow Technology provides excellent passive cooling
Anti-Vibration Technology creates a safe environment for hard drives or SSDs
Active Power Technology (APT) powers
出貨重量0.21 kg
包裝尺寸147 × 140 × 25 mm

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Does the MB411SPO-2B include a 2.5" drive or only the carrier tray?

The package supplies the mobile rack with its EZ Slide Slim carrier tray; any 2.5" SATA or SAS drive from 5 mm to 7 mm thick must be purchased separately.

Which drive height should I choose for the 9.5 mm ultra-slim ODD bay?

Select a 2.5" SATA or SAS drive between 5 mm and 7 mm tall; the tray fits that range inside the 9.5 mm optical bay slot.

What does the 6 Gbps headline speed mean once the rack is installed?

The Slimline SATA connector passes up to 6 Gbps, so actual throughput matches the installed drive’s own SATA 6 Gbps limit.
