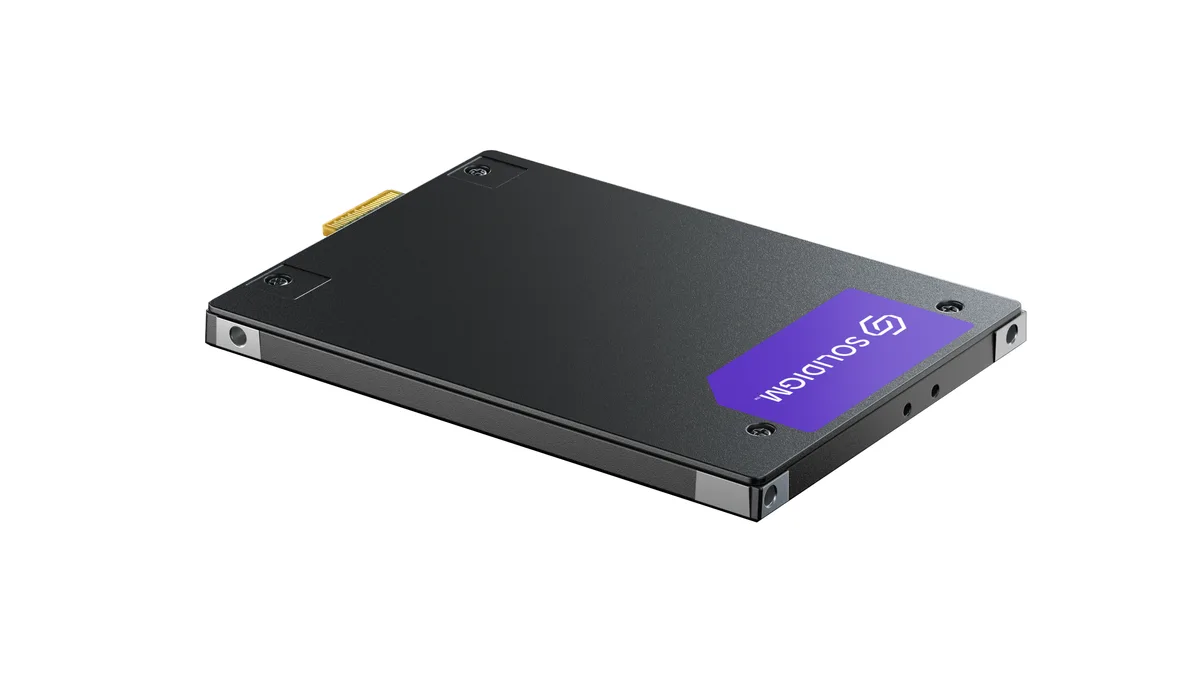

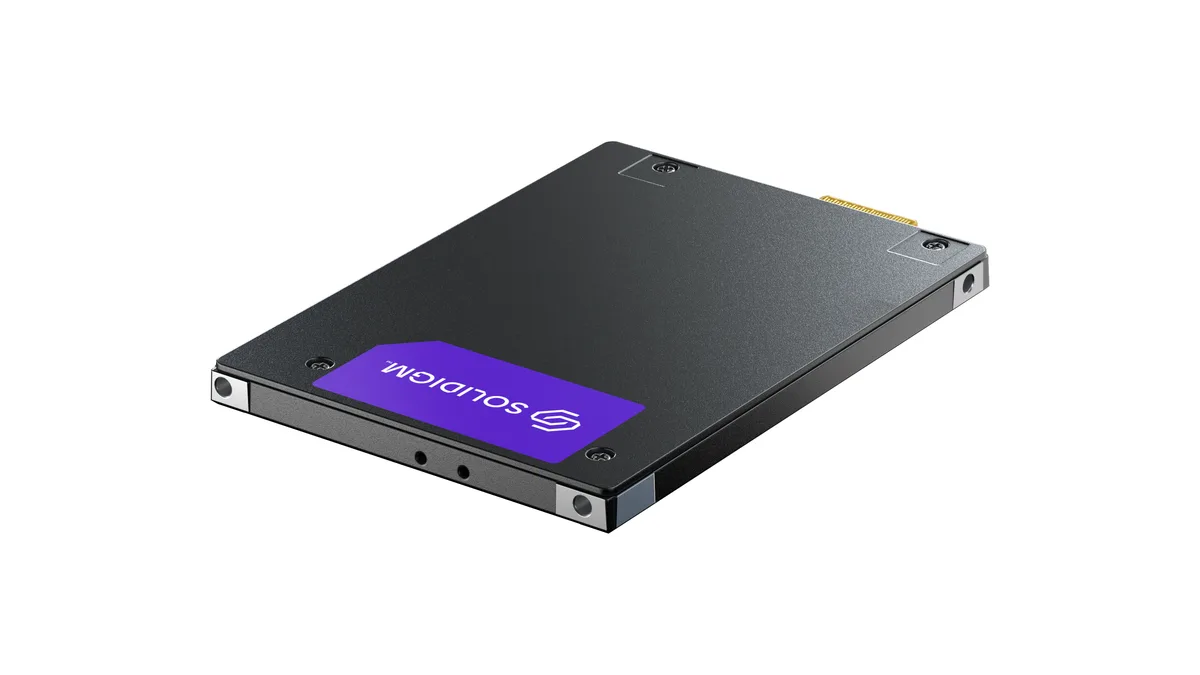

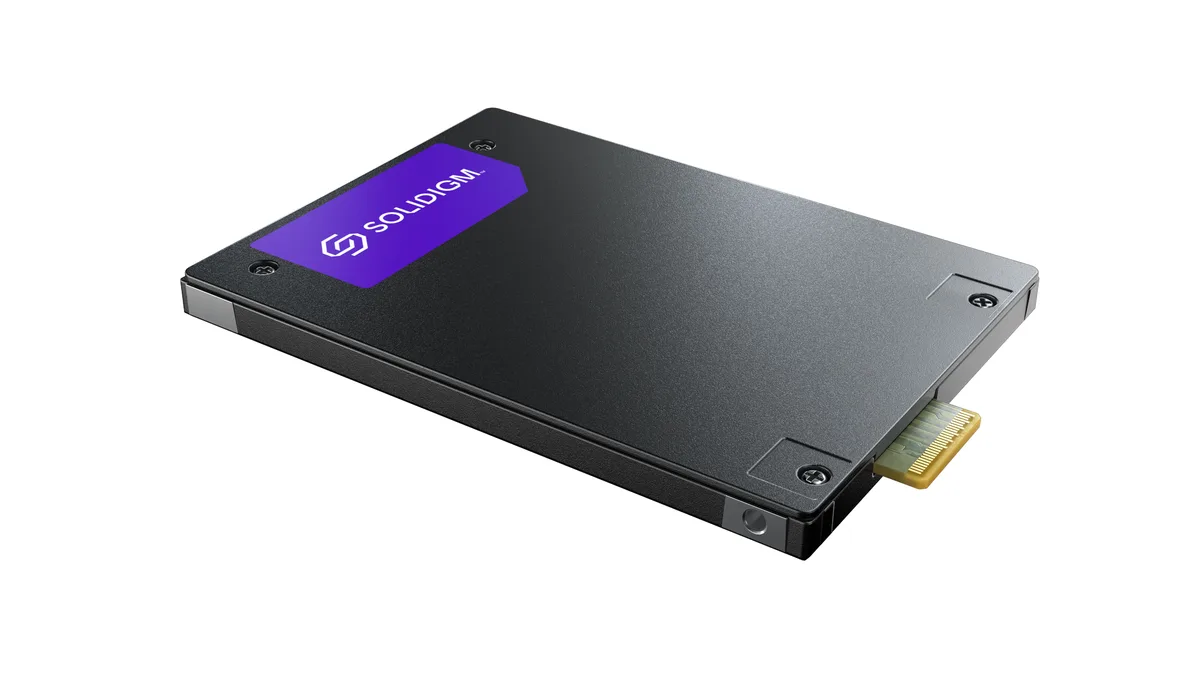

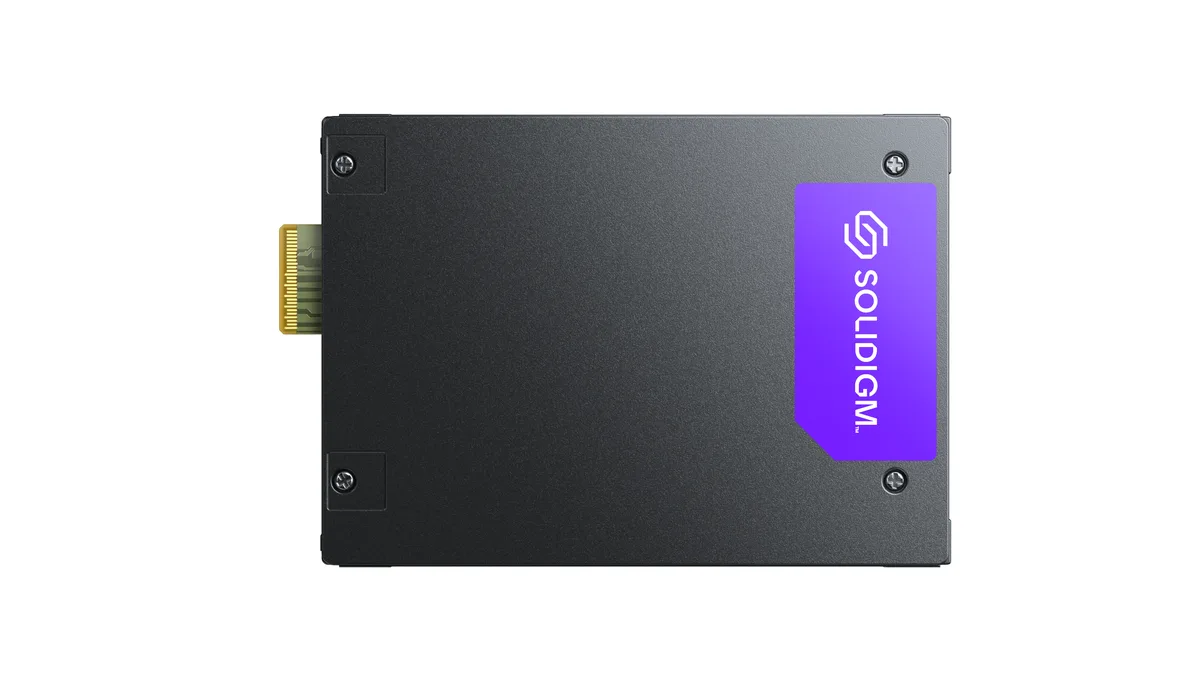

Rectangular silver E3.S 7.5mm SSD with label showing 12.8TB capacity

Solidigm

Solidigm D7-PS1030 12.8TB E3.S 7.5mm PCIe 5.0 enterprise SSD SB5PHA7E128TOF1

SKU CH-43KG-HBYGS MPN SB5PHA7E128TOF1

E3.S 7.5mm enterprise SSD with 12.8TB capacity, PCIe 5.0 speeds up to 14500 MBps read and 3 DWPD endurance

  • Form FactorE3.S 7.5mm
  • Capacity12.8TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 9300 MBps

Option 12.8TB E3.S FIPS

Voir les 12 autres configurations
  • 8TB capacity fits massive datasets in one E3.S 7.5mm slot
  • PCIe 5.0 x4 interface delivers 14500 MBps sequential read speed
  • 2750000 random read IOPS handles heavy transactional workloads
  • 3 DWPD endurance with 70 PBW supports write-intensive applications
  • FIPS-certified security protects sensitive data at rest

Enterprise PCIe 5.0 drive

The Solidigm D7-PS1030 is a 12.8TB enterprise SSD built for data-centre servers that need high-capacity flash in the E3.S 7.5mm form factor. It uses 176L TLC 3D NAND and a PCI-Express 5.0 x4 interface to deliver up to 14500 MBps sequential read and 9300 MBps sequential write throughput. The drive is rated for 3 DWPD endurance with 70 PBW total bytes written and carries FIPS security certification.

Upgrade from PCIe 4.0 or lower-capacity E3.S

Replacing a PCIe 4.0 enterprise SSD with this model doubles the interface bandwidth and raises random read performance to 2750000 IOPS while random write reaches 800000 IOPS. The jump is worth it when workloads saturate the older link or when a single 12.8TB device can consolidate multiple smaller drives to reduce slot count and simplify storage management.

12.8TB capacity with 70 PBW endurance

At 3 DWPD the drive comfortably handles sustained mixed read-write workloads such as database logging, content delivery caches and virtualisation volumes across its five-year design life. Write-heavy analytics ingest exceeding 70 PBW total or environments requiring more than 12.8TB per slot will need additional drives or a higher-endurance tier. Active power draw reaches 23W and the operating temperature range spans 0°C to 77°C.

Points forts

  • 8TB capacity fits massive datasets in one E3.S 7.5mm slot
  • PCIe 5.0 x4 interface delivers 14500 MBps sequential read speed
  • 2750000 random read IOPS handles heavy transactional workloads
  • 3 DWPD endurance with 70 PBW supports write-intensive applications
  • FIPS-certified security protects sensitive data at rest

Caractéristiques

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PHA7E128TOF1
Form FactorE3.S 7.5mm
Capacity12.8TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 9300 MBps
4KB Random Read2750000 IOPS (4K Blocks)
4KB Random Write800000 IOPS (4K Blocks)
Endurance3 DWPD / 70 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight120g +/- 10g
Poids d’expédition0.17 kg
Dimensions du colis140 × 110 × 17 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What server bay size does the E3.S 7.5mm form factor require?

The drive fits a standard E3.S 7.5mm hot-plug bay; verify your chassis supports the 7.5mm Z-height before ordering.

How is the PCIe 5.0 x4 drive installed, and what step is often missed?

Insert the drive into the E3.S cage until the latch clicks, then confirm the system BIOS and OS recognise the PCIe 5.0 x4 link at full width.

When will the 176L TLC 3D NAND reach its rated 70 PBW endurance limit?

At the rated 3 DWPD, the 12.8TB drive reaches 70 PBW after roughly five years of continuous full-capacity writes per day.
