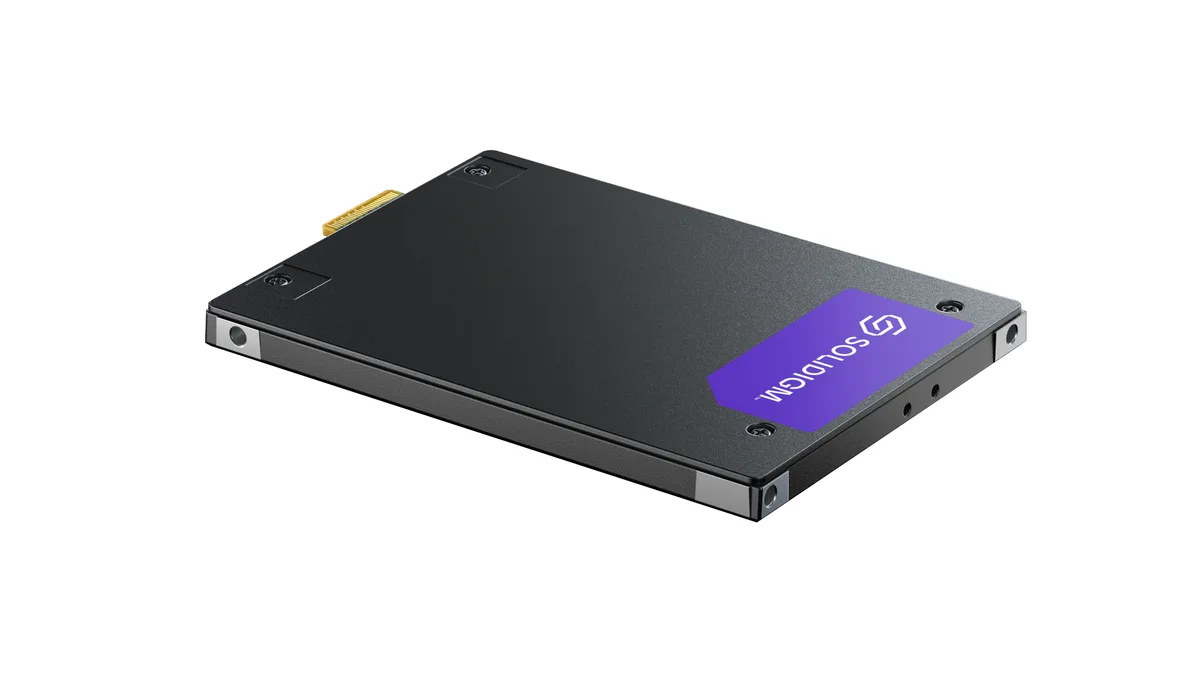

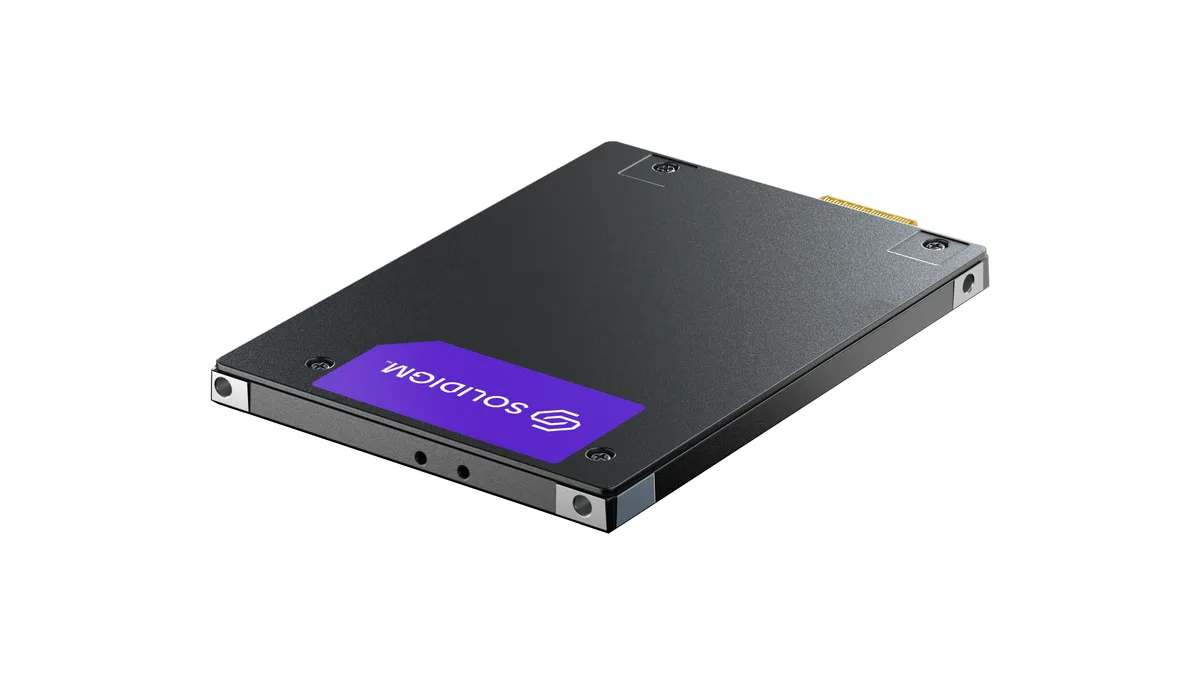

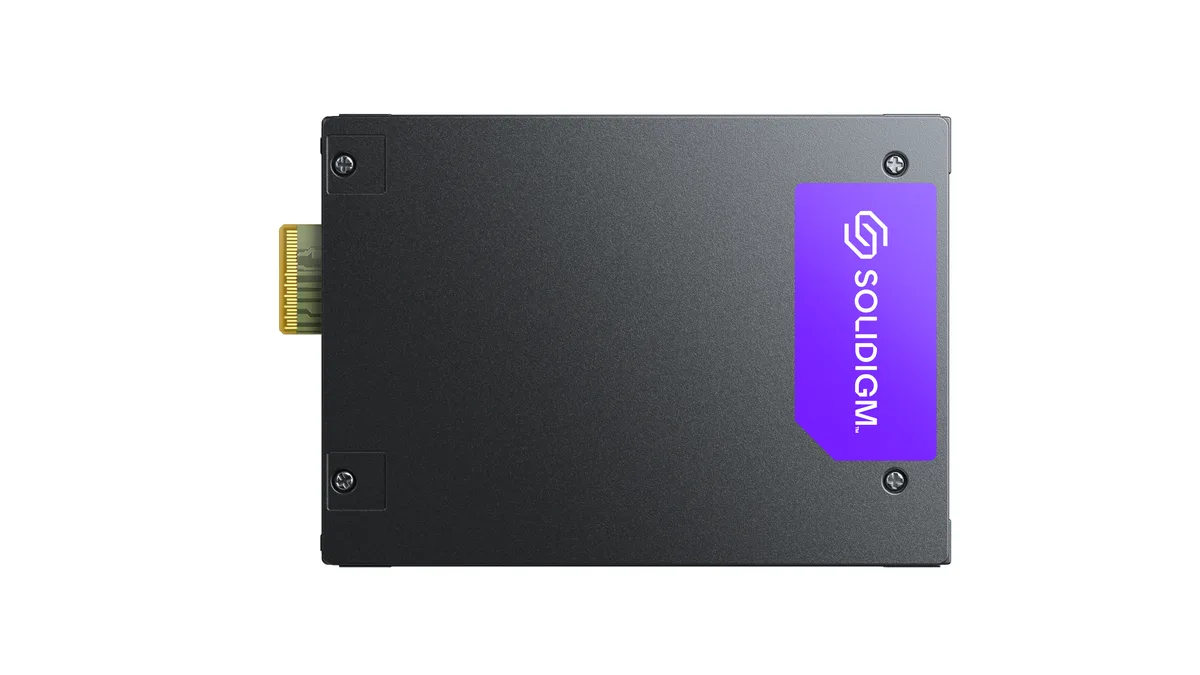

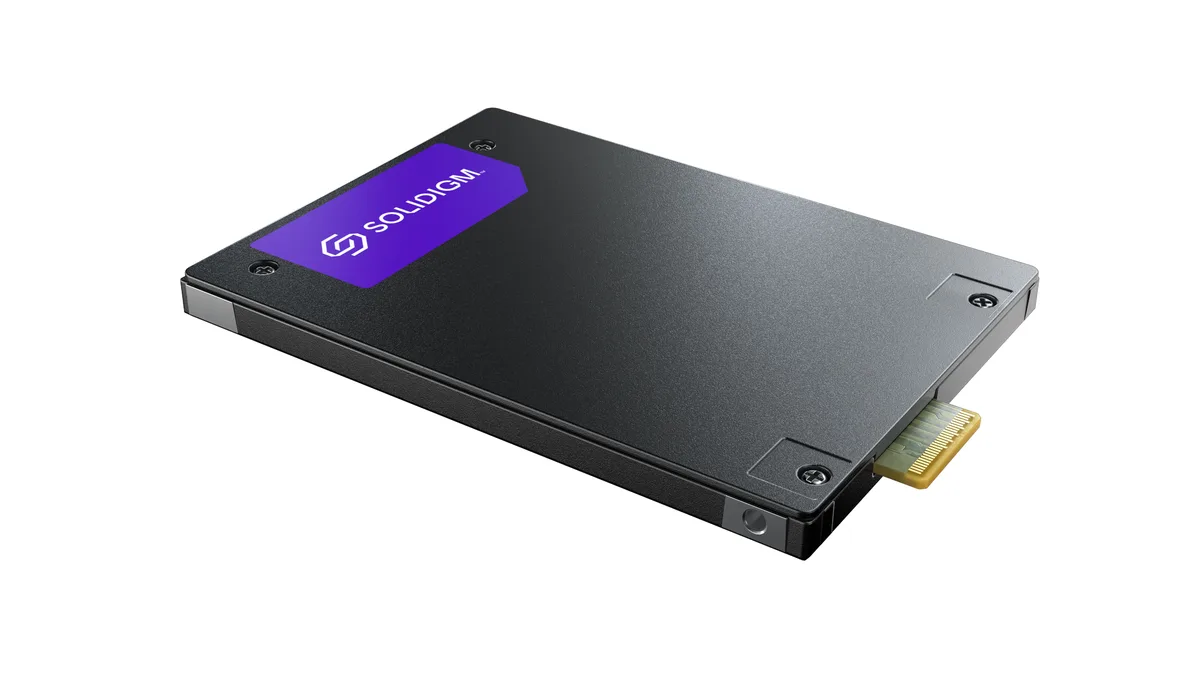

Solidigm D7-PS1030 E3.S 7.5mm enterprise SSD, silver metal casing with label

Solidigm

Solidigm D7-PS1030 3.2TB E3.S 7.5mm PCIe 5.0 x4 enterprise SSD SB5PHA7E032TOF1

SKU CH-GC7W-GJEFV MPN SB5PHA7E032TOF1

E3.S 7.5mm enterprise SSD with 3.2TB 176L TLC 3D NAND, PCIe 5.0 x4, 14500 MB/s read, 8200 MB/s write, 3 DWPD endurance and FIPS security

  • Form FactorE3.S 7.5mm
  • Capacity3.2TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 8200 MBps

Option 3.2TB E3.S FIPS

Voir les 12 autres configurations
  • PCIe 5.0 x4 delivers up to 14,500 MB/s sequential reads
  • 1 million 4K random read IOPS accelerates database workloads
  • 3 DWPD endurance rating supports 17.5 PB total writes
  • FIPS-certified encryption protects data at rest
  • E3.S 7.5 mm form factor fits dense 1U server bays

Enterprise capacity for dense servers

The Solidigm D7-PS1030 delivers 3.2TB of storage in an E3.S 7.5mm form factor built for PCI-Express 5.0 x4 backplanes. It targets data-centre workloads that demand sustained sequential throughput up to 14500 MBps read and 8200 MBps write with 3 DWPD endurance.

Verify backplane and power budget

Confirm the chassis accepts E3.S 7.5mm modules and provides a PCIe 5.0 x4 electrical connection per slot. The drive draws 19W active and 5W idle, so the platform power delivery and cooling must support that load at up to 77°C operating temperature.

Ruggedised for rack density

Weighing 110g, the drive tolerates 1000 G shock and 2.17 GRMS vibration while running, suiting high-density racks. FIPS-certified encryption secures data at rest without host-side overhead, and 176L TLC 3D NAND underpins the 2.5 million-hour MTBF rating.

Points forts

  • PCIe 5.0 x4 delivers up to 14,500 MB/s sequential reads
  • 1 million 4K random read IOPS accelerates database workloads
  • 3 DWPD endurance rating supports 17.5 PB total writes
  • FIPS-certified encryption protects data at rest
  • E3.S 7.5 mm form factor fits dense 1U server bays

Caractéristiques

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PHA7E032TOF1
Form FactorE3.S 7.5mm
Capacity3.2TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 8200 MBps
4KB Random Read3100000 IOPS (4K Blocks)
4KB Random Write716000 IOPS (4K Blocks)
Endurance3 DWPD / 17.5 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)19W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Poids d’expédition0.17 kg
Dimensions du colis140 × 110 × 17 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the D7-PS1030 include a heatsink or mounting bracket in the single pack?

The single pack contains the E3.S 7.5mm drive only; any heatsink or E3.S cage bracket must be purchased separately for your server chassis.

Should I pick the 3.2TB model or a different capacity for mixed read-write workloads?

The 3.2TB model delivers 3 DWPD endurance and 17.5 PBW total writes, so choose it when your daily write volume fits within that budget; otherwise select a higher-capacity variant for more headroom.

What does the 14500 MBps sequential read figure mean once the drive is installed in a PCIe 5.0 server?

In a PCIe 5.0 x4 slot the drive can sustain up to 14500 MBps sequential reads and 8200 MBps writes, with 3.1M random read IOPS and 716k random write IOPS at 4K blocks.
