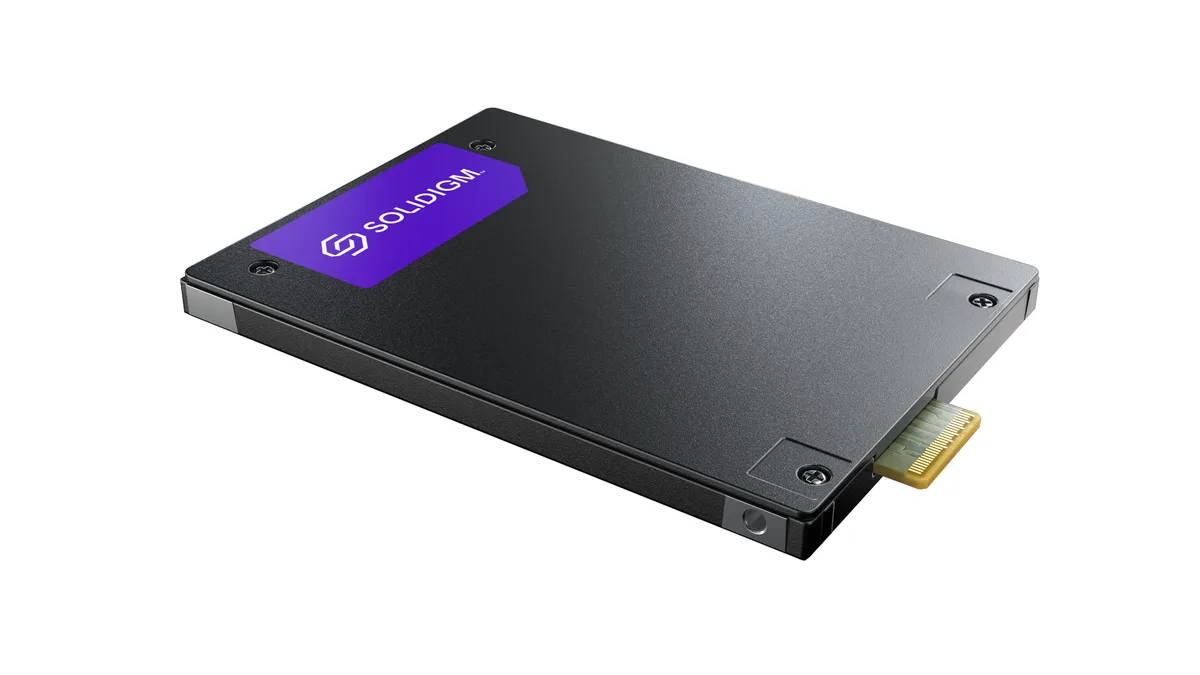

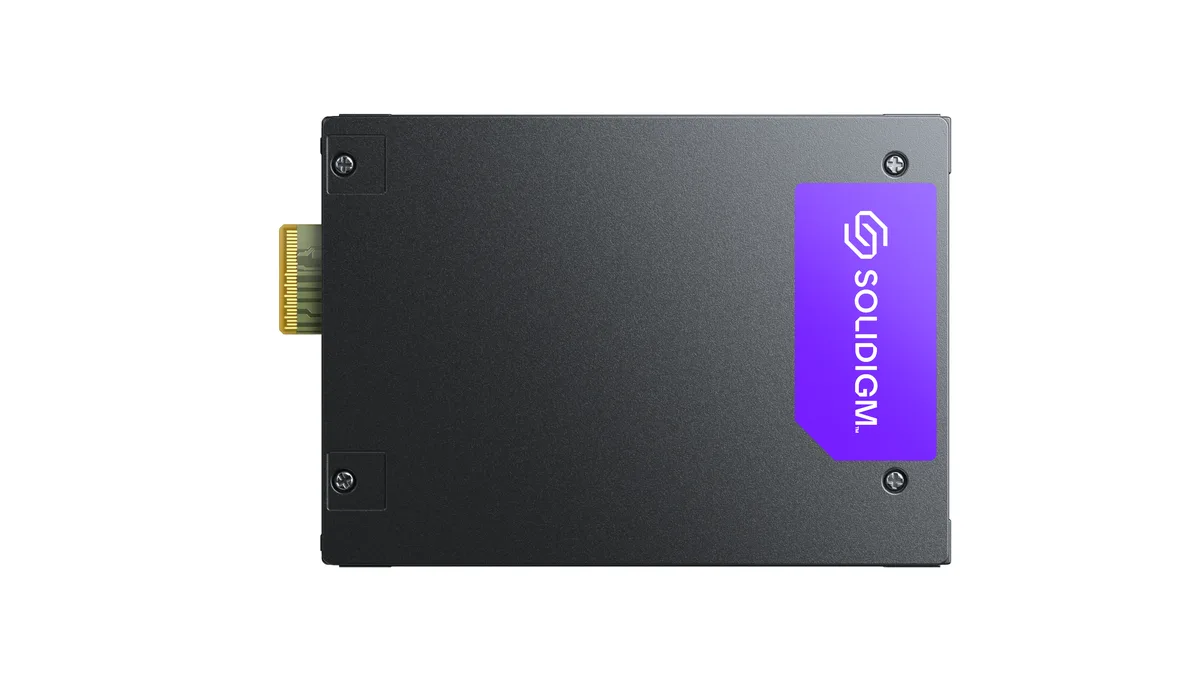

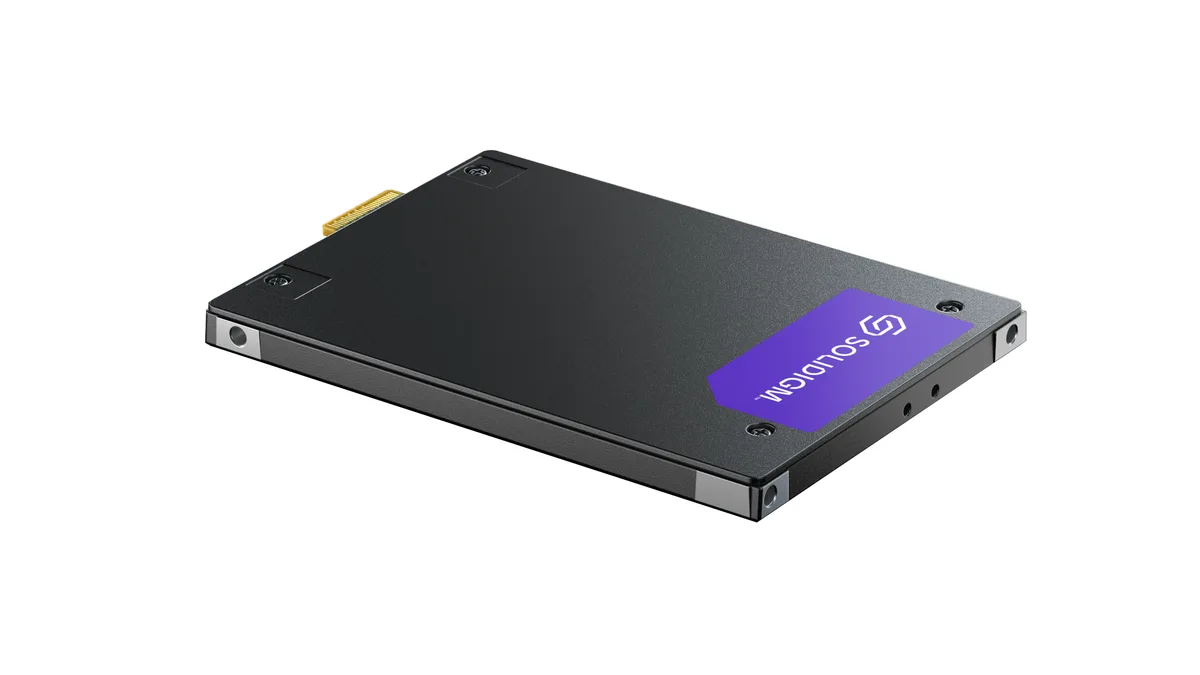

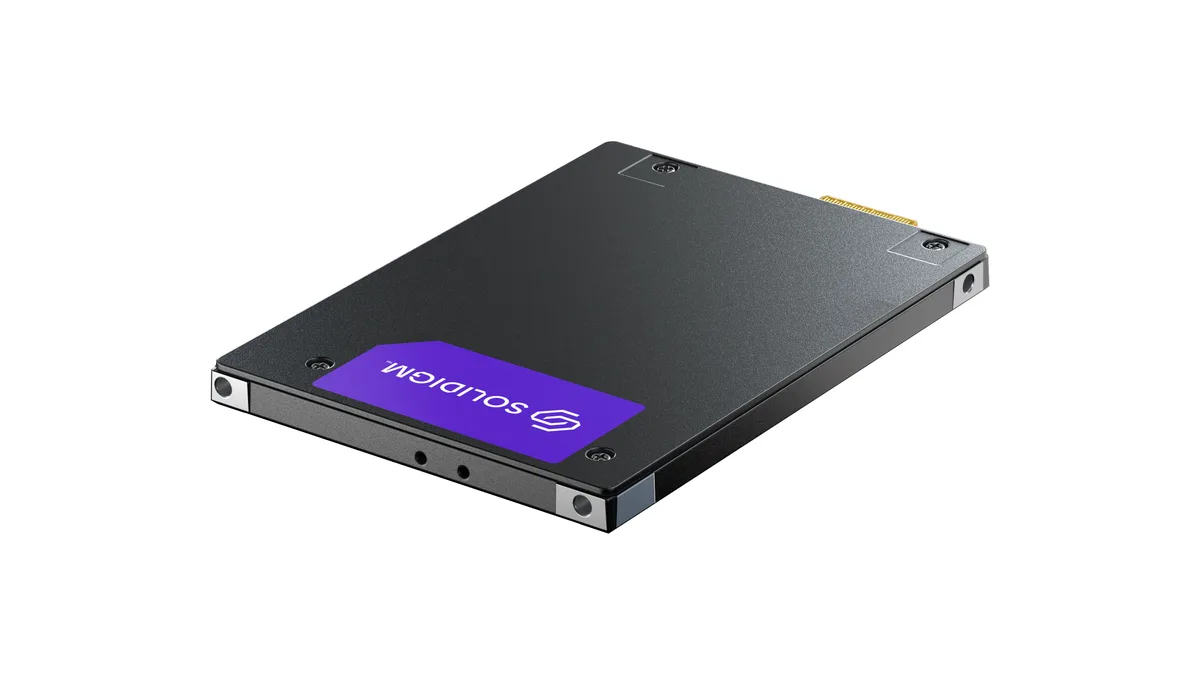

Rectangular E3.S 7.5mm enterprise SSD, silver metal casing with label, gold edge connector visible

Solidigm

Solidigm D7-PS1030 6.4TB E3.S 7.5mm PCIe 5.0 enterprise SSD SB5PHA7E064TOF1

SKU CH-01TV-DK6YS MPN SB5PHA7E064TOF1

E3.S 7.5mm PCIe 5.0 enterprise SSD with 6.4TB capacity, 14500 MB/s reads and FIPS security

  • Form FactorE3.S 7.5mm
  • Capacity6.4TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 10000 MBps

Option 6.4TB E3.S FIPS

Voir les 12 autres configurations
  • Sequential reads up to 14500 MBps for rapid data access
  • Sequential writes up to 10000 MBps accelerate write-heavy workloads
  • 3000000 random read IOPS handle heavy mixed workloads
  • 3 DWPD endurance rating supports intensive daily writes
  • FIPS security protects sensitive data at rest

Solidigm D7-PS1030 6.4TB E3.S enterprise SSD

The Solidigm D7-PS1030 is a 6.4TB enterprise solid-state drive built for data-centre workloads. It uses an E3.S 7.5mm form factor and connects through a PCIe 5.0 x4 interface. The drive targets servers and storage arrays that need high capacity with low latency.

Thermals noise and power draw in normal use

Idle power consumption sits at 5W while active use reaches 23W. The operating temperature range spans 0°C to 77°C. With no moving parts the drive produces no acoustic noise. Vibration tolerance is rated at 2.17 GRMS operating and 3.13 GRMS non-operating.

Build quality connectors and daily implications

The E3.S 7.5mm form factor fits hot-plug server backplanes designed for that standard. A 176L TLC 3D NAND layout supports 3 DWPD endurance and 35 PBW total bytes written. FIPS security is included. Shock resistance is rated at 1000 G at 0.5 msec. The unit weighs 110g.

Points forts

  • Sequential reads up to 14500 MBps for rapid data access
  • Sequential writes up to 10000 MBps accelerate write-heavy workloads
  • 3000000 random read IOPS handle heavy mixed workloads
  • 3 DWPD endurance rating supports intensive daily writes
  • FIPS security protects sensitive data at rest

Caractéristiques

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PHA7E064TOF1
Form FactorE3.S 7.5mm
Capacity6.4TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 10000 MBps
4KB Random Read3000000 IOPS (4K Blocks)
4KB Random Write800000 IOPS (4K Blocks)
Endurance3 DWPD / 35 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Poids d’expédition0.17 kg
Dimensions du colis140 × 110 × 17 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How is the E3.S 7.5mm drive installed in a server chassis and what step is often missed?

Slide the 110g drive into the E3.S hot-plug bay until the connector seats, then secure the retention latch; the step often missed is confirming the latch clicks fully so the PCIe 5.0 x4 link trains at full speed.

What maintenance or replacement will the 6.4TB SSD need during its service life?

The 176L TLC NAND is rated for 3 DWPD and 35 PBW; once that write budget is consumed the drive should be replaced, and the 2,500,000-hour MTBF suggests no other scheduled maintenance.

What limit appears first when the drive runs sustained workloads at high temperature?

The 77°C operating ceiling is reached before the 23W active power limit, so thermal throttling will activate first to protect the 176L TLC NAND and controller.
