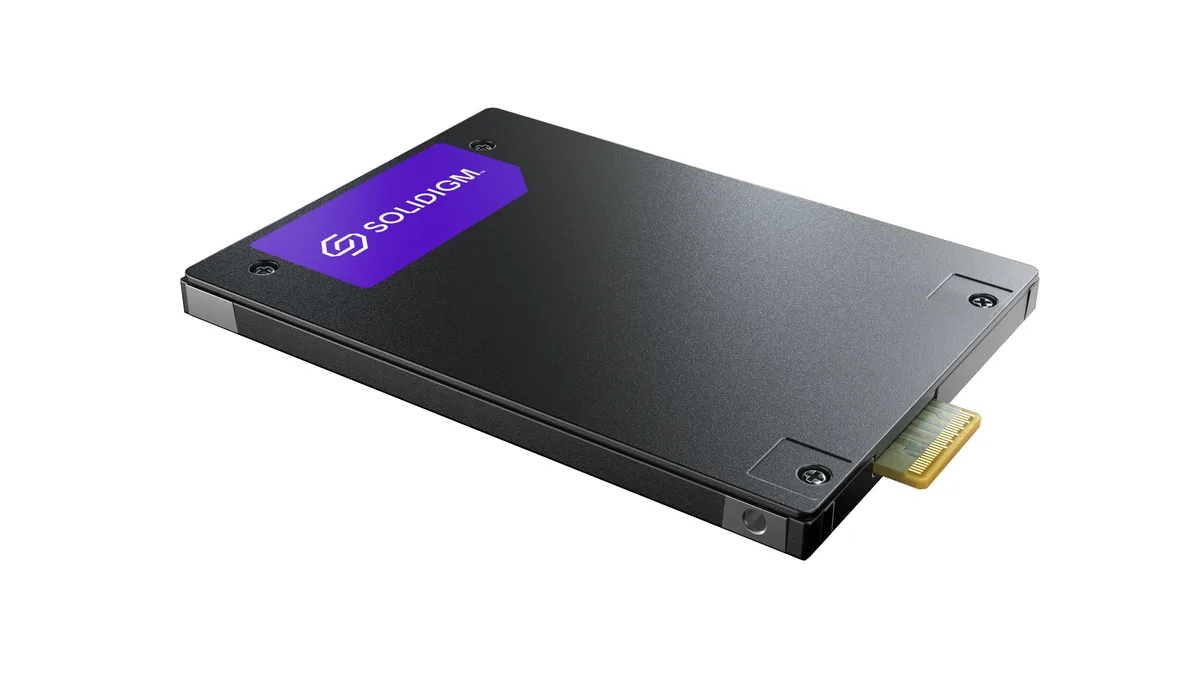

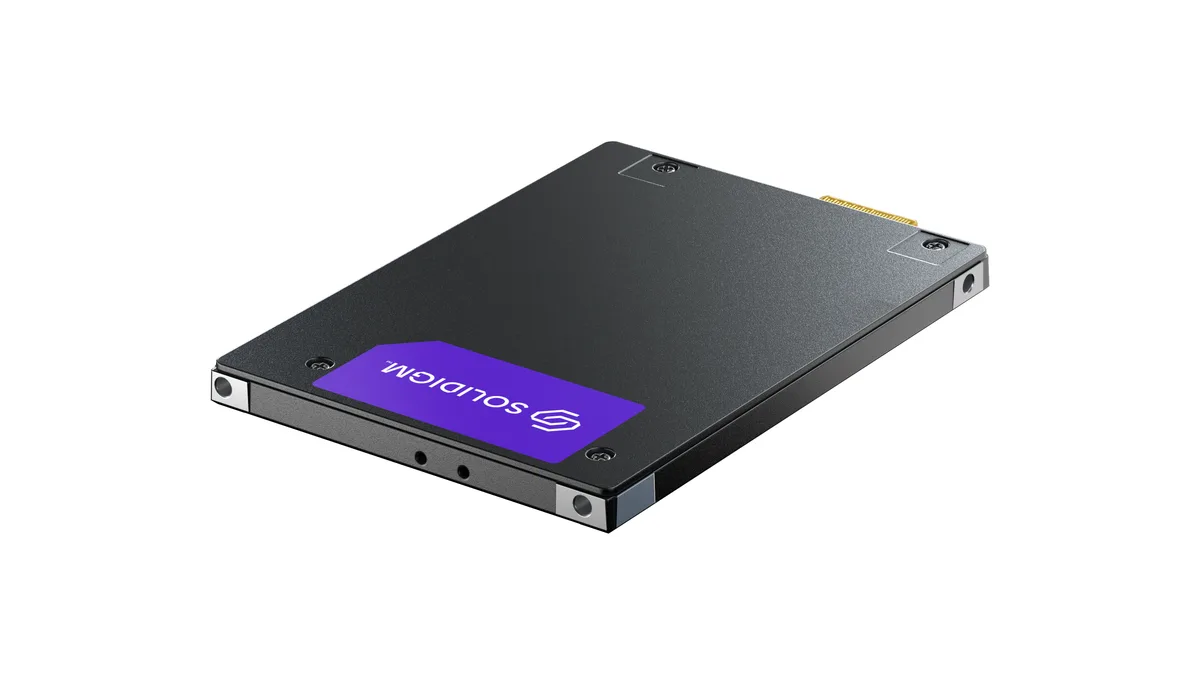

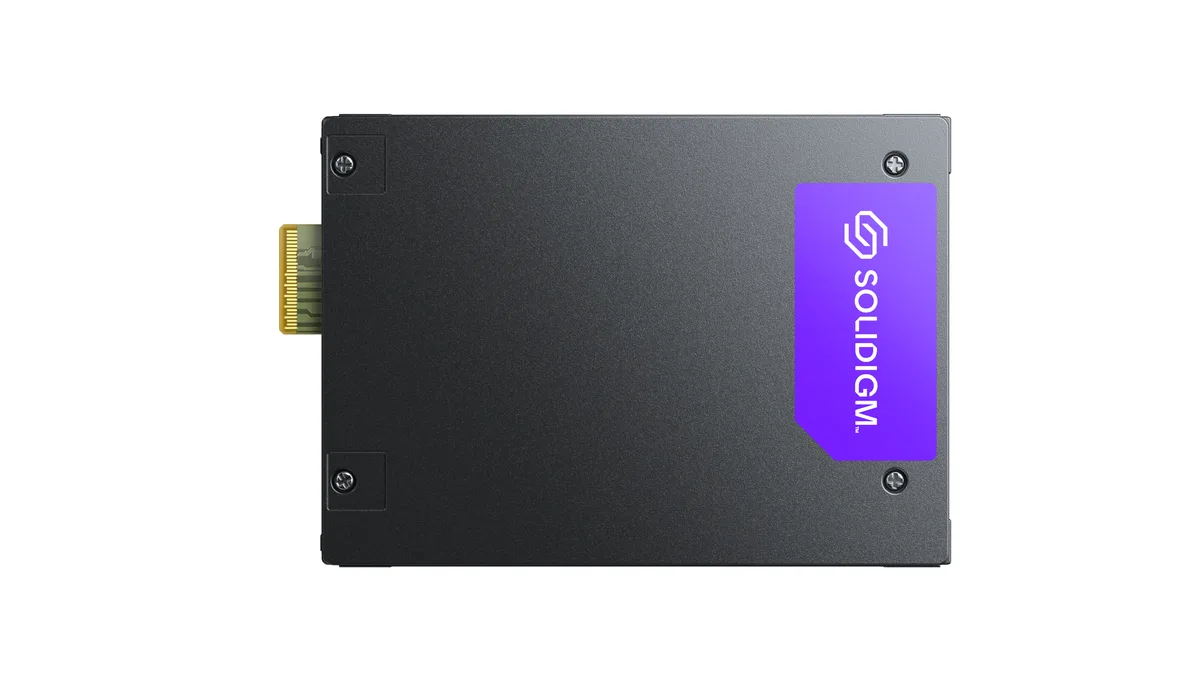

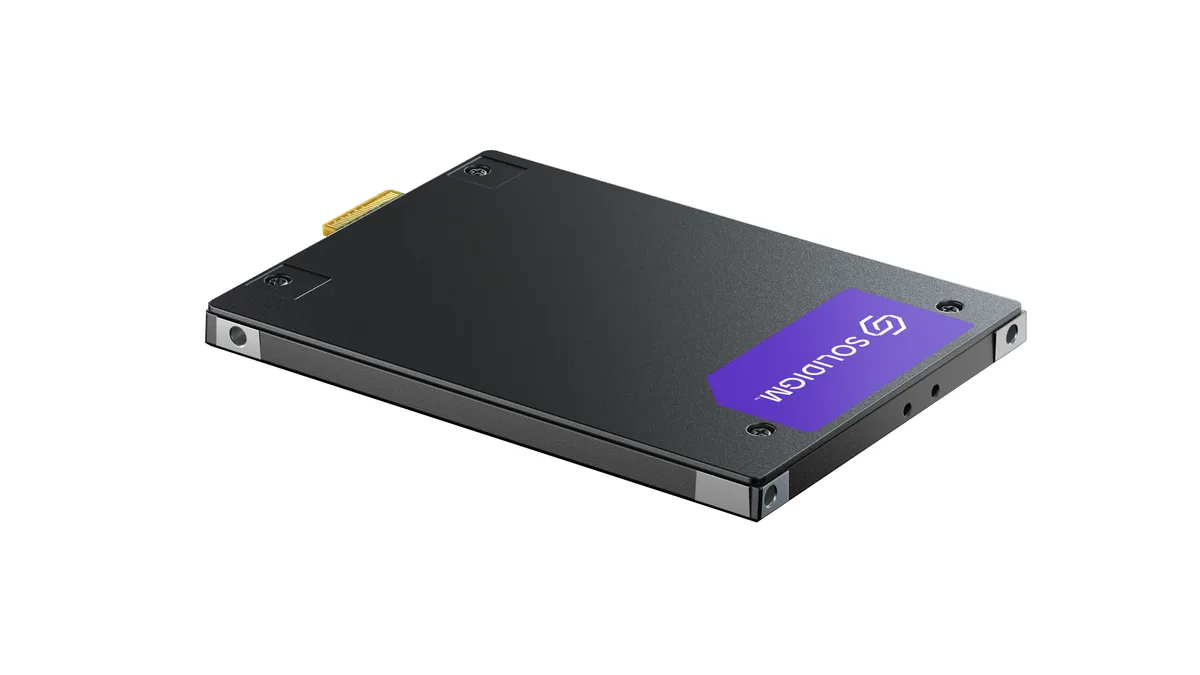

Rectangular E3.S 7.5mm enterprise SSD with gold edge connector and silver label

Solidigm

Solidigm SB5PHA7E064T001 D7-PS1030 6.4TB E3.S 7.5mm PCIe 5.0 enterprise SSD

SKU CH-17PA-MWYPA MPN SB5PHA7E064T001

Enterprise 6.4TB E3.S 7.5mm drive with PCIe 5.0 x4, 14500 MBps read, 10000 MBps write, 3 DWPD endurance

  • Form FactorE3.S 7.5mm
  • Capacity6.4TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 10000 MBps

Option 6.4TB E3.S

Voir les 12 autres configurations
  • Up to 14500 MBps sequential read for fast data access
  • Up to 10000 MBps sequential write for high-throughput workloads
  • 3000000 IOPS random read for responsive transaction processing
  • 3 DWPD endurance with 35 PBW for sustained write durability
  • 2500000 hours MTBF for long-term server reliability

Solidigm D7-PS1030 6.4TB E3.S Drive

The Solidigm D7-PS1030 is a 6.4TB enterprise solid-state drive built for data-centre servers. It uses 176L TLC 3D NAND and a PCI-Express 5.0 x4 interface to deliver high throughput for read-intensive workloads. The E3.S 7.5mm form factor fits dense 1U and 2U chassis designed for this standard.

E3.S 7.5mm Hot-Plug Form Factor

The 7.5mm E3.S design supports hot-plug installation in compatible backplanes, allowing drive replacement without system downtime. Weighing 110g, the drive connects directly through the edge connector with no separate power or data cables. This layout simplifies cabling and improves airflow in tightly packed server racks.

5W Idle and 23W Active Power

Idle power draw is 5W and active consumption reaches 23W, so thermal planning must account for sustained write loads. The drive operates from 0°C to 77°C and meets shock resistance of 1,000 G at 0.5 msec. Vibration tolerance is rated at 2.17 GRMS operating and 3.13 GRMS non-operating across the stated frequency ranges.

Points forts

  • Up to 14500 MBps sequential read for fast data access
  • Up to 10000 MBps sequential write for high-throughput workloads
  • 3000000 IOPS random read for responsive transaction processing
  • 3 DWPD endurance with 35 PBW for sustained write durability
  • 2500000 hours MTBF for long-term server reliability

Caractéristiques

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PHA7E064T001
Form FactorE3.S 7.5mm
Capacity6.4TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 10000 MBps
4KB Random Read3000000 IOPS (4K Blocks)
4KB Random Write800000 IOPS (4K Blocks)
Endurance3 DWPD / 35 PBW
MTBF2,500,000 hours
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Poids d’expédition0.17 kg
Dimensions du colis140 × 110 × 17 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What throughput does the PCIe 5.0 x4 interface cap this drive at in practice?

The drive reaches up to 14500 MBps sequential read and 10000 MBps sequential write over PCIe 5.0 x4.

What physical slot and clearance does the E3.S 7.5mm form factor require?

It fits a standard E3.S bay with a 7.5mm z-height and weighs 110g ±10g.

How is the drive installed in a server and which step is commonly missed?

Slide the drive into the hot-plug E3.S cage until the latch clicks, then verify the PCIe 5.0 link negotiates at x4 in the BIOS.
