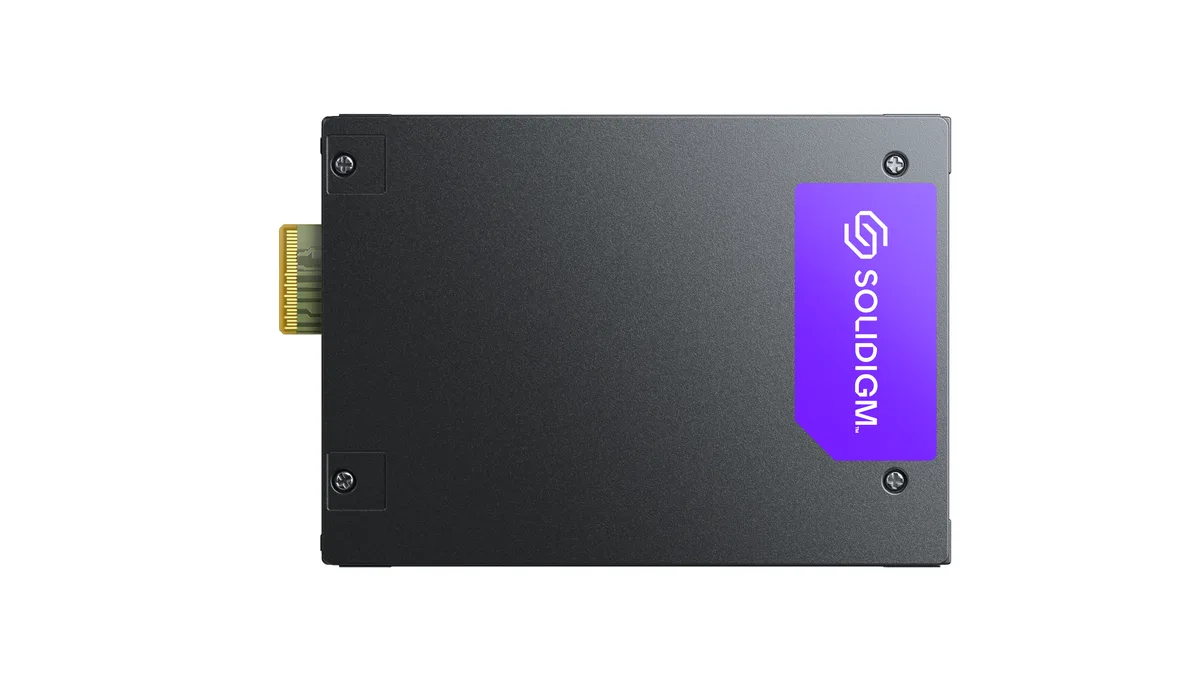

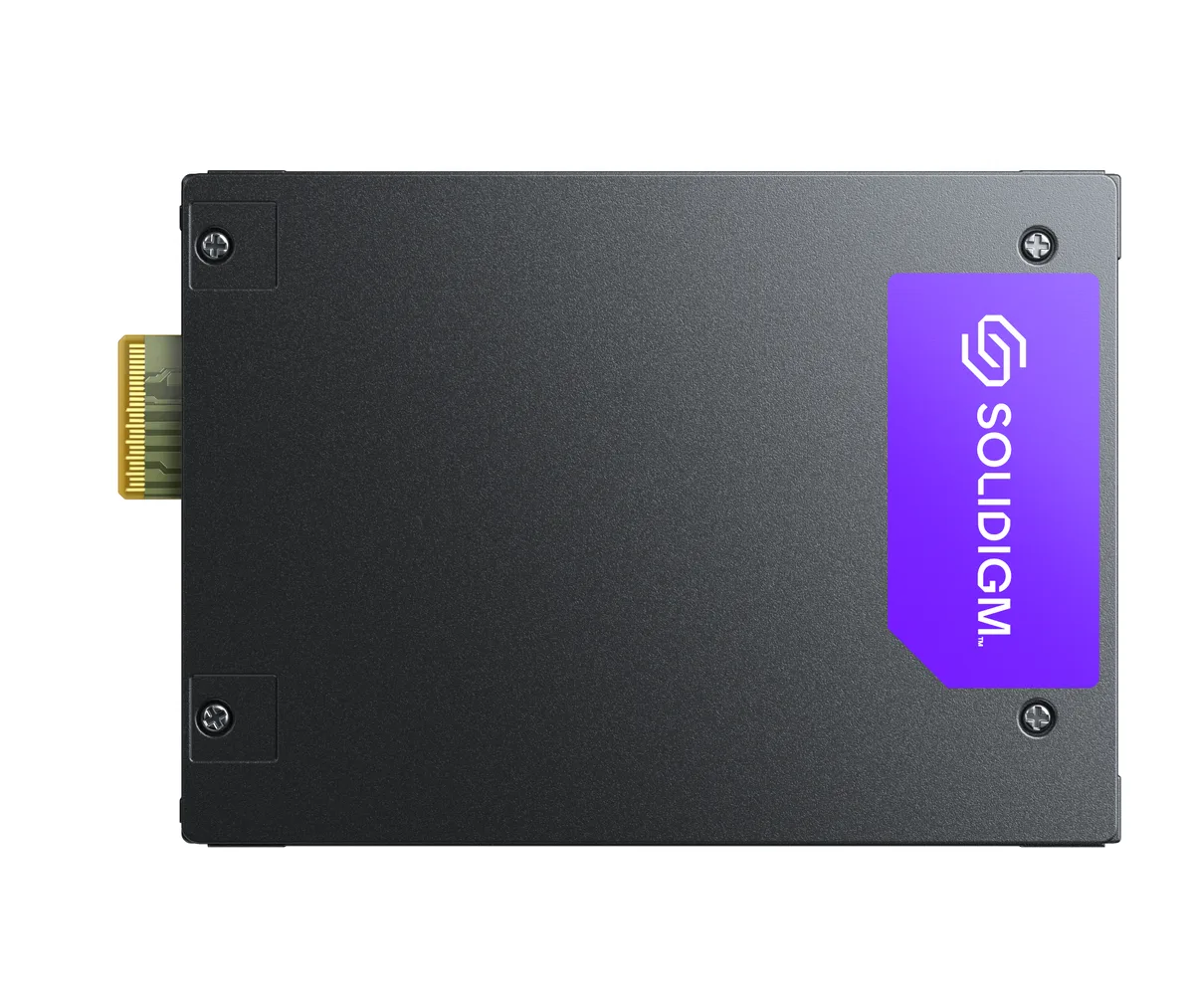

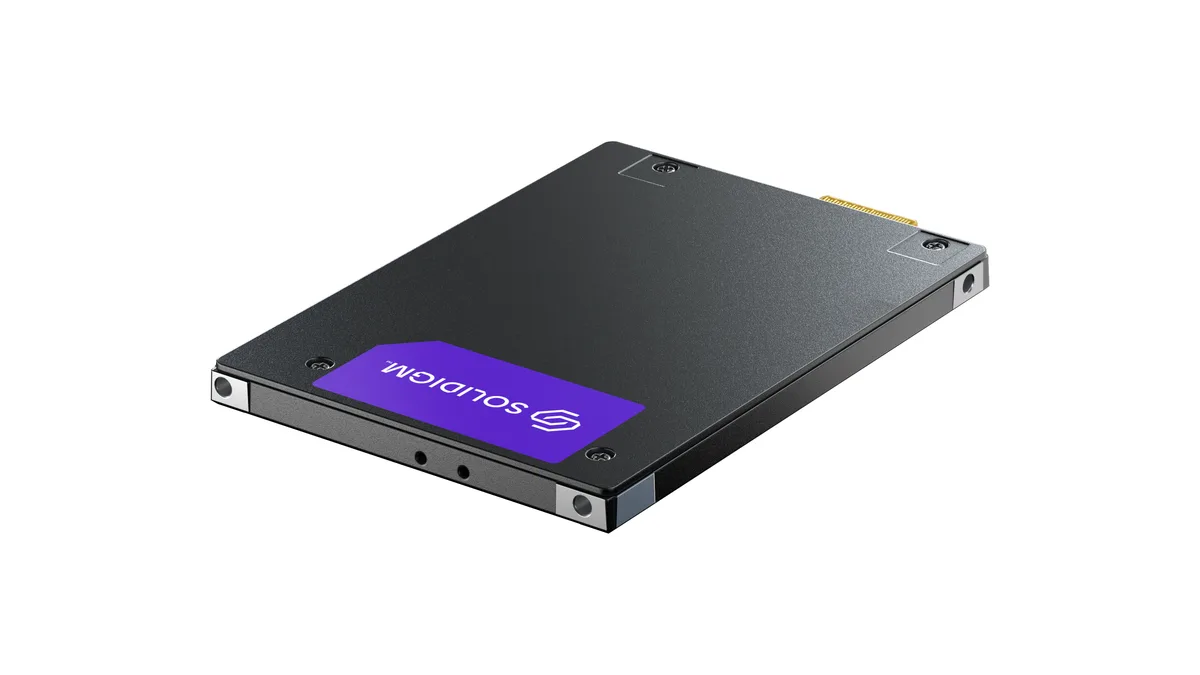

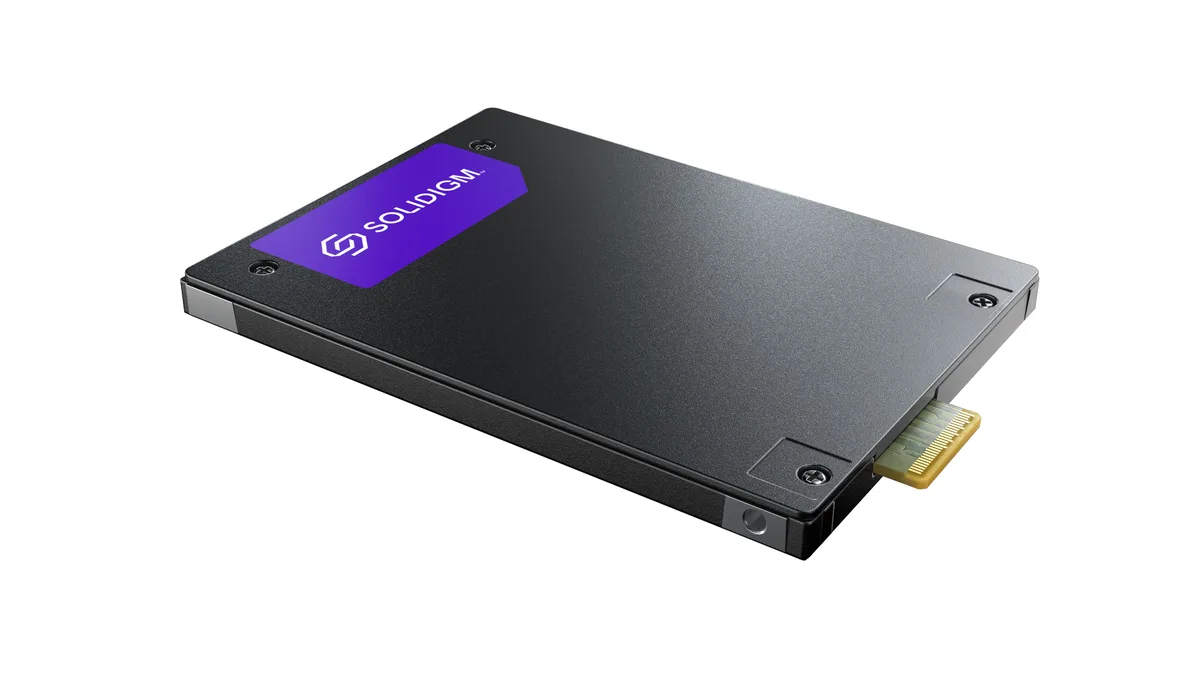

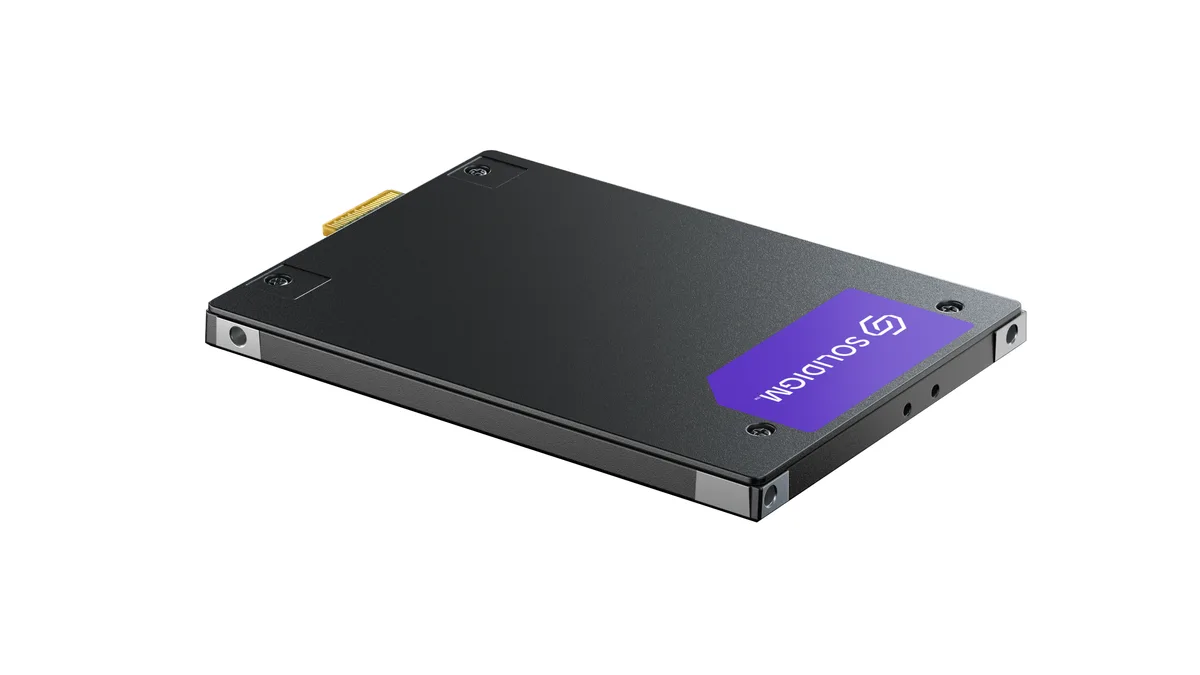

Thin rectangular E3.S SSD with silver metal casing and gold edge connector

Solidigm

Solidigm SB5PHA7E032T001 3.2TB enterprise SSD E3.S 7.5mm PCIe 5.0

SKU CH-J2N0-C7EBZ MPN SB5PHA7E032T001

E3.S 7.5mm enterprise SSD with 3.2TB capacity, PCIe 5.0 interface, 14500 MBps sequential read and 8200 MBps write speeds

  • Form FactorE3.S 7.5mm
  • Capacity3.2TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 8200 MBps

Option 3.2TB E3.S

Voir les 12 autres configurations
  • 2 TB capacity supports large data sets
  • PCIe 5.0 interface delivers up to 14500 MBps sequential read
  • 176L TLC 3D NAND enables 3.1M random read IOPS
  • 3 DWPD endurance rating provides 17.5 PBW write life
  • E3.S 7.5 mm form factor fits dense server chassis

Form factor and capacity

The Solidigm D7-PS1030 is a 3.2TB enterprise solid-state drive built in the E3.S 7.5mm form factor. It connects through a PCI-Express 5.0 x4 interface and uses 176L TLC 3D NAND. The drive is designed for data-centre and server deployments that require high-density storage in a compact 7.5mm height.

Suitable workloads and limits

This drive suits read-intensive and mixed workloads such as content delivery, virtualisation and database caching where sustained sequential throughput and high random-read IOPS matter. Buyers who need higher write endurance or larger capacities for write-heavy logging or OLTP should look at other models. The 5W idle and 19W active power figures fit typical server thermal budgets, but the 77 °C maximum operating temperature requires adequate airflow in dense chassis.

Deciding specification

The 3 DWPD endurance rating, equal to 17.5 PBW over the warranty period, is the single figure that determines whether this drive matches a given workload. If the application writes more than 3 full drive capacities per day, a higher-endurance model is required.

Points forts

  • 2 TB capacity supports large data sets
  • PCIe 5.0 interface delivers up to 14500 MBps sequential read
  • 176L TLC 3D NAND enables 3.1M random read IOPS
  • 3 DWPD endurance rating provides 17.5 PBW write life
  • E3.S 7.5 mm form factor fits dense server chassis

Caractéristiques

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PHA7E032T001
Form FactorE3.S 7.5mm
Capacity3.2TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 8200 MBps
4KB Random Read3100000 IOPS (4K Blocks)
4KB Random Write716000 IOPS (4K Blocks)
Endurance3 DWPD / 17.5 PBW
MTBF2,500,000 hours
Power Consumption (Idle)5W
Power Consumption (Active)19W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Poids d’expédition0.17 kg
Dimensions du colis140 × 110 × 17 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the PCIe 5.0 x4 interface run at full speed if my server backplane only supports PCIe 4.0?

The drive negotiates down to PCIe 4.0 speeds automatically, but sequential reads drop from 14500 MBps to the 4.0 lane limit while random IOPS stay near 3100000 read and 716000 write.

Which SMART attributes should I watch to confirm the 3.2TB D7-PS1030 is healthy after installation?

Monitor Media and Data Integrity Errors, Percentage Used and Available Spare; values should remain at zero errors and above the 3 DWPD endurance threshold during the first 17.5 PBW of writes.

Does the E3.S 7.5mm single pack include a heatsink or mounting screws for a 1U chassis?

The single pack contains only the 110g drive; any E3.S heatsink, retention clip or screw kit must be sourced separately from your server vendor.
